Description

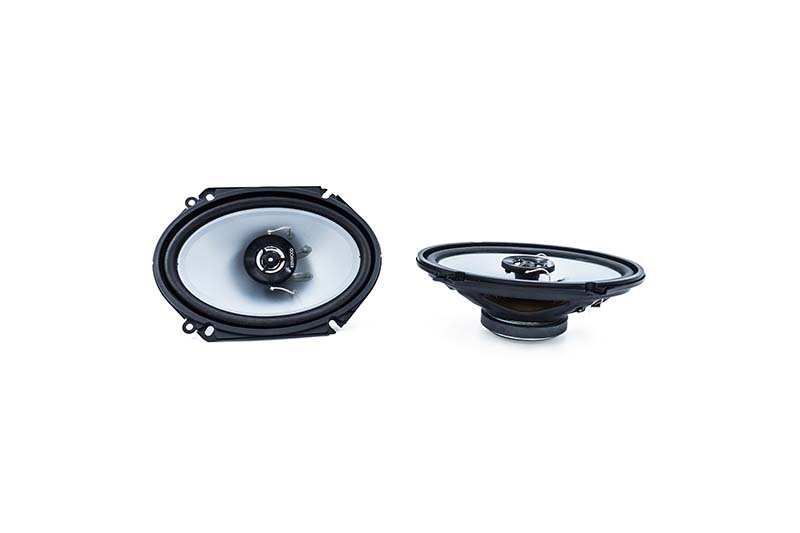

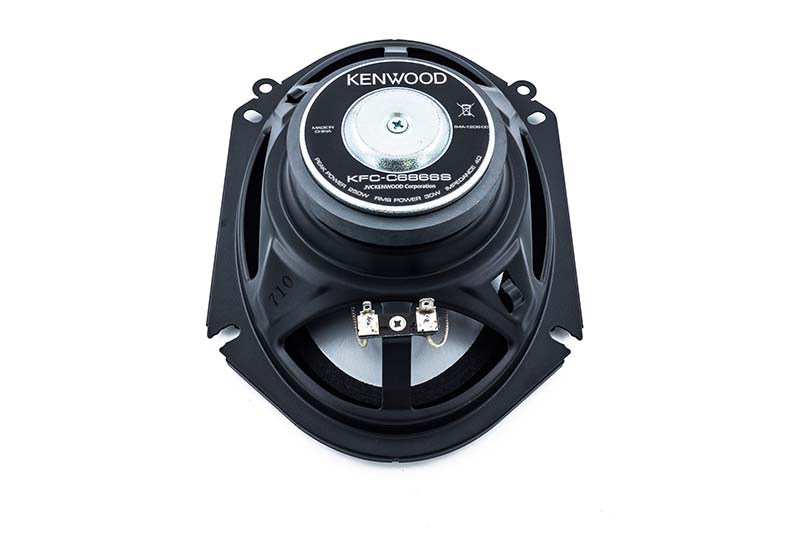

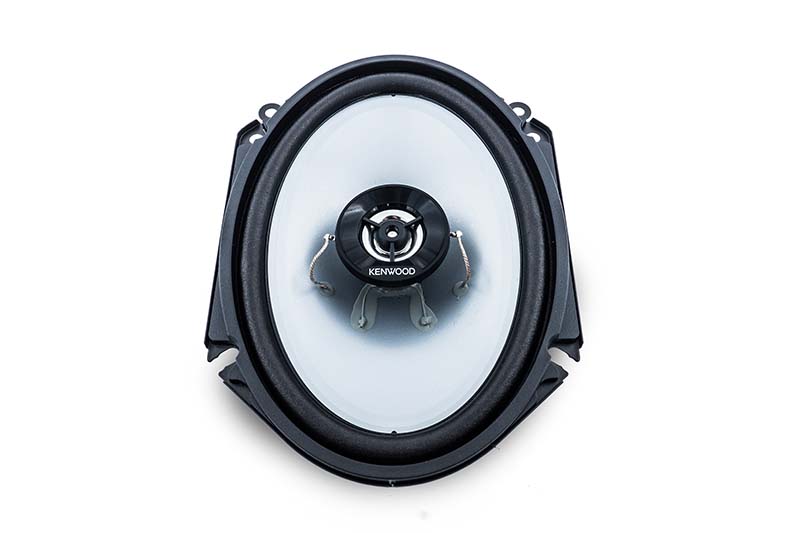

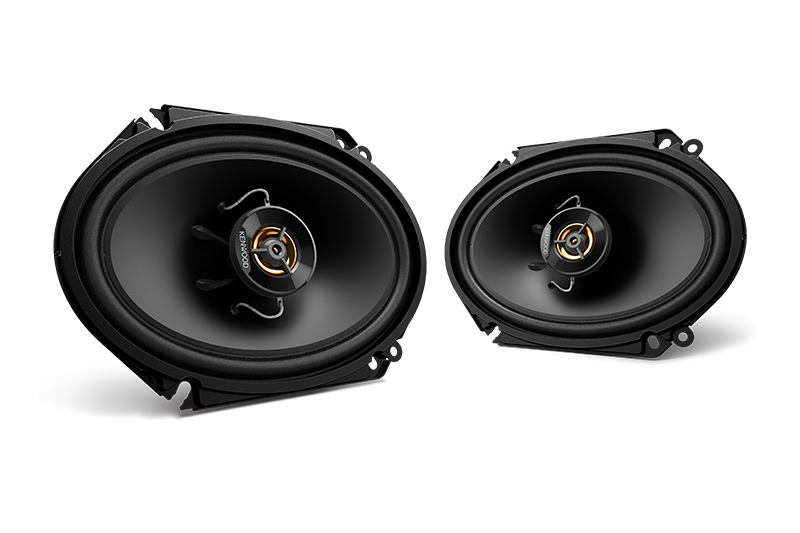

Kenwood KFC-C6866S
The Kenwood KFC-C6866S is a 6×8 inch 2-way coaxial car speaker system designed for factory upgrade installations. It provides a strong balance of midrange clarity, crisp highs, and improved overall loudness compared to stock speakers. Its 6×8 size makes it suitable for many Ford, Mazda, and other vehicles that support oval speaker fittings, delivering a clean and detailed sound upgrade without complex modifications.
Specification
| Category | Parameter | Value |
|---|---|---|
| Electrical | Peak Input Power | 250 W |
| Electrical | Rated Input Power | 30 W |
| Electrical | Impedance | 4 ohms |
| Woofer | Woofer Size | 6 × 8 inch |
| Woofer | Woofer Material | PP Cone |
| Tweeter | Tweeter Type | 1 inch PEI Balanced Dome |
| Specifications | Sensitivity | 90 dB / W / m |
| Specifications | Frequency Response | 40 Hz – 22 kHz |
| Dimension | Cutout Diameter | 5-1/16 inch, 7-3/8 inch |
| Dimension | Mounting Depth | 2-5/16 inch |
| Weight | Gross Weight | 3.1 lbs |
| Weight | Woofer Magnet Weight | 0.49 lbs |
| Category | Parameter | Metric | Imperial / Details |
|---|---|---|---|
| Electrical | Impedance | 4 Ω | — |
| Electrical | Peak Input Power | 250 W | — |
| Electrical | RMS Input Power | 30 W | — |
| Electrical | Sensitivity | 90 dB / W @ 1m | — |
| Electrical | Frequency Response | 40 – 22,000 Hz | — |
| Woofer | Diaphragm | PP (Silver) | — |
| Woofer | Size | 145 × 204 mm | 6 × 8 in |
| Woofer | Surround | Cloth | — |
| Woofer | Magnet | Ferrite (φ80×t10) | — |
| Tweeter | Diaphragm | Balanced Dome (Silver) | — |
| Tweeter | Size | 25 mm | 1 in |
| Tweeter | Magnet | Neodymium | — |
| Dimension | Width | 203.7 mm | 8 in |
| Dimension | Height | 145.0 mm | 5-11/16 in |
| Dimension | Cutout Size | 129 × 187 mm | 5-1/16 × 7-3/8 in |
| Dimension | Tweeter Height | 8 mm | 5/16 in |
| Dimension | Mounting Depth | 60 mm | 2-3/8 in |
| Weight | Speaker Weight (per pc) | 671 g | 1.5 lbs |
| Weight | Woofer Magnet Weight | 220 g | 7.8 oz |
| Weight | Gross Weight | 1390 g | 3.1 lbs |
| Accessory | Screw Set | φ4×25 (8 pcs) | Tapping screws |
| Accessory | Speaker Cord | 0.3 m × 2 pcs | — |
| Accessory | Warranty Card | 1 pc | — |
