Description

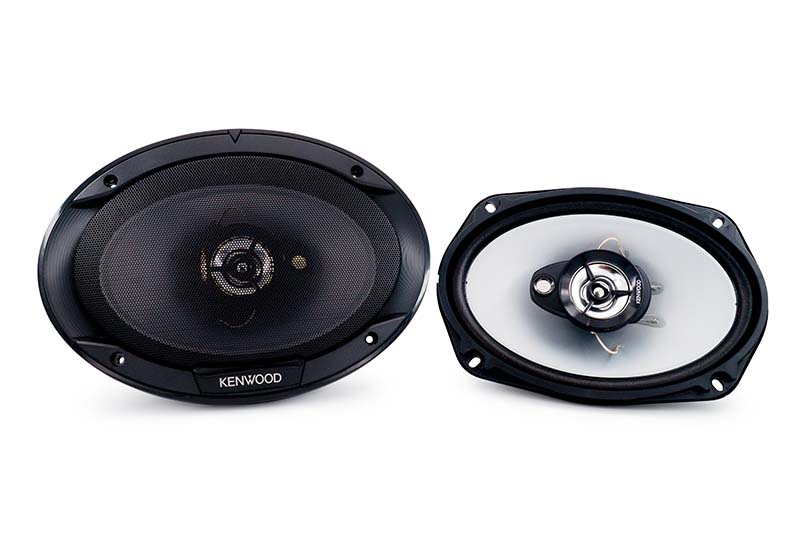

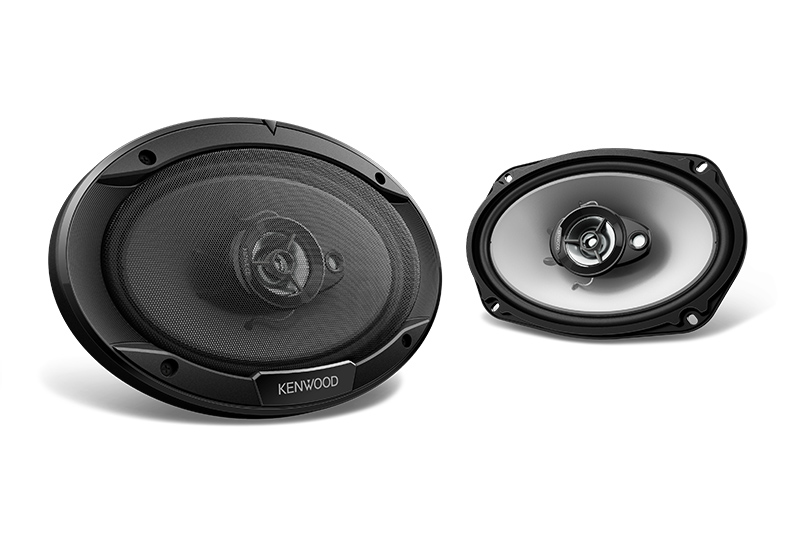

Kenwood KFC-6966S
The Kenwood KFC-6966S is a 6×9 inch 2-way coaxial car speaker system designed for high-performance factory upgrades. It delivers powerful sound output with deep bass response, clear midrange, and sharp high frequencies. This model is ideal for rear deck installations in sedans and hatchbacks, providing a noticeable improvement in loudness and overall audio clarity compared to stock speakers.
Specification
| Category | Parameter | Value |
|---|---|---|
| Electrical | Peak Input Power | 400 W |
| Electrical | Rated Input Power | 45 W |
| Electrical | Impedance | 4 ohms |
| Woofer | Woofer Size | 6 × 9 inch |
| Woofer | Woofer Material | PP Cone |
| Tweeter | Tweeter Type | 2 inch PEI Balanced Dome |
| Super Tweeter | Super Tweeter Type | 1/2 inch Ceramic Tweeter |
| Specifications | Sensitivity | 91 dB / W / m |
| Specifications | Frequency Response | 35 Hz – 20 kHz |
| Dimension | Cutout Diameter | 6-1/16 inch, 8-3/4 inch |
| Dimension | Mounting Depth | 3 inch |
| Weight | Gross Weight | 4.1 lbs |
| Weight | Woofer Magnet Weight | 0.49 lbs |
| Electrical | ||
|---|---|---|
| Impedance (Ω) | 4Ω | |
| Peak Input Power (W) | 400W | |
| RMS Input Power (W) | 45W | |
| Sensitivity (dB at 1m) | 91dB | |
| Frequency Response (Hz) | 35-20000Hz | |
| Woofer | ||
| Diaphragm | PP | Silver |
| Size | 153x299mm | 6x9in |
| Surround | Cloth | |
| Magnet | Ferrite | φ80xt10 |

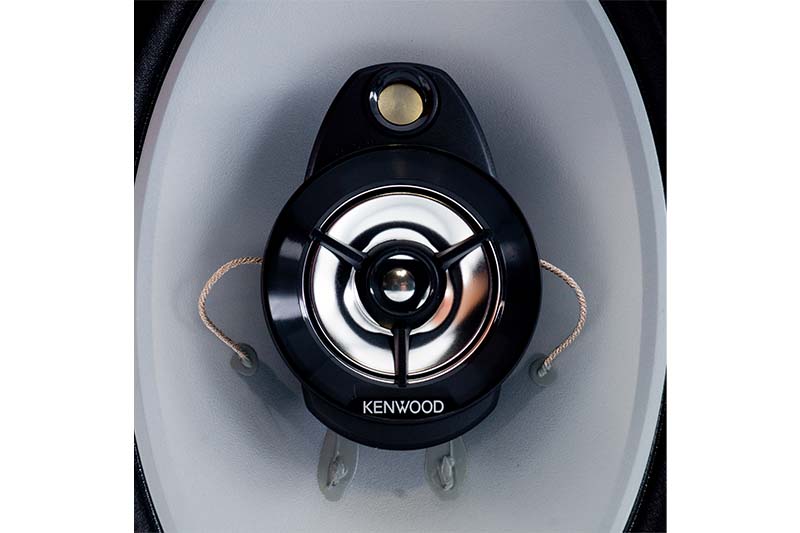

| Tweeter | ||
| Diaphragm | Cone | Silver |
| Size | 50mm | 2 in. |
| Magnet Material | Ferrite | |
| Super Tweeter | ||
| Diaphragm | Cermic | Silver |
| Size | 12mm | 1/2 inch |
| Dimension | ||
| Width (w_Gr) | 268 mm | 10-9/16 in. |
| Width (w/o_Gr) | 235 mm | 9-1/4 in. |
| Height (w_Gr) | 193 mm | 7-5/8 in. |
| Height (w/o_Gr) | 164 mm | 6-7/16 in. |
| Cutout Diameter | 154ｘ222 mm | 6-1/16ｘ8-3/4 in. |
| Tweeter Height | 11.5 mm | 7/16 in. |
| Mounting Depth | 76.8 mm | 3 in. |
| Weight | ||
| witho Grille (pc.) | 908 g | 2.0 lbs. |
| without Grille (pc.) | 796 g | 1.8 lbs. |
| Weight of Woofer Magnet | 220 g | 7.8 oz. |
| Gross Weight | 1870 g | 4.1 lbs. |

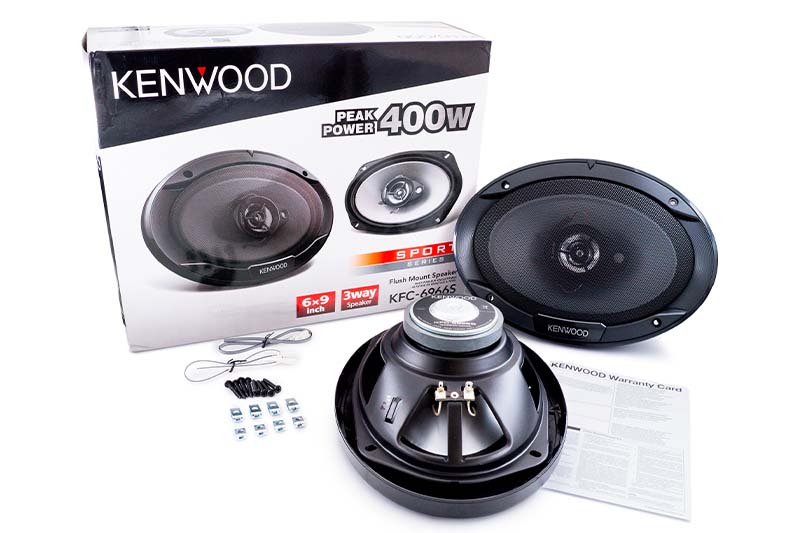

| Accessory | ||
| Grille Assy | 2pcs | |
| Screw sets | Tapping Screw | φ4×30*8pcs |
| Speed Nut | 8pcs | |
| Speaker Cord | 0.3m*2pcs | |
| Warranty Card | 1pcs | |
