Description

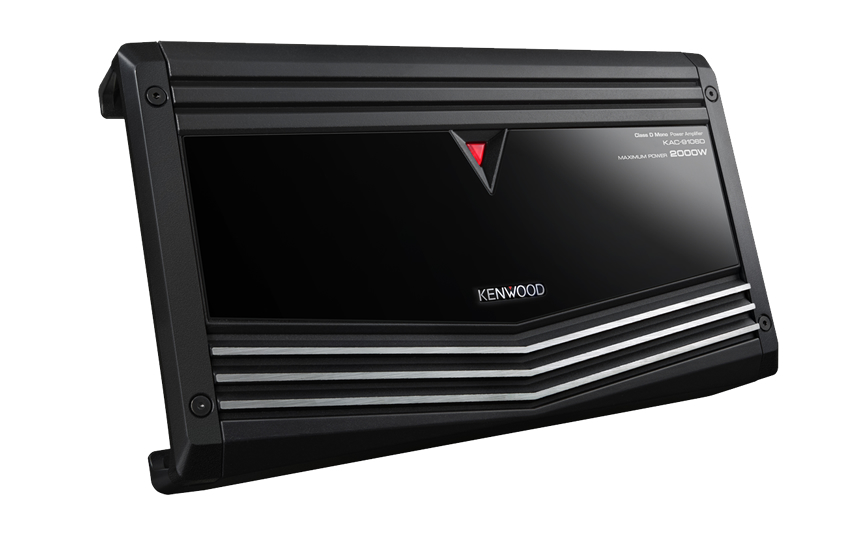

Kenwood KAC-9106D
Specifications
| Title | Class D Mono Power Amplifier | |
|---|---|---|
| Amplifier Type | Class D | |
| CTA-2006-D Value | Maximum Dynamic Power | 600W at 4ohms and ≤ 10% THD + N |
| Continuous Power Output | 500W at 4ohms and ≤ 1% THD + N | |
| Signal to Noise | 76dBA reference 1 Watt RMS | |
| Maximum Power Output | MAX POWER | 2000W |
| Power Output | Rated Power at 14.4V | 500Watts RMS x [ch] (4 Ohms, 20-200Hz, ≤1.0% THD) 1000Watts RMS x [ch] (2 Ohms, 100Hz, ≤1.0% THD) |
| Specifications | Signal to Noise Ratio | 100dB (Reference: Rated Power into 4Ohms at 14.4V) |
| Frequency Response | 20Hz-200Hz (+0dB, -3dB) Class D |
|
| Input Impedance | 10k ohm | |
| Speaker Impedance | 4Ω (2Ω to 8Ω allowable) | |

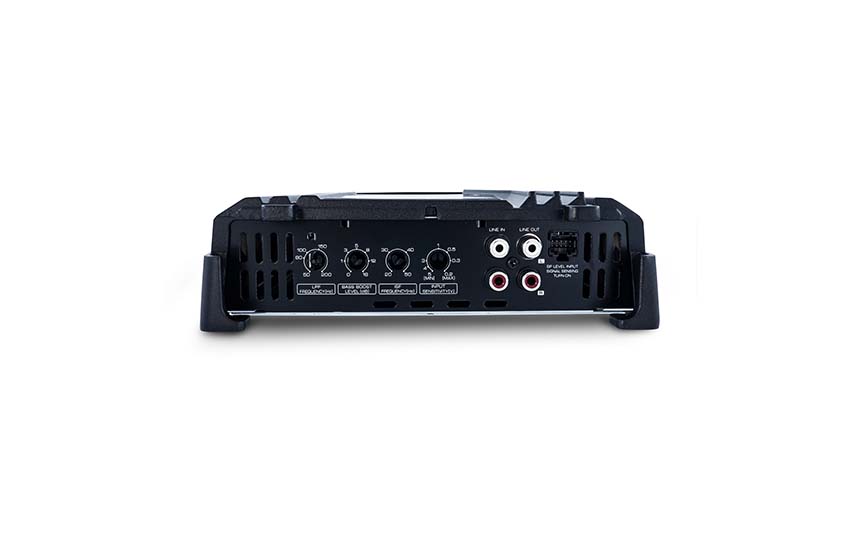

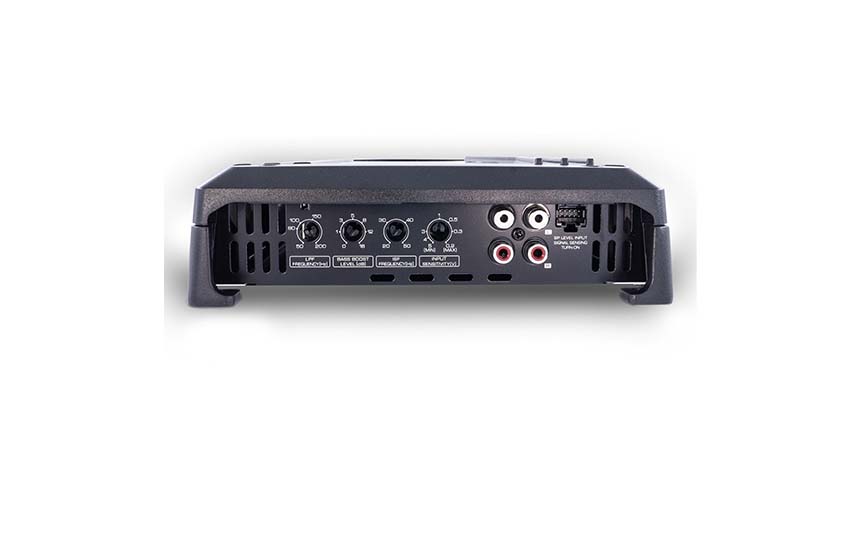

| Audio Section | Low-Pass Filter | Built in Variable Low-Pass Filter (50Hz-200Hz, -24dB/oct) |
| Infrasonic Filter | Built in Variable Infrasonic Filter (20Hz-50Hz, -24dB/oct) | |
| Bass Boost | Built in Bass Boost Control (40Hz, 0dB-+18dB) | |
| RCA Input Sensitivity | 0.2[V] – 5.0 [V] | |
| Speaker Level Input Sensitivity | 4.0[V] – 12.0 [V] | |

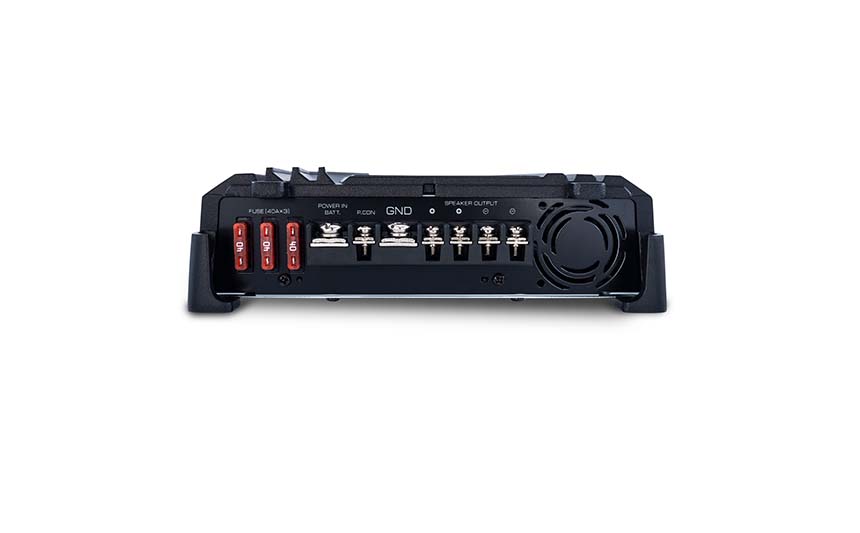

| Terminals | Battery & Ground | Screw Type Terminal Block (Ni) (M6) |
| Speaker Output | Screw Type Terminal Block (Ni) (M4) | |
| Line In | RCA (Ni) | |
| Line Out | RCA (Ni) | |
| Speaker Input | JST Connector | |
| General | Dimensions(WxHxD) | 335 [mm] x 56 [mm] x 192 [mm] 13-3/16 inch x 2-3/16 inch x 7-9/16 inch |
| Weight (kg) | 2.8 [kg] 6.2 [lbs] | |
| Operating Voltage | 14.4V（11-16V allowable） [V] | |
| Current Consumption | 65 [A] | |
| Key Features | CEA-2006 Compliant Class D 2 Ohms Load Capability Speaker Level Input Signal Sensing Turn-on Terminal Cover Power MOS-FET Switching Power Supply Cast Aluminum Heat Sink Design Line Output Terminals for Extension |
|
| Others | Triangle Indicator | |
