Description

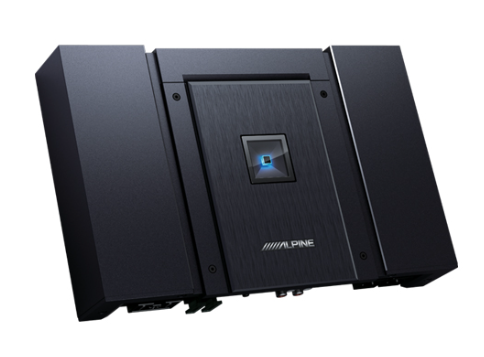

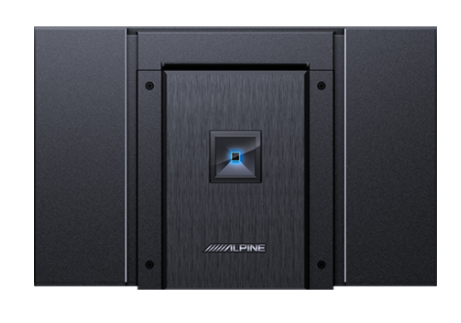

Alpine HDA-F60
The Alpine HDA-F60 is a Hi-Res Audio certified 4-channel amplifier designed to deliver high-fidelity sound in a compact form factor. It offers 100W RMS per channel at 4Ω and 150W RMS per channel at 2Ω, with a bridged output of 300W RMS per channel at 4Ω. The amplifier features a frequency response of 10–60kHz, ensuring accurate reproduction of high-resolution audio. Its Class D design provides efficient power output with minimal heat generation, while the copper-plated chassis and black circuit board enhance durability and signal clarity. Additional features include selectable input levels, variable high-pass and low-pass crossovers, and compatibility with remote bass knobs for convenient control.
Specifications
Features
| Feature |
Details / Notes |
| Hi-Res Audio Playback |
192kHz / 24-bit |
| Amplifier Type |
4-Channel |
| Circuit |
High-Efficiency Digital Circuit Design |
| Technology |
Alpine Dual Negative Feedback Control Circuit |
| Bandwidth |
High Bandwidth Amplifier |
| Class |
Alpine Premium Class-D Circuit Design |
| Chassis |
Copper-plated |
| PCB |
Black circuit board |

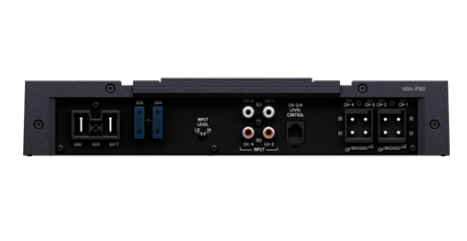

| Terminal Layout |
One-sided terminal layout |
| Top Panel Controls |
Yes (sound controls) |
| Terminals |
Quick-connect power + speaker terminals |
| Remote Bass Knob Support |
Compatible w/ RUX-KNOB.2 or RUX-H01 (optional, sold separately) |
Tech Specs
| Specification |
Details |
| Dimensions |
11.4375” x 7.5” x 2.125” |
| Power Rating |
(14.4V, ≤1.0% THD+N) |
| 4Ω Output |
100W x 4 |
| 2Ω Output |
150W x 4 |
| Bridged Output |
300W x 2 @ 4Ω |
| THD+N |
0.02% (10W into 4Ω) |
| S/N Ratio |
87dB (1W into 4Ω) |
| Frequency Response |
10–60kHz (-3dB) |
| Damping Factor |
500 |
| Selectable Input Level |
HI/LO |
| Selectable Input Channels |
2/4ch |
| Variable Crossover |
High pass / Low pass |
| Auto-Turn On |
With remote sensing |
About The Product
Superior Sound
Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status System features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24Bit playback.
Impressive Output
Powering a Hi-Res sound system without contributing noise during playback requires efficiency and precision and the HDA-F60 was intentionally designed to provide impressive power output to the system while ensuring the purest audio performance. The amplifier’s wide dynamic range capability provides impressive output in a compact chassis that fits most vehicle applications.
