Description

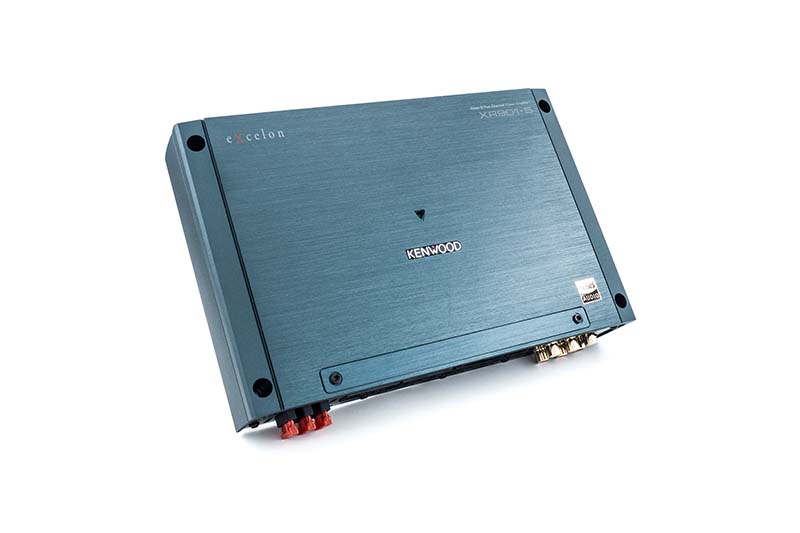

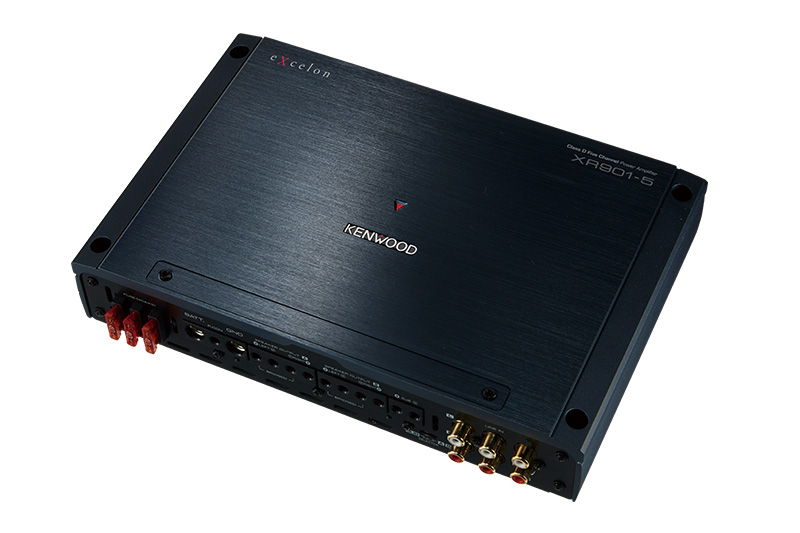

Kenwood eXcelon XR901-5

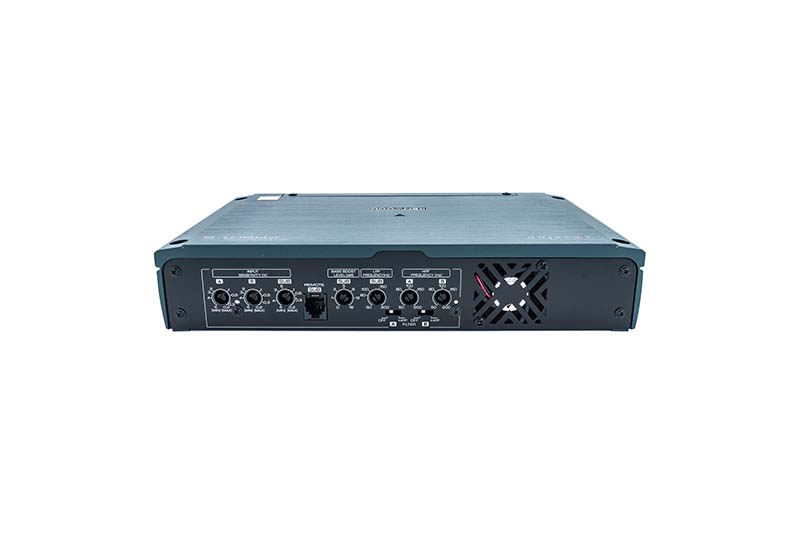

The Kenwood XR901-5 is a high-performance 5-channel Class D car amplifier designed for complete audio system setups, including speakers and subwoofers. It delivers 60W RMS x4 for speakers and 400W RMS (4Ω) / up to 600W RMS (2Ω) for subwoofer output, making it a powerful all-in-one solution. Its advanced Class D design ensures high efficiency, low heat, and clean sound with minimal distortion. It also features variable crossover controls, bass boost, and a wired remote for subwoofer level adjustment, making tuning easy and precise.
Specifications
| Specification | Details |
|---|---|
| Model | XR901-5 |
| CTA-2006-D Value | Maximum Dynamic Power: 70W x4 + 500W x1 at 4Ω and ≤ 10% THD + N |
| Continuous Power Output | 60W x4 + 400W x1 at 4Ω and ≤ 1% THD + N |
| Signal to Noise | 79 dBA x4, 78 dBA x1 (reference 1 Watt RMS) |
| Max Power Output | – |
| Rated Power Output (14.4V) | 60W x4 / 400W x1 (4Ω, 20Hz–20kHz / 20Hz–200Hz, 1.0% THD) |
| 75W x4 / 600W x1 (2Ω, 1kHz / 100Hz, 1.0% THD) | |
| Frequency Response | 20 Hz – 20 kHz (±1 dB) |
| Input Sensitivity | 0.2 V – 5.0 V (Min–Max) |
| Input Impedance | 10 kΩ |
| Signal to Noise Ratio | 100 dB |
| Low Pass Filter Frequency | 50 Hz – 200 Hz (variable, -24 dB/oct) |
| High Pass Filter Frequency | 50 Hz – 200 Hz (variable, -12 dB/oct) |
| Dimensions (W × H × D) | 260 × 51 × 169 mm (10-1/4 × 2 × 6-5/8 in) |
