Description

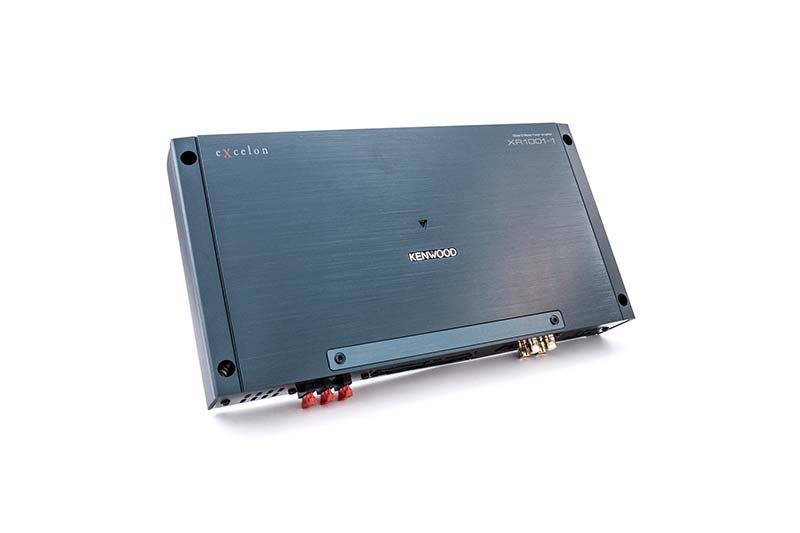

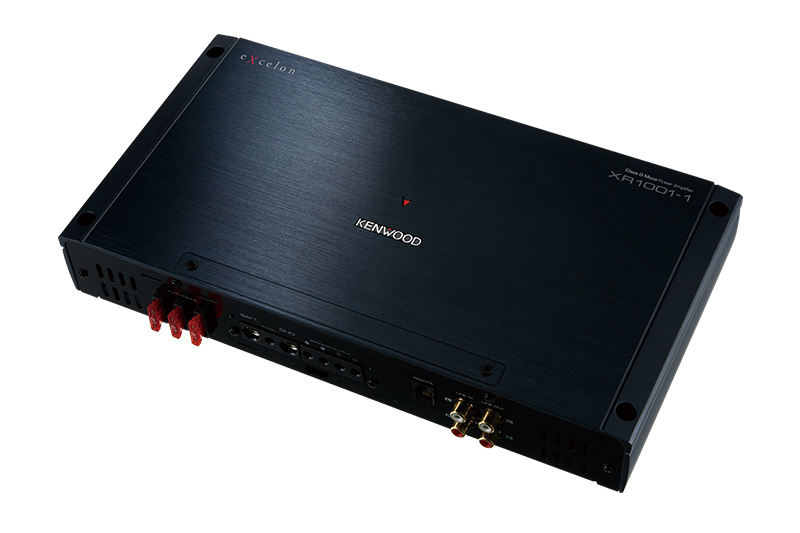

Kenwood eXcelon XR1001-1
The Kenwood XR1001-1 is a high-power mono Class D car amplifier designed for serious subwoofer performance. It delivers 500W RMS at 4 ohms and up to 1000W RMS at 2 ohms, making it ideal for powerful bass systems. Its compact and efficient design reduces heat while maintaining strong output and clean sound. The amplifier includes advanced features like variable low-pass filter, infrasonic filter, bass boost control, and wired remote level control for precise subwoofer tuning. Built for high-end car audio setups, it ensures deep, controlled, and distortion-free bass performance.
Specifications
| Specification | Details |
|---|---|
| Title | Class D Mono Power Amplifier |
| Amplifier Type | Class D |
| Series | eXcelon |
| CTA-2006-D Value | Maximum Dynamic Power: 600W at 4Ω and ≤ 10% THD + N |
| Continuous Power Output: 500W at 4Ω and ≤ 1% THD + N | |
| Signal to Noise (CTA) | 85 dBA reference 1 Watt RMS |
| Maximum Power Output | 2000W |
| Rated Power Output (14.4V) | 500W RMS × 1 (4Ω, 20–200Hz, ≤1.0% THD) |
| 1000W RMS × 1 (2Ω, 100Hz, ≤1.0% THD) | |
| Signal to Noise Ratio | 100 dB (reference: rated power into 4Ω at 14.4V) |
| Frequency Response | 20 Hz – 200 Hz (+0 dB, -3 dB) |
| Input Impedance | 10 kΩ |
| Speaker Impedance | 4Ω bridged (2Ω–8Ω allowable) |
| Low-Pass Filter | 50 Hz – 200 Hz, variable (-12 / -24 dB/oct) |
| Infrasonic Filter | 15 Hz – 40 Hz, variable (-24 dB/oct) |
| Bass Boost | 0 dB – +18 dB at 40 Hz |
| RCA Input Sensitivity | 0.2 V – 5.0 V |
| Speaker Level Input Sensitivity | 4.0 V – 12.0 V |
| Battery & Ground Terminal | XR Series type (supports 4 gauge, Ni) |
| P.CON Terminal | XR Series type (supports 8 gauge) |
| Speaker Output Terminal | XR Series type (supports 8 gauge) |
| Line In | RCA (gold plated) |
| Line Out | RCA (gold plated) |
| Speaker Input | RCA IN A Channel |
| Dimensions (W × H × D) | 320 × 51 × 169 mm (12-5/8 × 2 × 6-5/8 in) |
| Operating Voltage | 14.4V (11–16V allowable) |
| Current Consumption | 60 A |
| Key Features | CTA-2006 compliant, Class D, 2Ω load capability, Dual ΣDrive, speaker level input, signal sensing turn-on, terminal cover, cooling fan, MOS-FET power supply, aluminum heat sink, line output terminals |
| Other | Triangle indicator |
