Description

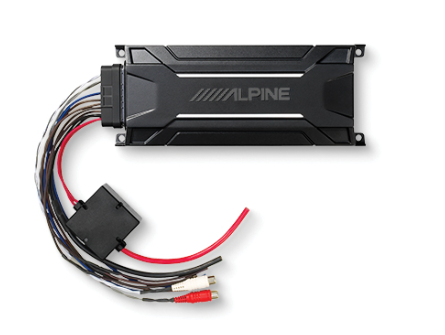

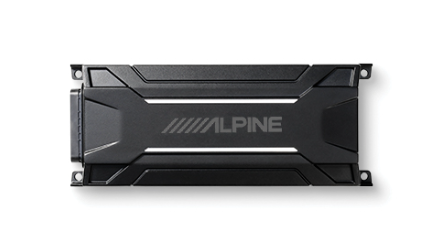

Alpine KTA-30MW
The Alpine KTA-30MW is a compact, weather-resistant mono amplifier designed for outdoor and powersports applications. It delivers 200 watts RMS at 4 ohms and 300 watts RMS at 2 ohms, utilizing Class D technology with Dynamic Peak Power (D.P.P.) for efficient performance. Its IP66 rating ensures protection against dust and high-pressure water, making it suitable for environments like boats, motorcycles, and side-by-sides.
Specifications
| Spec | Value / Details |
|---|---|
| Amplifier Circuit | Alpine Class D with Dynamic Peak Power (D.P.P.) |
| Weather Resistance | IP66 rated |
| CTA-2006-B Power Rating | 300W RMS x 1 @ 2Ω/4Ω, 14.4V, ≤1% THD+N |
| D.P.P. Power Output | 600W x 1 @ 2Ω/4Ω, 14.4V, ≤1% THD+N |
| Signal-to-Noise Ratio | 83 dB (ref. 1W into 4Ω) |
| THD+N | ≤0.1% |
| Connector | OEM-grade Tyco 26-pin with pigtail wire harness |
| Inputs | Speaker/RCA selectable; High range = 0.5–10V, Low range = 0.2–4V |
| Sound Controls | Built-in |
| Crossovers | Variable Low-Pass filter 50–400 Hz @ -24dB/Oct |
| Additional Settings | Input gain (variable), 2ch/4ch input selectable |
About The Product
A TOUGH MINI AMP THAT PACKS A PUNCH
Get big amp performance in a compact, resilient package. With Alpine’s exclusive technology, Dynamic Peak Power (D.P.P.), the KTA-30MW Weather Resistant Tough Power Pack delivers powerful bass output for subwoofers used in open cab vehicles and toys. This small and efficient amplifier can be installed with an aftermarket or factory head unit while adding up to 600 watts of D.P.P. power. Its weather resistance makes the KTA-30MW suitable for exposed installations like side-by-sides, boats, open-top vehicles, and motorcycle saddlebags.
DYNAMIC PEAK POWER
The KTA-30MW features Alpine’s exclusive Dynamic Peak Power (D.P.P.) technology which intelligently adjusts the gain to automatically adapt to musical needs. D.P.P. prevents the amplifier from clipping music signals by supplying up to double the power to support power-hungry, rhythmic peaks like snare drums, trumpets, or high-hat cymbals. During these dynamic passages, D.P.P. instantly delivers bursts of power and quickly rolls back down to maintain efficiency.
WEATHER RESISTANT FORMAT
The KTA-30MW is ready for your adventures. It is weather resistant, rated at IP66 for protection against dust ingress and high-pressure water spray. Its rugged chassis and high-quality waterproof connector allow for use in outdoor installations.
HALF THE SIZE OF OUR SMALLEST TRADITIONAL AMPLIFIERS
Measuring just 9-3/16” (W) x 1-5/8” (H) x 3-3/4” (D), the KTA-30MW’s small footprint lets it fit where most amplifiers won’t, like under the dash, in a glove compartment, a side-by-side, or a motorcycle saddlebag.
