Memphis PRX400.1V2

Name: Memphis PRX400.1V2
SKU: PRX400.1V2
Availability: InStock

SKU: PRX400.1V2

$249.95

Categories: 1 Channel Amplifiers, Amps & EQs, Car Amplifiers Tags: 2‑ohm Class D amplifier, Memphis 400W mono amp, Power Reference sub amp, PRX400.1V2

Description

400W RMS Class D Power Reference Series Monoblock Car Amplifier with Bass Remote

Features

Compact space saving design
Blue LED top Cover
Blue LED ground lighting
Extruded aluminum heatsink
18dB/octave butterworth crossovers
Variable crossovers
Variable EQ boost 0-12dB
Variable subsonic filter
Selectable amp turn on
Top mount controls hidden under panel

Description

Description

Memphis PRX400.1V2

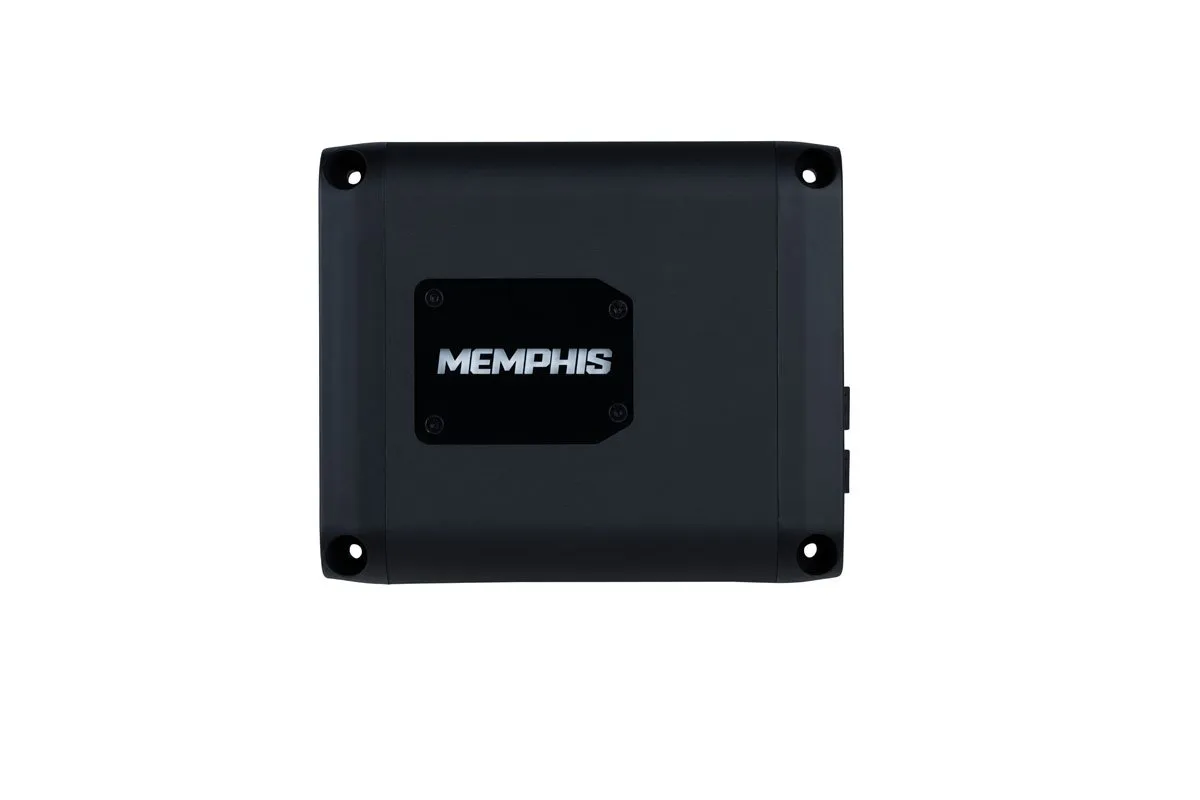

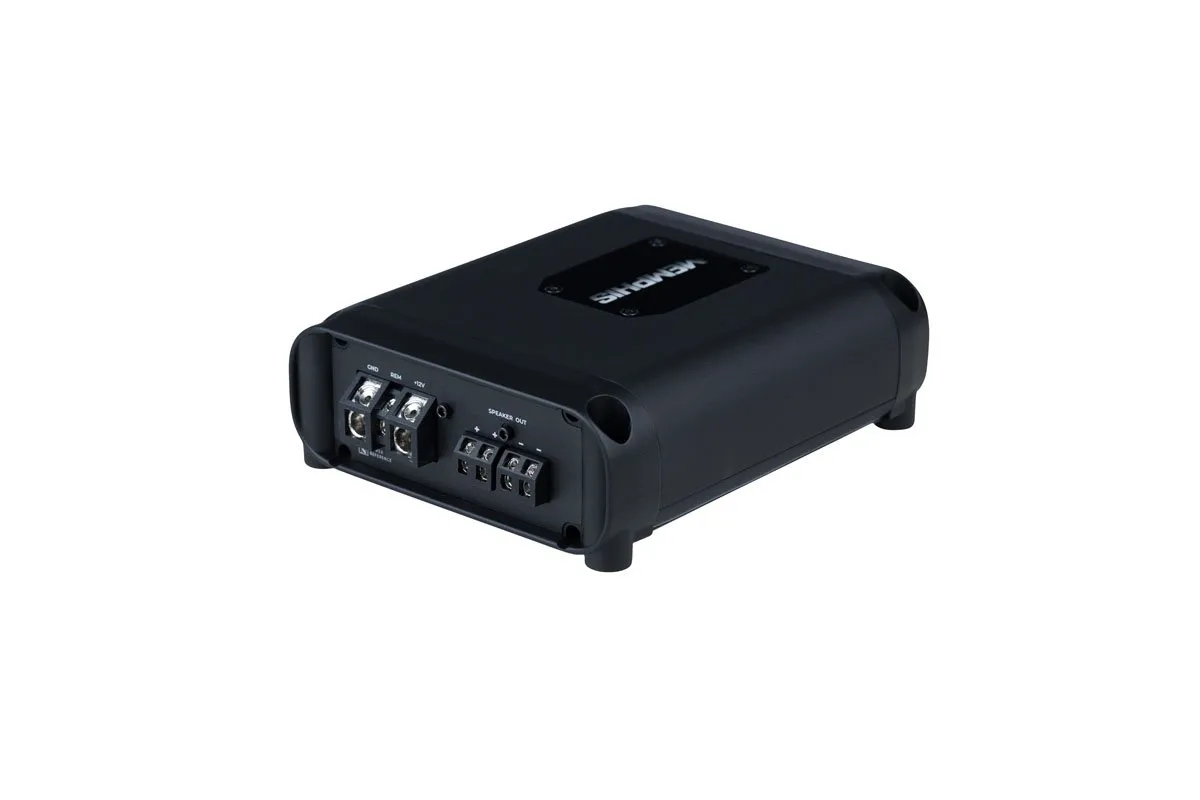

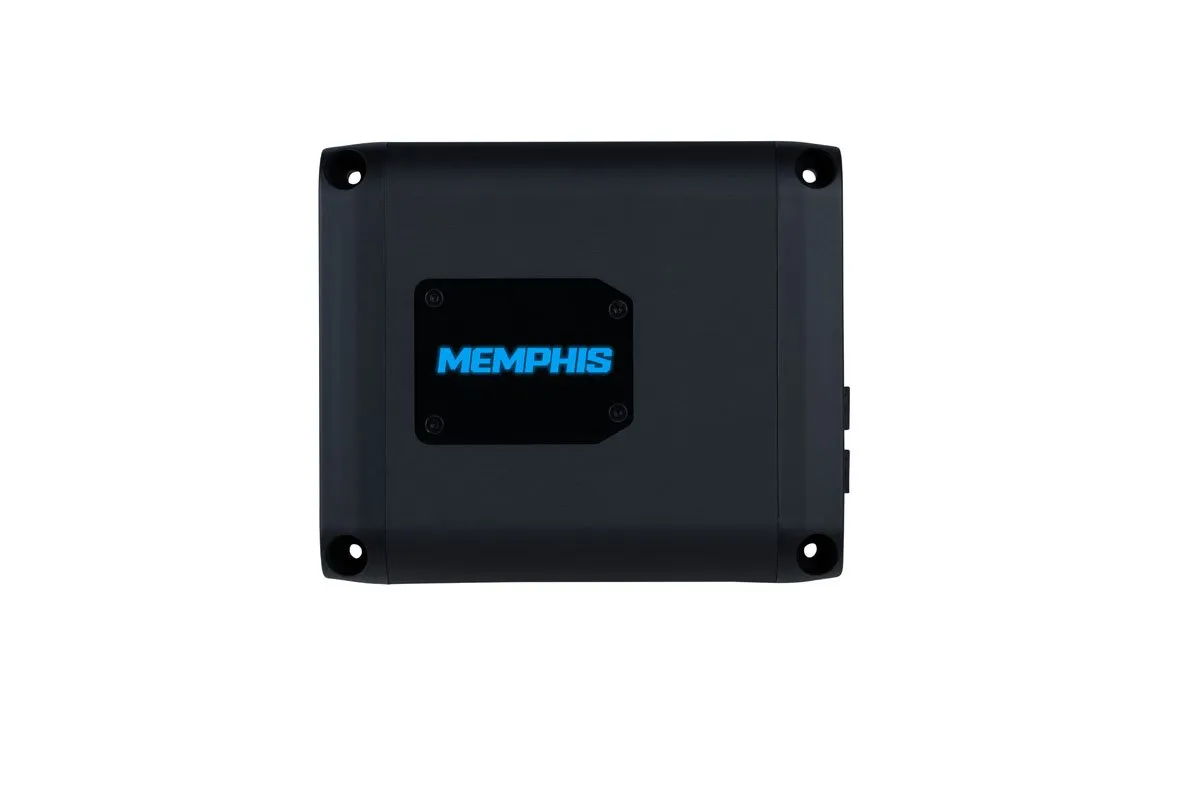

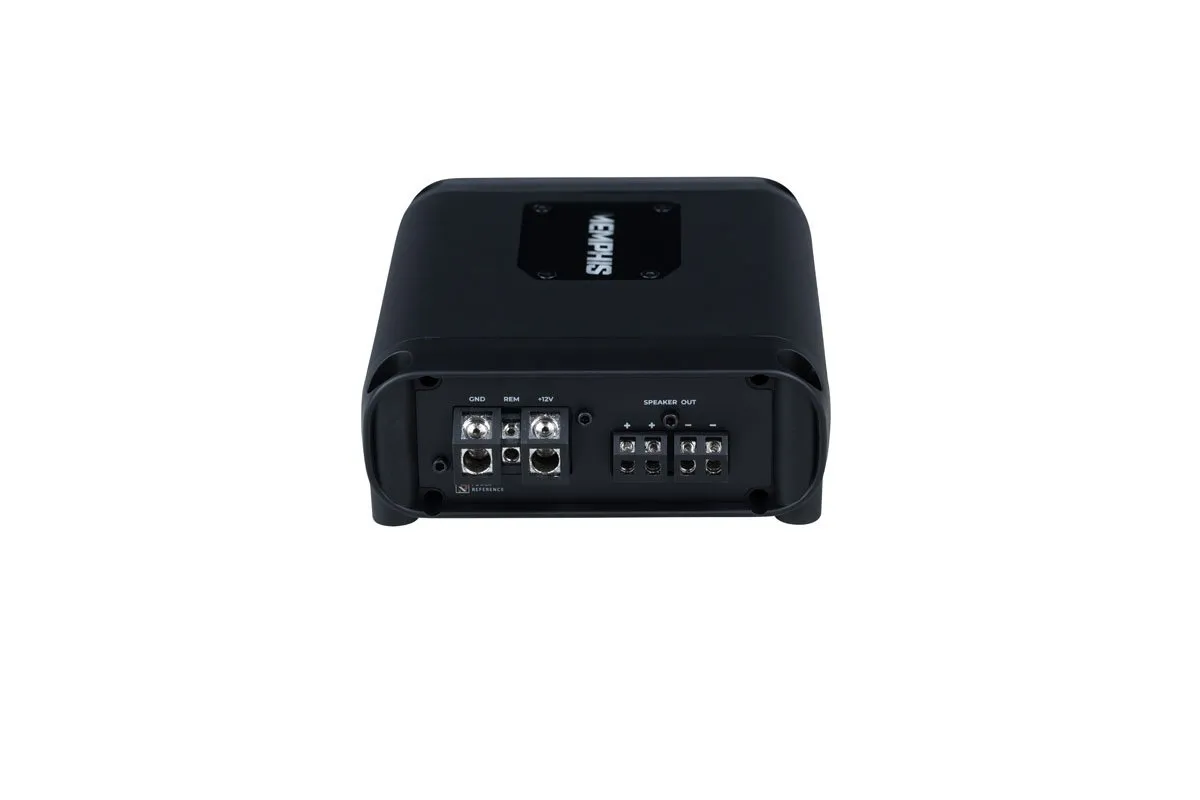

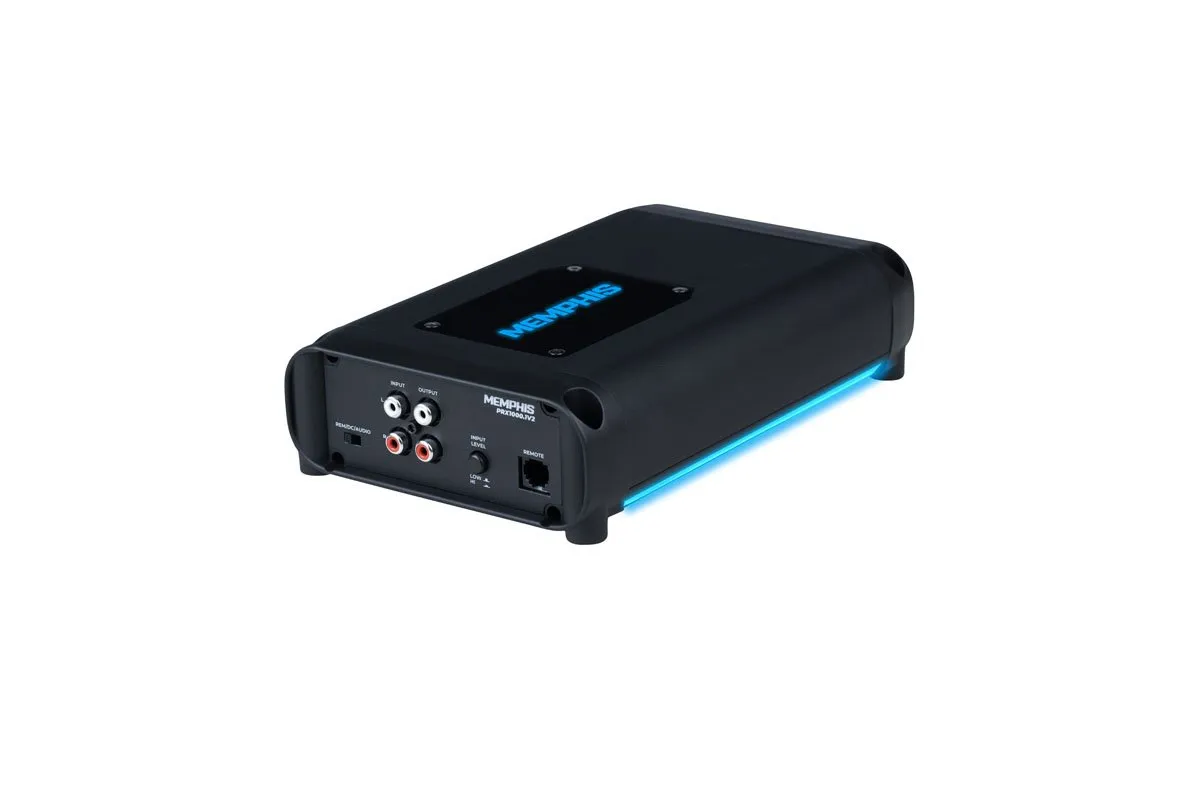

The PRX400.1V2 is a compact mono Class‑D subwoofer amplifier from Memphis Audio’s Power Reference V2 series. It combines high-output power with a space-saving design, featuring a blue LED-accented acrylic top panel, extruded aluminum heatsink, and top-mounted controls hidden under a removable cover for easy tuning in tight install locations. It includes variable 18 dB/oct Butterworth low-pass crossovers, a variable subsonic filter, and a 0–12 dB EQ bass boost for precise low-frequency control.

Specifications

Specification	Details
RMS Power 4Ω	230W x 1
RMS Power 2Ω	400W x 1
RMS Power 1Ω	600W x 1
THD % 4Ω	<1%
Frequency Response	10Hz–250Hz
Dimensions (in)	6.6 x 5.7 x 2.16
Recommended Amp Kit	8GKIT

Reviews

There are no reviews yet.

Be the first to review “Memphis PRX400.1V2”

Questions and Answers

Q1: What is the output power?

A1: 230 W RMS @ 4 Ω, and 400 W RMS @ 2 Ω.

Q2: What tuning / filter controls are available?

A2: It offers a variable low-pass crossover (50–250 Hz), a subsonic filter (10–50 Hz), and EQ bass boost (0–12 dB).

Q3: Does it include a remote bass/level control?

A3: Yes there is a wired remote level / bass knob included.

Q4: What is its frequency response?

A4: 10 Hz – 250 Hz.

Q5: What protection and turn-on features does it support?

A5: It has protection against overload, short circuit, thermal issues, and reverse polarity. It also supports signal-sensing “auto-turn on.”
