Memphis PRX800.1V2

Name: Memphis PRX800.1V2
SKU: PRX800.1V2
Availability: InStock

SKU: PRX800.1V2

$299.95

Categories: 1 Channel Amplifiers, Amps & EQs, Car Amplifiers Tags: 1‑ohm Class D, Memphis 800W mono amp, Power Reference sub amp, PRX800.1V2

Description

800W RMS Class D Power Reference Series Monoblock Car Amplifier with Bass Remote

Features

Compact space saving design

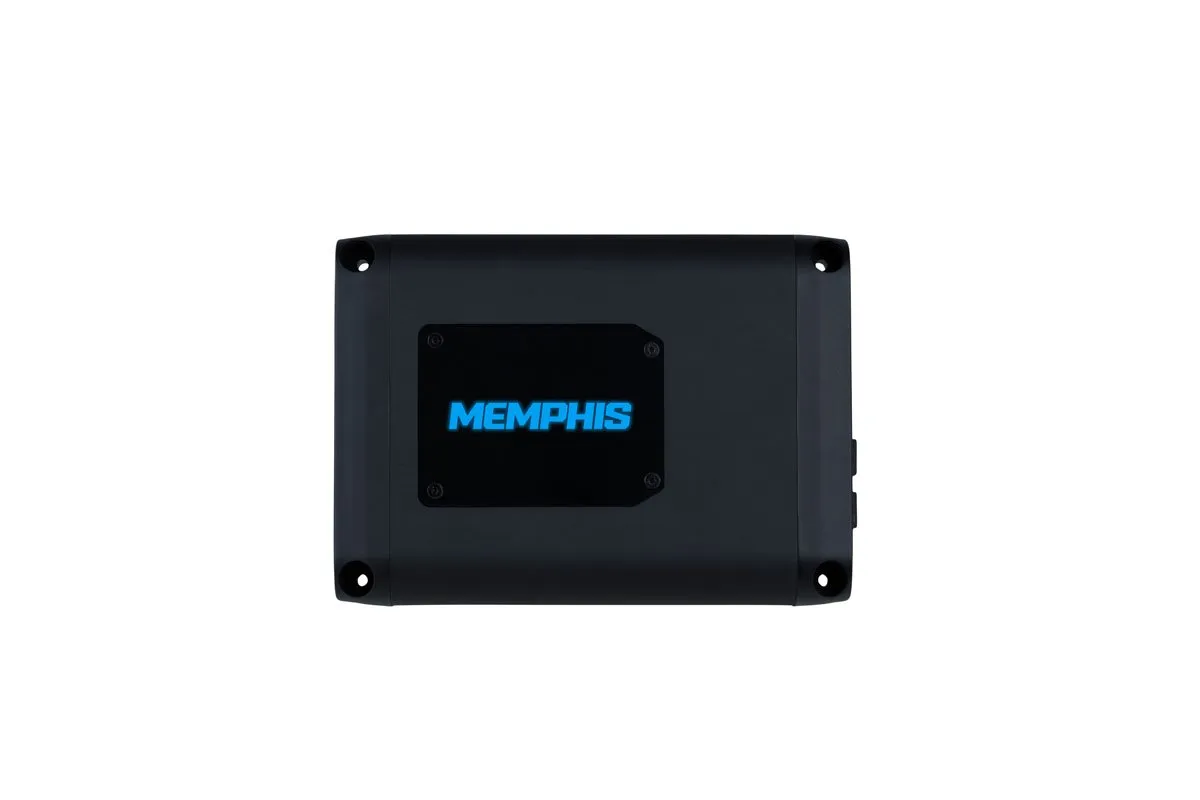

Blue LED top Cover
Blue LED ground lighting
Extruded aluminum heatsink
18dB/octave butterworth crossovers
Variable crossovers
Variable subsonic filter
Variable EQ boost 0-12dB
Selectable amp turn on

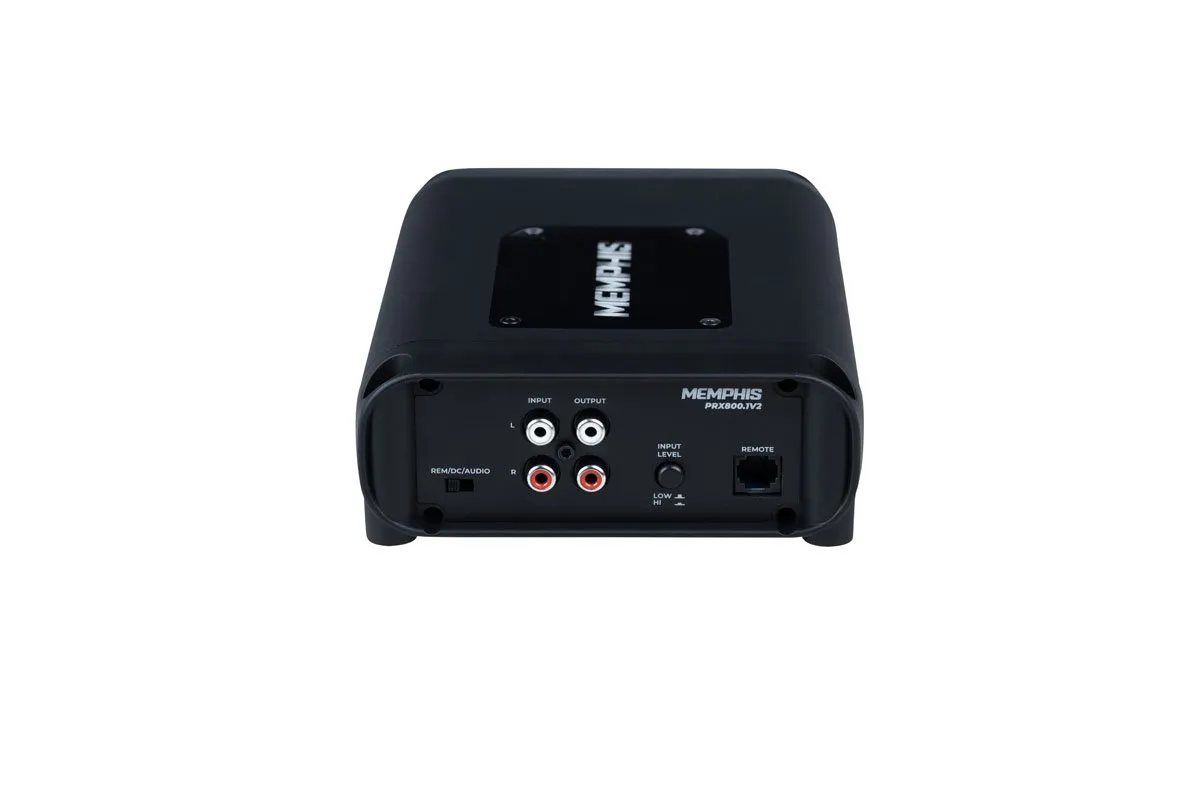

Top mount controls hidden under panel

Description

Description

Memphis PRX800.1V2

The PRX800.1V2 is a mono Class‑D Power Reference amplifier designed for subwoofer systems, combining a compact footprint with high power output. It features a blue LED-accented acrylic top cover, undermount LED ground lighting, and hidden top-mounted controls for tuning even in tight spaces. The amp offers variable 18 dB/octave Butterworth low‑pass and subsonic filters, a variable EQ boost (0–12 dB), selectable turn-on modes, and a rugged extruded aluminum heatsink for efficient cooling.

Specifications

Specification	Details
RMS Power 4Ω	300W x 1
RMS Power 2Ω	500W x 1
RMS Power 1Ω	800W x 1
THD % 4Ω	<1%
Frequency Response	10Hz–250Hz
Dimensions (in)	7.8 x 5.7 x 2.16
Recommended Amp Kit	4GKIT

Reviews

There are no reviews yet.

Be the first to review “Memphis PRX800.1V2”

Questions and Answers

Q1: What are the power ratings at different impedances?

A1: 300 W RMS @ 4 Ω, 500 W RMS @ 2 Ω, 800 W RMS @ 1 Ω.

Q2: What kinds of filters and boost does it have?

A2: Variable low-pass filter (50–250 Hz, 18 dB/octave), subsonic filter (10–50 Hz), and EQ bass boost (0–12 dB).

Q3: Is there a remote bass/level controller included?

A3: Yes, it includes a wired remote control knob.

Q4: What is the frequency response?

A4: 10 Hz – 250 Hz.

Q5: What protection features does this amp support?

A5: It has protection against overload, thermal shutdown, short circuits, and reverse polarity.
