Description

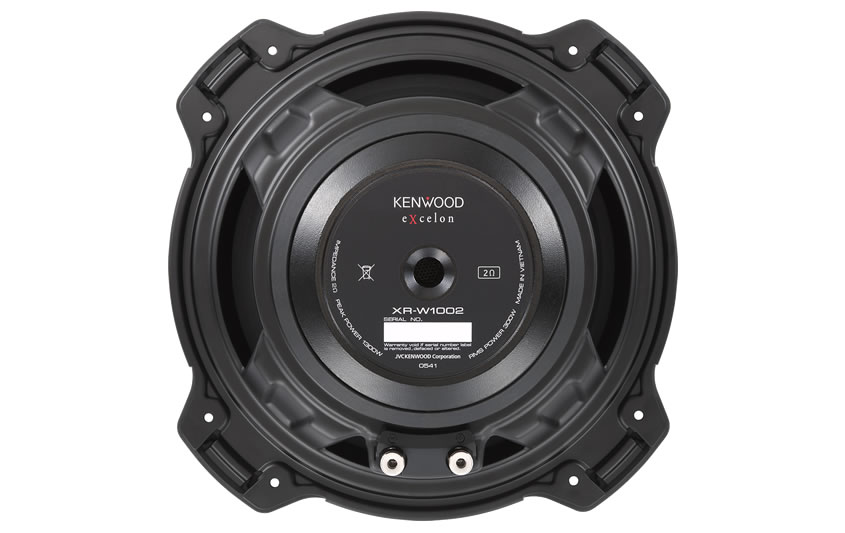

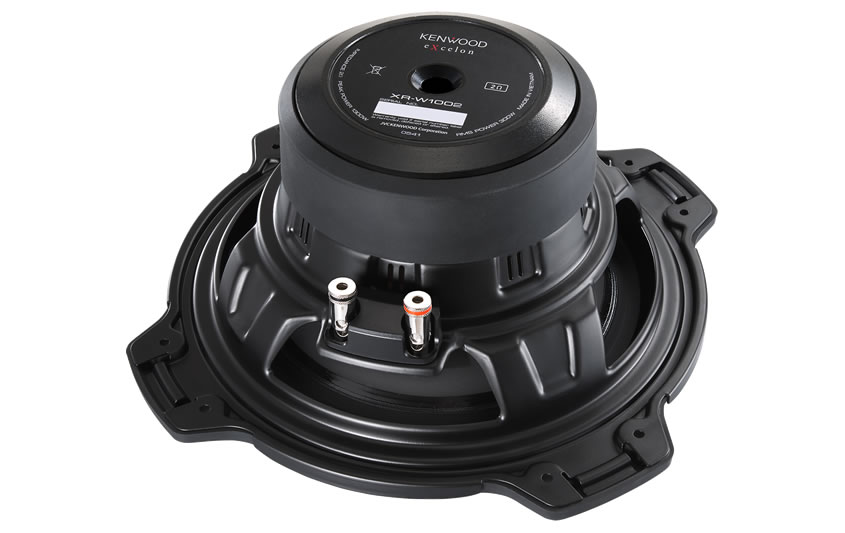

Kenwood eXcelon XR-W1002(2Ω)
The Kenwood XR-W1002 (2Ω) is a high-performance 10-inch oversized eXcelon subwoofer designed for deep, tight, and powerful bass reproduction in car audio systems. It features a large polypropylene cone, reinforced rubber surround, and a strong magnetic circuit that delivers accurate low-frequency response with minimal distortion. With 300W RMS and up to 1300W peak power handling, it is built for small sealed enclosures where space is limited but strong bass output is required. Its dual ventilation system improves cooling and long-term durability, making it suitable for high-quality daily listening and performance setups.
Specifications
| Category | Specification | Details |
|---|---|---|
| Model Name | XR-W1002 | – |
| Woofer Size | 25 cm (Over sized 10″) | – |
| Diaphragm | PP Cone | Gray |
| Surround | Rubber | Black |
| Basket | Steel | Black |
| Magnet | Ferrite | φ140 × t16 × 2 pcs |
| Dimensions (Woofer Unit) | Width | 10-13/16 in |
| Height | 10-13/16 in | |
| Cutout Diameter | 9-1/8 in | |
| Depth | 5-5/8 in | |
| Mounting Depth | 4-13/16 in | |
| Weight | Woofer (each) | 11.5 lb (5.2 kg) |
| Gross Weight | 13.5 lb (6.1 kg) | |
| Impedance | Nominal | 2 Ω |
| Power Handling | Peak Power | 1300 W |
| RMS Power (CEA spec) | 300 W | |
| Sensitivity | 80 dB (1W/1m) | – |
| Frequency Response | 31 Hz – 300 Hz | – |
| Accessories | Screw Set | φ4 × 35 mm, 8 pcs |
| Cushion | 1 pc | |
| Warranty Card | 1 pc | |
| Special Features | Ventilation | Dual ventilation system |
| Cone | Oversized cone | |
| Damper | Stress-free damper | |
| Terminal | 8 AWG push terminal | |
| Magnet Cover | Rubber |
