Description

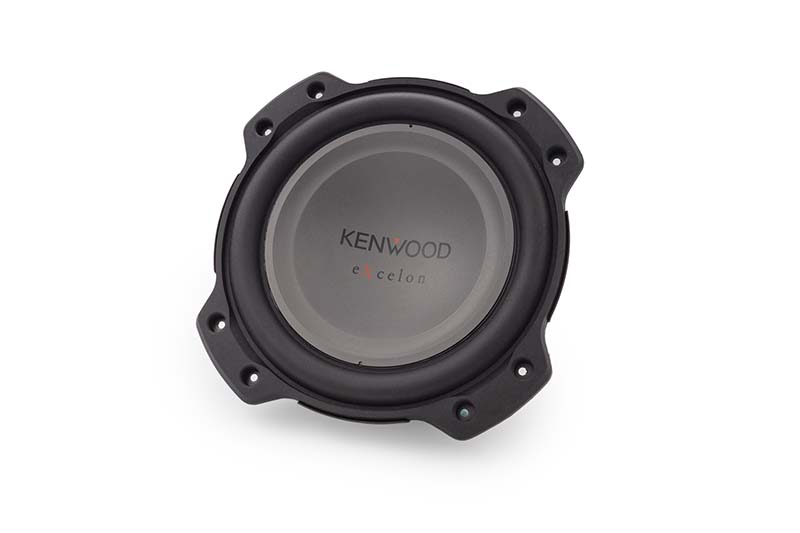

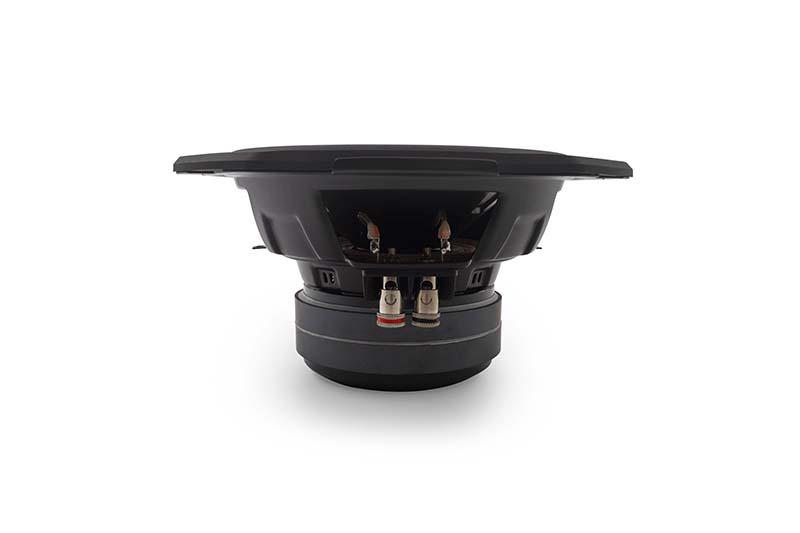

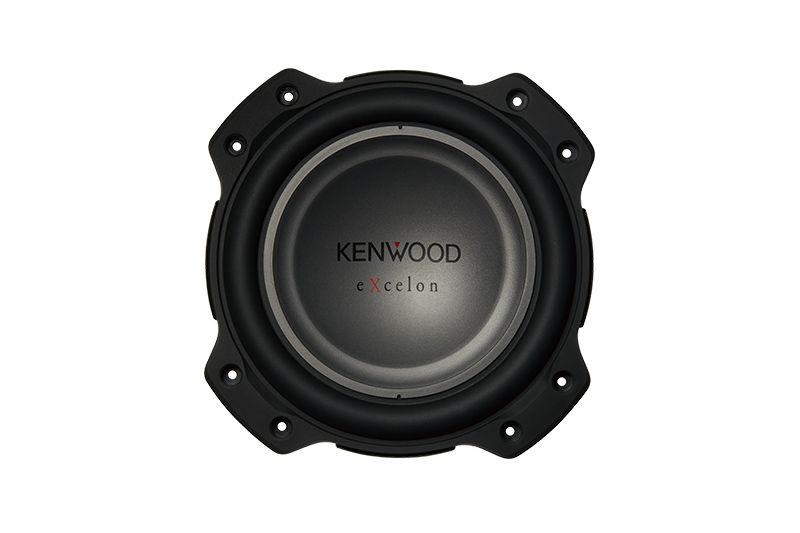

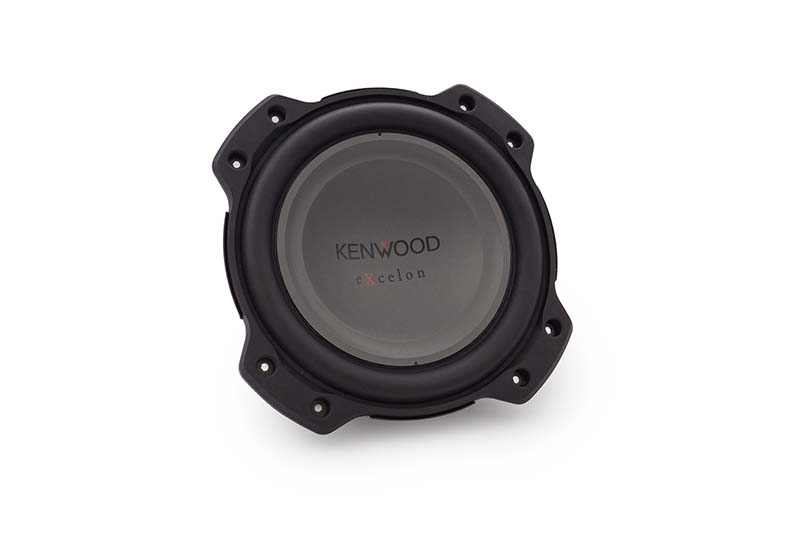

Kenwood eXcelon XR-W804
The Kenwood XR-W804 is an 8-inch oversized eXcelon Reference series car subwoofer designed for tight, accurate, and powerful bass performance. It features a durable polypropylene cone with a rubber surround and a strong magnetic circuit that delivers clean low-frequency output with low distortion. With 300W RMS and up to 900W peak power handling, it is ideal for small sealed box installations where space is limited but sound quality is important. Its reinforced cone structure improves rigidity, ensuring deep and controlled bass response even at higher volumes.
Specifications
| Category | Specification | Details |
|---|---|---|
| Unit Size | Woofer Size | 20 cm (8”) |
| Electrical | Impedance | 4Ω |
| Electrical | Peak Input Power | 900 W |
| Electrical | RMS Power (CTA-2031) | 300 W |
| Electrical | Sensitivity | 79 dB (at 1 m) |
| Electrical | Frequency Response | 28 Hz – 300 Hz |
| Woofer Unit | Type | SVC |
| Woofer Unit | Diaphragm | 8 inch PP |
| Woofer Unit | Surround | Rubber |
| Dimensions | Width | 252 mm (9-15/16 in) |
| Dimensions | Height | 252 mm (9-15/16 in) |
| Dimensions | Cut-out Diameter | 184.6 mm (7-1/4 in) |
| Dimensions | Mounting Depth | 111 mm (4-3/8 in) |
| Weight | Total Weight | 3.5 kg (7.72 lbs) |

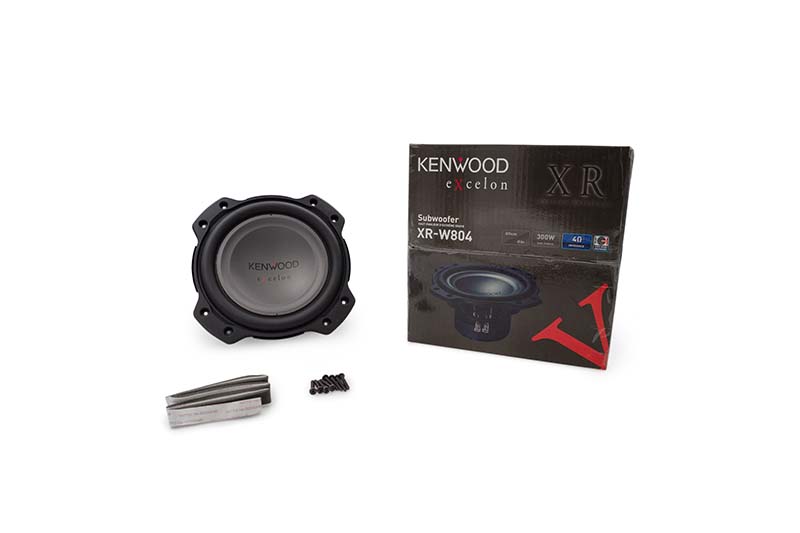

| Accessories | Screw Set | Included |
| Accessories | Tapping Screws | φ4 × 30 mm, 8 pcs |
| Accessories | Cushion | 1 pc |
| Accessories | Warranty Card | 1 pc |

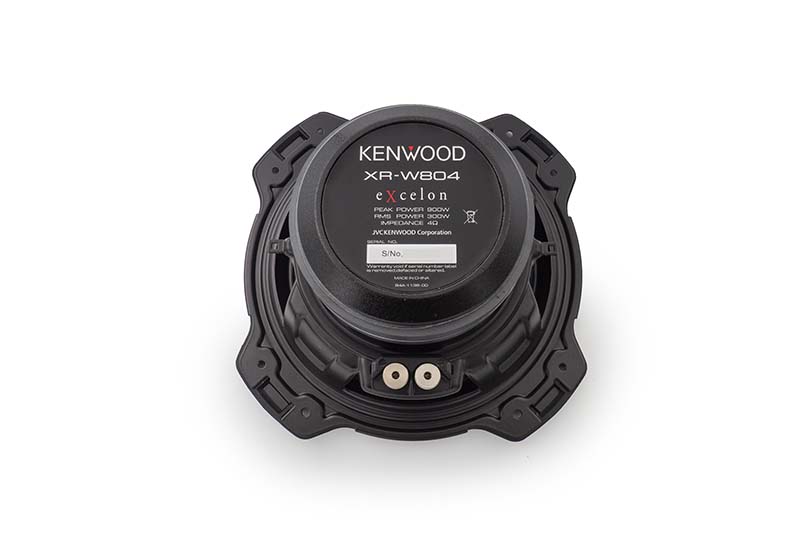

| Special Feature | Terminal | 8 AWG Push Terminal |
