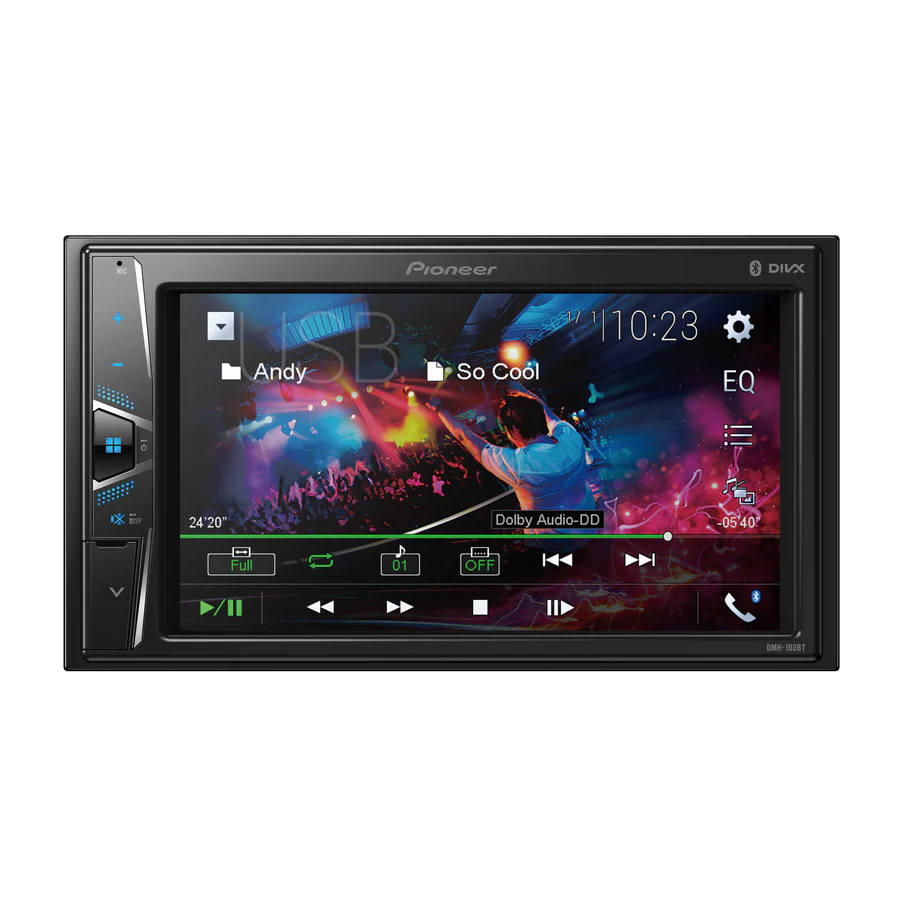

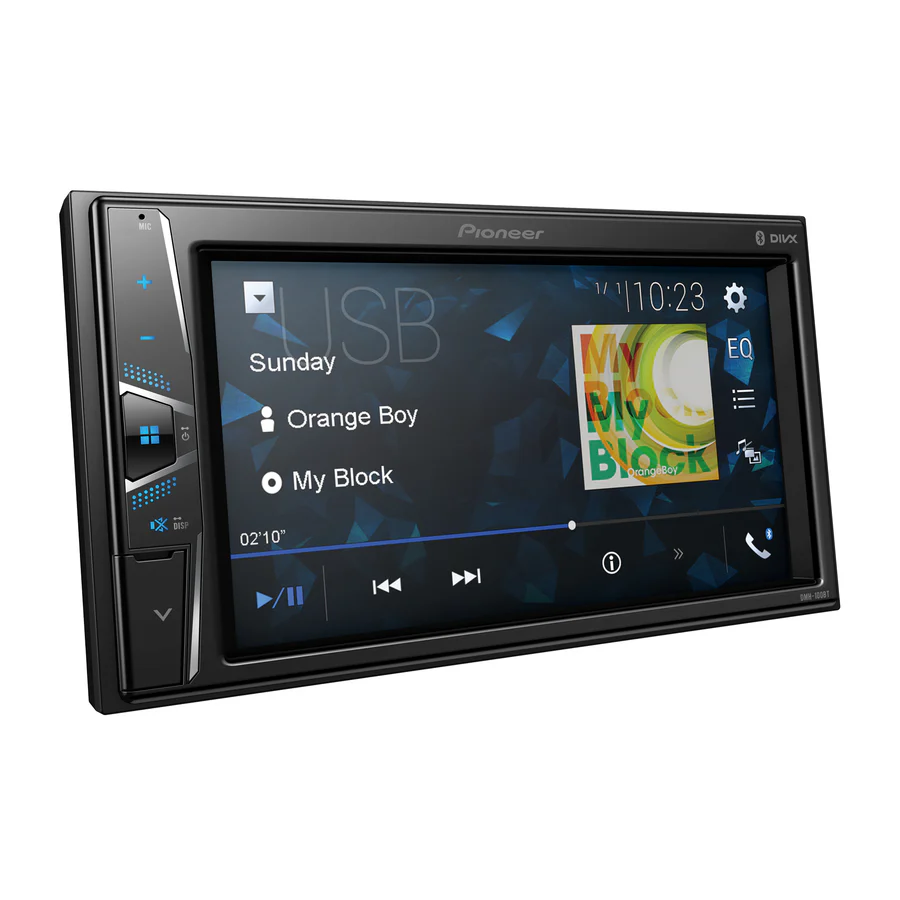

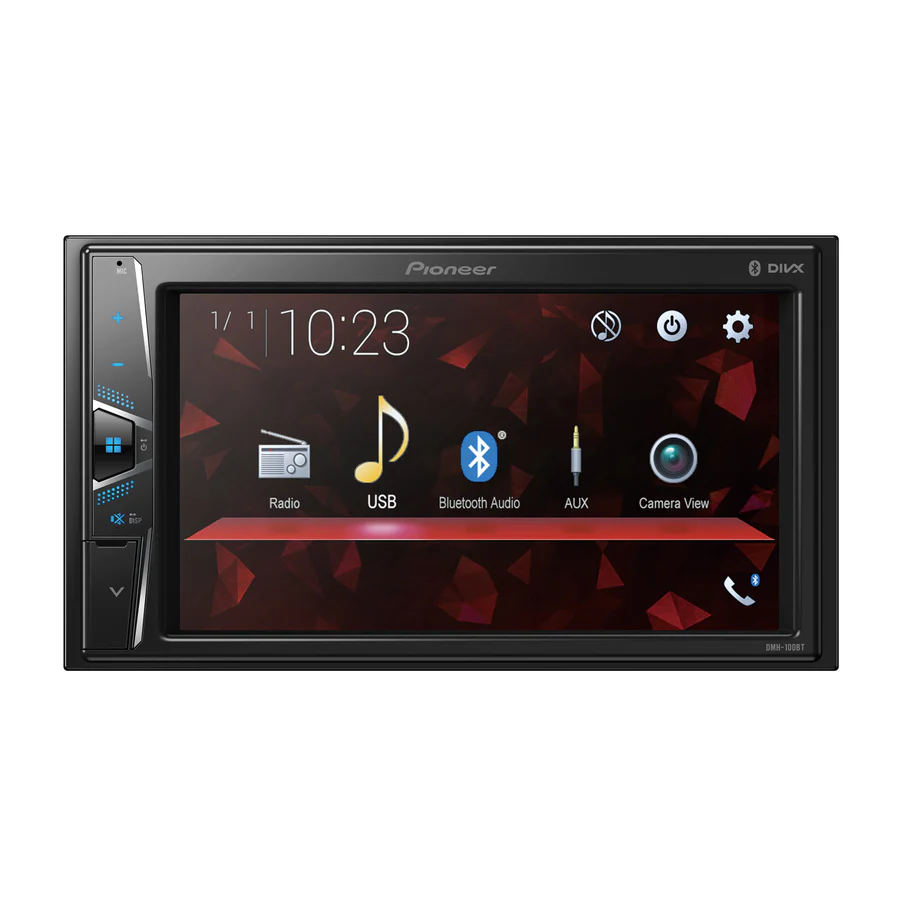

Pioneer DMH‑100BT
The Pioneer DMH‑100BT is a digital multimedia receiver with a 6.2″ WVGA touchscreen in a double-DIN chassis, designed for simple and reliable in-car connectivity. It supports Bluetooth® for hands-free calls and wireless music streaming, USB and AUX inputs for media playback, and is compatible with a rear-view camera for parking assistance. While it does not support Apple CarPlay or Android Auto, it offers a solid audio experience with 4-channel RCA preamp outputs, a built-in amplifier, and customizable audio settings, making it an affordable yet versatile choice for modern car entertainment.
Specifications
PRODUCT PERFORMANCE
| Specification | Details |
|---|---|
| Continuous Power Output | 22 W x 4-Channel |
| Load Impedance Allowance | 4 Ohm (4 Ohm to 8 Ohm Allowable) |
| Max Power Output | 50 W x 4-ch 4 Ohm |
| RCA Preamp Outputs | 4-ch |
| RCA Preout Voltage | 2 V |
| RMS Power Output (CTA-2006) | 14 W RMS x 4-ch 4 Ohm |
GENERAL
| Specification | Details |
|---|---|
| Detachable Face Security | Fixed |
| Multi-Language Display | English, French, Spanish, Portuguese, Chinese (Simplified) |
| Music Browser | USB |
| Remote Control | Optional |
| Steering Wheel Control Ready (Adapter Sold Separately) | Yes |
DISPLAY
| Specification | Details |
|---|---|
| Back Light | LED |
| Brightness Control | Yes |
| Color Customization | 5 Display Colors, Fixed Illumination |
| Device (Non-DIN/Modular Unit) | 2-DIN |
| Dimmer | Automatic with vehicle illumination, Manual |
| Display Off Mode | Yes |
| Monitor Mechanism | Fixed |
| Resolution | WVGA (800 x 480) |
| Screen Size/Aspect Ratio | 6.2″/16:9 |
| Touch Screen | Resistive |
BLUETOOTH
| Specification | Details |
|---|---|
| Advanced Audio Distribution Profile (A2DP) | Yes |
| AVRCP | 1.6 |
| Built-in Bluetooth® | Yes |
| Hands-Free | Yes |
| Microphone Included | Integrated |
| Phone Registration | 3-phone |
| Secure Simple Pairing (SSP) | Yes |
TUNER
| Specification | Details |
|---|---|
| Best Station Memory | Yes |
| Local Seek Tuning | Yes |
| Presets | 18 FM, 6 AM |
| RDS | Yes |
INTEGRATION
| Specification | Details |
|---|---|
| Mobile Operating System | Android, Apple iOS |
| Music Playback (MTP) | Yes |
| Pandora® | Bluetooth Audio Source |
| Spotify | Bluetooth Audio Source |
DIGITAL MEDIA PLAYBACK
| Specification | Details |
|---|---|
| Audio Playback via USB | WMA, WAV (Hi-Res), AAC, MP3 |
| Audio Video Playback via USB | .avi, .mpg/.mpeg, .divx |
| Image Display Via USB | BMP, JPEG |
AUDIO
| Specification | Details |
|---|---|
| Audio Bass Boost | Yes |
| Balance | Yes |
| Built-in Amplifier | MOSFET 50 W x 4 |
| Crossover Standard Mode | HPF/LPF |
| Customizable Graphic Equalizer | 7 Band |
| DA Converter | 24 Bit |
| Digital Signal Processor | Built-In |
| Easy EQ (EEQ) Preset Equalizer | Yes |
| Loudness | High/Mid/Low/Off |
| Speaker Output | 4-ch |
| Subwoofer Control | Yes |
EXPANDABILITY
| Specification | Details |
|---|---|
| Audio Video Inputs | Input 1 – Backup Camera Dedicated, Input 2 – AUX (Minijack) |
| USB | Front Type-A (5V, 1 A) |
About The Product
The DMH-100BT is a 6.2” Digital Media Receiver with a WVGA screen display. Built-in Bluetooth® provides hands free calling through compatible smartphone devices. You can register up to three devices on this Receiver. Using the Bluetooth audio playback screen, the Bluetooth audio player can be switched to other Bluetooth devices. Other features include Steering Wheel Control ready, and backup(rear) camera ready.
Back up camera input (1-camera)
Back up safely in any crowded parking area. Install a rear-view camera to use the receiver’s built-in parking guides for easy parking, with adjustable parking lines and full screen image for ease of use.
Bluetooth
This receiver makes hands-free phone calls simple. Pioneer’s included external microphone provides crystal clear sound. Stream music, podcasts, audiobooks, and more from your compatible phone or other Bluetooth® devices.
WVGA Touchscreen (Clear Resistive)
With this clear resistive WVGA touchscreen display, upgrade your ride and enjoy all the features this head unit has to offer.
