Name: Alpine i509-WRA-JK
SKU: i509-WRA-JK
Availability: InStock

Description

Alpine i509-WRA-JK

The Alpine i509-WRA-JK is a high-quality car audio system designed for superior sound and reliable performance. It features a combination of speakers, powered subwoofer, and a four-channel amplifier, delivering rich audio across all frequencies. The system is weather-resistant (IP55) and built to withstand outdoor conditions while providing clear and powerful sound. With adjustable crossovers, phase control, and multiple connectivity options, it’s perfect for car enthusiasts seeking a complete, ready-to-install audio solution. Its compact design and robust build make installation easy while enhancing your car’s audio experience.

Specifications

Key Features

Feature	Description
Display	9-inch HD Anti-Glare with Jeep® specific trim bezel
Weather Resistance	Rated IP53
Installation	Plug-and-play
Tuning	Jeep® specific
Audio Playback	Hi-Res Audio (96kHz / 24bit), Wireless Hi-Res Audio (requires LDAC-compatible device), Hi-Res streaming with TIDAL (subscription required, Alpine head unit must be tethered to mobile hotspot; data rates may apply)
Smartphone Integration	Apple CarPlay® (wired & wireless), Android Auto™ (wired & wireless), Google Assistant via Android Auto™
Bluetooth	Hands-Free
SiriusXM	SiriusXM-Ready® with 360L (requires SXV300 Tuner & subscription; some 360L content requires Wi-Fi)
Radio	Built-in HD Radio®
Vehicle Integration	Retain factory media controls and vehicle info with included iDatalink Maestro module
GPS Compatibility	Compatible with KTX-NS01 GPS Navigation Module via USB (firmware update required; cannot be used with Apple CarPlay or Android Auto)
Additional Features	Media Xpander®

Tech Specs

Feature	Specification
Screen Size	9”
Screen Resolution	WXGA 1280 x 720px (720p HD)
AUX Input	1
HDMI Input	1
HDMI Output	1
Camera Inputs	2 Direct (1 Rear input & 1 input configurable as Front, Side, or Other)
Dash Cam Input	1 (Works best with Alpine DVR-C320R, sold separately)
USB Inputs	2 (1 data & 1 charge-only port)
4V Pre-Outs	3
Built-in Amplifier	18W RMS x 4
EQ	13-Band Parametric (per channel)
Time Correction	6-Channel
DAC	24 Bit
Crossover	High Pass / Low Pass
Audio Playback	AAC, APE, FLAC, MP3, WMA, WAV
Video Playback	AVC, FLV, H.264, MP4, MPEG-1, MPEG-2, MPEG-4, MKV, MOV

About The Product

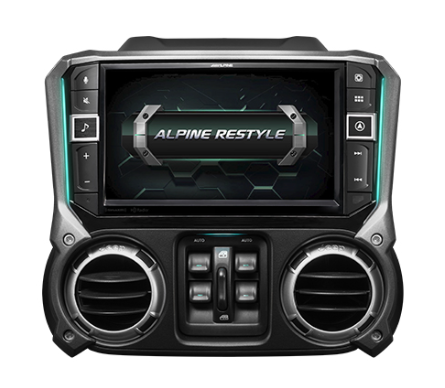

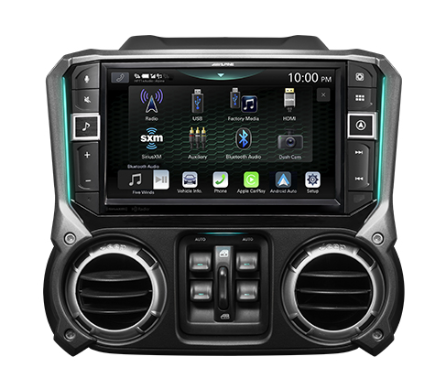

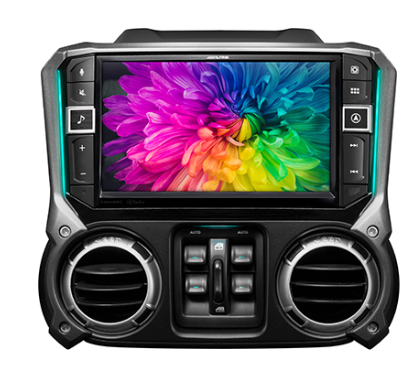

The display is housed in a Jeep® -specific trim bezel that emulates the look and feel of the Jeep® dash. A Jeep® -specific harness is included with the receiver to take out the guesswork during installation and make it a true plug-and-play solution. The weather-resistant display features a Jeep® -specific opening screen and LED color scheme for a consistent design with factory Jeep® settings.

Experience incredible music detail with Hi-Res Audio Playback. High-precision music reproduction brings out the full potential of every song and makes every drive feel like an intimate recording studio session with your favorite artist. Access your favorite songs on popular Hi-Res streaming services like Apple Music, Tidal, Amazon Music HD, and more. The i509-WRA-JK plays Hi-Res music at it’s intended spec of 96kHz/24Bit via a wired USB connection to a smartphone or wirelessly through Bluetooth connection. You can also purchase and download Hi-Res music files onto a USB drive from platforms like HDtracks and plug directly into the receiver for Hi-Res playback.

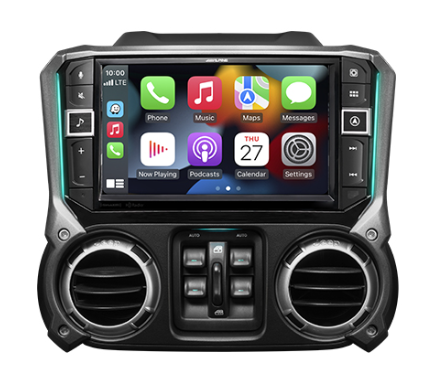

The i509-WRA-JK Works with Apple CarPlay® and lets iPhone users make and receive calls, access text messages, play music, and get directions in a way that allows them to stay focused on the road. Apple CarPlay® is accessed through the capacitive touchscreen or the mic button to activate Siri voice control and is compatible with iPhone 5 and later.

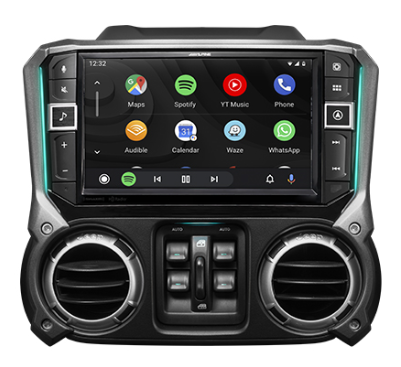

The i509-WRA-JK includes Android Auto and works with the Google Assistant (requires both a USB cable and Bluetooth connection; requires an Android phone running 5.0 [Lollipop] or higher and the Android Auto app). To access the Google Assistant on Android Auto, say “OK Google” or select the mic button. Google Assistant in Android Auto allows users to play their favorite music, get driving directions to their destination, interact with smart home devices, and reply to text messages – hands-free.
