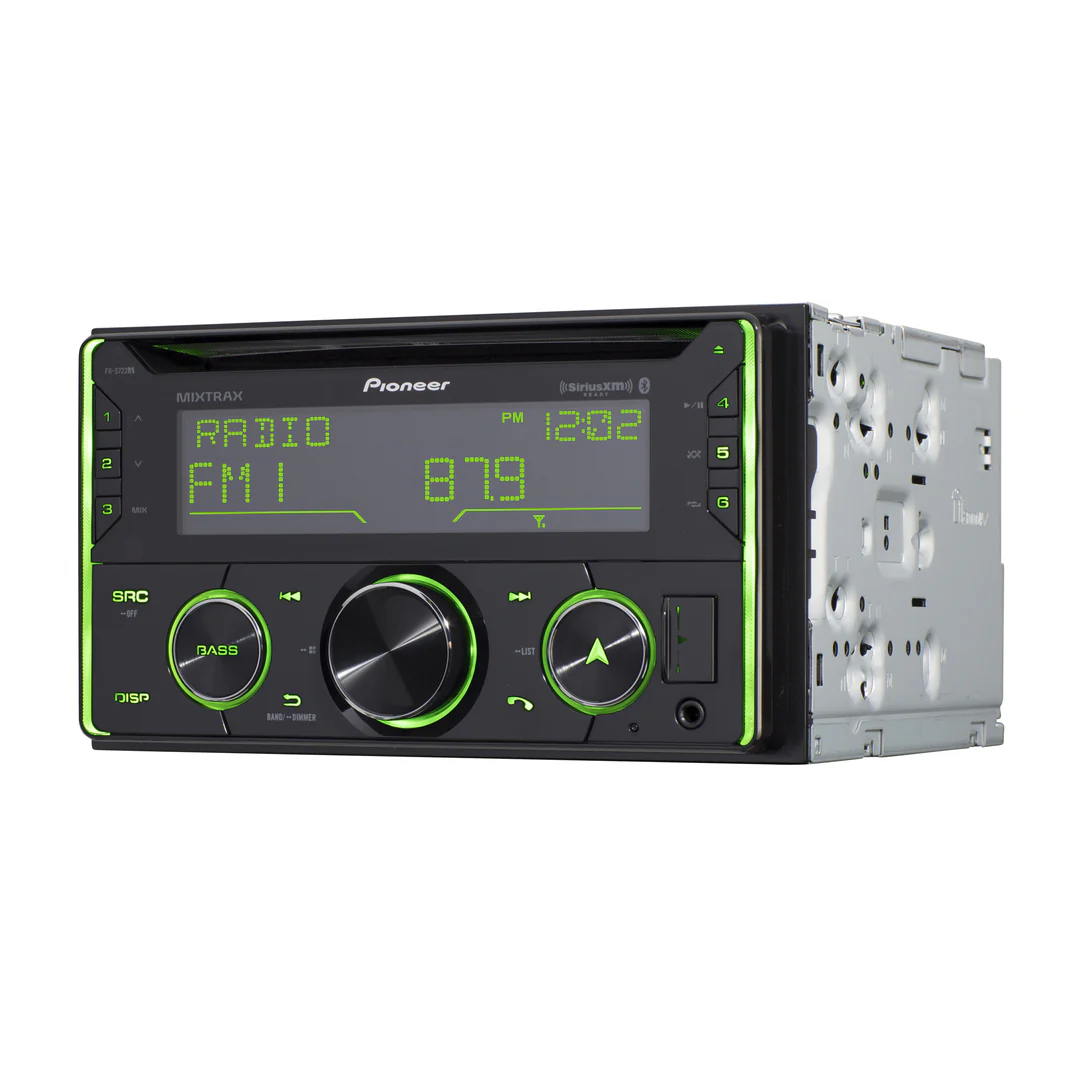

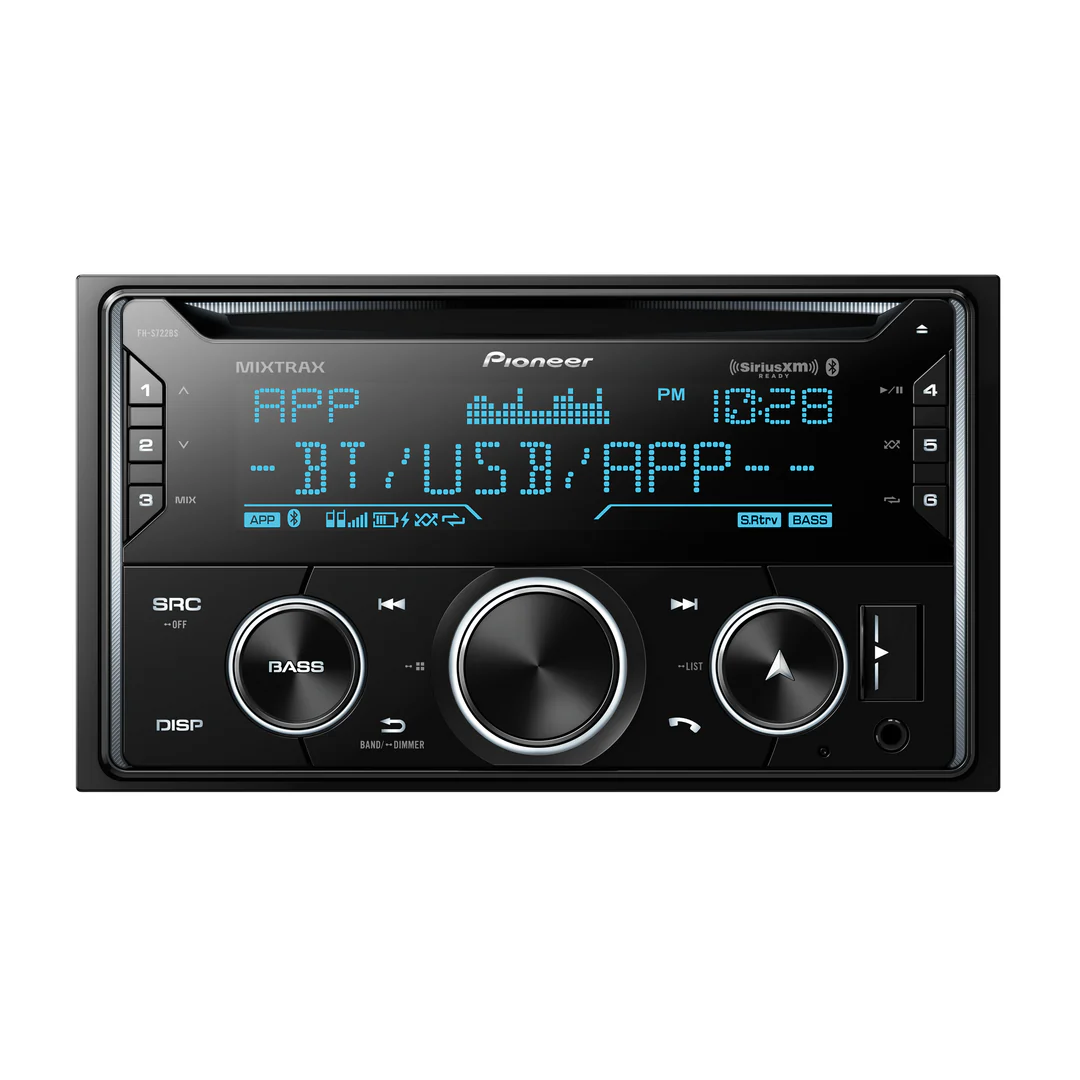

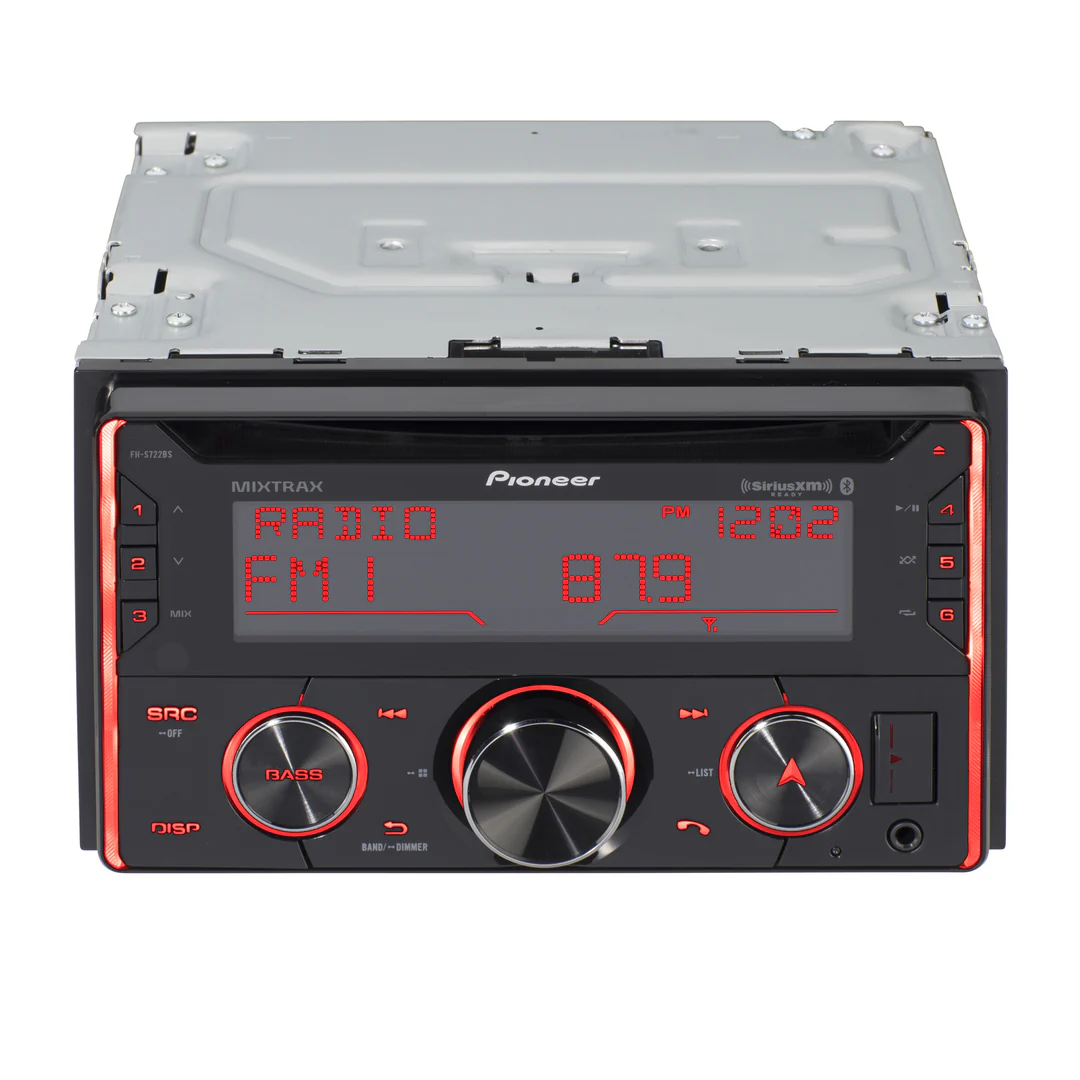

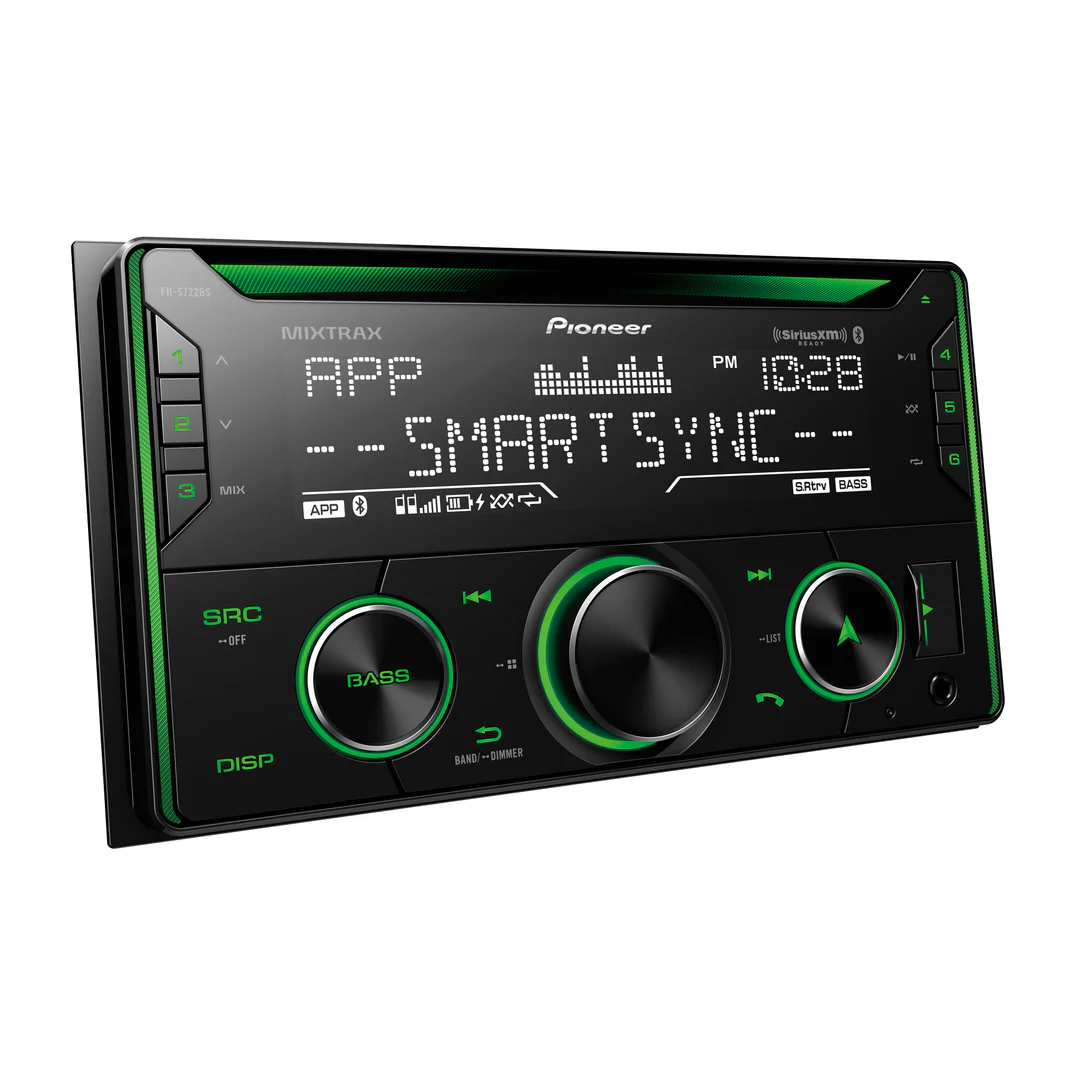

Pioneer FH‑S722BS
The Pioneer FH‑S722BS is a double‑DIN CD receiver that combines classic media playback with modern connectivity. It features a slot for CD/CD‑RW playback, USB and AUX inputs, built‑in Bluetooth® for hands‑free calls and wireless music streaming, and compatibility with the Pioneer Smart Sync® app for smartphone integration and voice commands. On the audio side, it offers extensive expandability: six pre‑amp outputs (4 volt) for front, rear and subwoofer channels, built‑in MOSFET amplification, a 13‑band graphic equaliser (expandable to 31 bands via the app), high/low‑pass crossovers and customisable illumination with over 210,000 colours.
Specifications
PRODUCT PERFORMANCE
| Feature | Specification |
|---|---|
| Continuous Power Output | 22 W x 4-Channel |
| Load Impedance Allowance | 4 Ohm (4 Ohm to 8 Ohm Allowable) |
| Max Power Output | 50 W x 4-ch 4 ohm, 50 W x 2-ch 4 ohm, 70 W x 1-ch (subwoofer) 2 Ohm |
| RCA Preamp Outputs | 6-ch |
| RCA Preout Voltage | 4V |
| RMS Power Output (CTA-2006) | 14 W RMS x 4-ch 4 ohm |
GENERAL
| Feature | Specification |
|---|---|
| Detachable Face Security | Fixed |
| Multi-Language Display | English, French, Spanish |
| Music Browser | USB, With Smart Sync App |
| Remote Control | Optional |
| Rotary Volume Control | Yes |
| Steering Wheel Control Ready | Yes (Adapter Sold Separately) |
DISPLAY
| Feature | Specification |
|---|---|
| Back Light | LED |
| Brightness Control | Yes |
| Color Customization | 210000 Colors, dual zone |
| Device Display | VA LCD (2-Line) |
| Device (Non-DIN/Modular Unit) | 2-DIN |
| Dimmer | Automatic with vehicle illumination, Timer Controlled, Manual |
BLUETOOTH
| Feature | Specification |
|---|---|
| Advanced Audio Distribution Profile (A2DP) | Yes |
| AVRCP | 1.6 |
| Built-in Bluetooth® | Yes |
| Dual Phone Connection | Yes |
| Hands-Free | Yes |
| Microphone Included | Included |
| Phone Registration | 5-phone |
| Secure Simple Pairing (SSP) | Yes |
| Serial Port Profile (SPP) | Yes |
| Sound Retriever Air | Mode 1/Mode 2/Off |
TUNER
| Feature | Specification |
|---|---|
| Best Station Memory | Yes |
| Local Seek Tuning | Yes |
| Presets | 18 FM, 6 AM |
| RDS | Yes |
| SiriusXM-Ready™ | Yes (Tuner Sold Separately) |
INTEGRATION
| Feature | Specification |
|---|---|
| Amazon Alexa | Paired with Pioneer Smart Sync |
| Mobile Operating System | Android, Apple iOS |
| Pandora® | Source through iPhone/Android |
| Pioneer App Compatibility | Pioneer Smart Sync Android, Pioneer Smart Sync iPhone |
| Siri® Eyes Free (VR) | iPhone Only (Internet Required) |
| Spotify | Streaming audio through iPhone/Android via Bluetooth or AUX input |
| Voice Control | Yes |
DIGITAL MEDIA PLAYBACK
| Feature | Specification |
|---|---|
| Audio Playback via CD | AAC, MP3, WAV, WMA |
| Audio Playback via USB | MP3, WMA, AAC, FLAC (Hi-Res), WAV (Hi-Res) |
AUDIO
| Feature | Specification |
|---|---|
| Advanced Sound Retriever | Mode-1/Mode-2/Off |
| Balance | Yes |
| Built-in Amplifier | MOSFET 50 W x 4 |
| Crossover Network Mode | HPF/Band Pass/LPF |
| Crossover Standard Mode | HPF/LPF |
| Customizable Graphic Equalizer | 13 Band, 31 Band with Pioneer Smart Sync app |
| DA Converter | 24 Bit |
| Digital Signal Processor | Built In |
| Dynamic Bass Enhancer | Off/Low/High |
| Easy EQ (EEQ) Preset Equalizer | Yes |
| Listening Position Selector | Yes |
| Loudness | High/Mid/Low/Off |
| MIXTRAX® | Yes |
| Source Level Adjuster | Yes |
| Speaker Output | 4-ch |
| Spectrum Analyzer | Yes |
| Subwoofer Control | Yes |
| Time Alignment | Manual |
EXPANDABILITY
| Feature | Specification |
|---|---|
| Audio Video Inputs | Input 2 – AUX (Minijack) |
| Firmware Upgradability | Yes |
| USB | Front Type-A (5V, 1-1/2 A) |
| USB Direct Control for iPhone® | 5s and newer |
About The Product
The FH-S722BS is a built-in CD receiver designed for the smartphone lifestyle. Connect your smartphone via Pioneer Smart Sync with Amazon Alexa for a connected, versatile driving experience. The receiver has a built-in amplifier with three RCA pre-outs at 4V each. It features a 13-band customizable graphic equalizer, expanding to 31 bands when using Pioneer Smart Sync. The crossover network can operate in Standard Mode or Network Mode. Additional features include Bluetooth®, USB direct control for iPhone®, and SiriusXM readiness.
CD Player
Play your burned or original audio CDs, or enjoy FLAC files via USB for high-quality audio playback.
Pioneer Smart Sync
A powerful app for iOS and Android that connects your smartphone via USB or Bluetooth®. Access music, messages, navigation apps, and even an optional OBDII module. Amazon Alexa is built-in, enabling voice commands for music, news, weather, and smart home control. Smart Sync also functions as a wireless remote to adjust sound and save settings on your smartphone.
Smartphone Control
Access and control music and select apps directly from your smartphone. Search by artist, album, or song using the Pioneer interface.
Bluetooth
Stream audio and make hands-free calls with crystal-clear sound through the included external microphone.
Siri® Eyes Free
Siri listens through the external microphone and responds through your car speakers for safer, hands-free operation.
SiriusXM Ready
Access over 140 channels including music, sports, comedy, news, and talk via the SiriusXM Connect Vehicle Tuner (sold separately).
USB Auto Switch
Allows you to choose whether your connected phone acts as a source or just charges.
Wired Remote Input
Connect a third-party interface (optional) to retain steering wheel control functionality.
Pioneer Advanced Sound Retriever (ASR)
Enhances detail and warmth from compressed audio files by counteracting compression effects for a more natural sound.
Flexible Audio Output Management
Use Standard (2-Way) or Network (3-Way) mode to divide audio signals and apply precise low-pass, high-pass, and band-pass filtering with adjustable level and phase.
Audio Equalizer
13-band EQ with multiple presets allows tuning to match vehicle acoustics and speaker characteristics.
Time Alignment
Adjust delay and synchronization for each speaker to correct phase mismatches based on listening position.
MIXTRAX
Creates continuous DJ-style mixes from connected iPhone, iPod, USB, or select Android devices. Adds transitions, effects, and club-style lighting that pulses to the music. Multiple lighting patterns are available via sound pressure or low-pass synchronization modes.
