Description
Alpine CDE-175BT

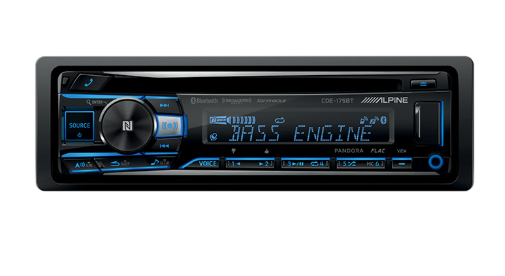

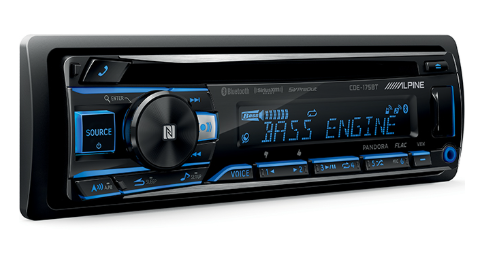

The Alpine CDE-175BT is a 1-DIN CD/USB receiver that combines advanced Bluetooth® connectivity with high-quality audio features. It supports FLAC, MP3, WMA, and AAC files via USB, and offers Android™ AOA 2.0 compatibility for enhanced music control. The receiver includes a 24-bit DAC, 3-band parametric EQ, and high/low pass crossovers for superior sound tuning. With built-in Bluetooth® wireless technology, it enables hands-free calling and audio streaming. The front USB and AUX ports provide easy connectivity, while the 1-line, high-contrast LCD display with RGB illumination ensures clear visibility. It also features three 5V preouts, a built-in 18W x 4 amplifier, and is SiriusXM-Ready™
Specifications
Features
| Feature | Details |
|---|---|
| Tuner | AM/FM/CD with RBDS information |
| Audio File Compatibility | FLAC / MP3 / WMA / AAC via USB |
| iPod / iPhone | Compatible (requires KCU-445i, sold separately) |
| Siri | Eyes Free Mode |
| Android | AOA 2.0 compatible |
| Pandora | Works with iPhone & Android |
| Bluetooth | Built-in, audio streaming |
| SiriusXM | Ready (requires tuner & subscription, sold separately) |
| Ports | Front USB and AUX |
| Display | 1-line, high-contrast LCD with RGB illumination |
| NFC | Equipped |
| Preouts | Three (5V) |
| Amplifier | Built-in 18W x 4 (CTA-2006) |
| DAC | 24-Bit |
| EQ | 3-band parametric |
| Crossover | High-pass / Low-pass |
| Bass Engine | SQ |
| Remote Ready | Steering wheel and wireless (remote sold separately) |
| KTP-445A | Power Pack Ready |
Tech Specs
| Specification | Details |
|---|---|
| CTA-2006 Power Rating | 18W x 4 |
| Max Power Output | 50W x 4 |
About The product
PRESS PLAY AND LET ALPINE DO THE REST
With advanced Bluetooth® wireless technology, audio streaming, and FLAC support, the CDE-175BT CD receiver delivers quality phone calls and playback of various music files so you stay in touch and in tune.
BEST SOUND QUALITY
For unrivaled sound quality, expect nothing less than the best. The CDE-175BT uses a 24-Bit DAC for ultimate sound quality with all your digital media sources. The 3-band parametric EQ lets you dial in your bass, mids, and treble, while the high pass/low pass crossover lets you protect and manage the right frequencies for your speakers. The CDE-175BT can playback FLAC (Free Lossless Audio Codec) files via USB, for a more quality listening experience. The CDE-175BT has three 5V preouts, allowing you to build a louder system thanks to a greater amount of signal that is fed to an amp.
BLUETOOTH HANDS-FREE CALLING
Keep it safe on the road with your hands on the wheel. The CDE-175BT is equipped with Bluetooth wireless technology so you can carry on your phone conversations without additional adapters or headpieces. The unit also includes a tuned microphone engineered to reduce noise interference and feedback, providing optimal placement and sound quality.
GET A BOOST IN GREAT SOUND
With Alpine, expect the premium sound your ears deserve. This head unit allows you to customize your crossover adjustments so you can control where you send high and low frequencies, for the best sound from your CDE-175BT. For a true power upgrade, add-on the KTP-445A Power Pack to instantly increase your head unit’s power from 18W x 4 RMS to a true 45W x4 RMS (based on CEA-2006 power ratings).
