Description
Alpine iLX-F511
The Alpine iLX-F511, also known as the Halo11, is a cutting-edge digital multimedia receiver designed to elevate your in-car entertainment experience. With its impressive 11-inch floating touchscreen display and advanced features, it seamlessly integrates modern technology into your vehicle’s dashboard.
Specifications
Key Features
| Feature | Details / Notes |
|---|---|
| Display | 11-inch Adjustable Floating Style (height, depth, and viewing angle) |
| Chassis | Standard 1-DIN for flexible vehicle application |
| Design | Tapered display housing with silver trim for modern fit & finish |
| Hi-Res Audio Playback | 96kHz / 24-bit |
| Wireless Hi-Res Audio | Requires LDAC-compatible device |
| Hi-Res Streaming | Supports TIDAL (subscription required, Alpine must be tethered to hotspot; data rates may apply) |
| Apple CarPlay® | Wired & Wireless |
| Android Auto™ | Wired & Wireless |
| Google Assistant | Available via Android Auto™ |
| Bluetooth® | Hands-Free |
| SiriusXM-Ready® | 360L compatible (SXV300 Tuner & subscription required; Wi-Fi connection needed for some content) |
| HD Radio® | Built-in |

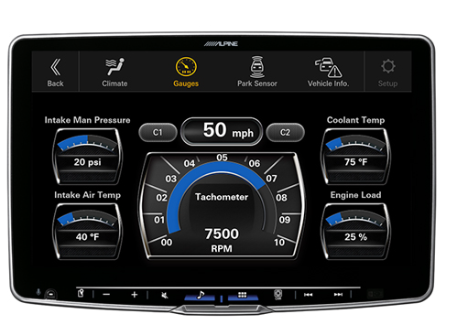

| iDatalink® Maestro | Compatible |
| GPS Navigation Module | KTX-NS01 compatible via USB (firmware update required; cannot be used with CarPlay/Android Auto) |
| Media Xpander® | Supported |
Tech Specs
| Category | Specification |
|---|---|

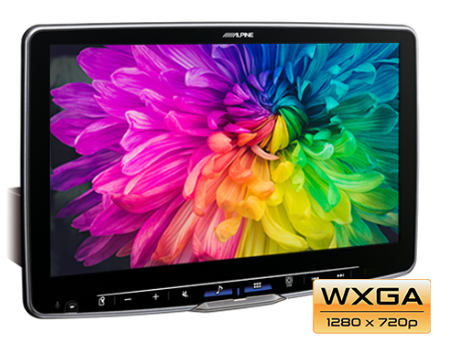

| Display | Screen Size: 11”Screen Resolution: WXGA 1280 x 720px (720p HD) |
| Inputs & Outputs | AUX Input: 1HDMI Input: 1HDMI Output: 1Camera Inputs: 2 Direct (1 Rear + 1 configurable Front/Side/Other)Dash Cam Input: 1 (Alpine DVR-C320R)USB Inputs: 2 (1 data, 1 charge-only) |
| Audio Features | 4V Pre-Outs: 3Built-in Amplifier: 18W RMS x 4EQ: 13-Band Parametric (per channel)Time Correction: 6-ChannelDAC: 24 BitCrossover: High Pass / Low PassAudio Playback: AAC, APE, FLAC, MP3, WMA, WAV |
| Video Features | Video Playback: AVC, FLV, H.263, H.264, MP4, MPEG-1, MPEG-2, MPEG-4, MKV, MOV |
About The Product
Next-Gen Dash Technology
The Next-Gen Alpine Halo11 features Apple CarPlay®, Android Auto™, and built-in Bluetooth® hands-free which allow access to music, messages, phone calls, and maps on a smartphone via either a wired USB connection or wirelessly. Get even more entertainment options with built-in HD Radio®, Pandora Internet Radio (via iPhone or Android connection), and SiriusXM® for even more choices in entertainment (tuner and subscription sold separately).

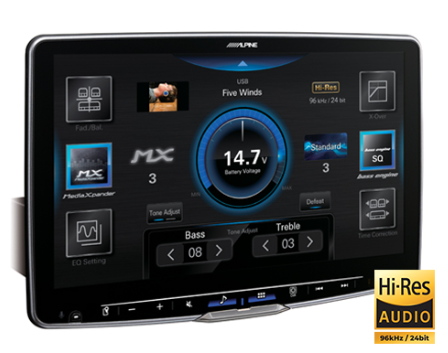

Hi-Res Audio
Experience incredible music detail with Hi-Res Audio Playback. High-precision music reproduction brings out the full potential of every song and makes every drive feel like an intimate recording studio session with your favorite artist. Access your favorite songs on popular Hi-Res streaming services. The Alpine Halo11 plays Hi-Res music at it’s intended spec of 96kHz/24Bit via a wired USB connection to a smartphone or wirelessly through Bluetooth connection. You can also purchase and download Hi-Res music files onto a USB drive from platforms like and plug directly into the Alpine Halo11 for Hi-Res playback.

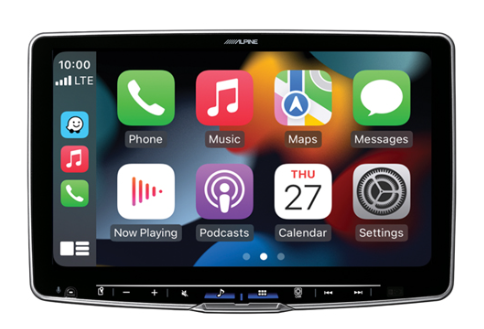

Apple Carplay® (Wired & Wireless)
The iLX-F511 Works with Apple CarPlay® and lets iPhone users make and receive calls, access text messages, play music, and get directions in a way that allows them to stay focused on the road. Apple CarPlay® is accessed through the capacitive touchscreen or the mic button to activate Siri voice control and is compatible with iPhone 5 and later.

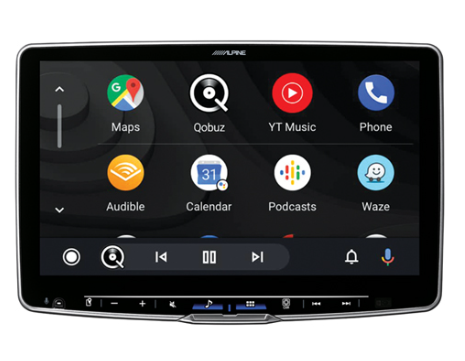

Android Auto™ (Wired & Wireless)
The iLX-F511 includes Android Auto and works with the Google Assistant (requires both a USB cable and Bluetooth connection; requires an Android phone running 5.0 [Lollipop] or higher and the Android Auto app). To access the Google Assistant on Android Auto, say “OK Google” or select the mic button. Google Assistant in Android Auto allows users to play their favorite music, get driving directions to their destination, interact with smart home devices, and reply to text messages – hands-free.
