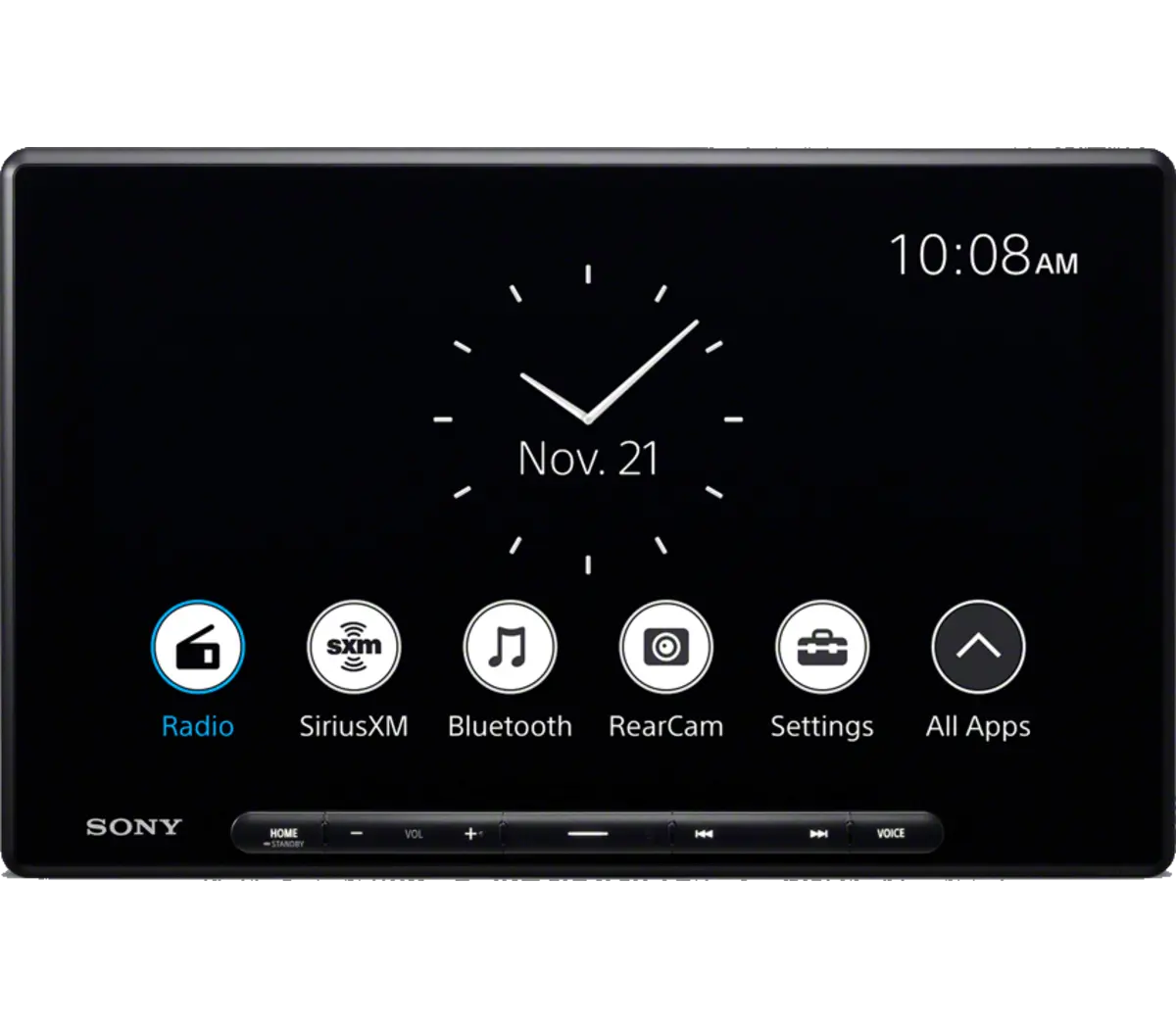

Sony XAV-AX8500
The Sony XAV-AX8500 features a 10.1″ (25.7 cm) capacitive HD touchscreen (1280 × 720) mounted on a flexible floating/single-DIN chassis with tilt & swivel for optimal viewing. It supports fully wireless Apple CarPlay® and Android Auto®, USB-C connectivity, and a suite of premium audio file playback (FLAC/ALAC/WAV/DSD) with LDAC wireless streaming. With high-voltage 5 V pre-outs, full DSP tuning (14-band EQ, time alignment), three-zone crossovers, three camera inputs and HDMI input, it combines style, connectivity and high fidelity sound in one unit.
Specifications
Display Features
| Feature | Details |
|---|---|
| Brightness | 425 cd/m² |
| Dimmer | Auto/Manual select |
| LCD Type | TFT Active Matrix |
| Resolution (DOT) | 1280 x 720 |
| Screen Aspect | 16:9 |
| Screen Diagonal (inch / cm) | 10.1 inches / 25.7 cm |
Language Options
| Category | Supported Languages |
|---|---|
| Caution | English / Spanish / French / German / Italian / Russian / Portuguese / Simplified Chinese / Traditional Chinese / Korean / Dutch |
| Menu | English / Spanish / French / German / Italian / Russian / Portuguese / Simplified Chinese / Traditional Chinese / Korean / Dutch |
Bluetooth Audio Features
| Feature | Details |
|---|---|
| Track +/- | Yes |
| Group (Folder) +/- | Yes |
| Audio Level Adjustment | Yes (-6dB to +6dB) |
| Repeat Control (Audio Device side) | Yes |
| Shuffle Control (Audio Device side) | Yes |
| Meta Data Indication | Yes |
| Audio Codec (Bluetooth Audio) | SBC / AAC / LDAC |
| Cue / Rev | Yes |
| Pause (Bluetooth Audio) | Yes |
Bluetooth Features
| Feature | Details |
|---|---|
| Phonebook Access via PBAP | Yes |
| Ring Volume Level Control | Yes |
| Call Volume Level Control | Yes |
| External Microphone | Supplied |
| Signal Strength Indication | Yes |
| Speed Dial | Yes (6 memories) |
| Last Dialed Call | Yes (from dialed call history) |
| Alphabetical Phonebook Sorting | Yes |
| Battery Reminder | Yes |
| Recent Calls (# of) | Yes |
What’s In The Box
| Item | Included |
|---|---|
| Warranty Card | Yes |
| External Microphone | Yes |
| Power Supply Leads | Yes |
| Connection Cables (Audio/Camera) | Yes |
| USB Extension Cable (Type-C) | Yes |
| GPS Antenna | Yes |
USB Mass Storage Device Control Features
| Feature | Details |
|---|---|
| Audio Codec | MP3 / WMA / WAV / AAC / FLAC / ALAC / DSF / DSDIFF |
| Pause | Yes |
| Repeat | TRACK / FOLDER / DRIVE |
| Resume Play | Yes |
| Shuffle | OFF / FOLDER / DEVICE |
| Video Codec | ASF / WMV / AVI / MKV / MPEG-4 |
| Audio Playable File Extensions | .mp3 / .wma / .wav / .m4a / .mp4 / .flac / .dsf / .dff |
| Video Playable File Extensions | .asf / .wmv / .avi / .mkv / .mp4 |
User Interface
| Feature | Details |
|---|---|
| Parking Control | Yes |
| Rear View Camera-In Marker Setting | Yes |
| Touch Panel | Yes / Capacitive |
| Parking Line Adjust | Yes |
Display Panel
| Feature | Details |
|---|---|
| Dimmer Adjust | Yes |
Bluetooth Profiles
| Profile | Version |
|---|---|
| A2DP | 1.3.1 |
| AVRCP | 1.6.1 |
| PBAP | 1.1 |
| HFP | 1.7.1 |
Tuner Features
| Feature | Details |
|---|---|
| Preset | FM18 / AM12 |
| RDS / EON | Yes (RBDS) |
| Auto Memory | BTM |
Panel Design
| Feature | Details |
|---|---|
| Key Illumination | Yes (White) |
Size & Weight
| Specification | Details |
|---|---|
| Dimensions (W x H x D) | 269 × 167 × 258 mm |
| Weight | 2.6 kg |
General Features
| Feature | Details |
|---|---|
| Pre Out | 5V 3-Pre (Front LR / Rear LR / Sub x1) |
| USB | Yes (Type-C x1, Rear) |
| Equalizer | 14-band Equalizer |
| Firmware Upgradability | Yes |
| Output Power | 55W x4 |
| Rear View Camera In | Rear / Input 1 / Input 2 |
| Time Alignment | Yes |
| Album Artwork Indication | Yes |
About The Product

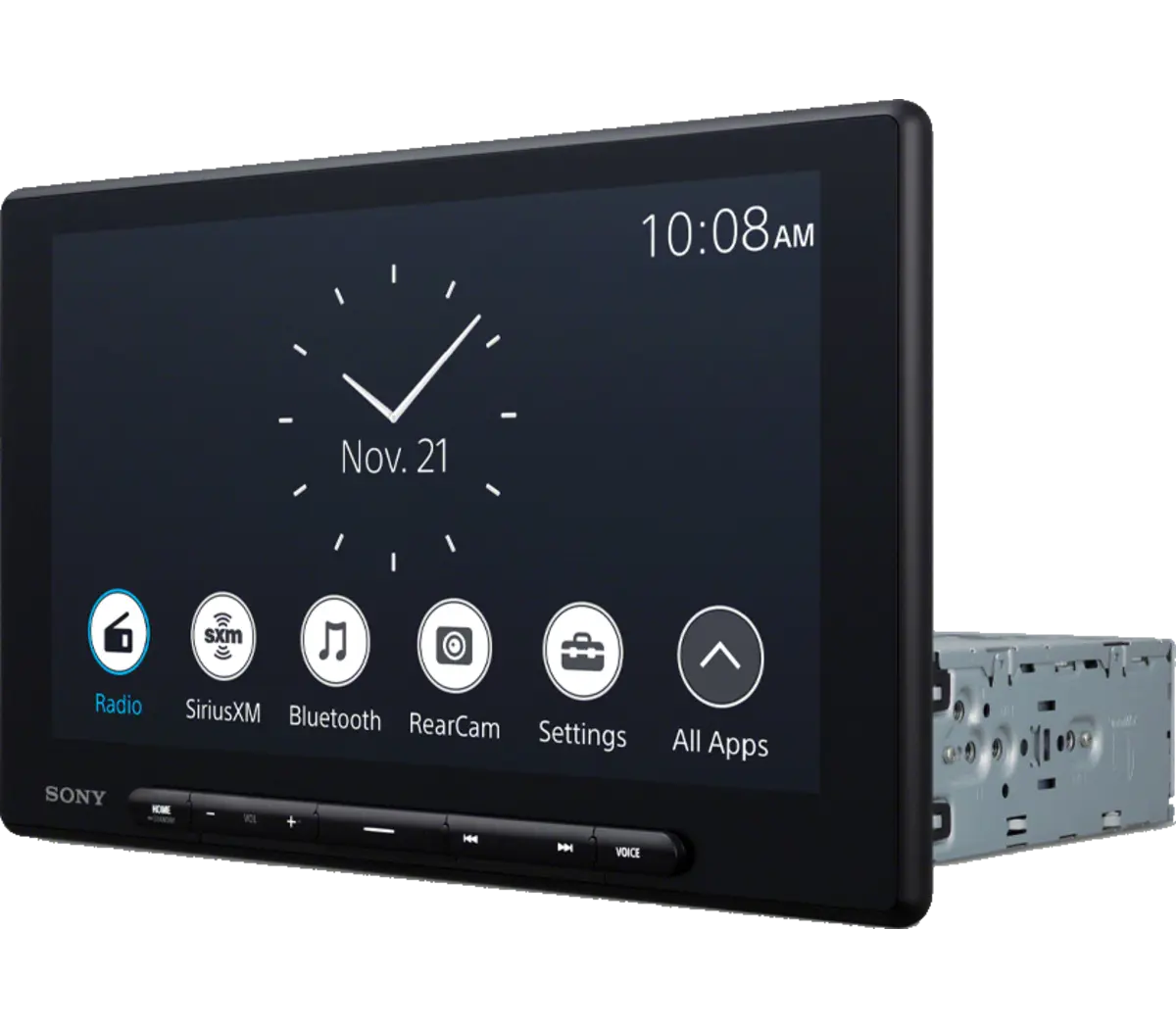

Easily Adjustable Tilt and Swivel
The newly designed tilt and swivel mechanism lets you manually adjust the oversized high-definition display’s viewing angles. The display joint’s screw-less structure offers a range of ±15 degrees both horizontally and vertically, with no tools required—even after installation.

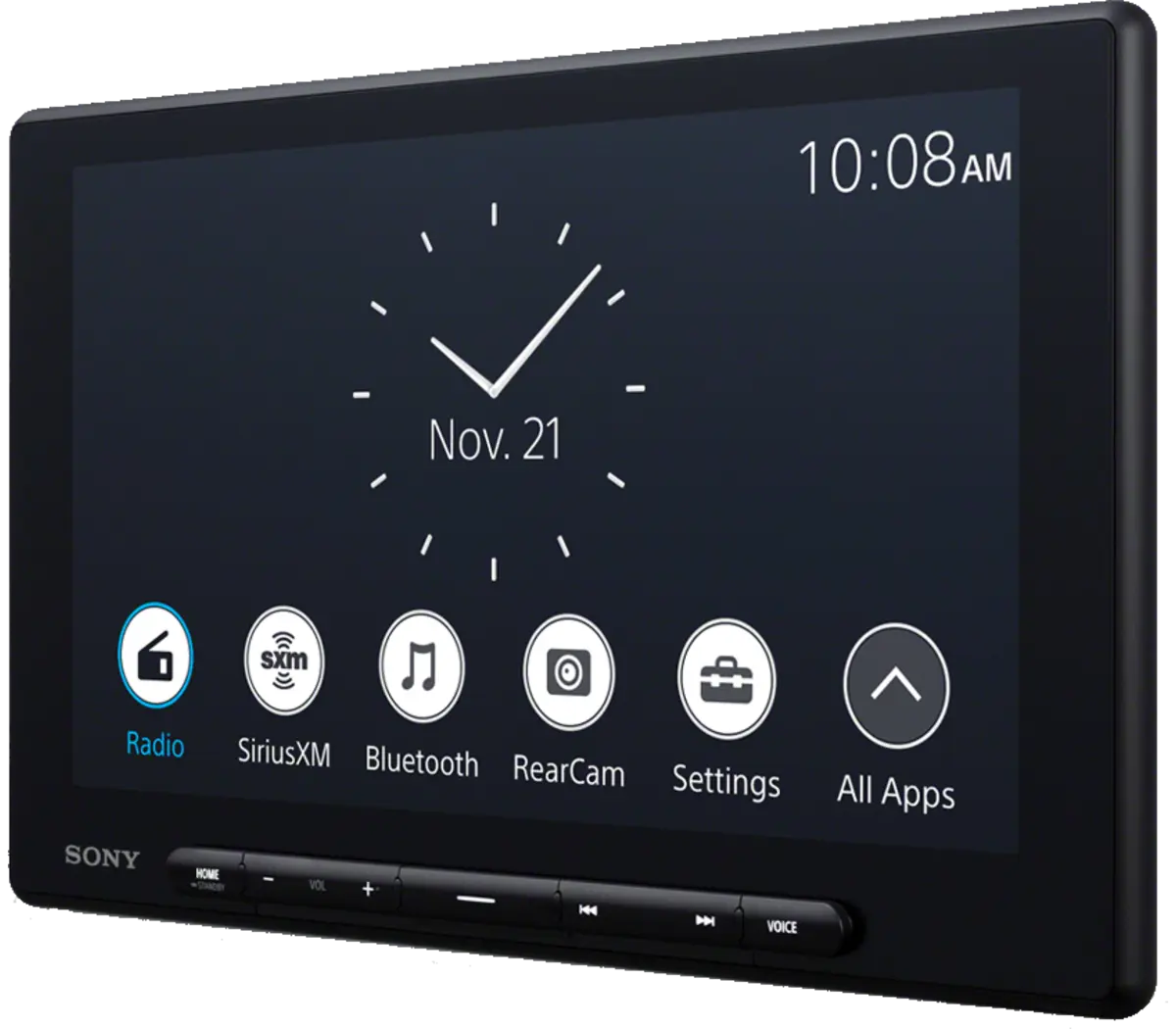

High-Definition Capacitive Touchscreen
A large floating 25.7 cm (10.1-inch) capacitive touchscreen with 1280 x 720-pixel high resolution provides crisp detail, higher brightness, and superior contrast, delivering an exceptional in-car visual experience.
Connected to Your Car
iDatalink® Maestro® compatibility connects the XAV-AX8500 to your vehicle’s onboard computer, turning it into a customized display for factory-equipped functions and features. With an iDatalink® Maestro® RR by Automotive Data Solutions, you can interface with your vehicle’s infotainment and information systems—covering performance, safety, and comfort—directly on the 10.1-inch touchscreen.
Customizable Viewing Angle for Every Journey
The display joint allows manual tilt and swivel adjustment—both at ±15 degrees—to suit your preferred seating position. This flexibility helps reduce glare from direct sunlight and makes it easy to share navigation or entertainment with passengers.

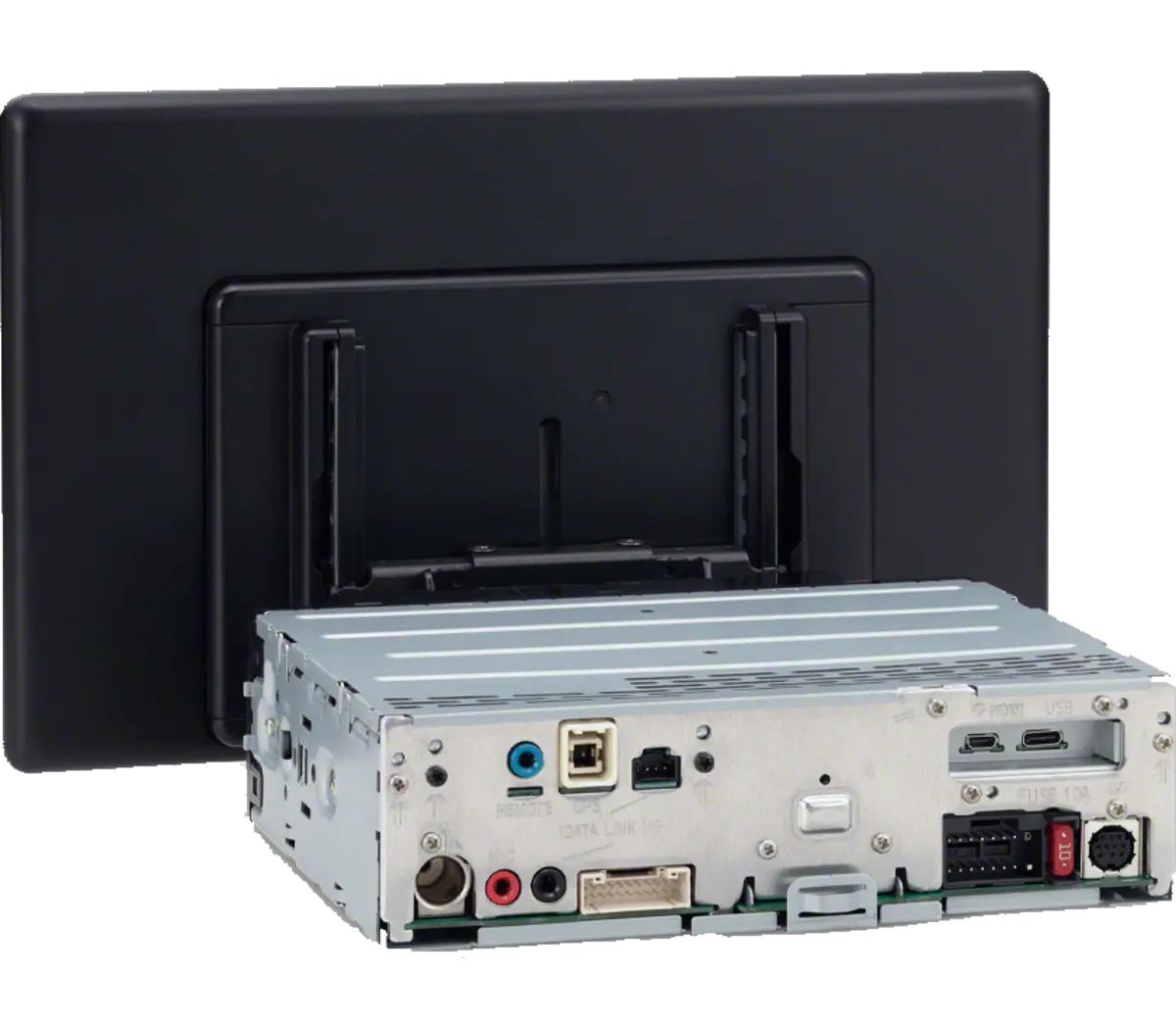

Single-DIN Chassis for Flexible Installation
Despite its large screen, the XAV-AX8500’s main unit is designed with a single-DIN chassis, allowing easy installation in both single and double-DIN dashboards. This design also leaves ample room for cables and harnesses when installed in double-DIN vehicles.
