Description
Pioneer MVH‑S322BT

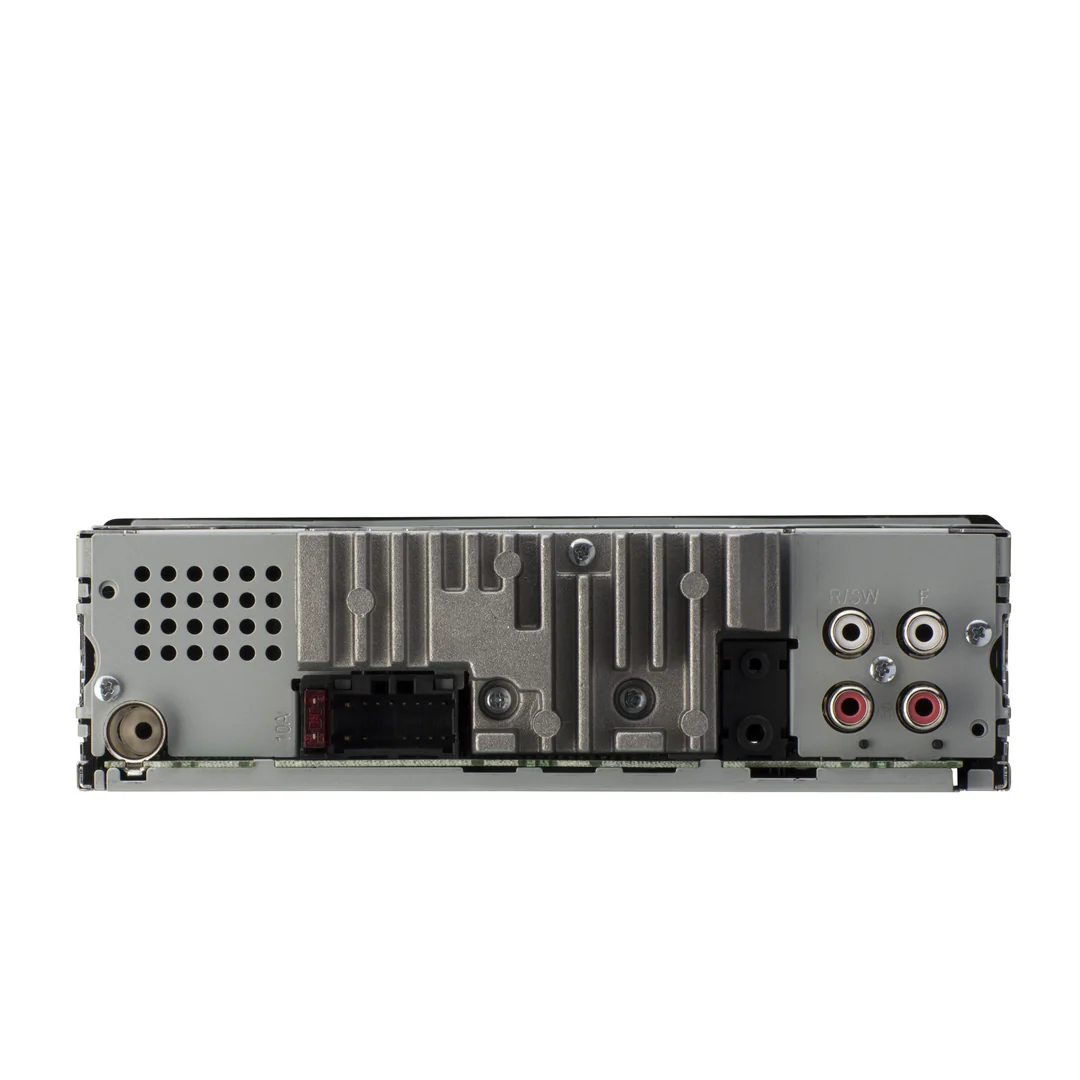

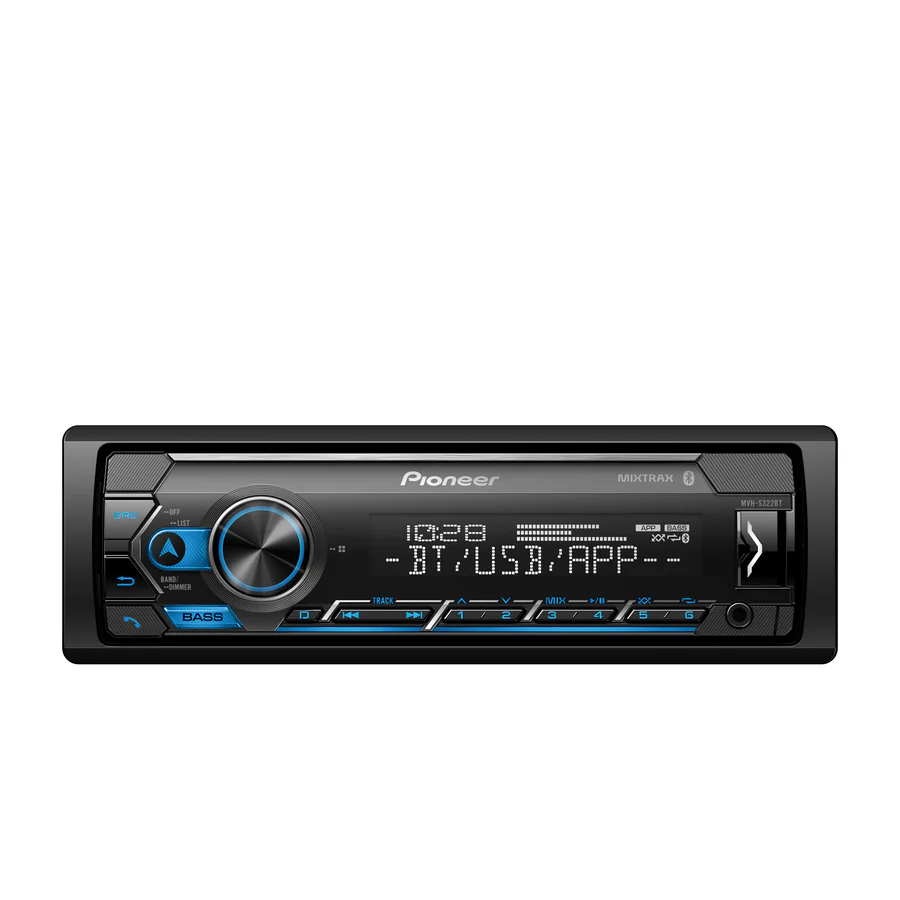

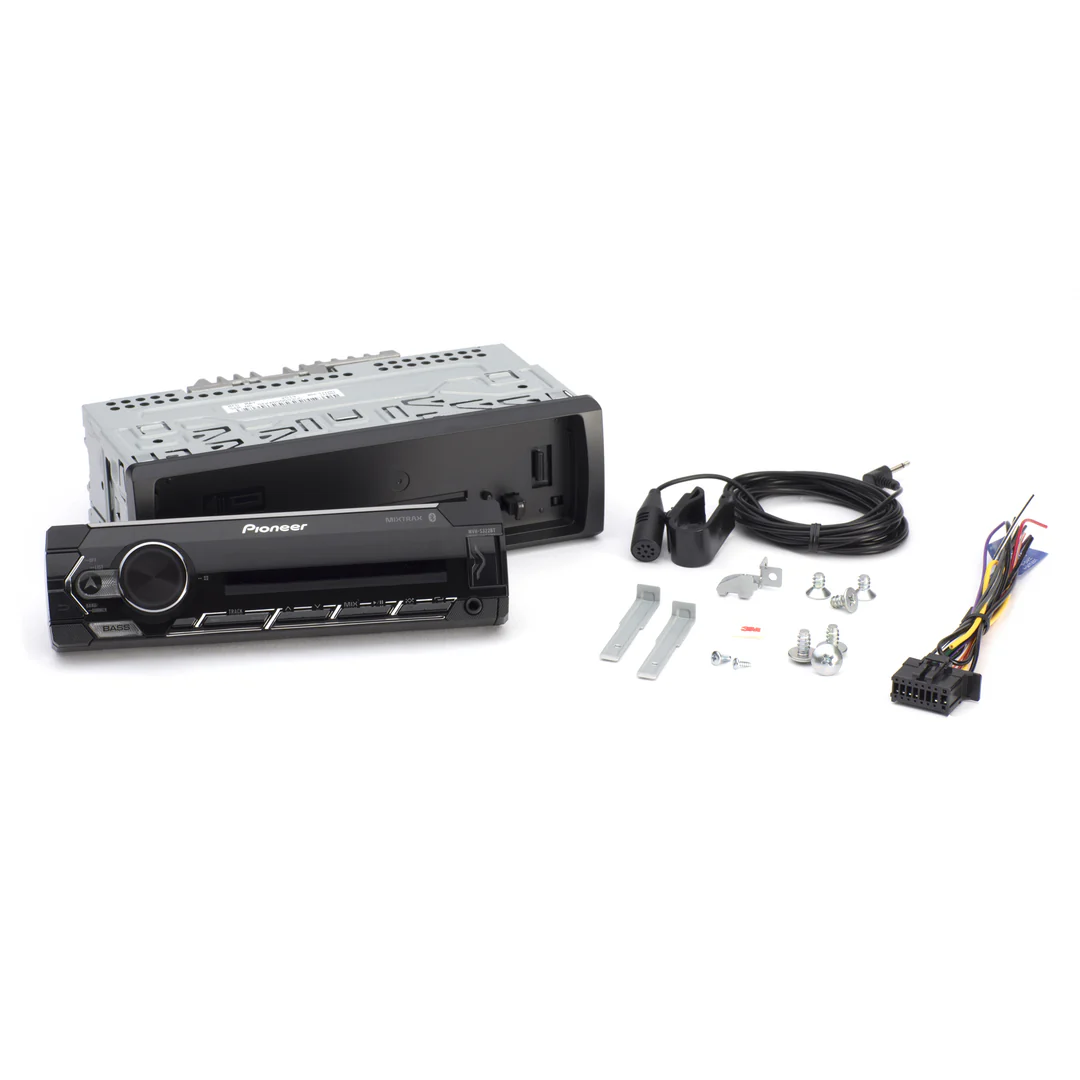

The Pioneer MVH‑S322BT is a single‑DIN digital‑media receiver designed for modern car audio upgrades. It features built‑in Bluetooth® for hands‑free calling and wireless music streaming, USB and AUX inputs, and compatibility with the Pioneer Smart Sync® app, including support for voice‑control via Amazon Alexa when paired. The unit delivers advanced audio features such as a 13‑band graphic equaliser (expandable to 31‑bands when using Smart Sync), high‑/low‑pass crossovers, and time alignment. It also offers two sets of 4‑volt RCA pre‑outs (front and rear/sub) for amplifiers or subwoofer integration, making it a strong choice for audio upgrades in compact single‑DIN installations.
Specifications
PRODUCT PERFORMANCE
| Feature | Specification |
|---|---|
| Continuous Power Output | 22 W x 4-Channel |
| Load Impedance Allowance | 4 Ohm (4 Ohm to 8 Ohm Allowable) |
| Max Power Output | 50 W x 4-ch 4 ohm, 50 W x 2-ch 4 ohm, 70 W x 1-ch (subwoofer) 2 Ohm |
| RCA Preamp Outputs | 4-ch |
| RCA Preout Voltage | 4V |
| RMS Power Output (CTA-2006) | 14 W RMS x 4-ch 4 ohm |
GENERAL
| Feature | Specification |
|---|---|
| Detachable Face Security | Detachable |
| Multi-Language Display | English, French, Spanish |
| Music Browser | USB, with Smart Sync App |
| Remote Control | Optional |
| Rotary Volume Control | Yes |
| Steering Wheel Control Ready | Yes (Adapter Sold Separately) |
DISPLAY
| Feature | Specification |
|---|---|
| Back Light | LED |
| Brightness Control | Yes |
| Color Customization | Fixed |
| Device Display | VA LCD (2-Line) |
| Device Type | 1-DIN |
| Dimmer | Timer Controlled, Manual |
BLUETOOTH
| Feature | Specification |
|---|---|
| Advanced Audio Distribution Profile (A2DP) | Yes |
| AVRCP | 1.6 |
| Built-in Bluetooth® | Yes |
| Dual Phone Connection | Yes |
| Hands-Free | Yes |
| Microphone Included | Yes |
| Phone Registration | 5 phones |
| Secure Simple Pairing (SSP) | Yes |
| Serial Port Profile (SPP) | Yes |
| Sound Retriever Air | Mode 1 / Mode 2 / Off |
TUNER
| Feature | Specification |
|---|---|
| Best Station Memory | Yes |
| Local Seek Tuning | Yes |
| Presets | 18 FM, 6 AM |
| RDS | Yes |
INTEGRATION
| Feature | Specification |
|---|---|
| Amazon Alexa | Paired with Pioneer Smart Sync |
| Mobile Operating System | Android, Apple iOS |
| Music Playback (MTP) | Yes |
| Pandora® | Source through iPhone/Android |
| Pioneer App Compatibility | Pioneer Smart Sync Android, Pioneer Smart Sync iPhone |
| Siri® Eyes Free (VR) | iPhone Only |
| Spotify | Streaming via iPhone/Android through Bluetooth or AUX |
| Voice Control | Yes |
DIGITAL MEDIA PLAYBACK
| Feature | Specification |
|---|---|
| Audio Playback via USB | MP3, WMA, AAC, FLAC (Hi-Res), WAV (Hi-Res) |
AUDIO
| Feature | Specification |
|---|---|
| Advanced Sound Retriever | Mode 1 / Mode 2 / Off |
| Balance | Yes |
| Built-in Amplifier | MOSFET 50 W x 4 |
| Crossover Standard Mode | HPF / LPF |
| Customizable Graphic Equalizer | 13 Band, 31 Band with Pioneer Smart Sync app |
| DA Converter | 24 Bit |
| Digital Signal Processor | Built In |
| Dynamic Bass Enhancer | Off / Low / High |
| Easy EQ (EEQ) Preset Equalizer | Yes |
| Listening Position Selector | Yes |
| Loudness | High / Mid / Low / Off |
| MIXTRAX® | Yes |
| Source Level Adjuster | Yes |
| Speaker Output | 4-ch |
| Spectrum Analyzer | Yes |
| Subwoofer Control | Yes |
| Time Alignment | Manual |
EXPANDABILITY
| Feature | Specification |
|---|---|
| Audio Video Inputs | Input 2 – AUX (Minijack) |
| Firmware Upgradability | Yes |
| USB | Front Type-A (5V, 1.5 A) |
| USB Direct Control for iPhone® | 5s and newer |
About The Product
The MVH-S322BT is designed to accommodate the smartphone lifestyle. When using Pioneer Smart Sync with Amazon Alexa, it opens a new world for this digital media receiver. Using this application, you can broaden your access, whether wired or wireless. The receiver has a built-in amplifier and is equipped with two RCA pre-outs at 4V each. It features a 13-band customizable graphic equalizer, which increases to 31 bands when utilizing Pioneer Smart Sync. The crossover network is Standard Mode only. Additional features include the Pioneer Smart Sync app with Amazon Alexa, Bluetooth®, USB direct control for iPhone®, and more.
Pioneer Smart Sync
Pioneer Smart Sync is a highly evolved app, available for both iOS and Android OS, that utilizes the power of a connected smartphone to expand the features and user interface of compatible Pioneer in-dash receivers. With support for either a Bluetooth® or USB connection, the link between your smartphone and the in-dash receiver can be either wired or wireless. Through Pioneer Smart Sync, you can access many popular smartphone apps for maps, messages, music, connect to an OBDII module (sold separately), and more.
Pioneer Smart Sync now features Amazon Alexa Built-in. Just download or update to the latest version of the Pioneer Smart Sync app and download the Alexa app. Using Alexa with Pioneer Smart Sync is simple; just tap-and-ask to play music, hear the news, check weather, control smart home devices, and more. Alexa lives in the cloud, so it’s always getting smarter, adding new capabilities automatically.
Pioneer Smart Sync is also a powerful wireless remote control, allowing you to easily tune sound via the app’s touchscreen interface and save those settings directly on your smartphone.
Smartphone Control
Access music on your smartphone directly from the Pioneer receiver. Search for Artists, Albums, and Songs using Pioneer’s intuitive interface. You can also access and control select music and radio apps on your smartphone.
Bluetooth
This receiver makes hands-free phone calls simple. Pioneer’s included external microphone provides crystal clear sound. Stream music, podcasts, audiobooks, and more from your compatible phone or other Bluetooth® devices.
Siri® Eyes Free
Siri listens through the receiver’s external microphone and answers your questions and requests over the vehicle’s speakers, helping you keep your eyes on the road and your hands on the wheel.
USB Auto Switch
The receiver includes the USB Auto Switch feature, so when the phone is connected via USB, the listener can choose whether the receiver uses the phone as a source or just charges the device.
Wired Remote Input
This receiver integrates an input specifically designed to connect a third-party interface (optional), which allows you to retain the key functions from the steering wheel control buttons of your vehicle.
Pioneer Advanced Sound Retriever
Hear more detail, warmth, and clarity that the artist originally intended, even from compressed audio files. Pioneer’s ASR enhances audio playback of compressed audio files, counteracting compression effects for more natural sound.
Audio Equalizer
The 13-band equalizer allows for detailed adjustments to your acoustic settings. Multiple EQ presets ensure even users with basic acoustic knowledge can tailor the sound to their car’s interior acoustics and speaker characteristics.
Time Alignment
This feature allows for delay time and synchronizing from each speaker to be adjusted to correct phase mismatches in the sound resulting from the listening position. Measure the distance between your listening position and the speakers, then enter these measurements into the Pioneer receiver.
MIXTRAX
Keep the party going with MIXTRAX®, an innovative Pioneer technology that creates a non-stop mix of your music library with DJ-inspired effects. MIXTRAX takes music from an iPhone, iPod, USB device, or certain Android devices and plays it back with added transitions and effects, creating a virtual DJ inside the receiver.
MIXTRAX also features club-style illumination, enhancing the mood with dynamic dance club-like lighting. Lights start pulsing to the beat of the music, adding extra entertainment. Multiple patterns of lighting variations can be selected from sound pressure level or low-pass synchronization modes.
