Description

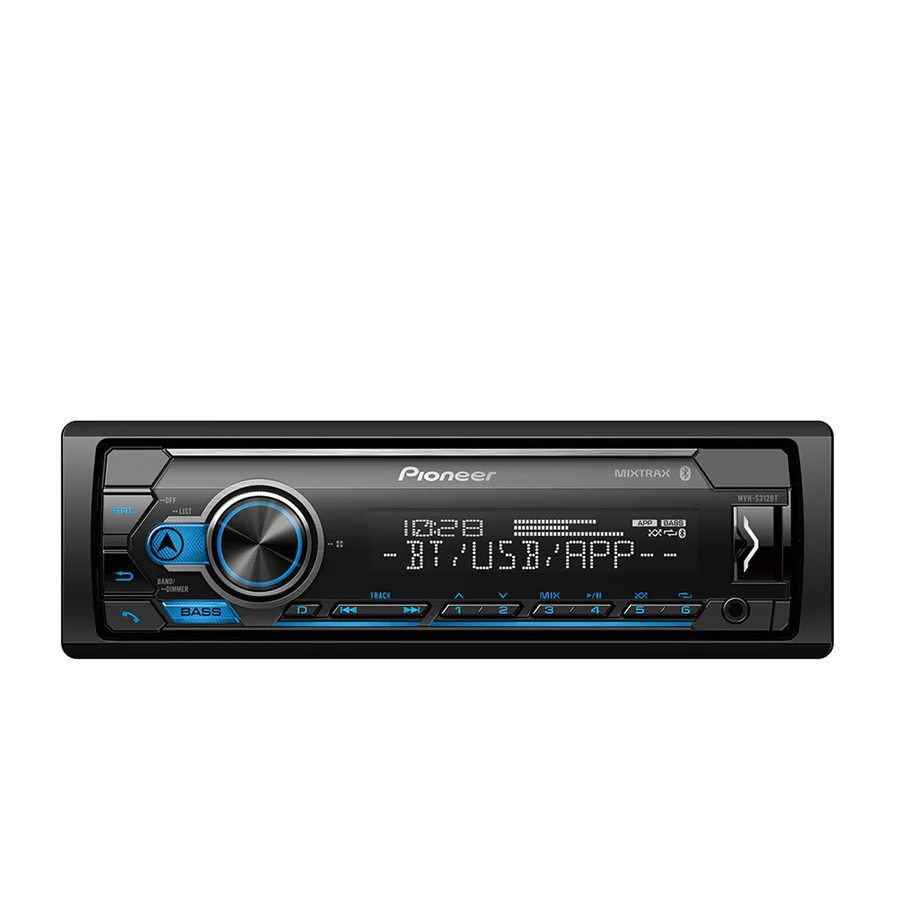

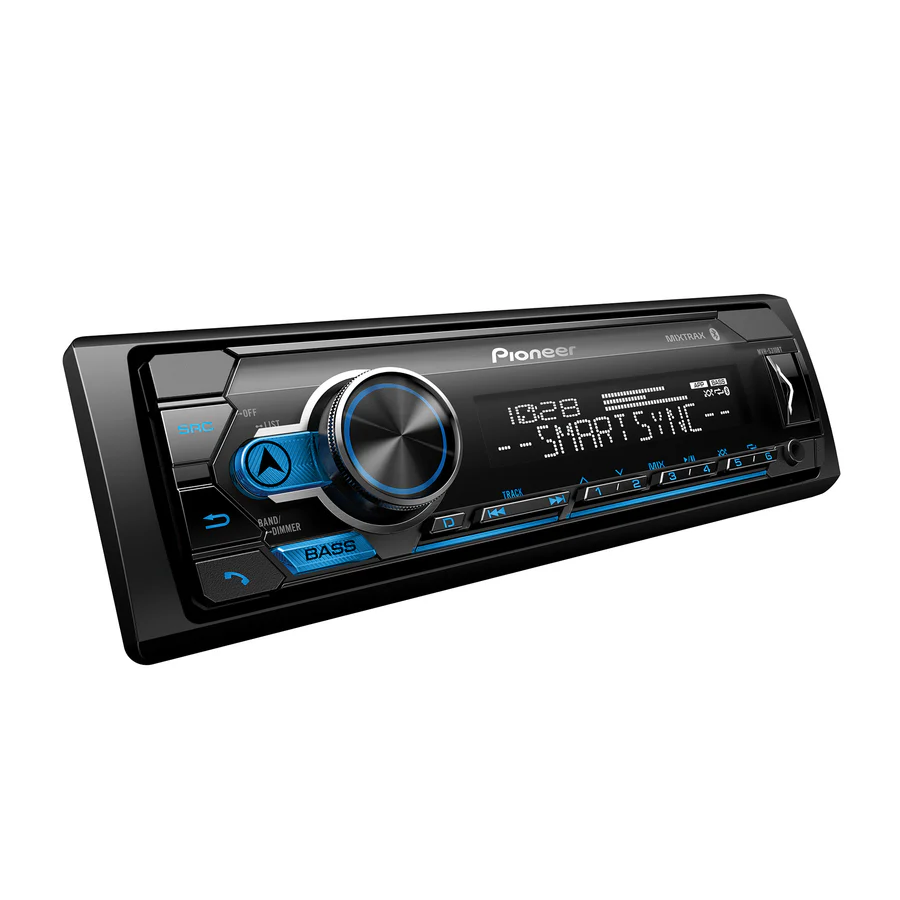

Pioneer MVH‑S310BT/B

The Pioneer MVH‑S310BT/B is a single‑DIN digital media receiver designed for modern audio installations. It features built‑in Bluetooth® for hands‑free calling and wireless audio streaming, a front USB port (1.5 A charging capable) supporting playback of MP3, WMA, AAC, WAV and FLAC files, dual pairs of 4‑volt RCA pre‑out (front/rear plus sub) for system expansion, a 13‑band graphic equaliser (expandable to 31 bands via the Smart Sync® app), high‑ and low‑pass crossover filters, and MIXTRAX® DJ‑style playback effects.


Specifications

PRODUCT PERFORMANCE
Specification Details
Continuous Power Output 22 W x 4-Channel
Load Impedance Allowance 4 Ohm (4 Ohm to 8 Ohm Allowable)
Max Power Output 50 W x 4-ch 4 ohm, 50 W x 2-ch 4 ohm, 70 W x 1-ch (subwoofer) 2 Ohm
RCA Preamp Outputs 4-ch
RCA Preout Voltage 2V
RMS Power Output (CTA-2006) 14 W RMS x 4-ch 4 ohm

GENERAL
Specification Details
Detachable Face Security Full
Multi-Language Display English, French, Spanish
Music Browser USB, With Smart Sync App

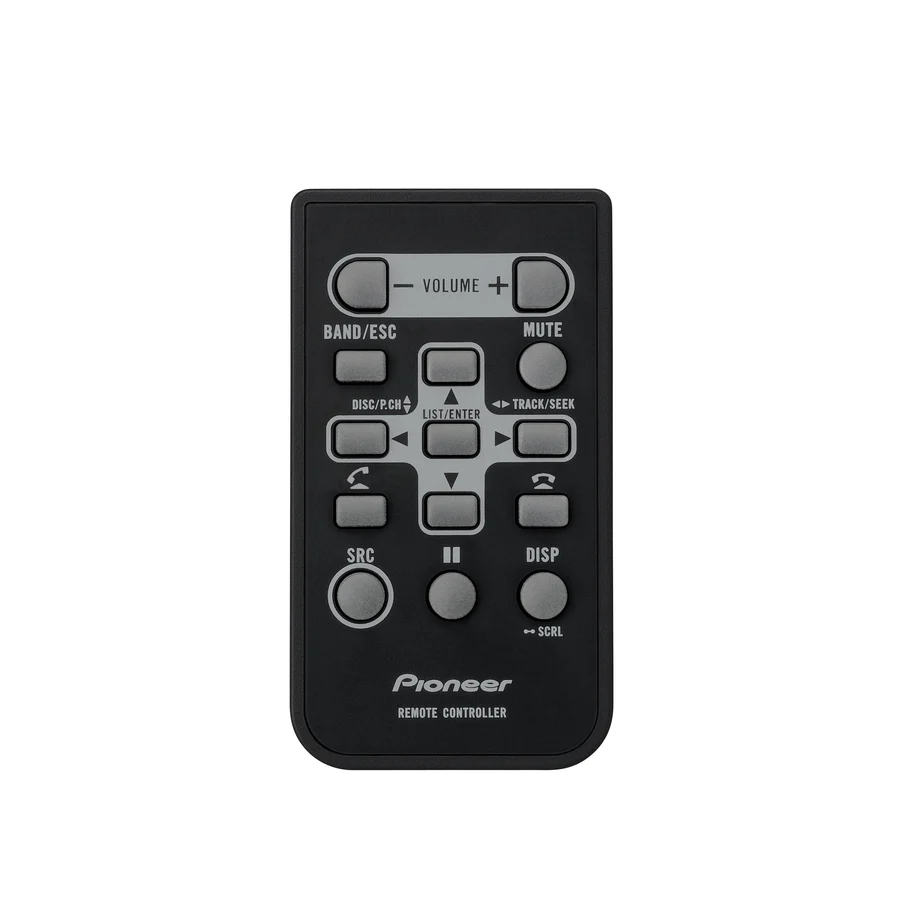

Remote Control Optional
Rotary Volume Control Yes
Steering Wheel Control Ready (Adapter Sold Separately) Yes

DISPLAY
Specification Details
Back Light LED
Brightness Control Yes
Color Customization Fixed
Device Display VA LCD (2-Line)
Device (Non-DIN/Modular Unit) 1-DIN
Dimmer Timer Controlled, Manual

BLUETOOTH
Specification Details
Advanced Audio Distribution Profile (A2DP) Yes
AVRCP 1.6
Built-in Bluetooth® Yes
Dual Phone Connection Yes
Hands-Free Yes
Microphone Included Included
Phone Registration 5-phone
Secure Simple Pairing (SSP) Yes
Serial Port Profile (SPP) Yes
Sound Retriever Air Mode 1 / Mode 2 / Off

TUNER
Specification Details
Best Station Memory Yes
Local Seek Tuning Yes
Presets 18 FM, 6 AM
RDS Yes

INTEGRATION
Specification Details
Amazon Alexa Paired with Pioneer Smart Sync
Mobile Operating System Android, Apple iOS
Music Playback (MTP) Yes
Pandora® Source through iPhone/Android
Pioneer App Compatibility Pioneer Smart Sync Android, Pioneer Smart Sync iPhone
Siri® Eyes Free (VR) (Internet Required) iPhone Only
Spotify Streaming audio through iPhone/Android via Bluetooth or AUX input
Voice Control Yes

DIGITAL MEDIA PLAYBACK
Specification Details
Audio Playback via USB MP3, WMA, AAC, FLAC (Hi-Res), WAV (Hi-Res)

AUDIO
Specification Details
Advanced Sound Retriever Mode-1 / Mode-2 / Off
Balance Yes
Built-in Amplifier MOSFET 50 W x 4
Crossover Standard Mode HPF / LPF
Customizable Graphic Equalizer 13 Band, 31 Band with Pioneer Smart Sync app
DA Converter 24 Bit
Digital Signal Processor Built In
Dynamic Bass Enhancer Off / Low / High
Easy EQ (EEQ) Preset Equalizer Yes
Listening Position Selector Yes
Loudness High / Mid / Low / Off
MIXTRAX® Yes
Source Level Adjuster Yes
Speaker Output 4-ch
Spectrum Analyzer True
Subwoofer Control Yes
Time Alignment Manual

EXPANDABILITY
Specification Details
Audio Video Inputs Input 2 – AUX (Minijack)
USB Front Type-A (5V, 1-1/2 A)
USB Direct Control for iPhone® 5s and newer




About The Product

This is a Pioneer Reconditioned product, including a 90-day limited warranty.

This Pioneer MVH-S310BT Single-DIN In-Dash Digital Media Receiver with Bluetooth® not only can provide hands-free calling and wireless music playback with a paired smartphone, it also has Pioneer’s Smart Sync Technology which adds special features to that smartphone. Since the MVH-S310BT does not play back any kind of video, the Smart Sync app transforms a compatible, paired smartphone into a touchscreen receiver display! The MVH-S310BT also has 2 sets of RCA preamp outputs and a full-featured 13 band EQ for the premium sound quality expected from Pioneer. Installing this mechless car stereo head unit in a wide variety of applications is easier than ever because the chassis’ depth is less than 4 in.


Bluetooth

This receiver makes hands-free phone calls simple. Pioneer’s included external microphone provides crystal clear sound. Stream music, podcasts, audiobooks, and more from your compatible phone or other Bluetooth® devices.


MIXTRAX

Keep the party going with MIXTRAX®, an innovative Pioneer technology that creates a non-stop mix of your music library complete with a range of DJ-inspired effects. Drawing from Pioneer’s rich DJ heritage and our passion for music, MIXTRAX delivers a unique DJ-infused listening experience to those in the car. MIXTRAX takes the music from an iPhone, iPod, USB device, or certain Android devices and plays it back with added transitions and effects, creating a virtual DJ inside the Pioneer receiver. MIXTRAX makes automatic remixing of tracks extra-quick and easy. Simply connect your USB-compatible device and listen as tracks are joined by various random sound effects in non-stop-mix play to keep the groove going in full swing. MIXTRAX also features club-style illumination that enhances the mood with a dynamic dance club-like lighting effect. As MIXTRAX begins, lights start pulsing to the beat of the music, adding an extra level of entertainment. Choose among multiple patterns of lighting variations from sound pressure level or low-pass synchronization modes.


Siri® Eyes Free

Siri listens through the receiver’s external microphone and answers your questions and requests over the vehicle’s speakers, helping you keep your eyes on the road and your hands on the wheel.


Time alignment

This feature allows for delay time and synchronizing from each speaker to be adjusted to correct any phase mismatches in the sound resulting from the listening position. No need for any acoustics degree to do the job, simply measure the distance between your listening position and the speakers, then enter these measurements into the Pioneer receiver.

Reviews

There are no reviews yet.

Be the first to review “Pioneer MVH‑S310BT/B”

Your email address will not be published. Required fields are marked *

Questions and Answers

Q1: What installation size does the MVH‑S310BT/B use?

A1: It uses a standard single‑DIN dash chassis (≈ 178 × 50 × 165 mm) suitable for factory single‑DIN head‑unit openings.

Q2: What connectivity and smartphone features does it offer?
A2: It provides built‑in Bluetooth for hands‑free calling and music streaming, a USB front port for device charging/playback, AUX input, and compatibility with the Pioneer Smart Sync® app for smartphone integration.
Q3: What audio outputs and tuning options are included?
A3: The unit includes two pairs of 4‑volt RCA pre‑outs (front & rear/sub), a built‑in MOSFET amplifier, a 13‑band graphic EQ (expandable via Smart Sync®), and high/low‑pass filters for optimal sound tuning.
Q4: Does it support CD/DVD playback?

A4: No — the MVH‑S310BT/B is a mech‑free media receiver and does not include a CD or DVD drive. It focuses on digital media, USB, Bluetooth and streaming.

Q5: What should a U.S. customer check before installing this unit?

A5: Ensure the vehicle has a single‑DIN head‑unit opening, verify compatibility of wiring harness/steering wheel control adapter if used, confirm the USB port supplies sufficient current for your smartphone, and ensure the pre‑out/amp wiring is aligned if planning system upgrades.
