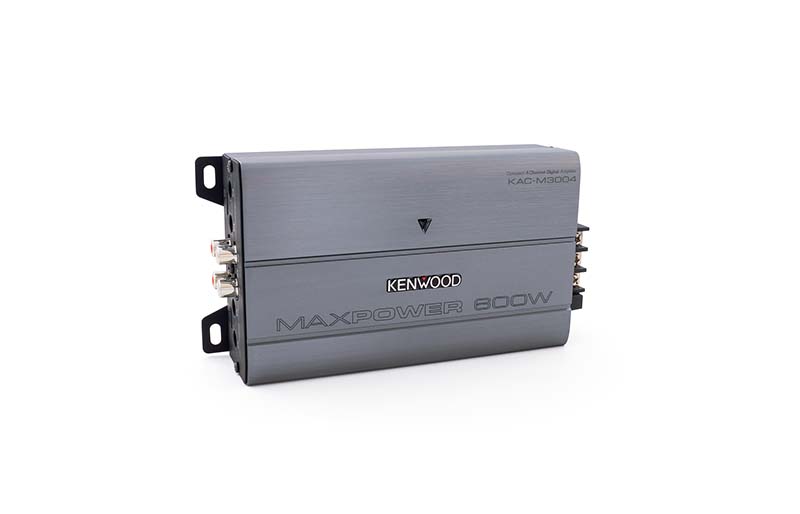

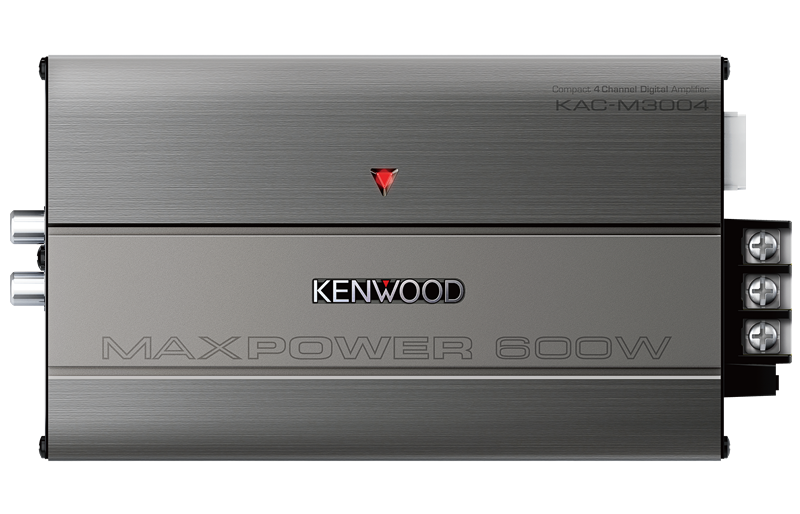

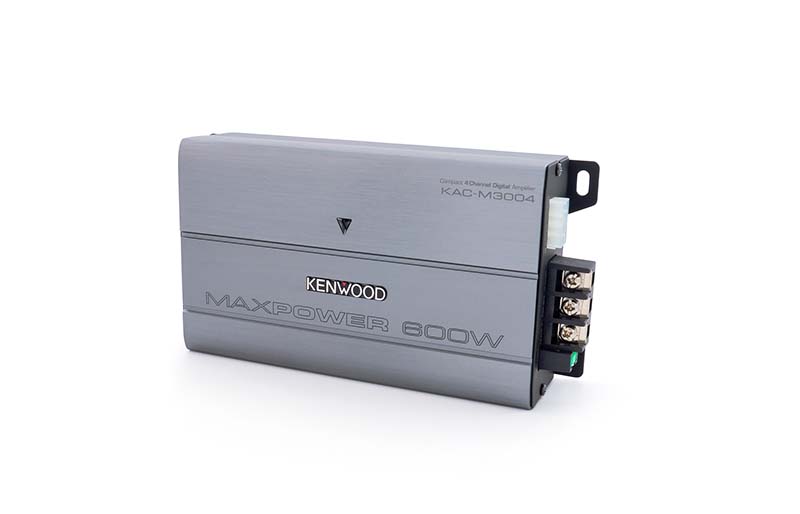

Kenwood KAC-M3004
The Kenwood KAC-M3004 is a compact 4-channel Class D amplifier designed for cars, motorcycles, and marine environments. It delivers clean and efficient power in a small size, making it perfect for tight installations while providing reliable performance and durability in harsh conditions.
Specifications
| Title | Compact 4 Channel Digital Amplifier | |
|---|---|---|
| Amplifier Type | Class D | |
| CTA-2006-D Value | Maximum Dynamic Power | 65W at 4ohms and ≤ 10% THD + N |
| Continuous Power Output | 50W at 4ohms and ≤ 1% THD + N | |
| Signal to Noise | 76dBA reference 1 Watt RMS | |
| Maximum Power Output | 600W | |
| Specifications | Signal to Noise Ratio | 89dB (Reference: Rated Power into 4Ohms at 14.4V) |
| Frequency Response | 20Hz-20kHz (+0dB, -1dB) | |
| Input Impedance | 10k ohm | |
| Speaker Impedance | 4Ω (2Ω to 8Ω allowable) | |
| Bridged connection | 4Ω to 8Ω allowable | |

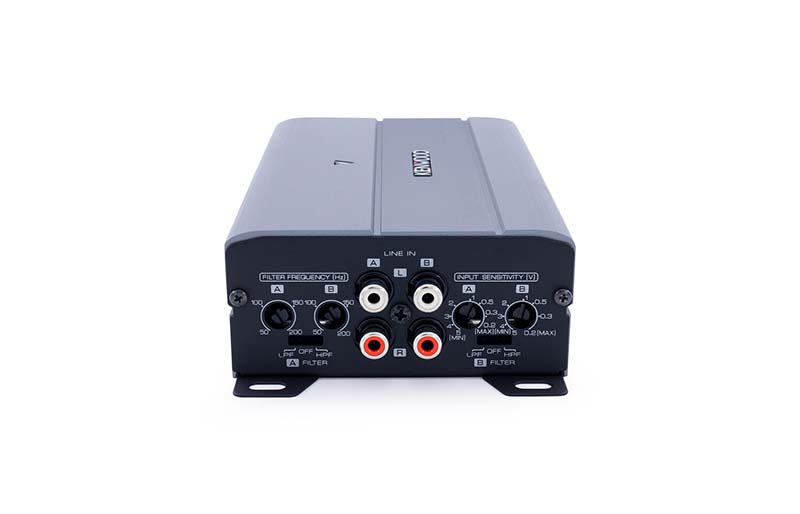

| Audio Section | Low-Pass Filter | Built in Variable Low-Pass Filter (50Hz-200Hz, -12dB/oct) |
| High-Pass Filter | Built in Variable Low-Pass Filter (50Hz-200Hz, -12dB/oct) | |
| Filter Selector 1 | LPF-OFF-HPF | |
| RCA Input Sensitivity | 0.2 V – 5.0 V | |
| Speaker Level Input Sensitivity | 4.0 V – 12.0 V | |

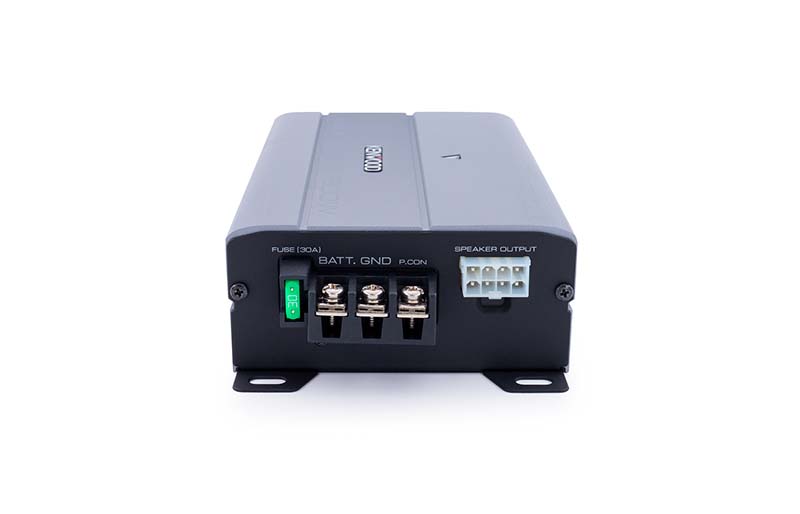

| Terminals | Battery & Ground | Screw Type Terminal Block (Ni) (M4) |
| Speaker Output | MOLEX Connector with AWG16 200mm Wire | |
| Line In | RCA (Ni) | |
| General | Dimensions(WxHxD) | ‘6-1/2 X ‘1-3/4 X ‘3-7/8 inch |
| Weight(kg) | – | |
| Operating Voltage | 14.4V（11-16V allowable） | |
| Current Consumption | 22 A | |
| Key Features | CEA-2006 Compliant Class D 2 Ohms Load Capability Speaker Level Input Signal Sensing Turn-on Power MOS-FET Switching Power Supply Extruded Aluminum Heat Sink Design |
|
| Others | Triangle Indicator | |
