Description

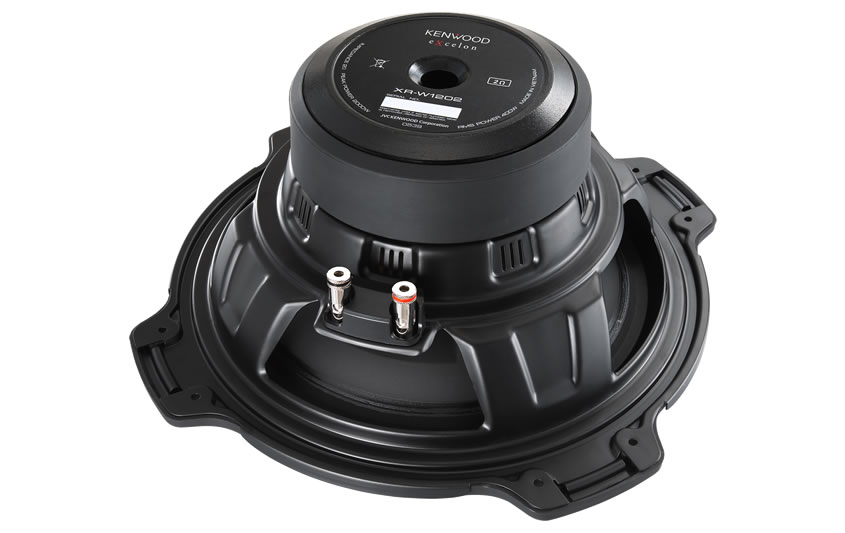

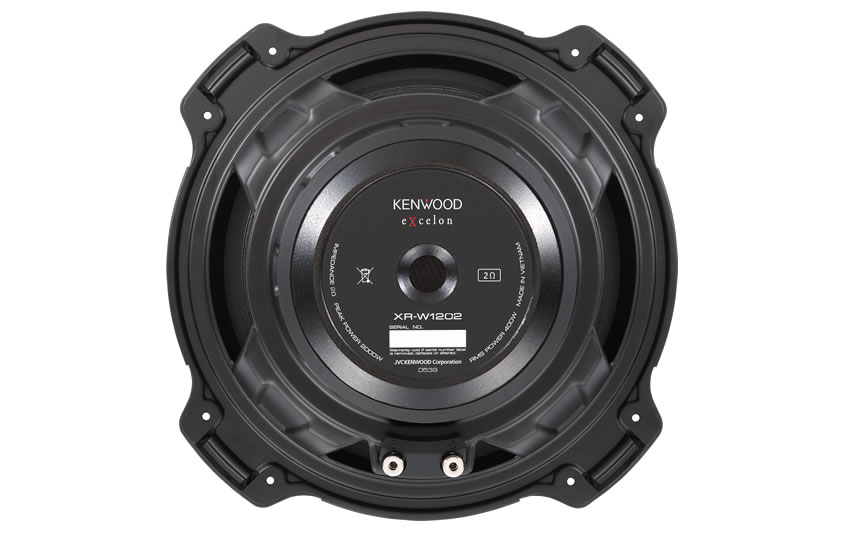

Kenwood eXcelon XR-W1202(2Ω)
The Kenwood XR-W1202 (2Ω) is a high-performance 12-inch eXcelon Reference series subwoofer designed for deep, powerful, and accurate bass reproduction in car audio systems. It features an oversized polypropylene cone, reinforced rubber surround, and a strong magnetic motor structure that delivers tight low-frequency response with low distortion. With 400W RMS and up to 2000W peak power handling, it is built for high-output bass systems while still maintaining clarity and control. Its dual ventilation system improves heat dissipation, making it reliable for long-term use in sealed or small enclosures for clean and punchy bass performance.
Specifications
| Category | Specification | Details |
|---|---|---|
| Model Name | XR-W1202 | – |
| Woofer Size | 30 cm (Over sized 12″) | – |
| Diaphragm | PP Cone | Gray |
| Surround | Rubber | Black |
| Basket | Steel | Black |
| Magnet | Ferrite | φ155 × t16 × 2 pcs |
| Dimensions (Woofer Unit) | Width | 12-13/16 in |
| Height | 12-13/16 in | |
| Cutout Diameter | 11 in | |
| Depth | 6-1/2 in | |
| Mounting Depth | 5-5/8 in | |
| Weight | Woofer (each) | 15.0 lb (6.8 kg) |
| Gross Weight | 17.4 lb (7.9 kg) | |
| Impedance | Nominal | 2 Ω |
| Power Handling | Peak Power | 2000 W |
| RMS Power (CEA spec) | 400 W | |
| Sensitivity | 81 dB (1W/1m) | – |
| Frequency Response | 33 Hz – 300 Hz | – |
| Accessories | Screw Set | φ4 × 35 mm, 8 pcs |
| Cushion | 1 pc | |
| Warranty Card | 1 pc | |
| Special Features | Ventilation | Dual ventilation system |
| Cone | Oversized cone | |
| Damper | Stress-free damper | |
| Terminal | 8 AWG push terminal | |
| Magnet Cover | Rubber |
