Description

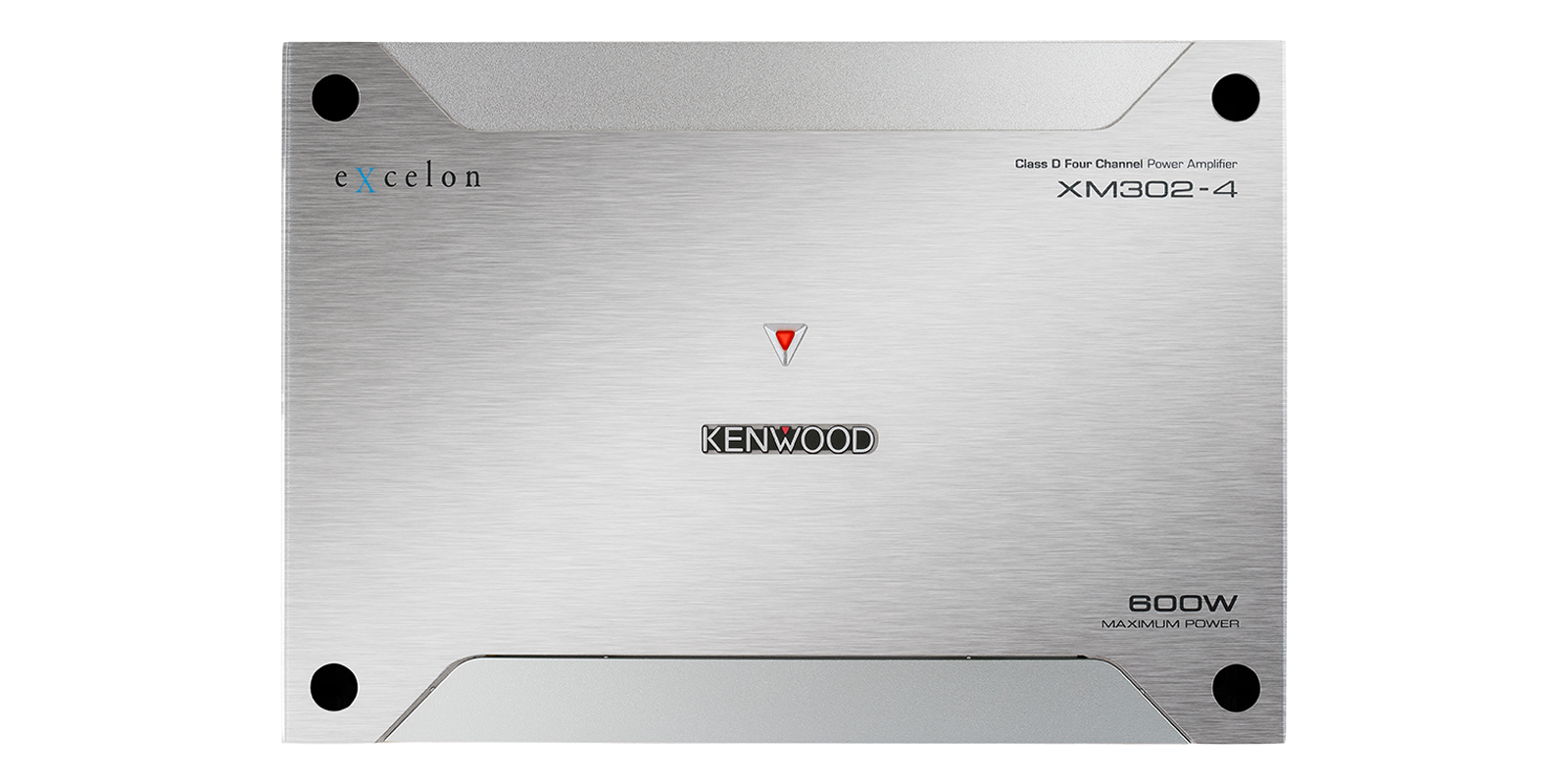

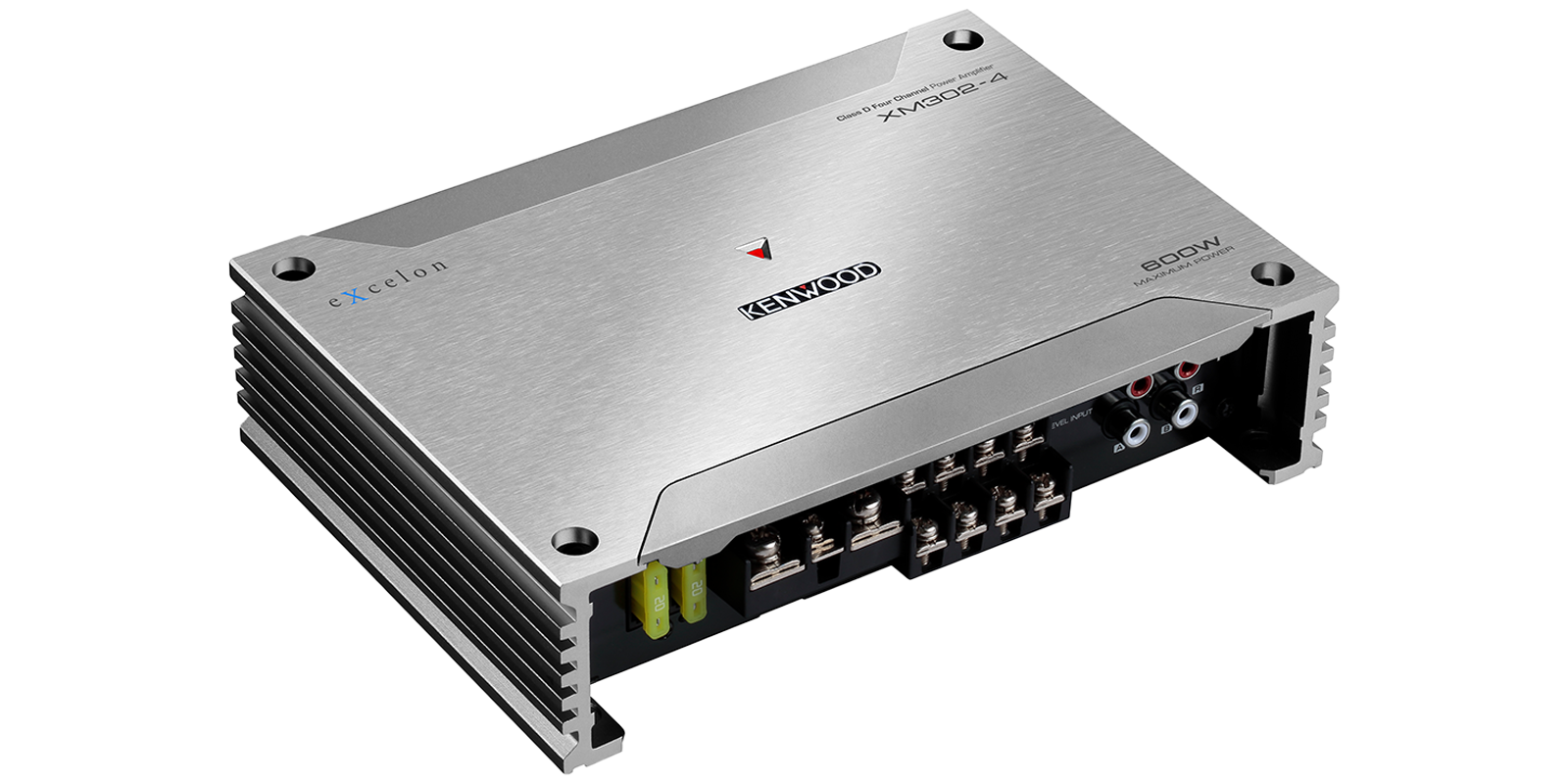

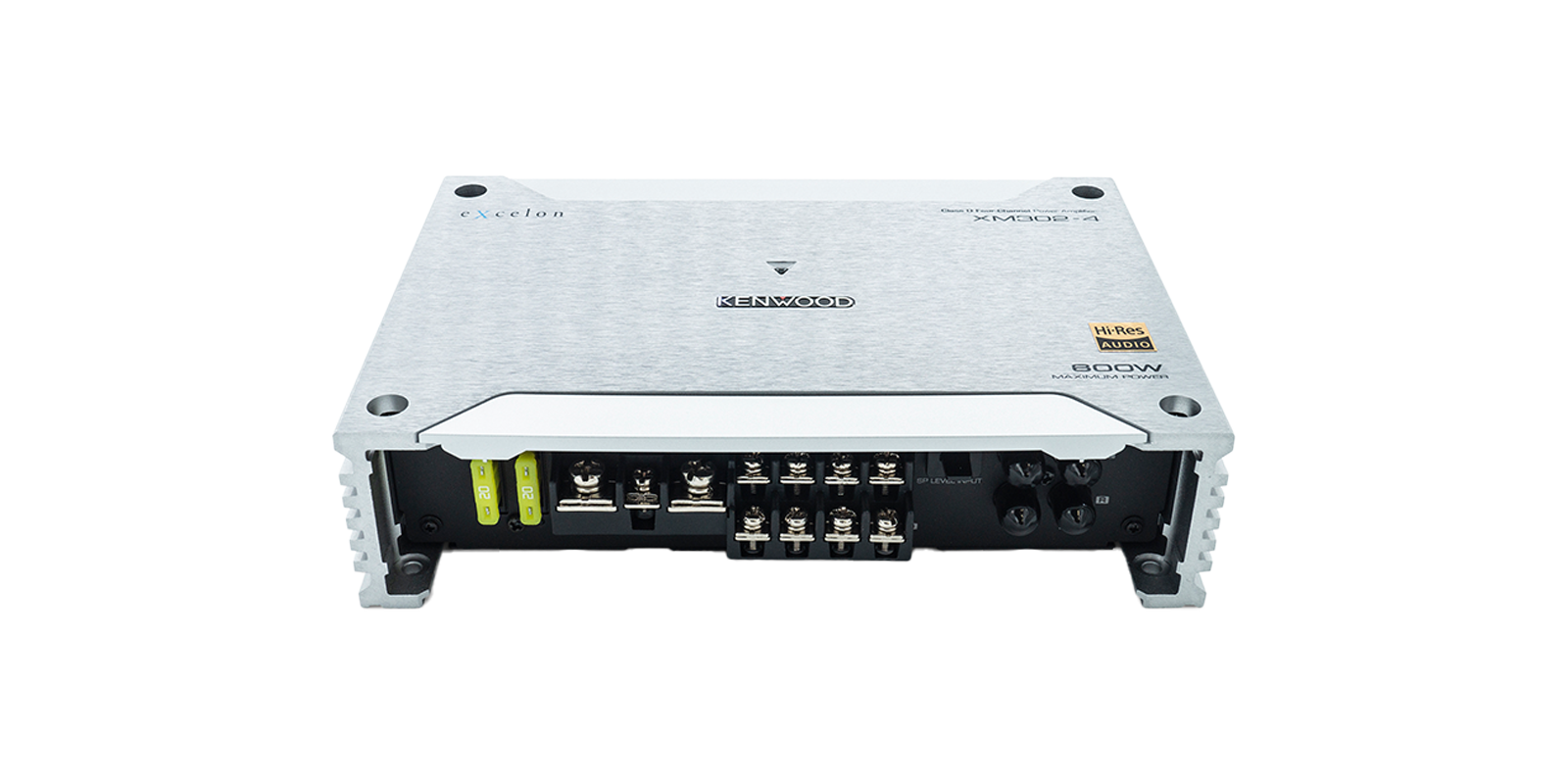

Kenwood eXcelon XM302-4
The Kenwood XM302-4 is a 4-channel Class D car audio amplifier (eXcelon Motorsports series) designed to power front and rear speakers with clean, efficient, and high-resolution sound output. It is a compact amplifier built for daily-use systems and OEM audio upgrades, offering strong performance with low heat generation.
Specifications
| XM802-5 | XM502-1 | XM302-4 | |
|---|---|---|---|
| MAX POWER | 1600W | 1000W | 600W |
| RMS POWER OUTPUT (4Ω) | 50W x 4 + 300W | 300W | 50W x 4 |
| RMS POWER OUTPUT (2Ω) | 75W x 4 + 500W | 500W | 75W x 4 |
| RMS POWER OUTPUT Bridged | 150W x 2 (Bridged) + 300W | – | 150W x 2 (Bridged) |
| Features | Speaker Level Input | Speaker Level Input | Speaker Level Input |
| Signal Sensing Turn-On | Signal Sensing Turn-On | Signal Sensing Turn-On | |
| Variable High Pass Filter | Variable Low Pass Filter | Variable High Pass Filter | |
| Variable Low Pass Filter | Infrasonic Filter | Variable Low Pass Filter | |
| Conformal Coating | Conformal Coating | Conformal Coating | |
| Bass Boost | Bass Boost | Bass Boost | |
| Optional Wired Remote Ready | Optional Wired Remote Ready | ||
| Dimensions | (W)9-3/4″ x (H) 2-1/16” x (D)6-5/8” | (W)8-3/8” x (H)2-1/16” x (D)5-7/8” | (W)8-3/8” x (H)2-1/16” x (D)5-7/8” |
| Weight | 4.6 lbs ( 2.1 kg) | 3.3 lbs ( 1.5 kg) | 3.1 lbs ( 1.4 kg) |
