Description

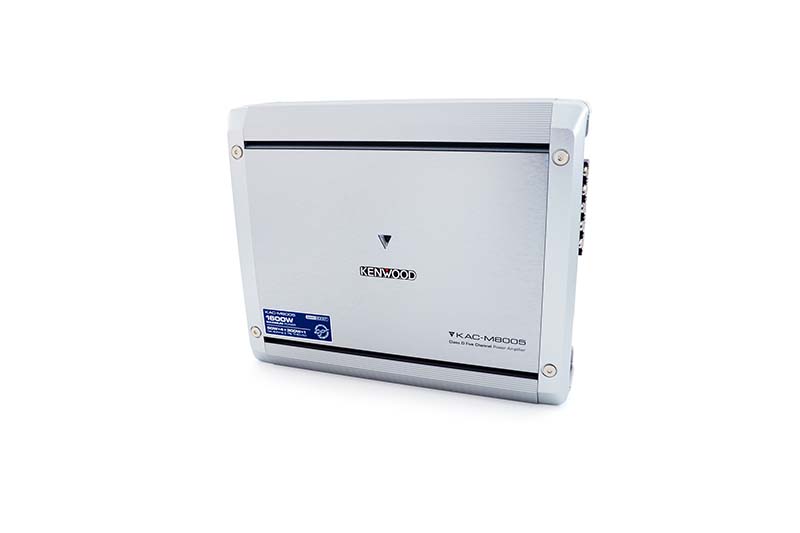

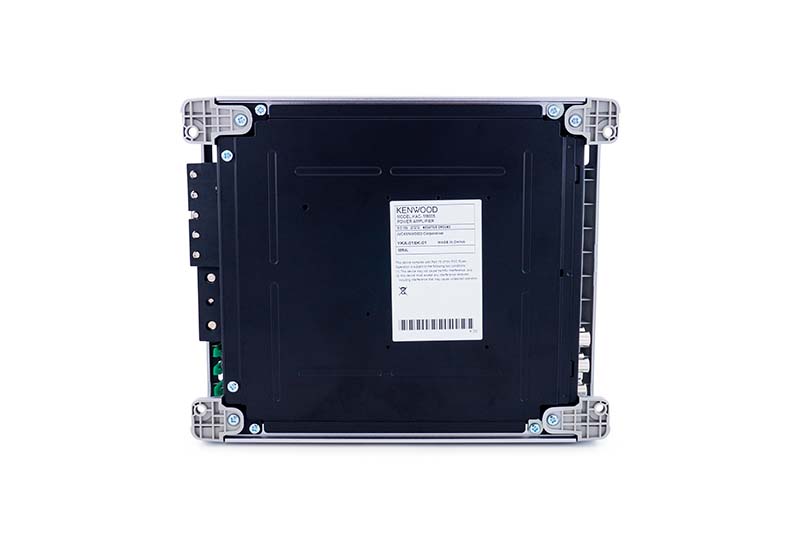

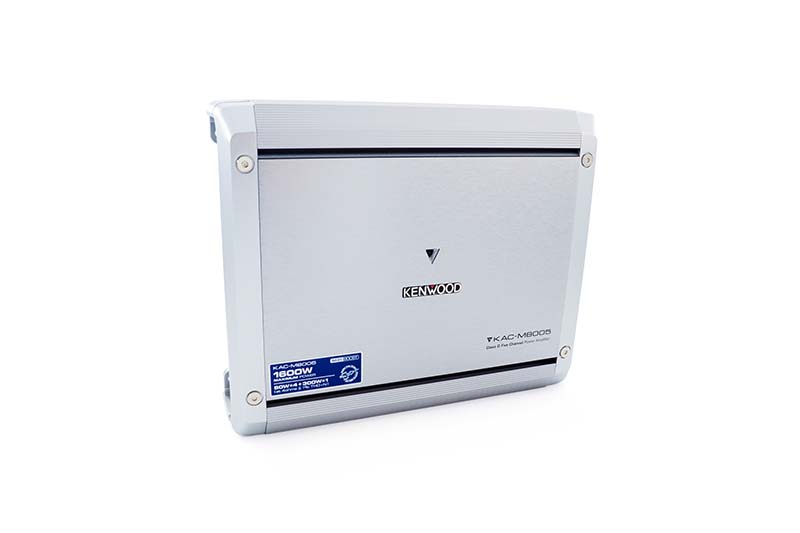

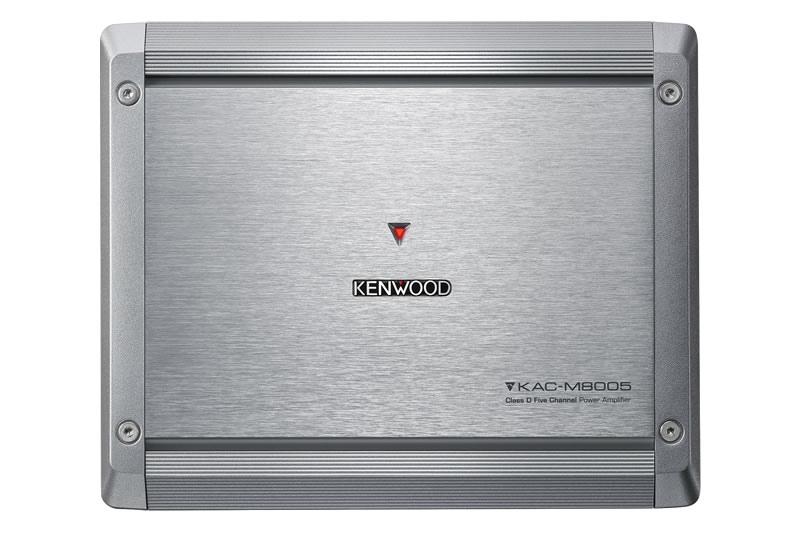

Kenwood eXcelon KAC-M8005
The Kenwood KAC-M8005 is a 5-channel Class D marine-grade car audio amplifier designed to power an entire audio system from a single unit, including front speakers, rear speakers, and a subwoofer. It is built for durability, efficiency, and strong all-in-one system performance.
Specifications
| Category | Specification |
|---|---|
| CEA-2006 Primary Ratings | Power Output: 50W RMS × 4 + 300W RMS × 1 (4Ω, ≤1% THD+N) |
| Signal-to-Noise Ratio: 80 dBA (reference: 1W into 4Ω) | |
| Maximum Power Output | 1600W |
| Rated Power Output (14.4V) | A/B (4Ω): 50W RMS × 4 (20–20kHz, ≤1.0% THD) |
| A/B (2Ω): 75W RMS × 4 (1kHz, ≤1.0% THD) | |
| SUB (4Ω): 300W RMS × 1 (20–200Hz, ≤0.5% THD) | |
| SUB (2Ω): 500W RMS × 1 (100Hz, ≤0.5% THD) | |
| A/B Bridged (4Ω): 150W RMS × 2 (1kHz, ≤1.0% THD) | |
| Signal-to-Noise Ratio | 100 dB (reference: rated power into 4Ω at 14.4V) |
| Frequency Response | A/B: 20Hz–50kHz (+0dB, −3dB) |
| Sub: 20Hz–200Hz (+0dB, −3dB) | |
| Input Impedance | 10kΩ |
| Speaker Impedance | 4Ω (2Ω–8Ω allowable) |
| Bridged Connection | 4Ω–8Ω allowable |

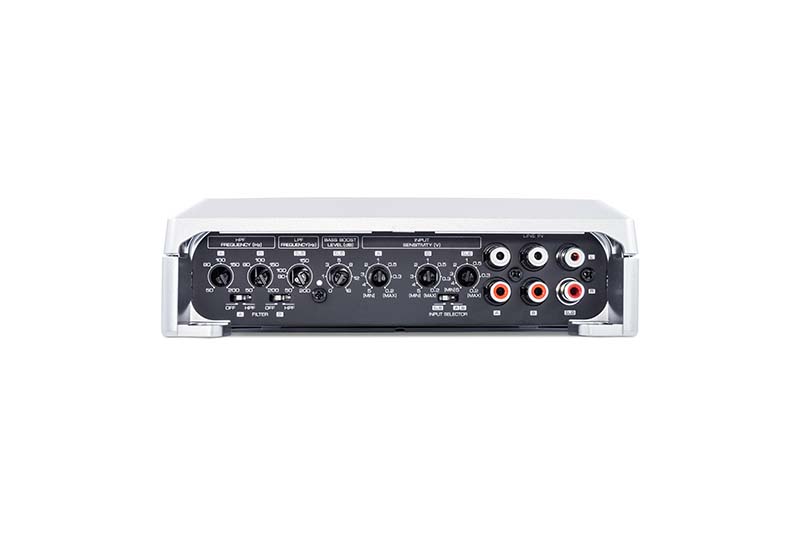

| Low-Pass Filter (SUB) | 50Hz–200Hz, −24dB/oct |
| High-Pass Filter (A/B) | 50Hz–200Hz, −12dB/oct |
| Bass Boost (SUB) | 40Hz, 0dB to +18dB |
| RCA Input Sensitivity | 0.2V – 5.0V |
| Speaker Level Input Sensitivity | 4.0V – 12.0V |

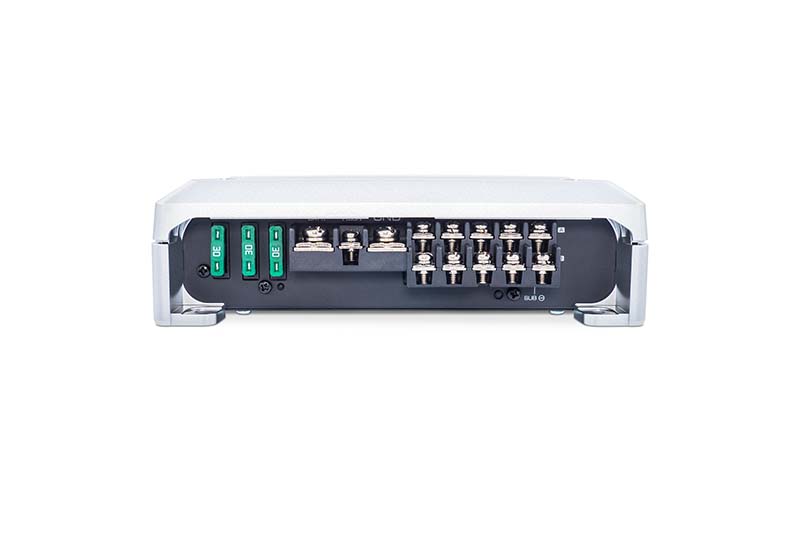

| Terminals | Battery & Ground: M6 screw type terminal block |
| Speaker Output: M4 screw type terminal block | |
| General Dimensions | 9 × 2-3/16 × 7-3/8 in |
| Operating Voltage | 14.4V (11–16V allowable) |
| Current Consumption | 58A |
| Key Features | CEA-2006 compliant; 2Ω load capability; speaker level input with signal sensing turn-on; MOS-FET switching power supply; extruded aluminum heat sink; independent A/B/Sub gain control |
