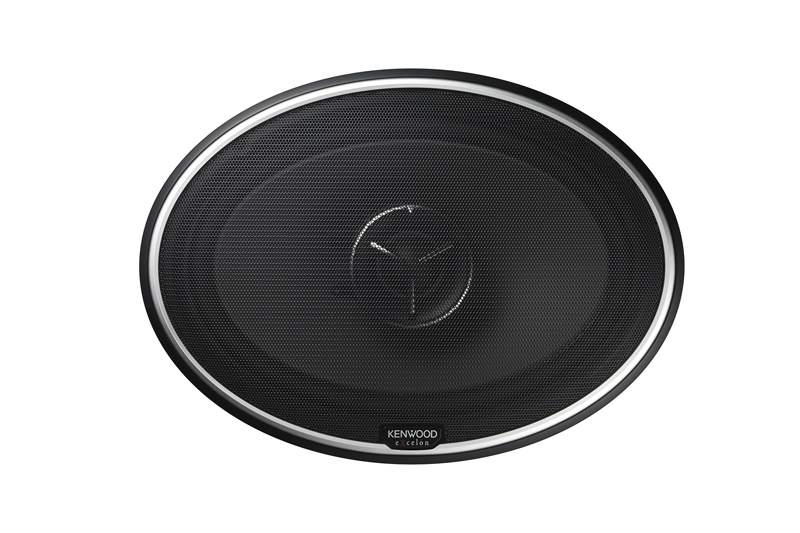

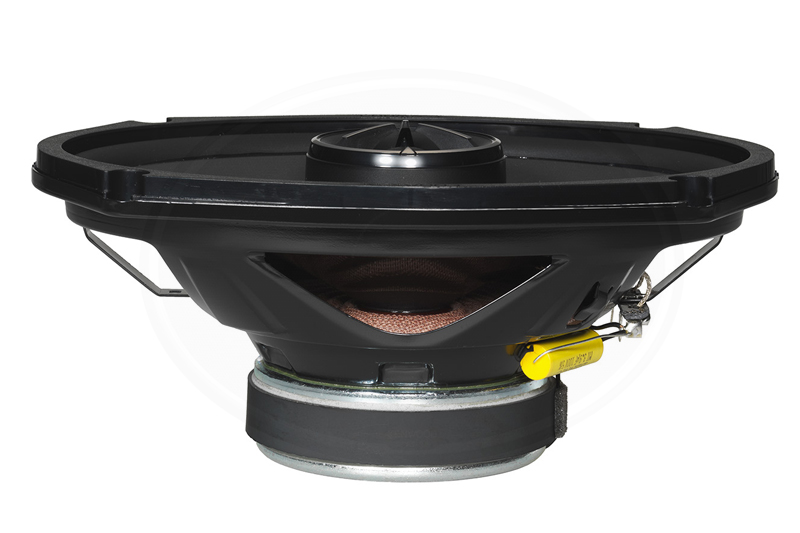

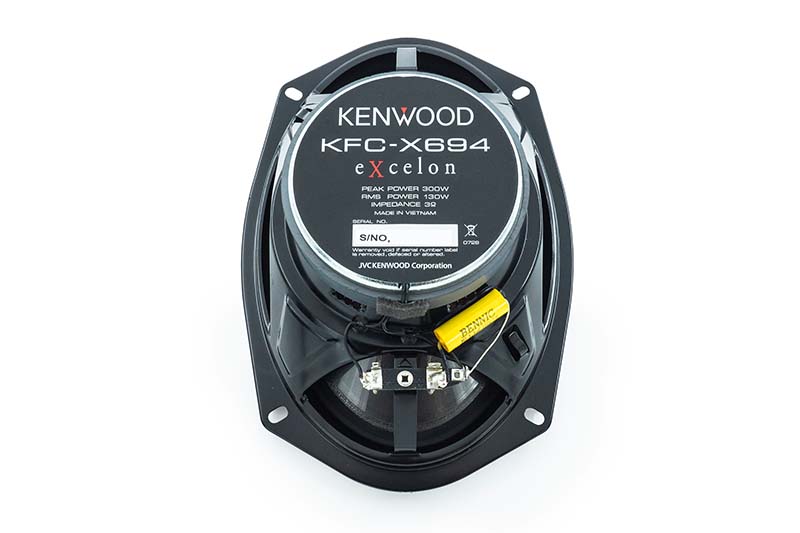

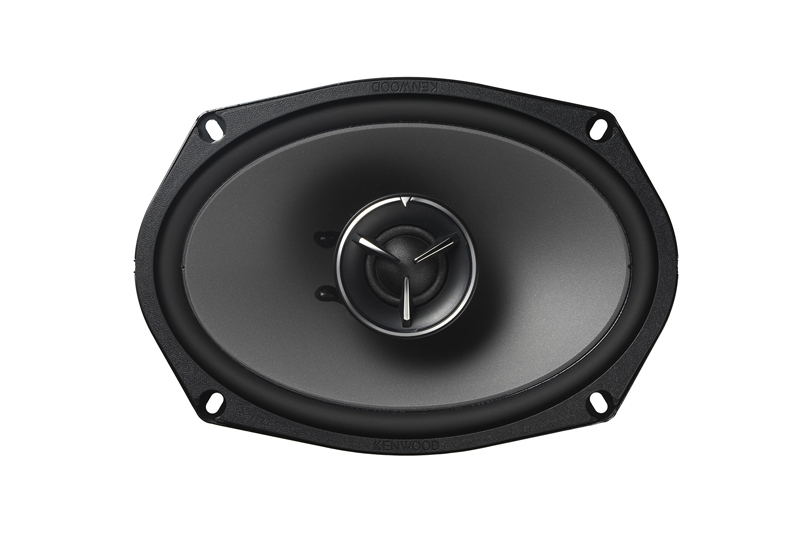

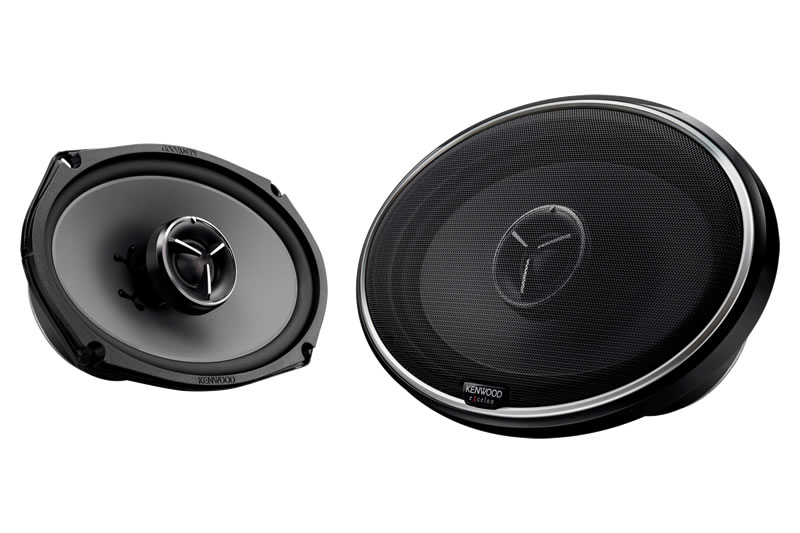

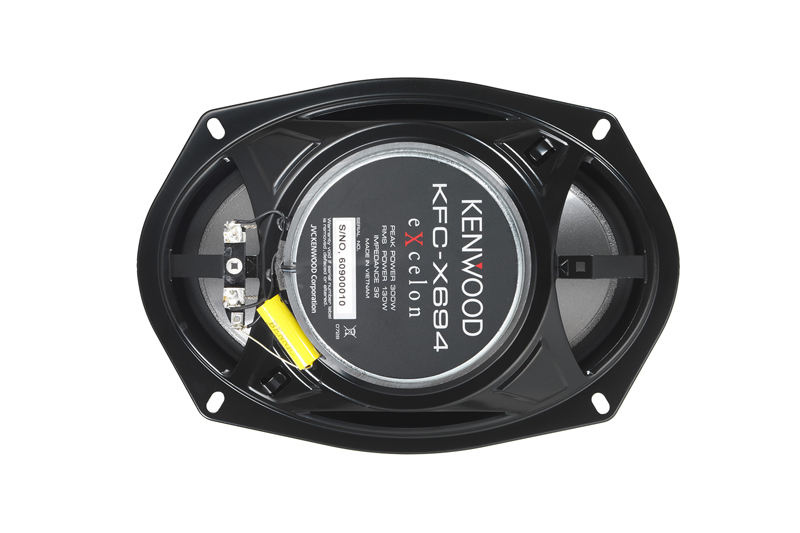

Kenwood eXcelon KFC-X694
The Kenwood KFC-X694 is a 6×9-inch eXcelon series 2-way coaxial speaker system designed for strong midbass, clear vocals, and detailed high-frequency sound in car audio systems. It is built as a premium OEM upgrade speaker for users who want louder and cleaner sound than factory speakers.
Specifications
| Specification | Details |
|---|---|
| Model Name | KFC-X694 |
| System | 2-way, 2-speaker |
| Power Handling (KITS Spec) | |
| Peak Input Power | 300W |
| Maximum Input Power | 110W |
| Rated Power | 55W |
| CTA Spec (CTA-2031 Compliant) | |
| RMS Power | 130W RMS |
| Impedance | 3Ω |
| Sensitivity | 89 dB/W at 1 m |
| Frequency Response | 51 Hz – 20,000 Hz |
| Woofer | |
| Woofer Diaphragm | P.P. Cone (Gray) |
| Woofer Size | 153 × 229 mm (6 × 9 inch) |
| Woofer Surround | Rubber |
| Woofer Basket | Steel |
| Woofer Magnet | Ferrite φ100 × t17 |
| Tweeter | |
| Tweeter Diaphragm | Soft Dome |
| Tweeter Size | 30 mm (1-3/16 inch) |
| Tweeter Magnet | Nd |
| Dimensions – Woofer with Grille | |
| Width | 266.4 mm (10-1/2 inch) |
| Height | 193.4 mm (7-5/8 inch) |
| Depth | 113.5 mm (4-7/16 inch) |
| Dimensions – Woofer without Grille | |
| Width | 236.4 mm (9-5/16 inch) |
| Height | 164 mm (6-7/16 inch) |
| Depth | 104.5 mm (4-1/8 inch) |
| Cut-out Diameter | 218.0 × 149.0 mm (8-9/16 × 5-7/8 inch) |
| Tweeter Height | 19.5 mm (3/4 inch) |
| Mounting Depth | 85.0 mm (3-3/8 inch) |
| Accessories | |
| Grille | 2 pcs |
| Grille Holder | Included |
| Punching Net | Included |
| Network | |
| Tweeter with Woofer Frame | -6 dB/oct |
| Screw Sets | |
| Binding Head Tapping Screw | φ4 × 40 mm (8 pcs) |
| Hexagon Head Bolt | M4 × 70 mm (8 pcs) |
| Hexagon Nut | M4 (8 pcs) |
| Flat Washer (M4) | 8 pcs |
| Flat Washer (φ4) | 8 pcs |
| Spring Washer (φ4) | 8 pcs |
| Speaker Cord | 0.3 m (1 set) |
| Adhesive Tape | Included (1 set) |
