Description

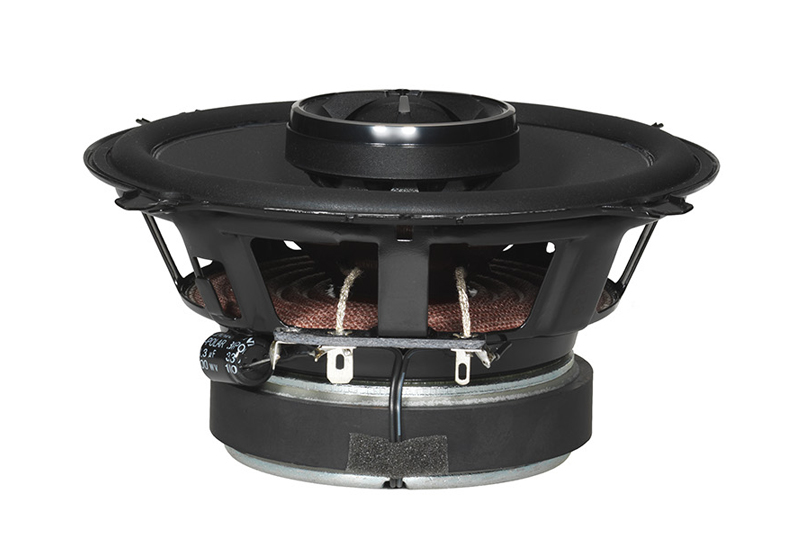

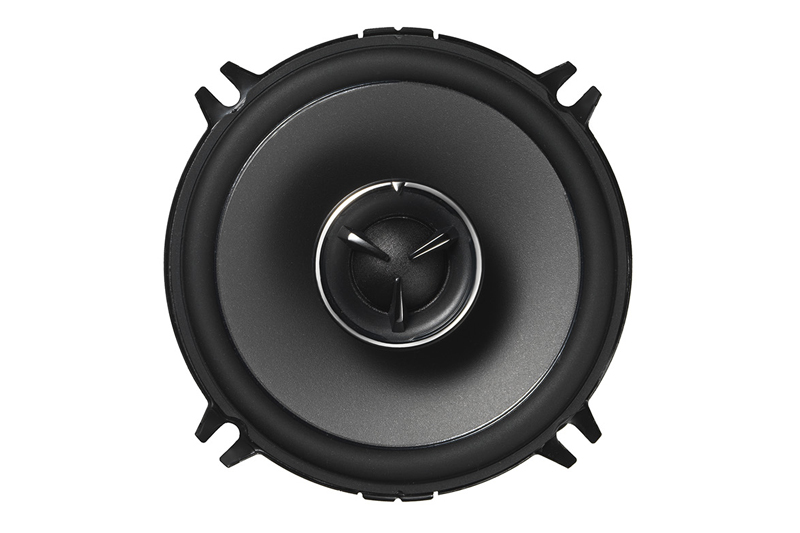

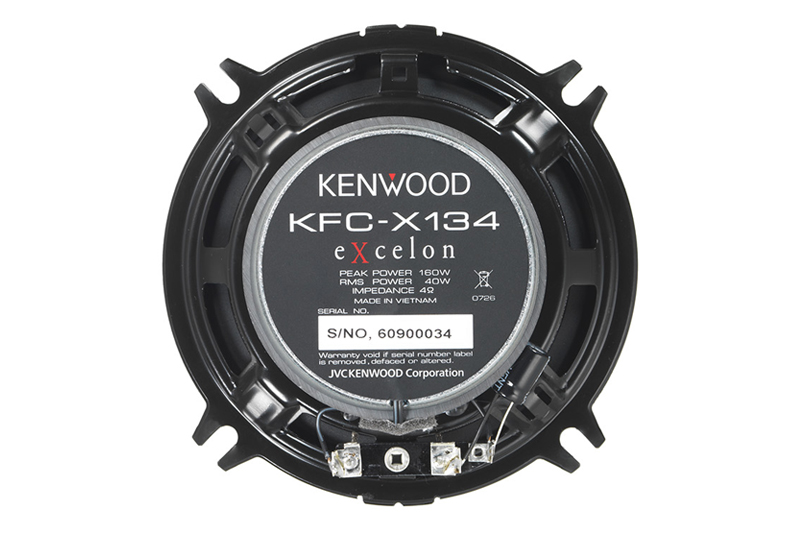

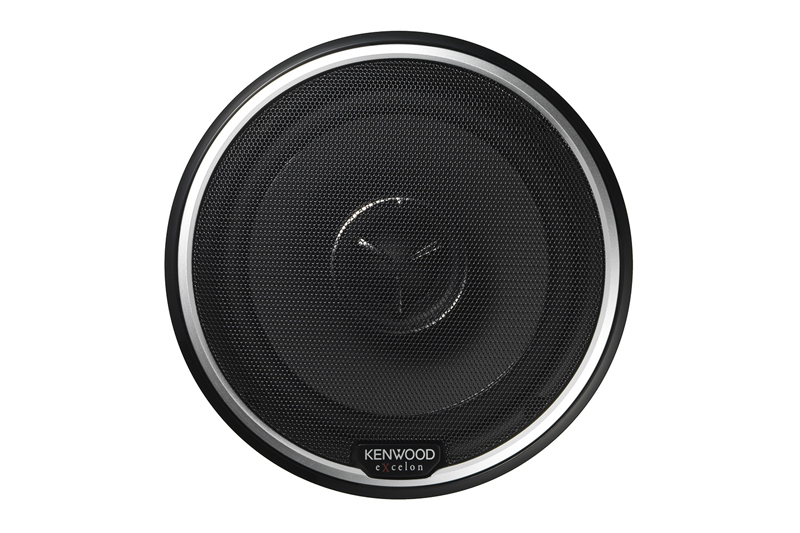

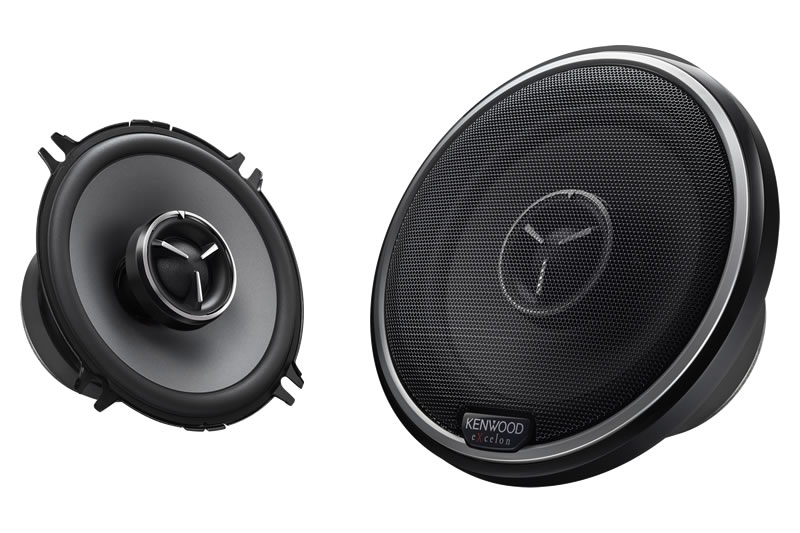

Kenwood eXcelon KFC-X134
The Kenwood KFC-X134 is a 5.25-inch (130mm) eXcelon series 2-way coaxial car speaker system designed to deliver cleaner vocals, balanced sound, and improved midbass compared to factory speakers. It is built as a premium OEM upgrade for door and rear deck speaker locations.
Specifications
| Specification | Details |
|---|---|
| Model Name | KFC-X134 |
| System | 2-way, 2-speaker |
| Power Handling (KITS Spec) | |
| Peak Input Power | 160W |
| Maximum Input Power | 70W |
| Rated Power | 35W |
| CTA Spec (CTA-2031 Compliant) | |
| RMS Power | 40W RMS |
| Impedance | 4Ω |
| Sensitivity | 87 dB/W at 1 m |
| Frequency Response | 76 Hz – 21,000 Hz |
| Woofer | |
| Woofer Diaphragm | P.P. Cone (Gray) |
| Woofer Size | Oversized 130 mm (5-1/4 inch) |
| Woofer Surround | Rubber |
| Woofer Basket | Steel |
| Woofer Magnet | Ferrite φ80 × t13 |
| Tweeter | |
| Tweeter Diaphragm | Soft Dome |
| Tweeter Size | 25 mm (1 inch) |
| Tweeter Magnet | Nd |
| Dimensions – Woofer with Grille | |
| Width | 160.0 mm (6-5/16 inch) |
| Height | 160.0 mm (6-5/16 inch) |
| Depth | 81.5 mm (3-3/16 inch) |
| Dimensions – Woofer without Grille | |
| Width | 132.0 mm (5-3/16 inch) |
| Height | 132.0 mm (5-3/16 inch) |
| Depth | 74 mm (2-15/16 inch) |
| Cut-out Diameter | 120.0 mm (4-3/4 inch) |
| Tweeter Height | 14 mm (9/16 inch) |
| Mounting Depth | 60.0 mm (2-3/8 inch) |
| Accessories | |
| Grille | 2 pcs |
| Grille Holder | Included |
| Punching Net | Included |
| Network | |
| Tweeter with Woofer Frame | -6 dB/oct |
| Screw Sets | |
| Binding Head Tapping Screw | φ4 × 25 mm (8 pcs) |
| Speed Nut | φ4 (8 pcs) |
| Speaker Cord | 0.3 m (1 set) |
| Adhesive Tape | Included (1 set) |
