Description

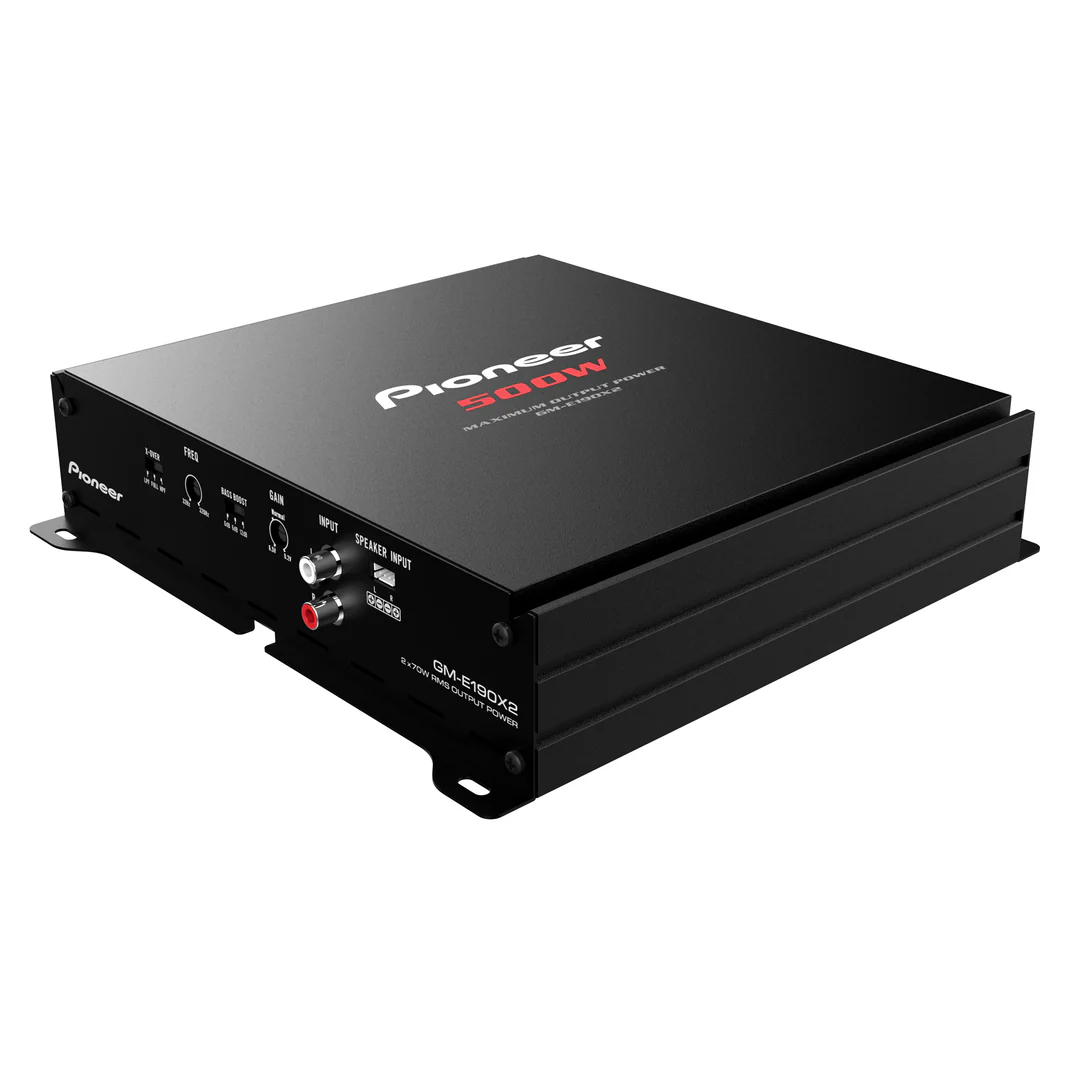

Pioneer GM-E190X2
The Pioneer GM-E190X2 is a 2-channel Class AB car amplifier designed to deliver high-quality audio performance in automotive sound systems. It offers 70W RMS per channel at 4 ohms, 95W RMS per channel at 2 ohms, and 190W RMS when bridged at 4 ohms, with a maximum power output of 500W. The amplifier features a frequency response range of 15 Hz to 22 kHz, ensuring accurate and detailed sound reproduction. Its Class AB design provides a balance between power and efficiency, making it suitable for various vehicle types, including electric vehicles (EVs) and those with start/stop systems. The GM-E190X2 is Hi-Res Audio certified, supporting high-resolution audio playback for an enhanced listening experience.
Specifications
AMP FEATURES
| Feature | Specification |
|---|---|
| Bridgable | Yes |
| Grounding System | Negative |
| Power Source | 14.4 V |
| Protection Control System | Yes |
| Terminal Type | Screw |
| Unit Weight | 4 lbs 1 oz |
PRODUCT PERFORMANCE
| Feature | Specification |
|---|---|
| Avg Current Consumption | 5 A x 2-Channel (4Ω), 7.5 A x Mono Channel Bridged (4Ω), 7.5 A x 2-Channel (2Ω) |
| Bass Boost | 50 Hz – Frequency, 0 dB, 6 dB, 12 dB – Level |
| Continuous Power Output | 70 W x 2-Channel (4Ω), 95 W x 2-Channel (2Ω), 190 W x Mono Channel Bridged (4Ω) |
| Crossover Network Channel | LPF – 32–320 Hz (A/B Ch), HPF – 32–320 Hz (A/B Ch) |
| Crossover Network Channel Slope | -12 dB/oct (A/B Ch) |
| Frequency Response (Channel) | 10 Hz – 40 kHz (+0 dB, -3 dB) |
| Maximum Power Output | 125 W x 2-Channel (4Ω), 500 W x Mono Channel Bridged (4Ω) |
| Speaker Line Input Sensor | Yes |
About The Product
The Pioneer GM-E190X2 2-channel bridgeable amplifier is designed for high power output and performance, delivering exceptional sound quality. It features large-capacity electrolytic capacitors for increased voltage stability and the instantaneous output of large currents. The improved circuit design, utilizing a PCB board made of glass epoxy substrate, ensures high conductivity, increased temperature stability, and enhanced insulation resistance. For added flexibility, a variable LPF and HPF allow for fine-tuning your audio system, along with a two-step Bass Boost for optimal bass level adjustments according to listening preferences and music characteristics. This amplifier is compatible with both OEM and aftermarket head units.
RCA Input / Speaker Level Input Compatible
This amplifier has the flexibility for use with OEM and aftermarket HeadUnits. Simply use the speaker level input for OEM HeadUnits or the RCA inputs for aftermarket receivers.
High Voltage Stability
The Pioneer GM-E190X2 has four large bass capacity electrolytic capacitors which contributes to increased voltage stability even at high output.
PCB Layout and Design
The PCB for this Pioneer amplifier is made of a glass epoxy substrate which is strong, water-resistant, and provides good insulation between layers to minimize interference while promoting accurate signal with increased electrical connectivity.
