Description

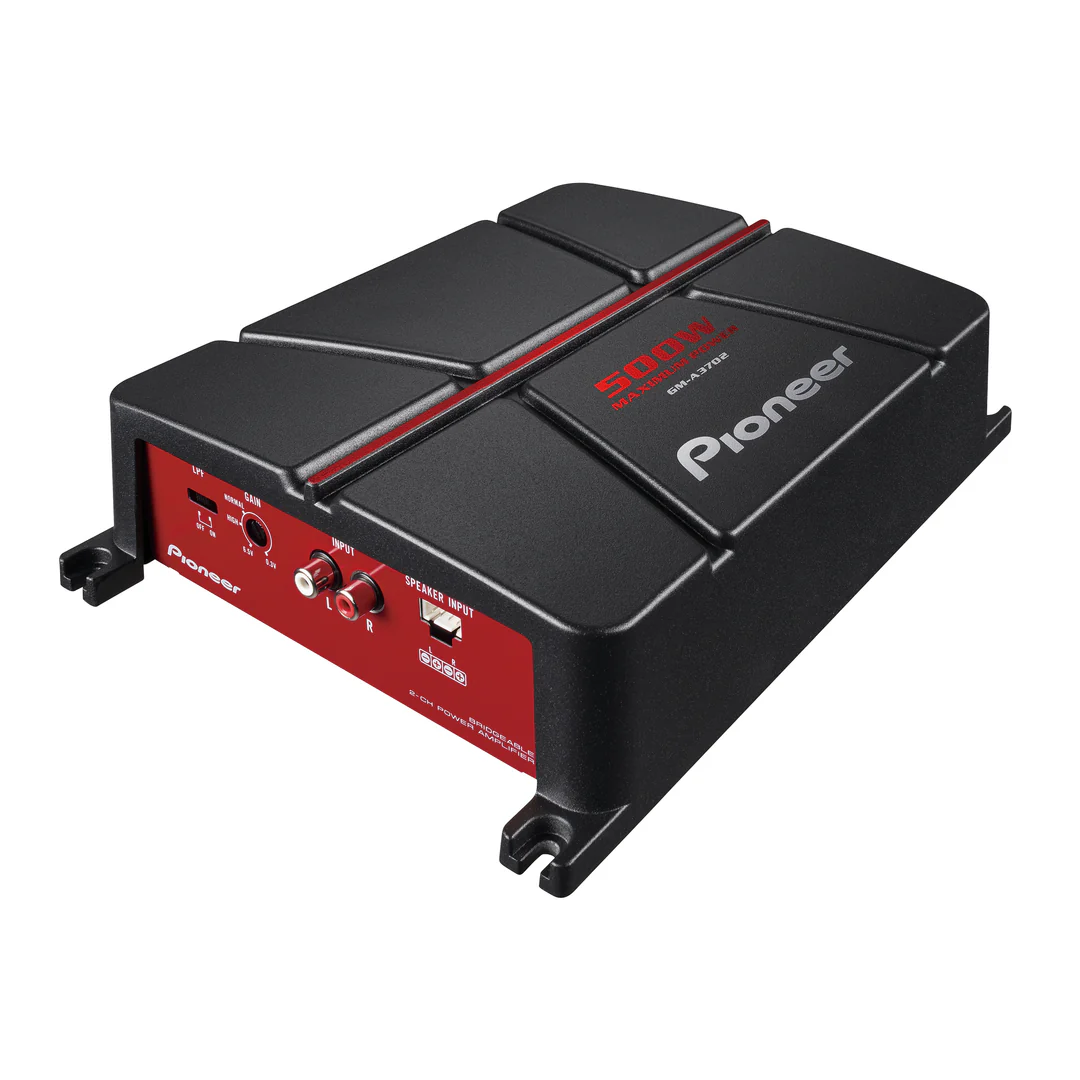

Pioneer GM-A3702/B
The Pioneer GM-A3702/B is a 2-channel Class AB car amplifier designed to deliver high-quality audio performance in automotive sound systems. It offers 60W RMS per channel at 4 ohms, 95W RMS per channel at 2 ohms, and 190W RMS when bridged at 4 ohms, with a maximum power output of 500W. The amplifier features a frequency response range of 10 Hz to 70 kHz, ensuring accurate and detailed sound reproduction. Its Class AB design provides a balance between power and efficiency, making it suitable for various vehicle types, including electric vehicles (EVs) and those with start/stop systems. The GM-A3702/B is Hi-Res Audio certified, supporting high-resolution audio playback for an enhanced listening experience.
Specifications
AMP FEATURES
| Feature | Specification |
|---|---|
| Bridgable | Yes |
| Class | A/B |
| Grounding System | Negative |
| Power Source | 14.4 V (10.8 V to 15.1 V allowable) |
| Protection Control System | Yes |
| Terminal Type | Screw |
| Unit Weight | 3.1 lbs |
PRODUCT PERFORMANCE
| Feature | Specification |
|---|---|
| Allowable Load Impedance | 2 ohm to 8 ohm allowable |
| Avg Current Consumption | 4 A x 2-Channel (4Ω), 6.5 A x 1-Channel (4Ω) |
| Continuous Power Output | 60 W x 2-Channel (4Ω), 95 W x 2-Channel (2Ω), 190 W x 1-Channel Bridged (4Ω) |
| Crossover Network Channel | LPF – A CH 80Hz |
| Crossover Network Channel Slope | -12 dB/oct (A/B CH) |
| Frequency Response (Channel) | 10 Hz – 70 kHz (+0 dB, -3 dB) A/B Ch |
| Fuse Rating | 25 A |
| Maximum Power Output | 170 W x 2-Channel (4Ω), 250 W x 2-Channel (2Ω), 500 W (4Ω Bridged) |
| RCA Inputs | 2-Channel |
| Speaker Line Input Sensor | Yes |
About The Product
This is a Pioneer Reconditioned product, including a 90-day limited warranty.
The GM-A3702 2-channel amplifier will greatly improve the sound quality in your vehicle. This amplifier powers your pair of speakers with 60 watts RMS each, allowing you to hear more of the finer details in your music, especially when you turn up the volume to overcome road noise. With this amplifier, you can combine the channels to drive a subwoofer with a total power of 190 watts RMS. Additionally, speaker-level inputs allow you to add this amplifier to a factory-installed audio source that does not have pre-amplified outputs.
High-Quality Affordable Design
To prevent poor bass performance in demanding situations, such as heavy bass content or dynamic range music, Pioneer designed a high-quality power supply to sustain constant power requirements. This design enhances audio performance by providing a better signal-to-noise ratio, improved audio dynamics, sustained bass when needed, and, most importantly, a more enjoyable ride in your car!
Automatic Signal Sensing and Turn-On
When used with an audio source such as an OEM source or a receiver without RCA output, the amplifier will activate as soon as an audio source is detected through the speaker level outputs. When using a pre-amplified source (RCA), this Pioneer amplifier will use the signal (+12Vdc) from the “Remote” input for activation.
Built-in Filter
The amplifier features a switchable 80 Hz low-pass filter (LPF) to precisely adjust the audio bandwidth and optimize the acoustic performance of your subwoofer.
