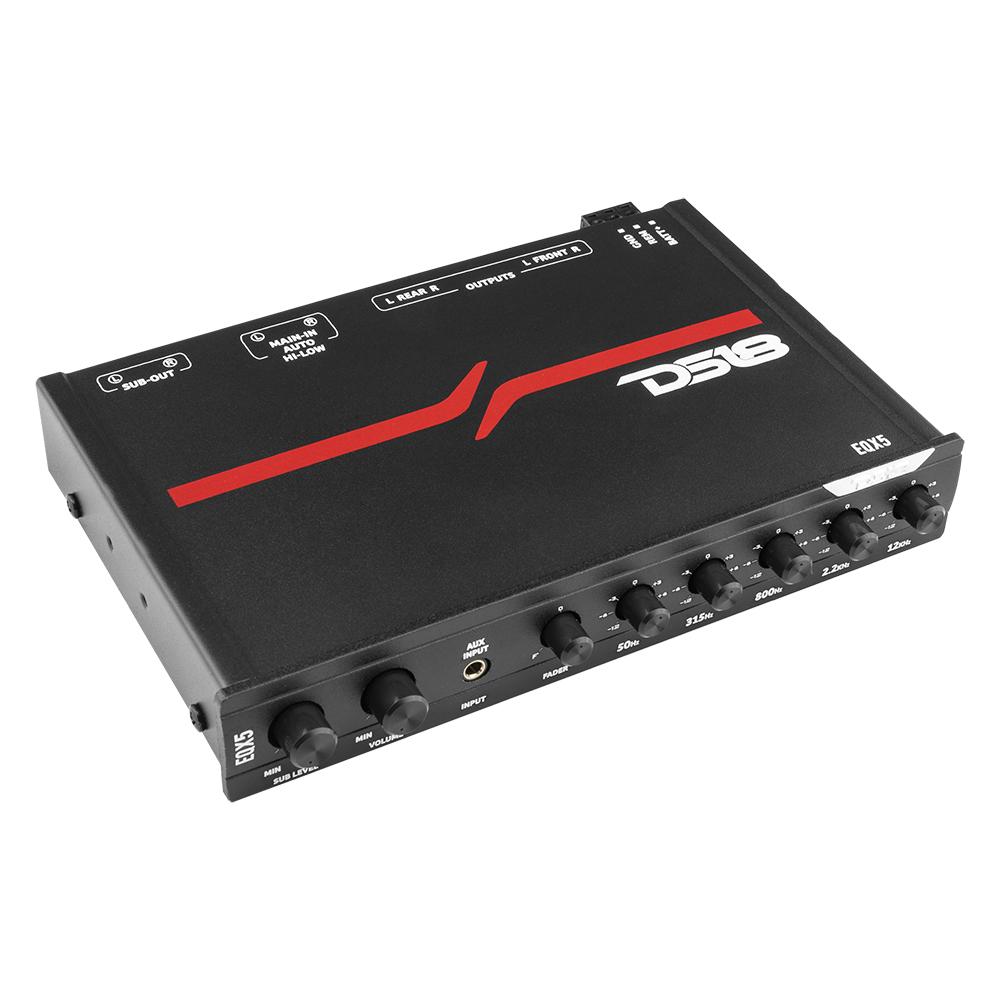

Description
DS18 EQX5
The DS18 EQX5 is a 5-channel equalizer designed to provide precise tonal control for car audio systems. With five adjustable channels, it allows users to fine-tune bass, midrange, and treble frequencies to achieve a balanced and immersive listening experience. Its high-resolution audio circuitry ensures clean signal transmission with minimal distortion, preserving the integrity of the original audio. Compact and easy to install, the EQX5 is ideal for both casual listeners and professional installers seeking to enhance sound quality in multi-speaker or multi-amplifier car audio setups. With flexible control options, it enables users to customize their system’s sound profile to personal preferences or competitive standards.
Specifications
| Specification | Value |
|---|---|
| SKU | EQX5 |
| Type of Equalizer | Graphic |
| Number of Bands | 5 |
| Frequency Points (Hz) | 50, 315, 800, 2.2k, 12k |
| Boost/Cut | ±12 dB (±15 dB for Subwoofer) |
Crossover Section
| Specification | Value |
|---|---|
| Passive Crossover Ways / Type | 1 (LPF, Subwoofer Channel) |
| Frequency Crossover Point | 120 Hz (fixed) |
| Cut-Off Slope | 12 dB/Oct |
Audio Specifications
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (S/N) | 100 dB |
| Total Harmonic Distortion (THD) | 0.005% |
| Input Sensitivity | 50 mV – 3 V |
| Input Impedance | 20 kΩ |
| Output Voltage | 8 V |
| Output Impedance | 2 kΩ |
| Headroom | 20 dB |
| Stereo Separation | 82 dB @ 1 kHz |
| Frequency Response | 10 Hz – 30 kHz |
General Features
| Feature | Specification |
|---|---|
| Operating Voltage | 11 – 15 V |
| Subwoofer Output | Yes (8 V) |
| Audio Controls | Subwoofer Level, Master Volume, Fader |
| Audio Inputs | Main (RCA), Aux (3.5 mm jack) |
| RCA Type | Nickel-Plated |
| Housing Material | Metal / Aluminum |
| Adjustments | No |
| Extra Features | Blue Backlit |
| Hi-Level Speaker Input | Yes |
| Auto Turn-On | No |
| Remote Turn-On Input/Output | Yes, Input |
| Color / Finish | Satin Black |
Measurements
| Parameter | Value |
|---|---|
| Overall Length | 7 in (178 mm) |
| Overall Depth | 4.4 in (112 mm) |
| Overall Height | 1.18 in (30 mm) |
| Gross Single Unit Weight | 1.5 lb |
| Single Unit Box Dimensions (W × L × H) | 8.25 × 6.75 × 1.75 in |
| Units per Master Carton | 20 |
| Gross Master Carton Weight | 34 lb |
| Master Carton Dimensions (W × L × H) | 19.25 × 17 × 7.5 in |
Product Overview
8 Volt 5-Band Equalizer with High Level Input
The EQX5 allows you to take complete control of your audio system, pushing it past its limits with unparalleled precision and clarity. This high-strength 5-band stereo equalizer/crossover is the upgrade needed to achieve your audio dreams.
Harnessing the power of its five bands, including frequencies of 50Hz, 315Hz, 800Hz, 2.2KHz, and 12KHz, the EQX5 ensures the most precise audio reproduction. With adjustable frequencies ranging from -12 to +12dB (-15 to +15dB for subwoofer frequencies), you have the power to fine-tune your sound to perfection.

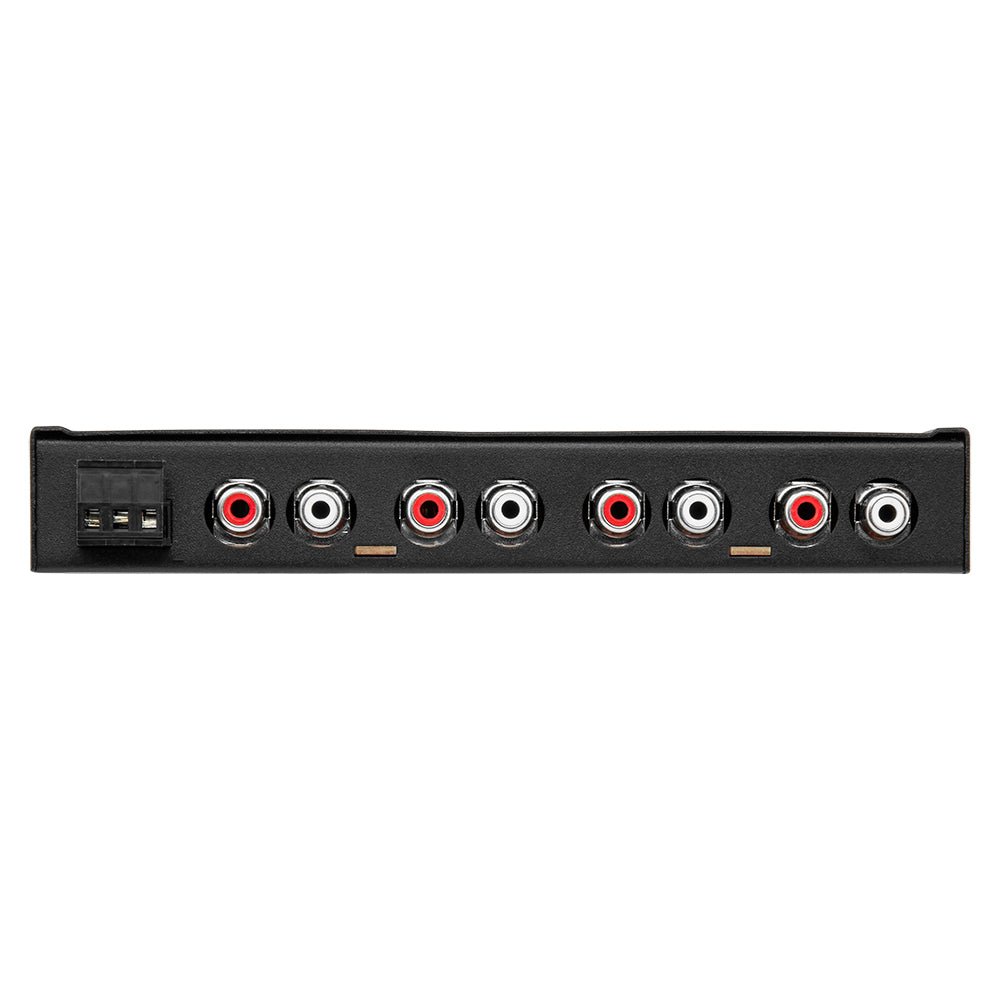

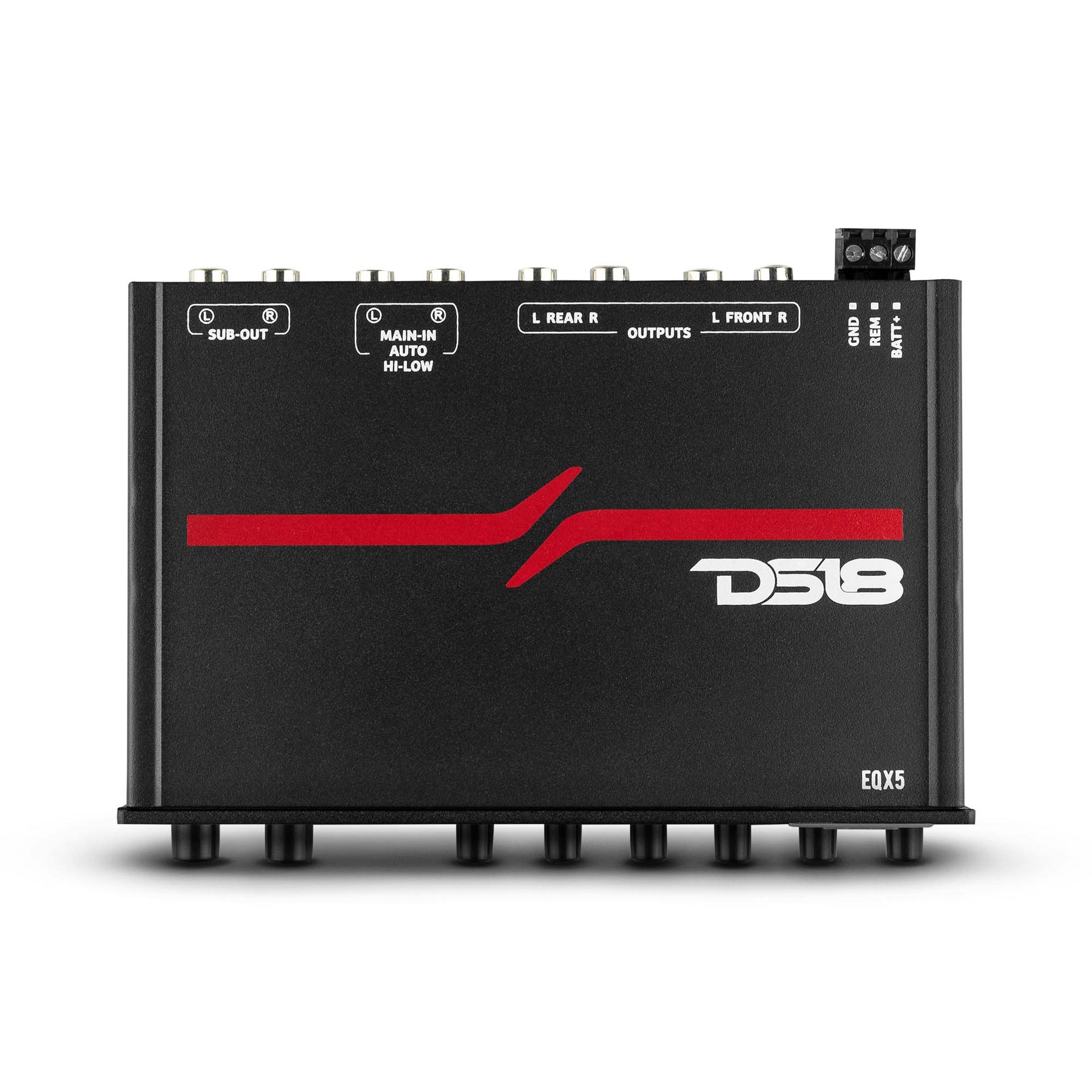

The EQX5 offers three stereo RCA outputs, dedicated to driving your front, rear, and subwoofer audio amplifiers. Take control of your audio experience with separate controls for master volume, subwoofer volume (sub level), front/rear fade, and the choice between main or auxiliary inputs. The integrated speaker Hi-Level Converter ensures low-level RCA output for seamless integration with your existing system.
DS18 understands the importance of delivering audio with unmatched precision. That’s why the EQX5 offers an extended frequency response from 20Hz to 30KHz, boasting exceptional 100 dB signal-to-noise performance. The nickel-plated RCA connectors guarantee the best audio signal output, ensuring that every note resonates with utmost clarity.

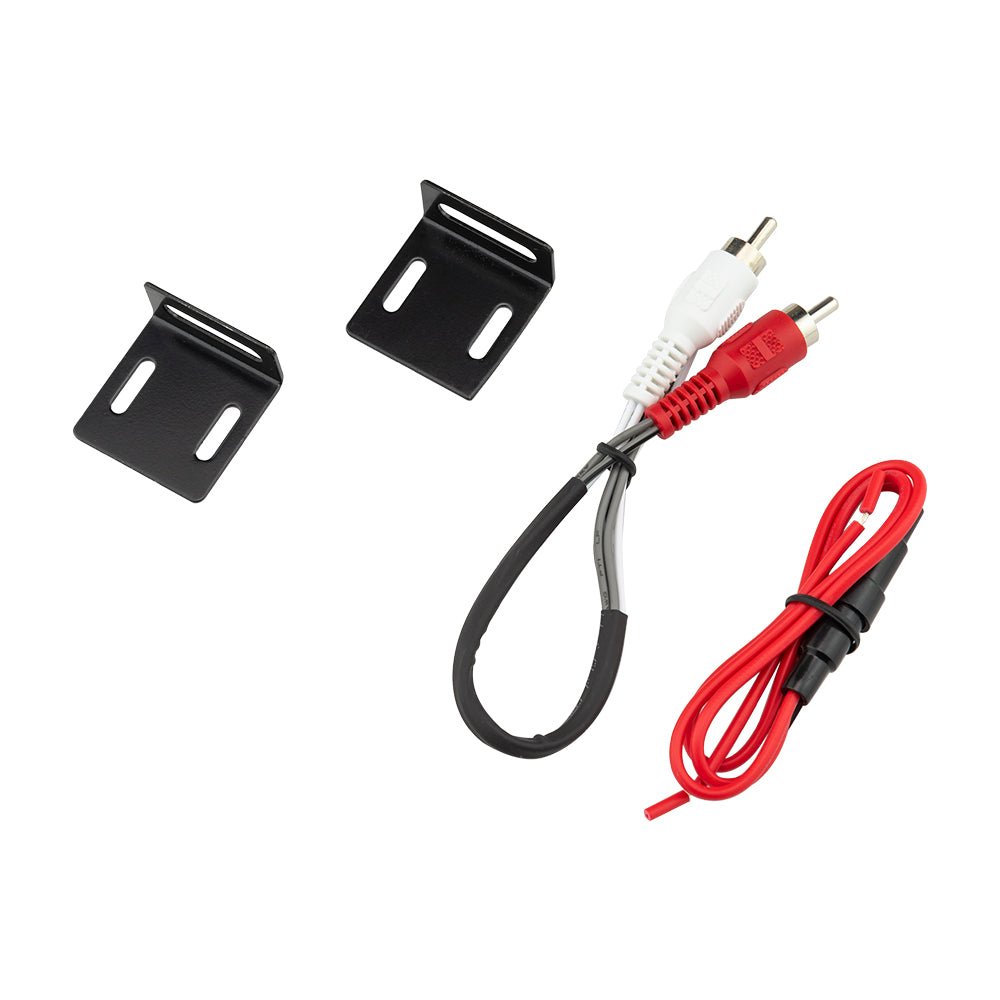

The EQX5 can be mounted next to your source unit or discreetly underneath your dash, thanks to the included mounting brackets. This ensures easy access to the front panel controls right from the driver’s seat, giving you full command of your audio system at your fingertips. It’s time to shape your sound exactly how you envision it.
