Name: DS18 ZR800.4D
SKU: ZR800.4D
Availability: InStock

Description

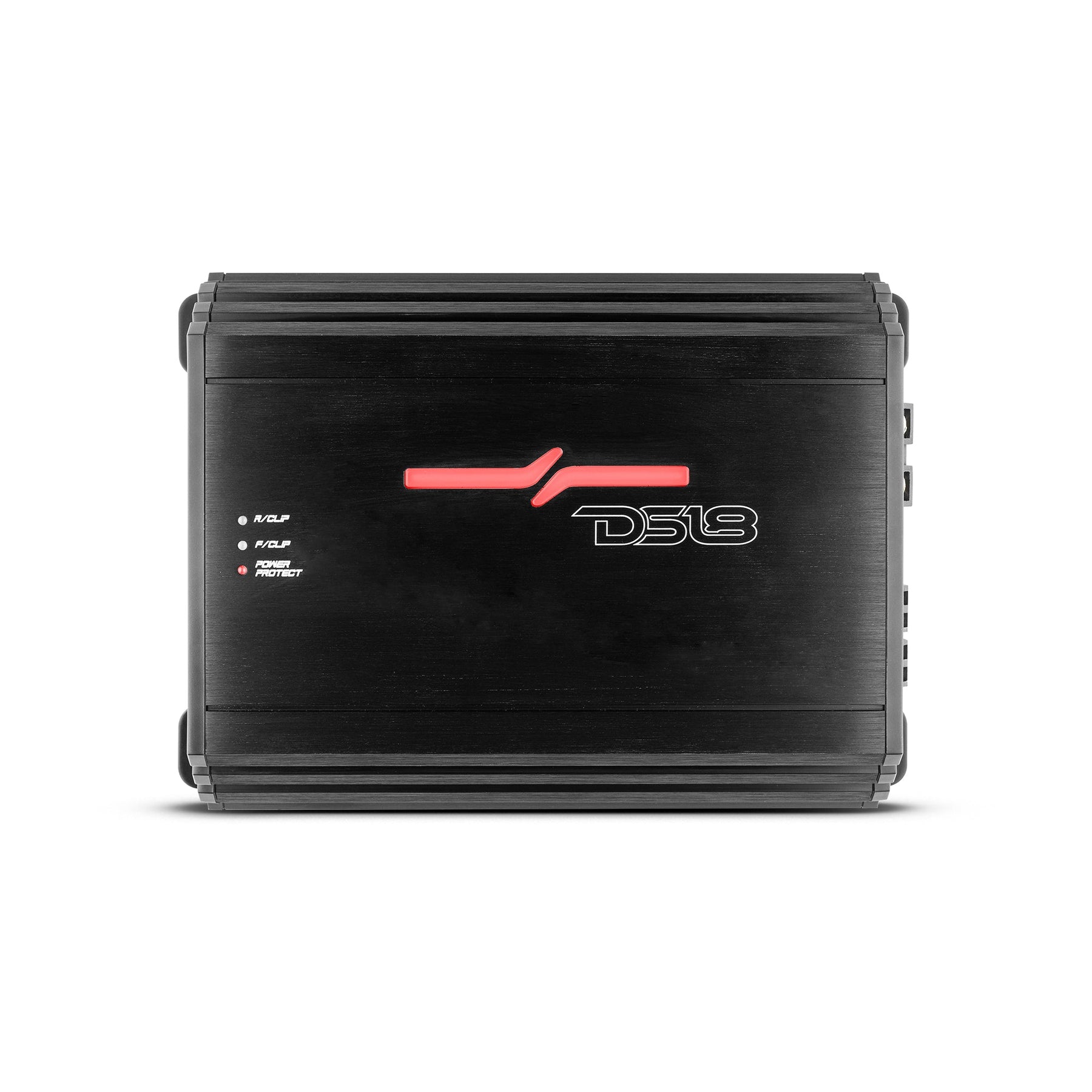

DS18 ZR800.4D

The DS18 ZR800.4D is a high-efficiency 4-channel Class D car audio amplifier engineered to deliver powerful, clean sound for both full-range speakers and subwoofers. Built with premium components and designed for stability across 2 Ω to 4 Ω loads, it provides low-distortion audio with consistent performance. The amplifier features a robust cooling system, advanced protection circuitry, and a compact chassis, making it perfect for custom car audio installations that demand high output, reliability, and precise sound reproduction.

Power Specifications

Specification	Value
SKU	ZR800.4D
Total Watts (Peak)	3600W
RMS Power @ 4 Ohm	4 × 200W
RMS Power @ 2 Ohm	4 × 320W
RMS Power @ 4 Ohm Bridge	2 × 600W

Audio Specifications

Specification	Value
Frequency Response	20Hz – 20kHz
Signal to Noise Ratio	>90dB
Efficiency @ 4 Ohm	88%
Damping Factor	160
Input Impedance	20kΩ
Channel Separation	60dB
Total Harmonic Distortion (THD)	1.00%
Low Level Input Range	0.2–6V
High Level Input	No

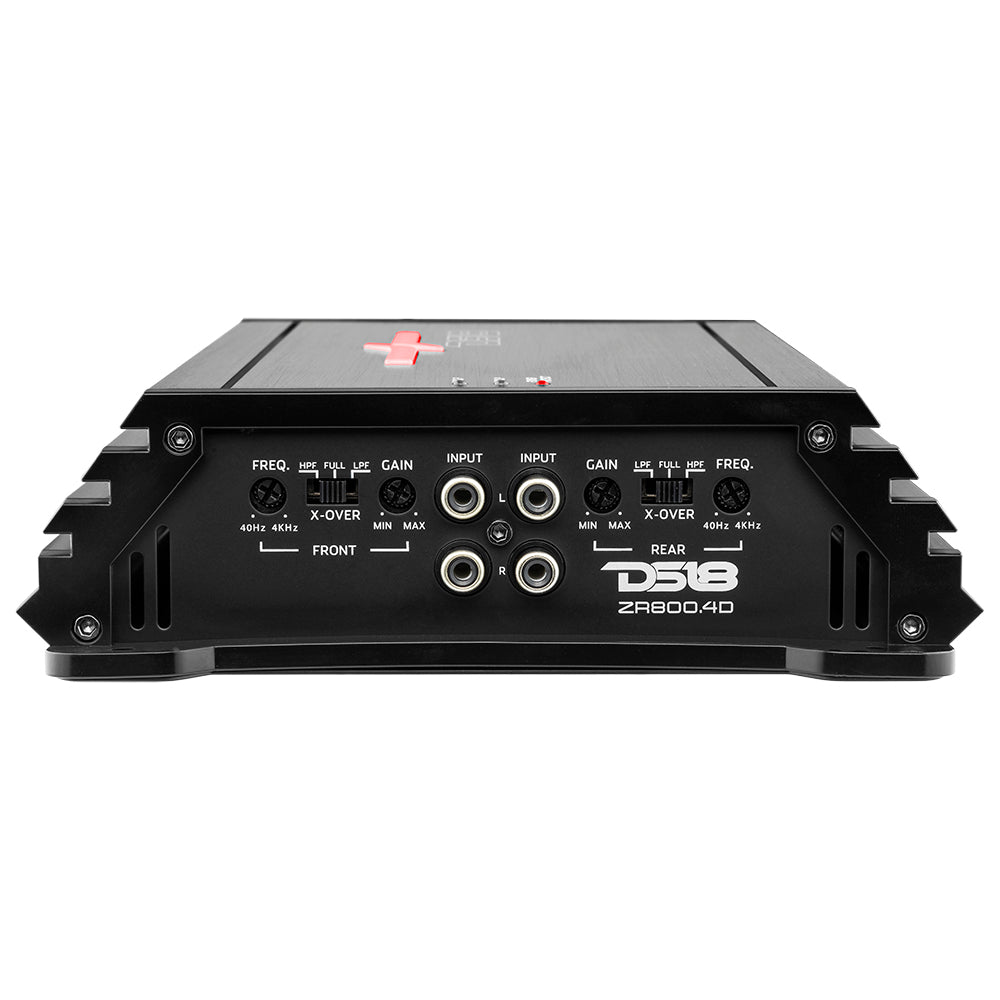

Selectable X-Over	FULL / LPF / HPF
X-Over Filter Range	40Hz – 4kHz

Features

Specification	Value
Amplifier Class	Digital
Amplifier Type	Stereo Full Range
Number of Channels	4
Minimum Impedance	2 Ohm (Stereo) / 4 Ohm (Bridge)
LED Indicator	Clipping / Protect / Power

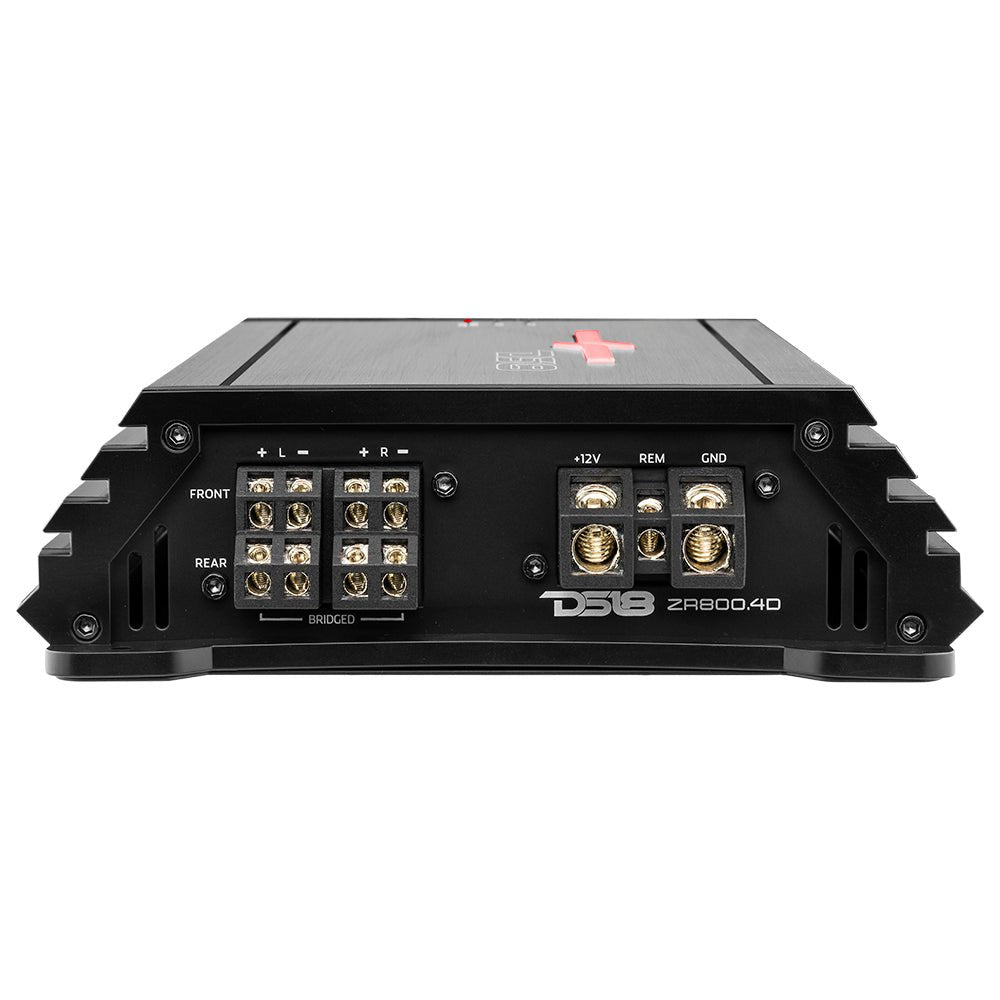

Power Input Terminal Size	4 GA
Fuse Size	120A
Thermal Protection	Yes
Over-Load Protection	Yes
DC Output Protection	Yes
Short Circuit Output Protection	Yes
Voltage Input Protection	Yes
Clipping Protection	Yes
Body Color / Finish	Black Aluminum Brush

Measurements

Measurement	Value
Overall Length	10″ / 254mm
Overall Width	7.24″ / 184mm
Overall Height	2″ / 53mm
Heatsink Length	8.54″ / 217mm
Gross Single Unit Weight	5 lb

Product Overview

ZR Class D 4-Channel Full Range Amplifier 200W x 4 @ 4ohm RMS

The ZR series is a game-changer, crafted to optimize your sound system and unleash its true potential!
With DS18’s ZR800.4D, the possibilities are endless. Its impressive array of tuning options, including Lowpass, Highpass, and Full Frequency Selector Switches allows you to fine-tune every song to your desired frequency. This level of customization ensures that each note is reproduced with impeccable precision and tailored to your unique listening preferences.
Delivering a powerful 2 x 600W RMS @ 4-Ohms Bridge, 4 x 320W RMS @ 2-Ohms, and 4 x 200W RMS @ 4-Ohms, the ZR800.4D provides the perfect amount of power to fuel your system. It effortlessly propels your speakers to their maximum potential, creating a rich and immersive audio environment.
The ZR800.4D is a testament to DS18’s commitment to excellence. Its Full Range design ensures maximum efficiency, while the impressive 3600 Peak Wattage makes sure all your speakers get the juice they deserve. With a frequency response of 20Hz – 20KHz, this amplifier faithfully reproduces every note, from the deepest lows to the highest highs, with remarkable clarity and accuracy.

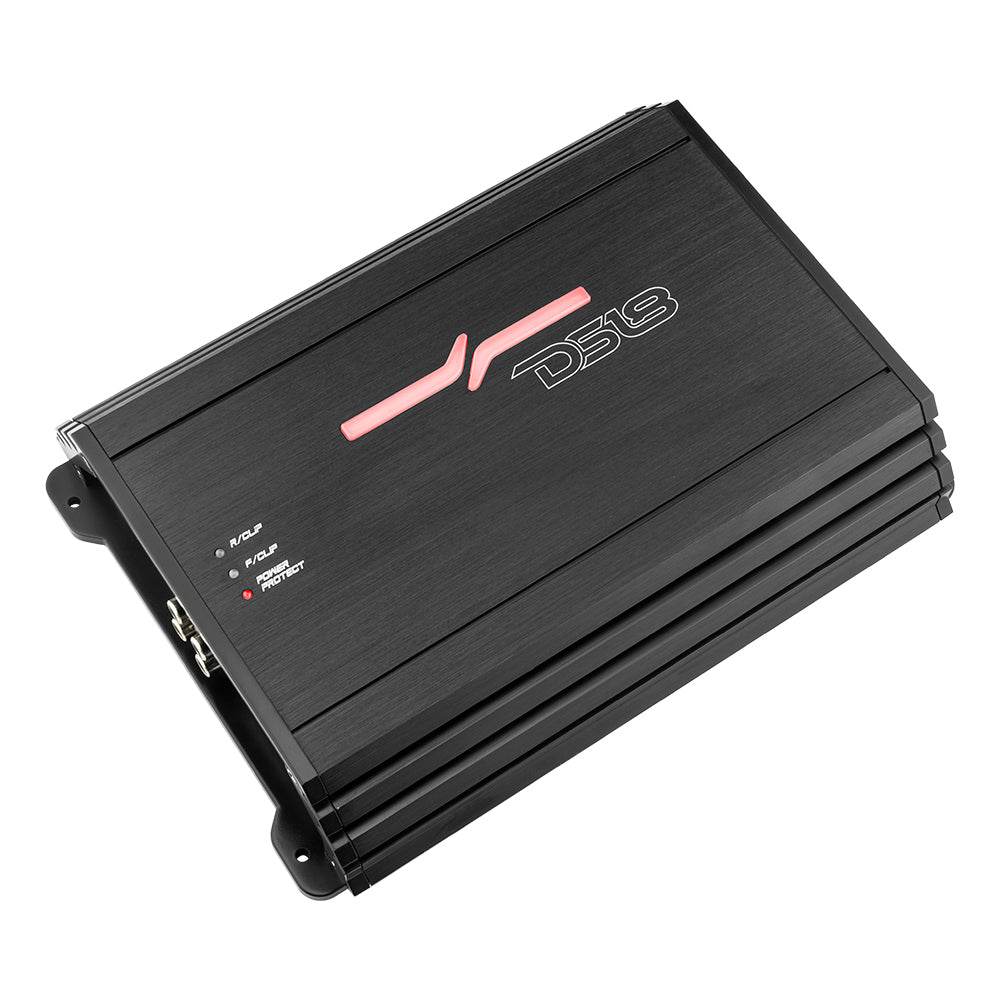

The ZR800.4D is designed to optimize your sound system for powerful performance during every session. The LED indicators for Clipping, Power, and Protect provide valuable visual feedback that ensure optimal performance. The power and ground terminals are designed to accommodate 4 Ga wires, ensuring a secure and reliable connection. Additionally, the selectable X-Over options grant you the ability to fine-tune your audio, allowing for seamless integration with your existing sound system and putting you in complete control of your audio landscape.
Experience the DS18 difference today with the ZR800.4D and discover a new dimension of car audio excellence.
