Description
DS18 G3600.1D
The DS18 G3600.1D is a high-output monoblock Class D subwoofer amplifier designed to deliver powerful, distortion-free bass performance in car audio systems. It features stable operation from 1 Ω to 4 Ω, a low-pass crossover, subsonic filter, and bass boost control with a remote level knob for on-the-fly tuning. Built with rugged components and efficient digital circuitry, the G3600.1D offers high power, excellent efficiency, and multiple protection systems — perfect for driving large subwoofers in custom car audio builds.
Specifications
| Specification | Value |
|---|---|
| SKU | G3600.1D |
| Class | D |
| Amplifier Type | Monoblock Subwoofer |
| Number of Channels | 1 |
| Peak Power | 3600W |
| RMS Power @ 4 ohm / 14.4V | 500W |
| RMS Power @ 2 ohm / 14.4V | 900W |
| RMS Power @ 1 ohm / 14.4V | 1200W |
| Minimum Impedance | 1Ω |
| Operating Voltage | 9 – 15V |
Audio Specifications
| Specification | Value |
|---|---|
| Frequency Response | 10Hz – 500Hz |
| Signal to Noise Ratio | >93dB |
| Low Pass Filter | 35Hz – 250Hz |
| High Pass Filter | N/A |
| Subsonic | Yes |
| Subsonic Frequency | 10Hz – 50Hz |
| Efficiency @ 4 ohm | 90% |
| Damping Factor | 45 |
| Total Harmonic Distortion (THD) | 0.0014% |
| Input Sensitivity | 0.25 – 6V |
| X-Over Filter Range | 35 – 250Hz |
| Bass Boost Range | 0 – 9dB |
| Bass Boost Frequency | 45Hz |
| Phase Selector | No |
Features
| Specification | Value |
|---|---|
| High Level Input | Yes |
| Selectable X-Over | Fixed LPF |
| LED Indicator | Power / Protection / Clip |
| Voltage Input Protection | Yes |
| Clipping Protection | Yes |
| Thermal Protection | Yes |
| Speaker Output Size | 8GA |

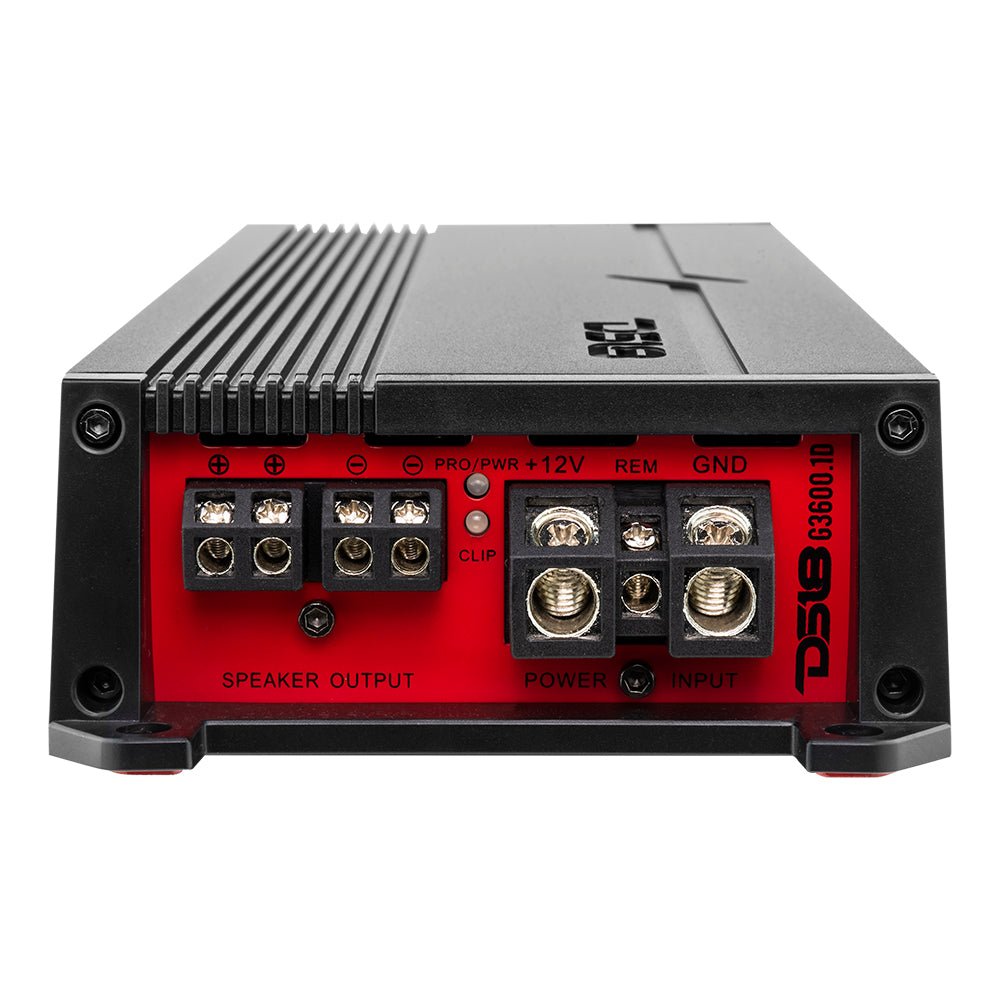

| Power Input Size | 4GA |
| Fuse Rating | 120A |

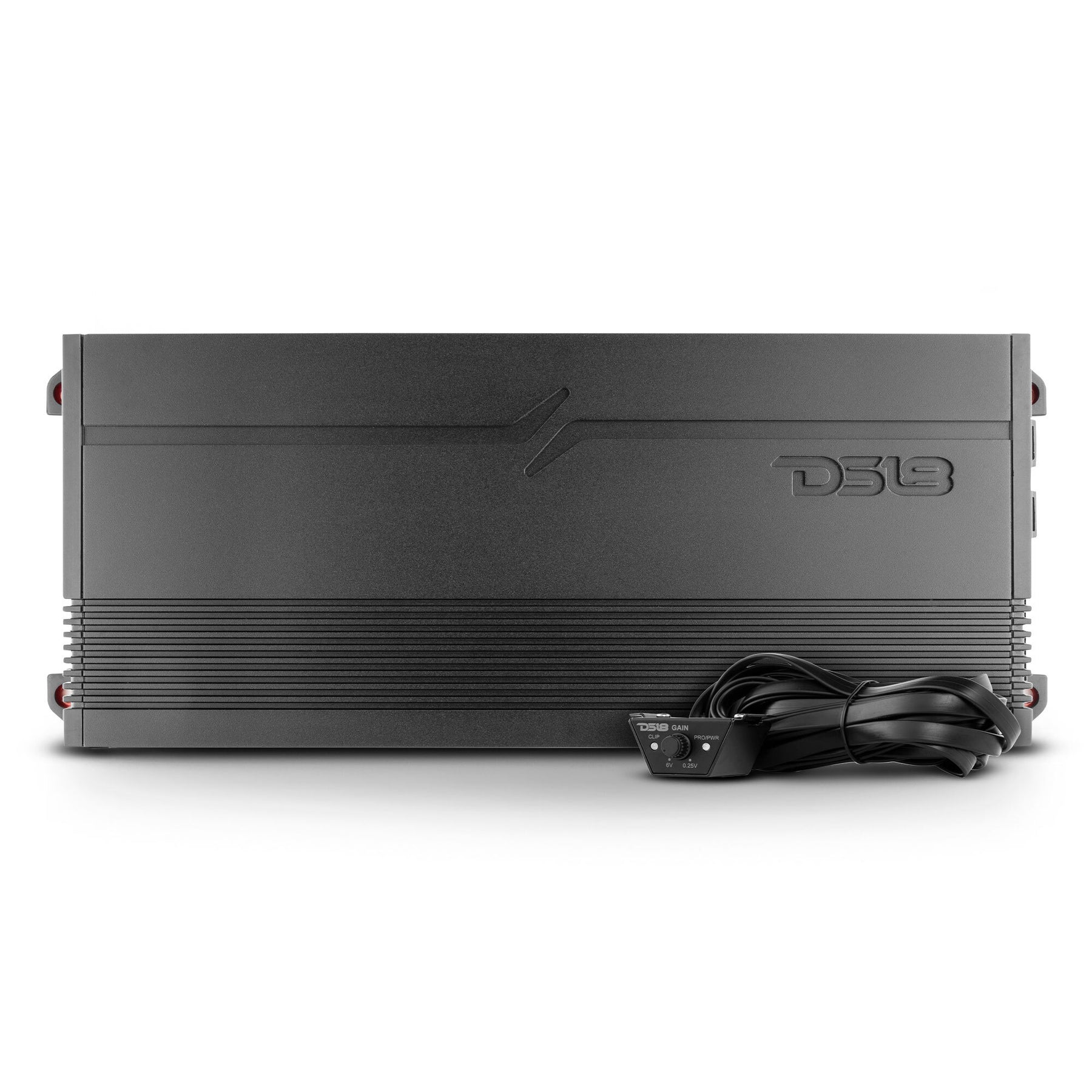

| Remote Level Control | Yes |
| Body Color / Finish | Matte Black |
Measurements
| Measurement | Value |
|---|---|
| Product Weight | 5.5 lb |
| Product Dimensions (L × W × H) | 14.25 × 7.25 × 3.25 in |
| Master Carton Weight | 33.5 lb |
| Master Carton Dimensions (L × W × H) | 15.25 × 15.25 × 10.75 in |
| Master Carton Quantity | 6 |
| Sold In | Single |
Product Overview
Monoblock Class D 1-Channel Amplifier 3600W
The G3600.1D is engineered to vitalize the low end frequencies reproduced by your system for bass you can feel, daring you to create the system of your dreams.
Rest easy knowing that the G3600.1D’s stable and reliable Class D circuit design has undergone rigorous sound quality verification using AP Instruments. We have designed the G Series to deliver nothing short of professional-grade sound reproduction.

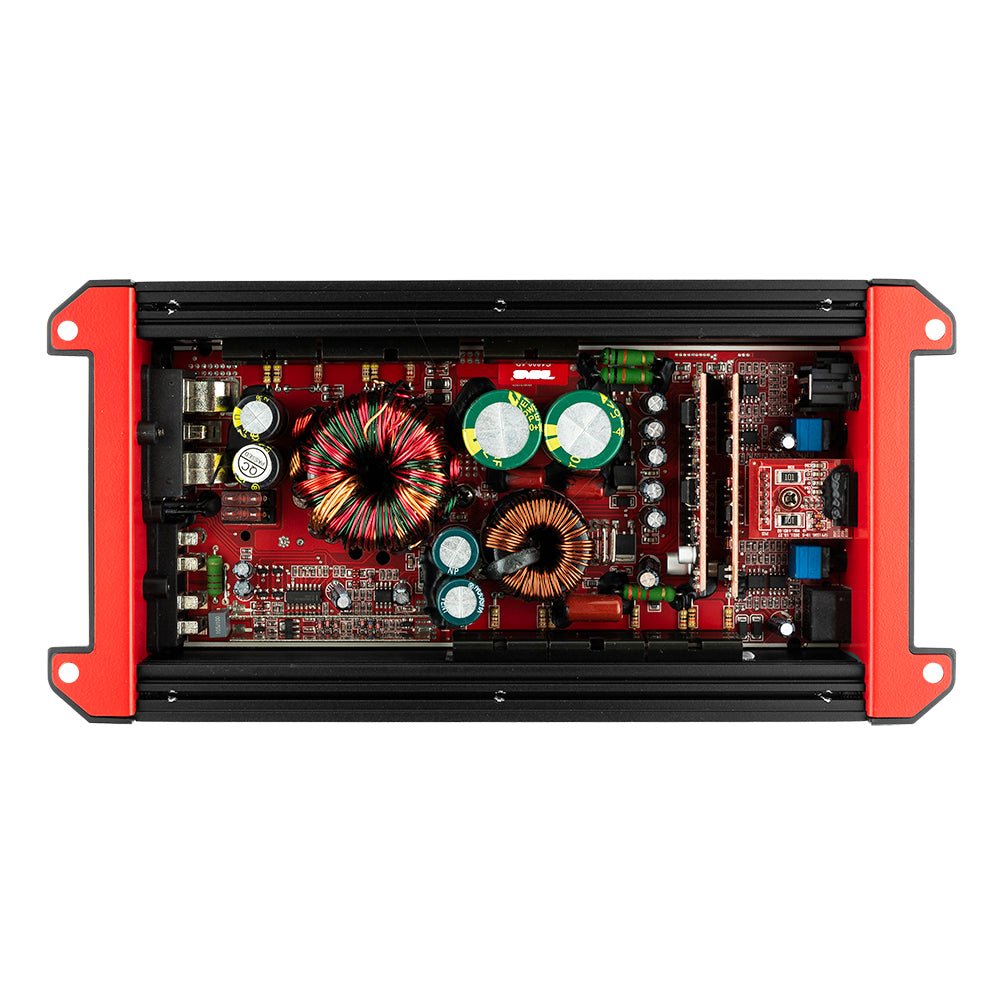

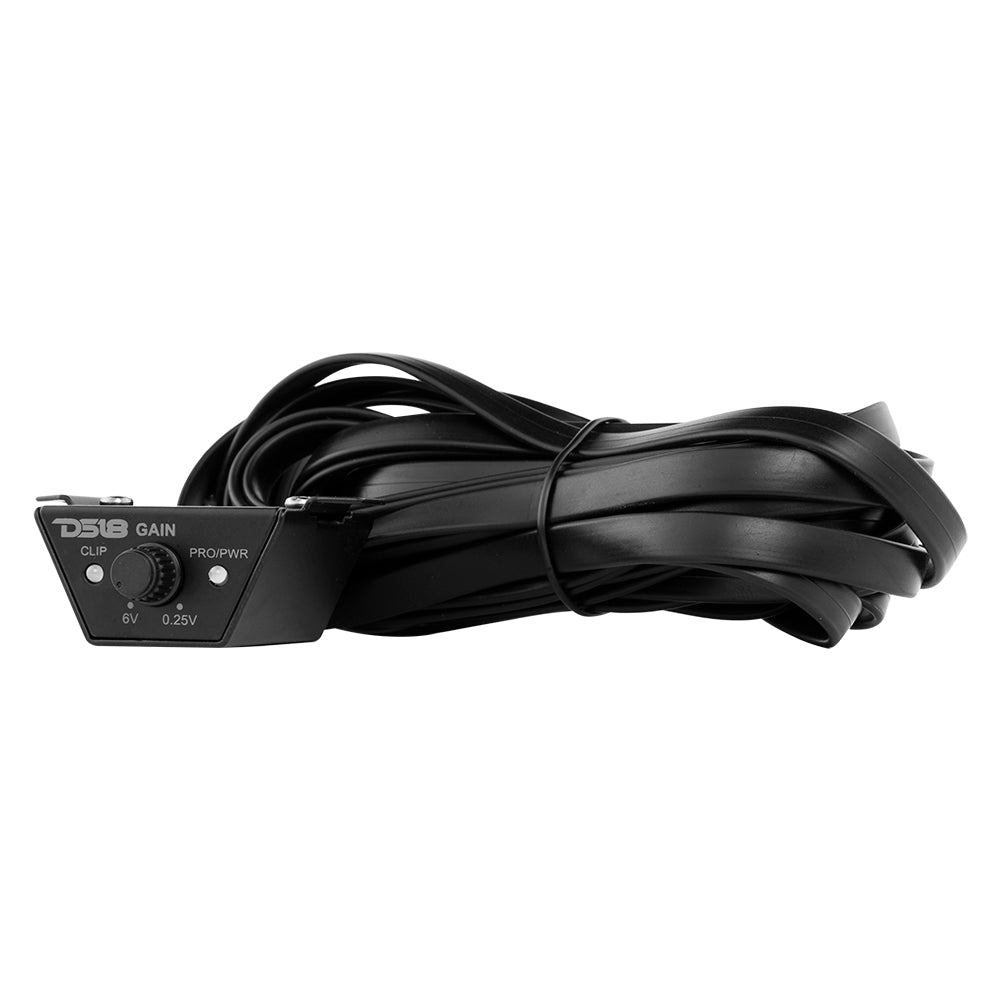

Tune your frequencies just the way you like them with fixed Low Pass Filters, Bass Boost, and Remote Level Bass Control Knob, offering you unprecedented control over your bass. With surface mount component technology, this amplifier also gives you control in customizing the placement and design of your build. The G3600.1D also features High-Level Input Compatibility, allowing for direct signaling to your radio unit, ensuring seamless integration into any setup.
With power output settings of 1200W RMS at 1-ohm, 900W RMS at 2-ohm, and 500W RMS at 4-ohm, the G3600.1D delivers the perfect balance of power and finesse, supercharging any custom build with ease.
Safeguard your equipment effectively with the G3600.1D’s Protection, Clipping, and Power Indicator LED’s. Stay informed and in control as these indicators alert you when your amplifier approaches its limit, protecting your investment and guaranteeing a long-lasting audio experience. The G3600.1D also features a host of advanced protective features, including short circuit, thermal, and voltage protection, ensuring the safety and longevity of your investment.
Designed for the competitor and enthusiast, the G3600.1D delivers unrivaled power, precision, and efficiency, propelling your build to unprecedented heights.
