Description
Pioneer DMH‑340EX/B

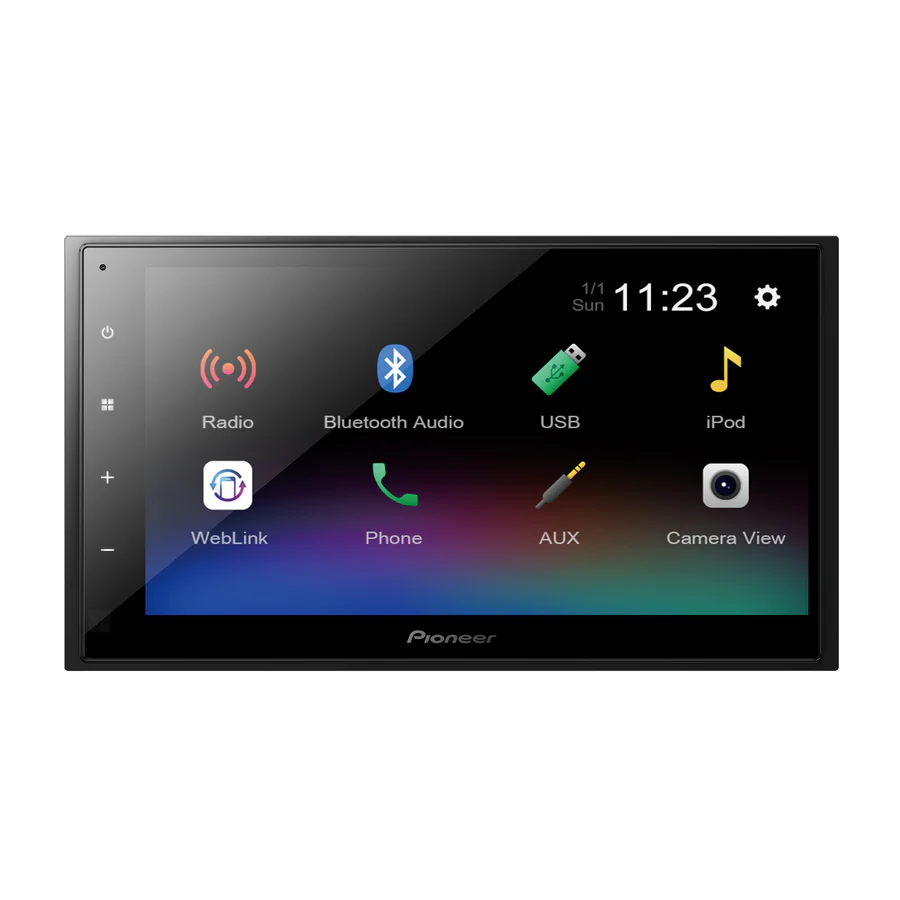

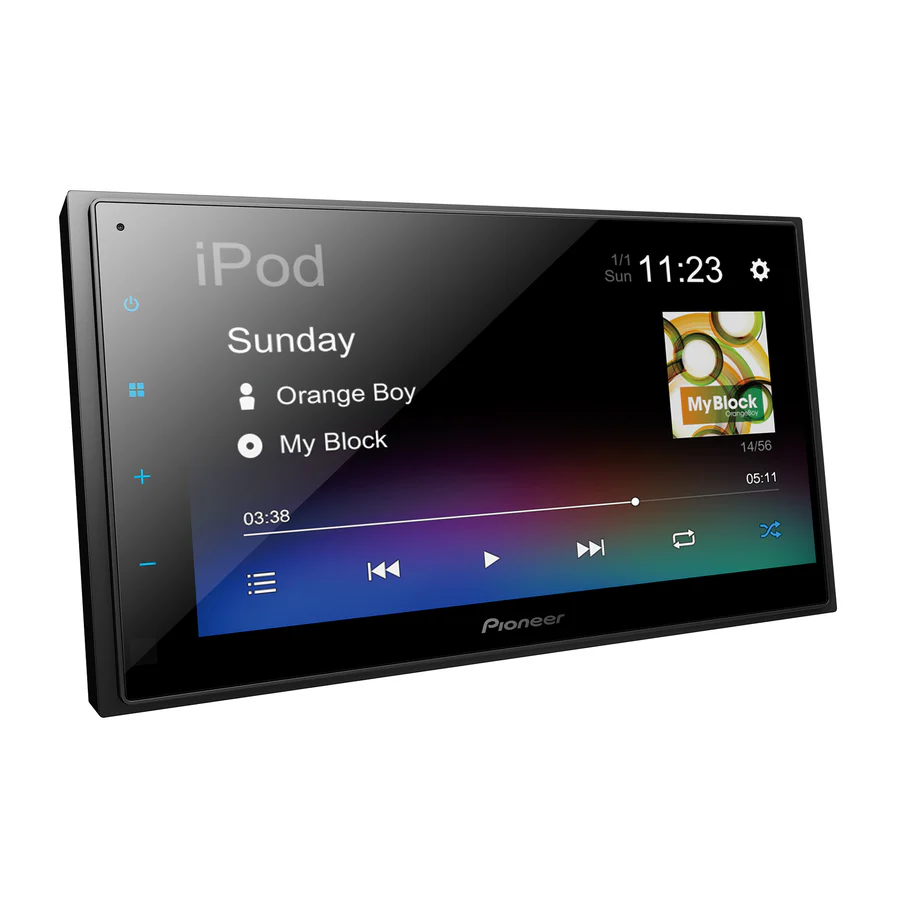

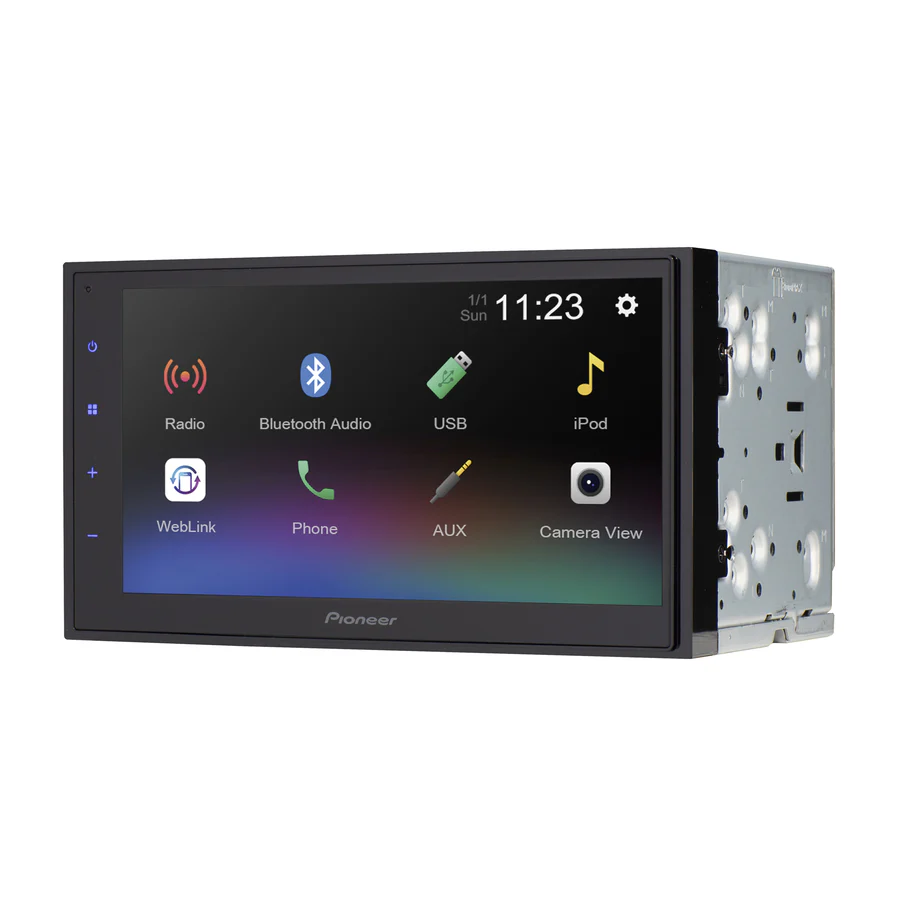

The Pioneer DMH‑340EX/B is a double‑DIN digital multimedia receiver featuring a 6.8″ capacitive WVGA touchscreen (800×480) designed to fit standard dashboards. It supports built‑in Bluetooth® for hands‑free calling and streaming, rear‑view camera input, USB playback of audio and video files including FLAC up to 24‑bit/192 kHz, and offers five 2‑volt pre‑amp outputs and a built‑in MOSFET amplifier. The unit is designed for users seeking a modern touchscreen interface without optical disc drives, focusing on media and connectivity.
Specifications
PRODUCT PERFORMANCE
| Specification | Details |
|---|---|
| Continuous Power Output | 22 W x 4-Channel |
| Load Impedance Allowance | 4 Ohm (4 Ohm to 8 Ohm Allowable) |
| Max Power Output | 50 W x 4-ch 4 ohm |
| RCA Preamp Outputs | 5-ch |
| RCA Preout Voltage | 2V |
| RMS Power Output (CTA-2006) | 14 W RMS x 4-ch 4 ohm |
GENERAL
| Specification | Details |
|---|---|
| Detachable Face Security | Fixed |
| Multi-Language Display | English, French, Spanish, Portuguese, Chinese (Simplified) |
| Music Browser | USB |
| Remote Control | Optional |
| Steering Wheel Control Ready | Yes (Adapter Sold Separately) |
DISPLAY
| Specification | Details |
|---|---|
| Back Light | LED |
| Brightness Control | Yes |
| Color Customization | 5 key colors, 3 Preset Background Images |
| Device (Non-DIN/Modular Unit) | 2-DIN |
| Dimmer | Automatic with vehicle illumination, Manual |
| Display Off Mode | Yes |
| Monitor Mechanism | Fixed |
| Resolution | WVGA (800 x 480) |
| Screen Size/Aspect Ratio | 6.8″ / 16:9 |
| Touch Screen | Capacitive |
BLUETOOTH
| Specification | Details |
|---|---|
| Advanced Audio Distribution Profile (A2DP) | Yes |
| AVRCP | 1.6 |
| Built-in Bluetooth® | Yes |
| Hands-Free | True |
| Microphone Included | Included |
| Phone Registration | 5-phone |
| Secure Simple Pairing (SSP) | Yes |
| Serial Port Profile (SPP) | Yes |
TUNER
| Specification | Details |
|---|---|
| Best Station Memory | Yes |
| Local Seek Tuning | Yes |
| Presets | 18 FM, 12 AM |
| PS (Preset Scan) | Hide or display radio station name |
| RDS | Yes |
INTEGRATION
| Specification | Details |
|---|---|
| Amazon Alexa | Paired with Pioneer Vozsis |
| Mobile Operating System | Android, Apple iOS |
| Pandora® | Bluetooth Audio Source |
| Pioneer App Compatibility | Vozsis Android, Vozsis iPhone |
| Siri® Eyes Free (VR) | iPhone Only (Internet Required) |
| Spotify | Bluetooth Audio Source |
| Voice Control | Yes |
| Weblink | 2.0 |
| Wifi | Tethering, WiFi Hotspot |
DIGITAL MEDIA PLAYBACK
| Specification | Details |
|---|---|
| Audio Playback via USB | AAC, FLAC (Hi-Res), MP3, WAV (Hi-Res), WMA |
| Audio Video Playback via USB | .avi, .mpg/.mpeg, .mp4, .mkv, .mov, .flv, .m4v, .ts/.m2ts/.mts, H.263, H.264 |
| Image Display via USB | BMP, JPEG, PNG |
AUDIO
| Specification | Details |
|---|---|
| Audio Bass Boost | Yes |
| Balance | Yes |
| Built-in Amplifier | MOSFET 50 W x 4 |
| Crossover Standard Mode | HPF / LPF |
| Customizable Graphic Equalizer | 13 Band |
| DA Converter | 24 Bit |
| Digital Signal Processor | Built In |
| Easy EQ (EEQ) Preset Equalizer | Yes |
| Loudness | High / Mid / Low / Off |
| Speaker Output | 4-ch |
| Subwoofer Control | Yes |
EXPANDABILITY
| Specification | Details |
|---|---|

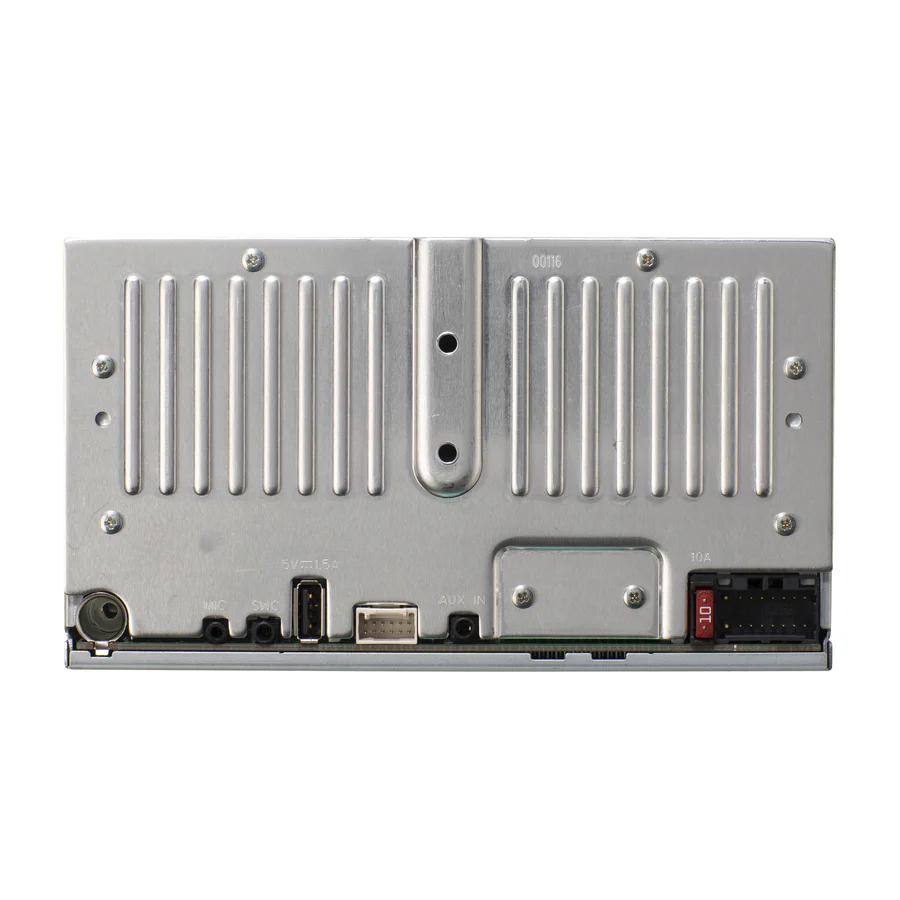

| Audio Video Inputs | Input 1 – Backup Camera Dedicated, Input 2 – AUX (Minijack) |
| RCA-Video-Output | Yes |
| USB | Single Rear Type-A (5V, 1-1/2 A) |
| USB Direct Control for iPhone® | 5s and newer |
About The Product
This is a Pioneer Reconditioned product, including a 90-day limited warranty. The DMH-340EX is a 6.8″ capacitive touchscreen digital media receiver designed to improve in-vehicle entertainment and smartphone connectivity. Enjoy built-in Bluetooth® for hands-free calling and audio streaming, audio/video playback from USB, backup camera readiness, and more.
Pioneer Vozsis with Alexa App
Invite Amazon’s voice assistant into your car with a WebLink-compatible Pioneer in-dash multimedia receiver and the Vozsis with Alexa app. With a tap of the touchscreen and your voice, access Amazon Prime Music, Audible audiobooks, your Kindle library, Flash Briefings, and more for information and entertainment during your drive.
Bluetooth
This NEX Receiver makes hands-free phone calls simple. Pioneer’s included external microphone provides crystal clear sound. Stream music, podcasts, audiobooks, and more from compatible Bluetooth® devices.
Back Up Camera Input (1-Camera)
Back up safely in crowded parking areas. Install a rear-view camera to use the receiver’s built-in parking guides, with adjustable parking lines and full-screen view for easier parking.
Customize Your Colors
Select from five display colors (blue, red, amber, green, violet) and 112 different illumination colors to match your vehicle’s interior lighting. You can also choose from several background images to suit your mood.
FLAC Playback
Enjoy high-resolution FLAC files in your vehicle without conversion. Pioneer’s NEX receivers support playback of high-res FLAC up to 192kHz/24-bit, delivering CD-quality output on the go.
