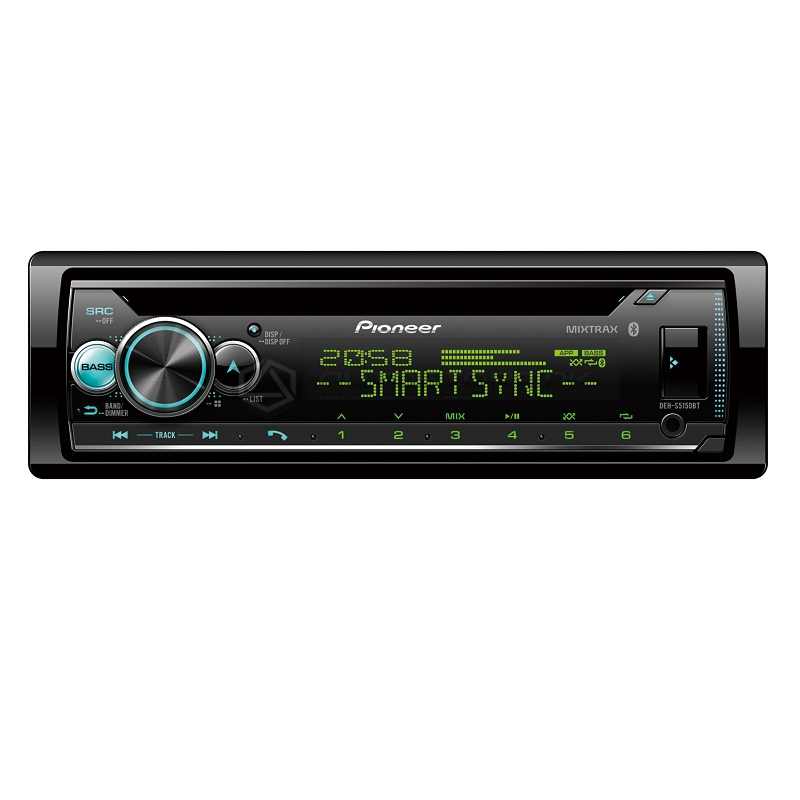

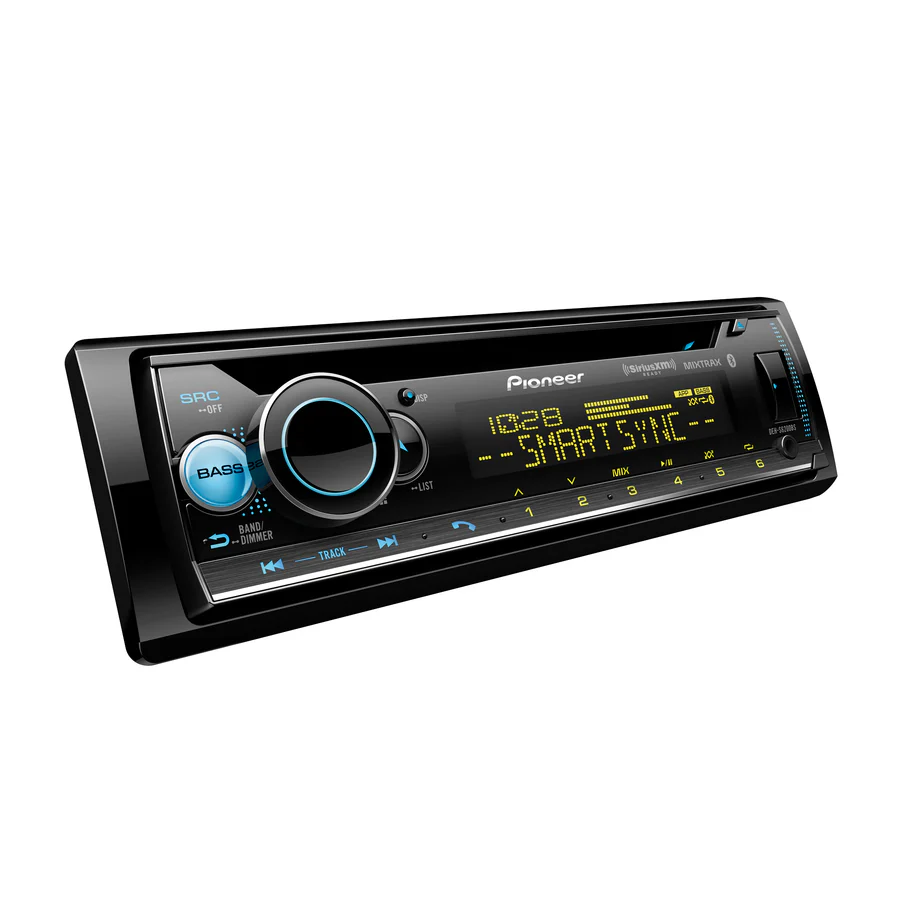

Pioneer DEH‑S6200BS/B

The Pioneer DEH‑S6200BS/B is a high‑feature single‑DIN CD‑media receiver with built‑in Bluetooth®, a front USB input for audio playback including high‑resolution formats, AM/FM tuner with HD Radio™, SiriusXM‑Ready™, and support for the Pioneer Smart Sync® app (which adds features such as Amazon Alexa® built‑in when connected). It offers advanced audio‑tuning capabilities including a 13‑band graphic equaliser (expandable to 31‑bands via Smart Sync), three pairs of 2‑volt RCA pre‑outputs for front/rear/subwoofer, and a built‑in MOSFET amplifier (50 W × 4 channels peak).


Specifications

PRODUCT PERFORMANCE
Feature Details
Continuous Power Output 22 W x 4-Channel
Load Impedance Allowance 4 Ohm (4 Ohm to 8 Ohm Allowable)
Max Power Output 50 W x 4-ch 4 ohm, 50 W x 2-ch 4 ohm, 70 W x 1-ch (subwoofer) 2 Ohm
RCA Preamp Outputs 6-ch
RCA Preout Voltage 2V
RMS Power Output (CTA-2006) 14 W RMS x 4-ch 4 ohm

GENERAL
Feature Details
Detachable Face Security Full
Multi-Language Display English, French, Spanish
Music Browser USB, With Smart Sync App
Remote Control Optional
Rotary Volume Control Yes
Steering Wheel Control Ready Yes (Adapter Sold Separately)

DISPLAY
Feature Details
Back Light LED
Brightness Control Yes
Color Customization 210,000 Colors, dual zone
Device Display VA LCD (2-Line)
Device (Non-DIN/Modular Unit) 1-DIN
Dimmer Automatic with vehicle illumination, Timer Controlled, Manual

BLUETOOTH
Feature Details
Advanced Audio Distribution Profile (A2DP) Yes
AVRCP 1.6
Built-in Bluetooth® Yes
Dual Phone Connection Yes
Hands-Free True
Microphone Included Included
Phone Registration 5-phone
Secure Simple Pairing (SSP) Yes
Serial Port Profile (SPP) Yes
Sound Retriever Air Mode 1 / Mode 2 / Off

TUNER
Feature Details
Best Station Memory Yes
Local Seek Tuning Yes
Presets 18 FM, 6 AM
RDS Yes
SiriusXM-Ready™ (Tuner Sold Separately) Yes

INTEGRATION
Feature Details
Amazon Alexa Paired with Pioneer Smart Sync
Mobile Operating System Android, Apple iOS
Music Playback (MTP) Yes
Pandora® Source through iPhone/Android
Pioneer App Compatibility Pioneer Smart Sync Android, Pioneer Smart Sync iPhone
Siri® Eyes Free (VR) iPhone Only
Spotify Streaming audio through iPhone/Android via Bluetooth or AUX input
Voice Control Yes

DIGITAL MEDIA PLAYBACK
Feature Details
Audio Playback via CD AAC, MP3, WAV, WMA
Audio Playback via USB MP3, WMA, AAC, FLAC (Hi-Res), WAV (Hi-Res)

AUDIO
Feature Details
Advanced Sound Retriever Mode-1 / Mode-2 / Off
Auto EQ Yes (CD-MC20 Microphone sold separately)
Balance Yes
Built-in Amplifier MOSFET 50 W x 4
Crossover Network Mode HPF / Band Pass / LPF
Crossover Standard Mode HPF / LPF
Customizable Graphic Equalizer 13 Band, 31 Band with Pioneer Smart Sync app
DA Converter 24 Bit
Digital Signal Processor Built-In
Dynamic Bass Enhancer Off / Low / High
Easy EQ (EEQ) Preset Equalizer Yes
Listening Position Selector Yes
Loudness High / Mid / Low / Off
MIXTRAX® Yes
Source Level Adjuster Yes
Speaker Output 4-ch
Spectrum Analyzer True
Subwoofer Control Yes
Time Alignment Manual

EXPANDABILITY
Feature Details
Audio Video Inputs Input 2 – AUX (Minijack)
USB Front Type-A (5V, 1.5 A)
USB Direct Control for iPhone® 5s and newer




About The Product

This is a Pioneer Reconditioned product, including a 90-day limited warranty.

DEH-S6200BT single DIN CD Receiver features compatibility with Pioneer’s exclusive Smart Sync app. Experience additional features by downloading the Pioneer Smart Sync app to your smartphone and syncing with your receiver. Smart Sync allows you to engage with your receiver in a similar fashion as high-end touchscreen units with a customizable UI and navigation app link. This receiver has built-in Bluetooth®, HD-Radio and is SiriusXM Ready. It has CD (R/RW), MP3/WMA/AAC/WAV playback and via USB playback for MP3/WMA/AAC/FLAC. With a touch of a button for voice control, talk to your smartphone device to make calls, select, and play music, compose and hear text messages, read notifications, even use maps and get directions. This receiver has a 13-band EQ to enhance sound quality. Two pairs of preamp outputs make it easier to add external amplifiers or a powered subwoofer.

Bluetooth

This receiver makes hands-free phone calls simple. Pioneer’s included external microphone provides crystal clear sound. Stream music, podcasts, audiobooks, and more from your compatible phone or other Bluetooth® devices.


MIXTRAX

Keep the party going with MIXTRAX®, an innovative Pioneer technology that creates a non-stop mix of your music library complete with a range of DJ-inspired effects. Drawing from Pioneer’s rich DJ heritage and our passion for music, MIXTRAX delivers a unique DJ-infused listening experience to those in the car. MIXTRAX takes the music from an iPhone, iPod, USB device, or certain Android devices and plays it back with added transitions and effects, creating a virtual DJ inside the Pioneer receiver. MIXTRAX makes automatic remixing of tracks extra-quick and easy. Simply connect your USB-compatible device and listen as tracks are joined by various random sound effects in non-stop-mix play to keep the groove going in full swing. MIXTRAX also features club-style illumination that enhances the mood with a dynamic dance club-like lighting effect. As MIXTRAX begins, lights start pulsing to the beat of the music, adding an extra level of entertainment. Choose among multiple patterns of lighting variations from sound pressure level or low-pass synchronization modes.


Pioneer Smart Sync

Pioneer Smart Sync is a highly evolved app, available for both iOS and Android OS, that utilizes the power of a connected smartphone to expand the features and user interface of compatible Pioneer in-dash receivers. With support for either a Bluetooth® or USB connection, the link between your smartphone and the in-dash receiver can be either wired or wireless. Through Pioneer Smart Sync, you can access many popular smartphone apps for maps, messages, music, connect to an OBDII module (sold separately) and more.


Pioneer Smart Sync with Alexa

Pioneer Smart Sync now features Amazon Alexa Built-in. Just download or update to the latest version of the Pioneer Smart Sync app and download the Alexa app. Using Alexa with Pioneer Smart Sync is simple; just tap-and-ask to play music, hear the news, check weather, control smart home devices, and more. Alexa lives in the cloud, so it’s always getting smarter, adding new capabilities that are delivered to your device automatically.

Pioneer Smart Sync is a powerful wireless remote control that allows you to easily tune sound via the app’s touchscreen interface and save those settings directly on your smartphone.


SiriusXM Ready

Your Favorite Stations Wherever You Go, Wherever you are, this Receiver is SiriusXM- Ready® so you can get over 140 channels, including commercial-free music, plus the best sports and live events, comedy, news, exclusive talk, and entertainment. SiriusXM programming is received through the SiriusXM Connect Vehicle Tuner (SiriusXM SXV300 Tuner sold separately, SiriusXM subscription required). To learn more or to purchase the tuner, visit SiriusXM.


Time alignment

This feature allows for delay time and synchronizing from each speaker to be adjusted to correct any phase mismatches in the sound resulting from the listening position. No need for any acoustics degree to do the job, simply measure the distance between your listening position and the speakers, then enter these measurements into the Pioneer receiver.

Reviews

There are no reviews yet.

Be the first to review “Pioneer DEH‑S6200BS/B”

Your email address will not be published. Required fields are marked *

Questions and Answers

Q1: What is the installation size and format of the DEH‑S6200BS/B?

A1: It’s a standard single‑DIN (≈ 50 mm height) in‑dash receiver that retains a CD slot, supports USB playback and Bluetooth audio streaming.

Q2: What connectivity features does it provide?
A2: Built‑in Bluetooth for hands‑free calls and audio streaming; USB front input supporting MP3, WMA, AAC, WAV and FLAC; AM/FM tuner (with 18 FM/6 AM presets) and HD Radio option; SiriusXM‑Ready (tuner sold separately).
Q3: What audio tuning/expandability features are included?
A3: Three pairs of RCA 2‑volt pre‑outs (front, rear, sub); 13‑band graphic EQ (expandable to 31 via Smart Sync app); crossover filters (HPF/LPF) for system integration; built‑in MOSFET amplifier rated up to 50 W ×4 peak.
Q4: What smartphone/app features are supported?
A4: Compatible with the Pioneer Smart Sync® mobile app (iOS/Android), which offers app control (music/navigation), 31‑band EQ, and Amazon Alexa® built‑in when the phone is connected.
Q5: What should a U.S. customer check before installing this unit?

A5: Ensure the vehicle has a single‑DIN dash opening; verify that wiring harness and steering‑wheel‑control adapters (if needed) are available; confirm the USB port supplies sufficient current for your phone; check face‑plate clearance and ventilation; and ensure your speaker/amp system aligns with the provided RCA outputs for future expansion.
