Description

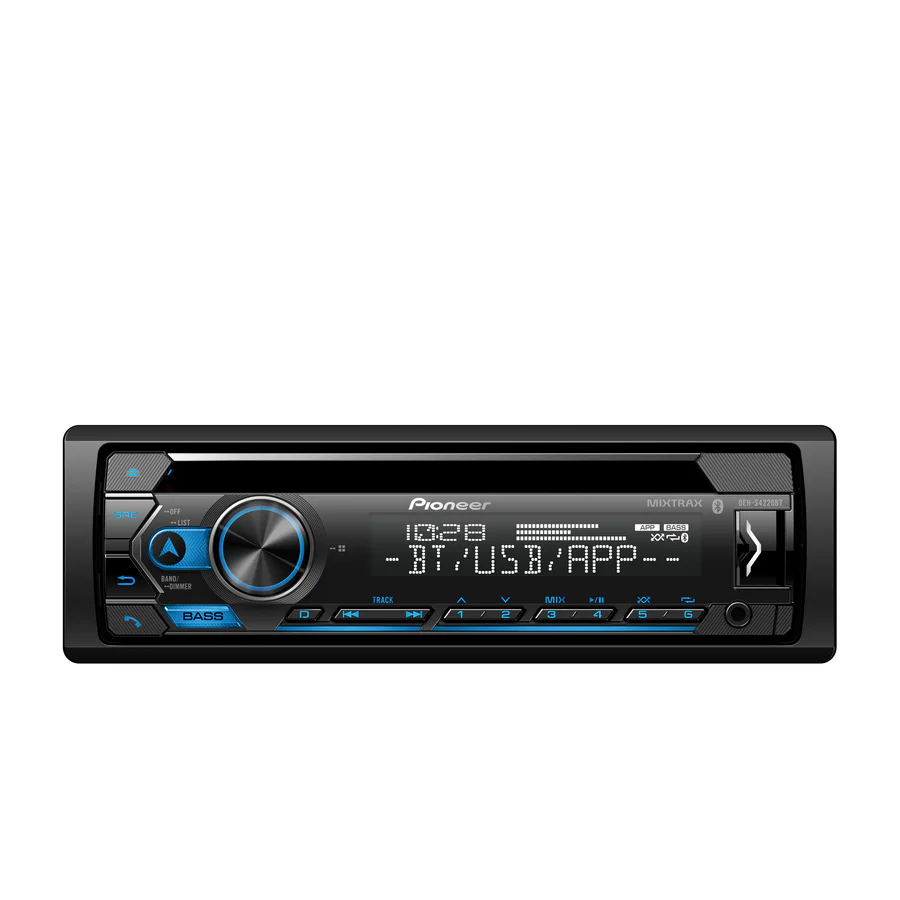

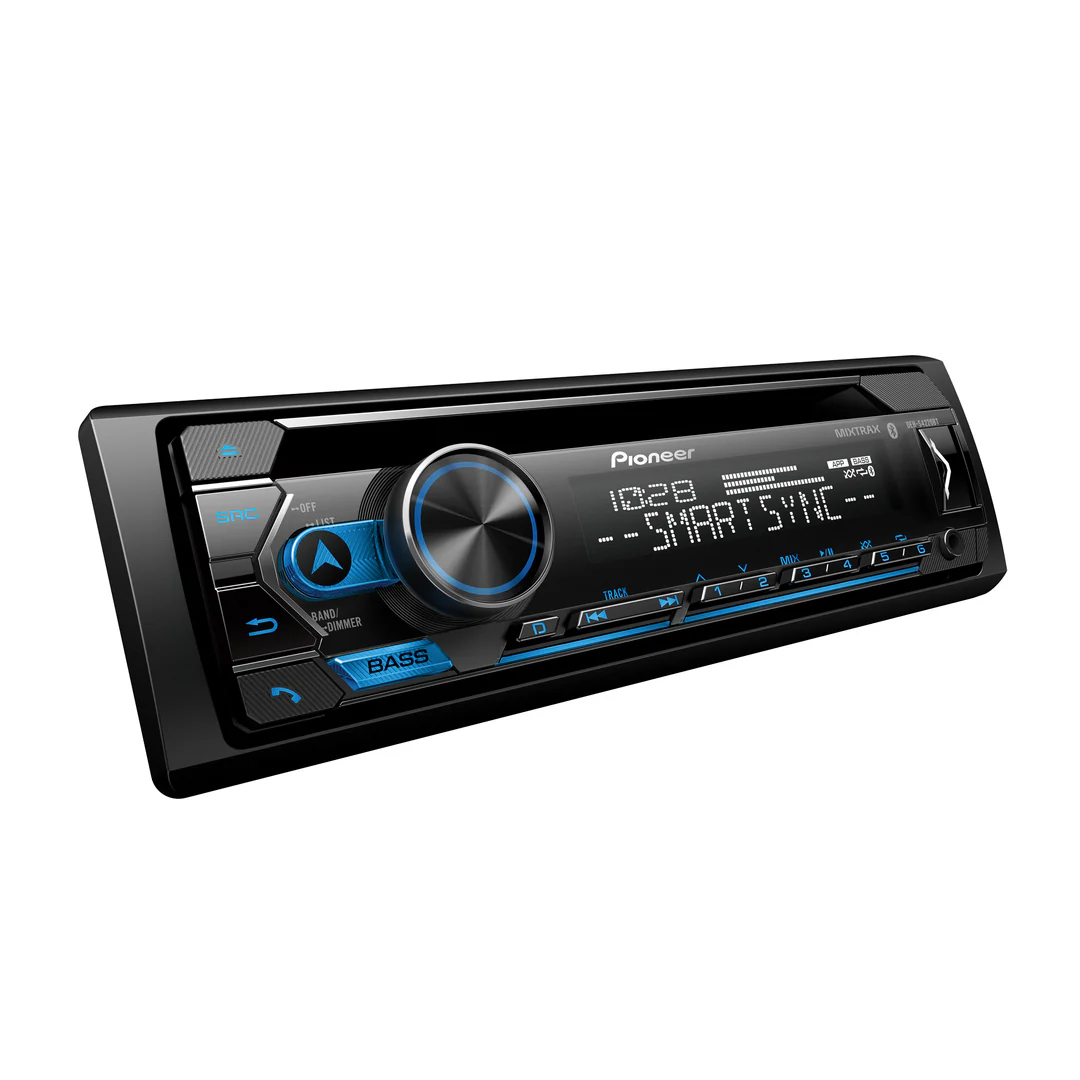

Pioneer DEH‑S4220BT

The Pioneer DEH‑S4220BT is a single‑DIN CD receiver designed for audio enthusiasts seeking modern connectivity and upgradeable sound performance. It includes built‑in Bluetooth® for hands‑free calling and wireless music streaming, supports playback of FLAC files via USB, and is compatible with the Pioneer Smart Sync® app for smartphone control and voice commands. The unit features a detachable faceplate with a 2‑line LCD display, 13‑band audio equaliser (expandable to 31 bands via Smart Sync), high‑/low‑pass filters, subwoofer control, and 4‑volt front/rear‑output preamps for amplification expansion


Specifications

PRODUCT PERFORMANCE
Feature Specification
Continuous Power Output 22 W x 4-Channel
Load Impedance Allowance 4 Ohm (4–8 Ohm Allowable)
Max Power Output 50 W x 4-ch 4 ohm, 50 W x 2-ch 4 ohm, 70 W x 1-ch (subwoofer) 2 Ohm
RCA Preamp Outputs 4-ch
RCA Preout Voltage 4V
RMS Power Output (CTA-2006) 14 W RMS x 4-ch 4 ohm

GENERAL
Feature Specification
Detachable Face Security Detachable
Multi-Language Display English, French, Spanish
Music Browser USB, with Smart Sync App
Remote Control Optional
Rotary Volume Control Yes
Steering Wheel Control Ready Yes (Adapter Sold Separately)

DISPLAY
Feature Specification
Back Light LED
Brightness Control Yes
Color Customization Fixed
Device Display VA LCD (2-Line)
Device Type 1-DIN
Dimmer Automatic with vehicle illumination, Timer Controlled, Manual

NAVIGATION
Feature Specification
Map Data N/A
Map Provider N/A
Point of Interest N/A

BLUETOOTH
Feature Specification
Advanced Audio Distribution Profile (A2DP) Yes
AVRCP 1.6
Built-in Bluetooth® Yes
Dual Phone Connection Yes
Hands-Free Yes
Microphone Included Yes
Phone Registration 5 phones
Secure Simple Pairing (SSP) Yes
Serial Port Profile (SPP) Yes
Sound Retriever Air Mode 1 / Mode 2 / Off

TUNER
Feature Specification
Best Station Memory Yes
Local Seek Tuning Yes
Presets 18 FM, 6 AM
RDS Yes

INTEGRATION
Feature Specification
Amazon Alexa Paired with Pioneer Smart Sync
Mobile Operating System Android, Apple iOS
Pandora® Source via iPhone/Android
Pioneer App Compatibility Pioneer Smart Sync Android, Pioneer Smart Sync iPhone
Siri® Eyes Free (VR) iPhone Only
Spotify Streaming via iPhone/Android through Bluetooth or AUX
Voice Control Yes

DIGITAL MEDIA PLAYBACK
Feature Specification
Audio Playback via CD AAC, MP3, WAV, WMA
Audio Playback via USB MP3, WMA, AAC, FLAC (Hi-Res), WAV (Hi-Res)

AUDIO
Feature Specification
Advanced Sound Retriever Mode-1 / Mode-2 / Off
Balance Yes
Built-in Amplifier MOSFET 50 W x 4
Crossover Standard Mode HPF / LPF
Customizable Graphic Equalizer 13 Band, 31 Band with Pioneer Smart Sync App
DA Converter 24 Bit
Digital Signal Processor Built In
Dynamic Bass Enhancer Off / Low / High
Easy EQ (EEQ) Preset Equalizer Yes
Listening Position Selector Yes
Loudness High / Mid / Low / Off
MIXTRAX® Yes
Source Level Adjuster Yes
Speaker Output 4-ch
Spectrum Analyzer Yes
Subwoofer Control Yes
Time Alignment Manual

EXPANDABILITY
Feature Specification
Audio Video Inputs Input 2 – AUX (Minijack)
Firmware Upgradability Yes
USB Front Type-A (5V, 1.5 A)
USB Direct Control for iPhone® 5s and newer

About The Product

The DEH-S4220BS Single DIN CD receiver offers smartphone integration, Bluetooth®, and other audio options. Equipped with Pioneer Smart Sync, this receiver, when paired with your smartphone, brings together navigation apps, messages, music, and more through an intuitive interface. Enjoy your CDs or FLAC files from a USB drive, or stream audio from your phone via Bluetooth®. It features a 13-band customizable graphic equalizer, which increases to 31 bands when using Pioneer Smart Sync.


CD Player

Play your collection of audio discs with ease, whether burned or original CDs.


Pioneer Smart Sync

Pioneer Smart Sync is a highly evolved app available for iOS and Android OS, expanding the features and interface of compatible Pioneer in-dash receivers. Using either Bluetooth® or USB, the connection can be wired or wireless. You can access popular smartphone apps for maps, messages, music, connect to an OBDII module (sold separately), and more.

Smart Sync now includes Amazon Alexa Built-in. Download or update the Pioneer Smart Sync app and the Alexa app to play music, get news, check weather, control smart home devices, and more. Alexa continually updates automatically in the cloud.

Smart Sync also acts as a wireless remote control, letting you tune sound and save settings via the app.


Smartphone Control

Directly access music on your smartphone. Search for Artists, Albums, and Songs using the intuitive interface. Control compatible music and radio apps from your phone through the receiver.


Bluetooth

Hands-free calls are easy with the included external microphone. Stream music, podcasts, and audiobooks from your phone or other Bluetooth® devices.


Siri® Eyes Free

Ask Siri to answer questions or send commands through the receiver, keeping your eyes on the road and hands on the wheel.


USB Auto Switch

Choose whether the connected phone functions as a source or charges only when plugged in via USB.


Wired Remote Input

Connect a third-party interface (optional) to retain steering wheel control functions.


Pioneer Advanced Sound Retriever

Enhances detail, warmth, and clarity from compressed audio files, counteracting compression effects for a natural sound.


Audio Equalizer

13-band equalizer allows detailed tuning to match car interior acoustics. Multiple EQ presets make it easy to customize even for beginners.


Time Alignment

Correct phase mismatches by adjusting speaker delay times according to listening position.


MIXTRAX

Creates a continuous mix of your music library with DJ-inspired effects. Supports iPhone, iPod, USB, and select Android devices. Club-style illumination pulses to the beat of the music, with multiple lighting pattern options via sound pressure level or low-pass sync modes.

Reviews

There are no reviews yet.

Be the first to review “Pioneer DEH‑S4220BT”

Your email address will not be published. Required fields are marked *

Questions and Answers

Q1: Does it support Apple CarPlay or Android Auto?
A1: No, the DEH‑S4220BT does not support Apple CarPlay or Android Auto.
Q2: What media types can it play and what inputs are available?
A2: It plays CDs (CD‑R/RW), accepts USB devices for FLAC/WAV/MP3 audio playback, and has a front AUX‑input.
Q3: What are the audio output capabilities for upgrades?
A3: It offers 4‑volt front and rear/subwoofer RCA preamp outputs, built‑in MOSFET amplification, and advanced audio controls including 13‑band EQ and subwoofer level control.
Q4: Can the display illumination be customised?
A4: Yes it supports variable colour illumination (many colour combinations) and a 10‑level dimmer for adjusting brightness.
Q5: Will it fit in vehicles with a standard single‑DIN slot?
A5: Yes it is a standard single‑DIN height receiver, making it compatible with many vehicle dashboards, though wiring harness and dash trim compatibility should be verified.
