Description

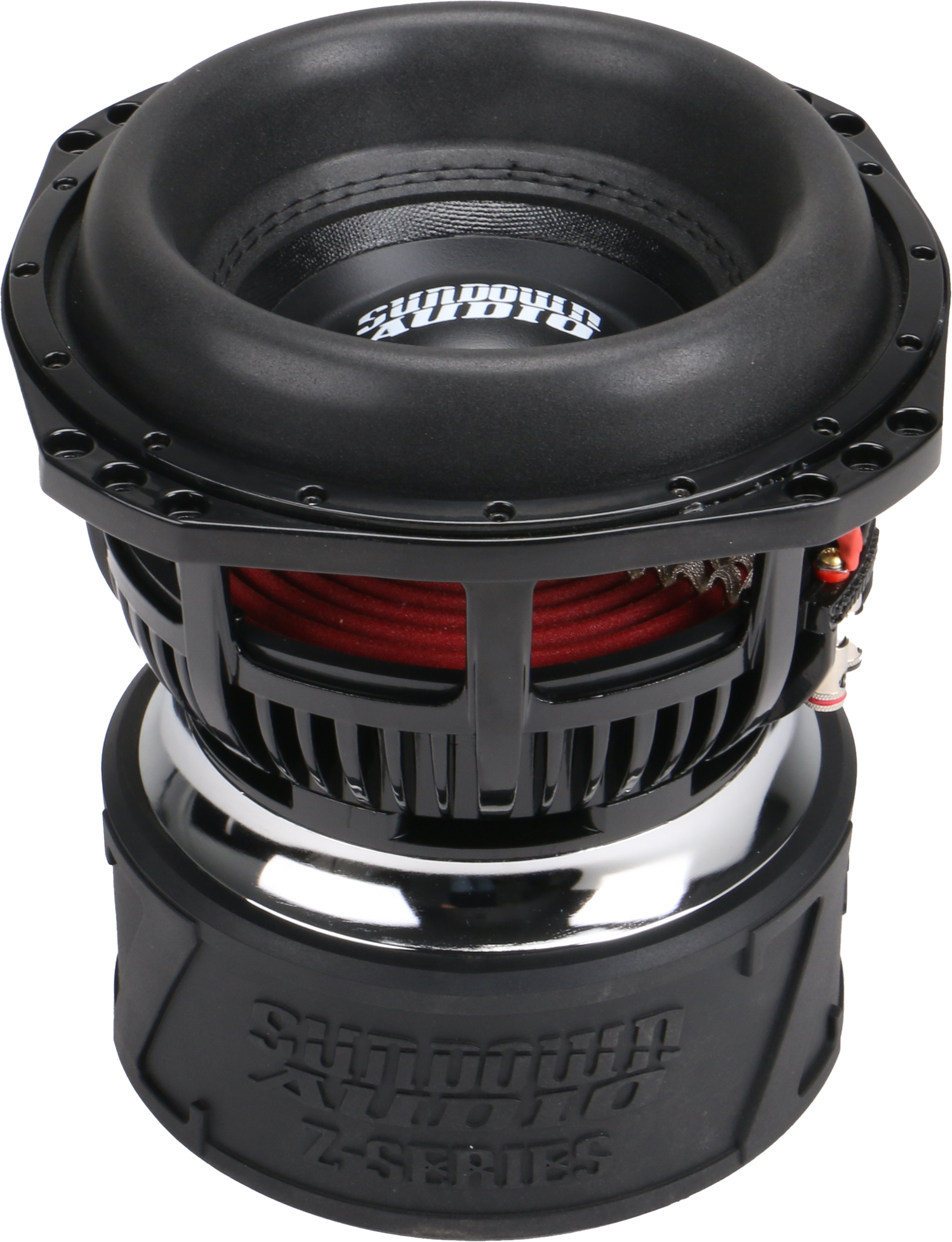

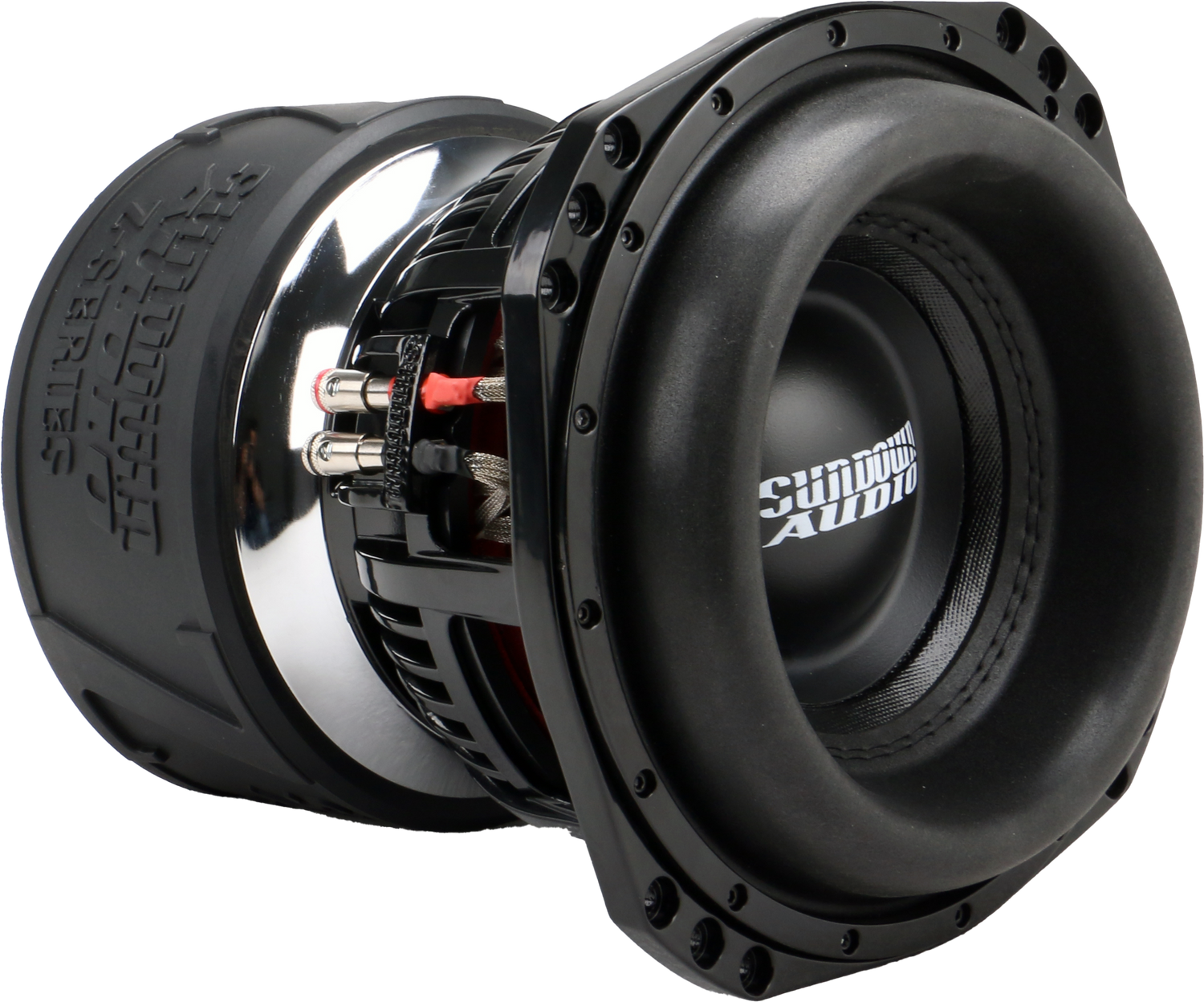

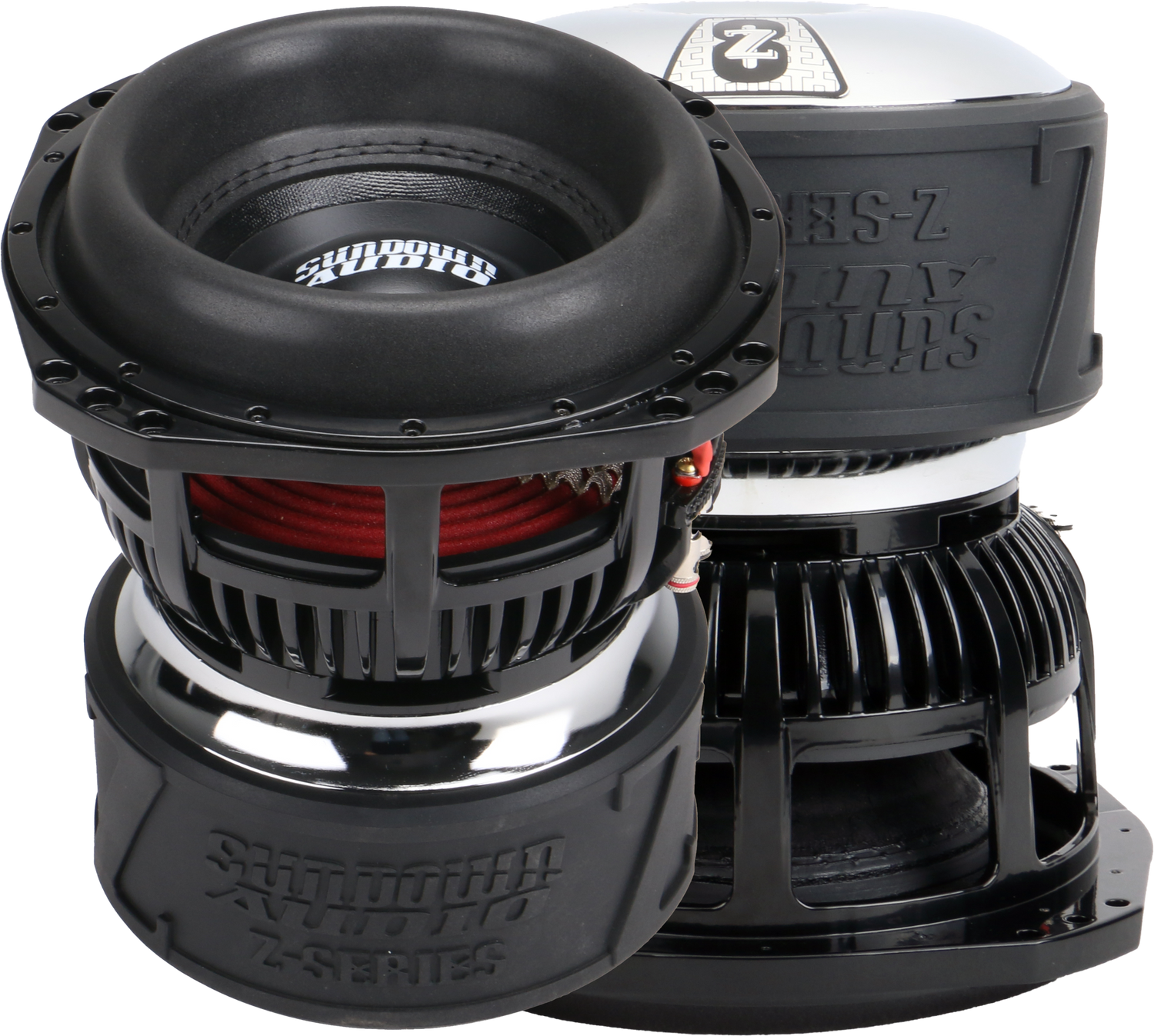

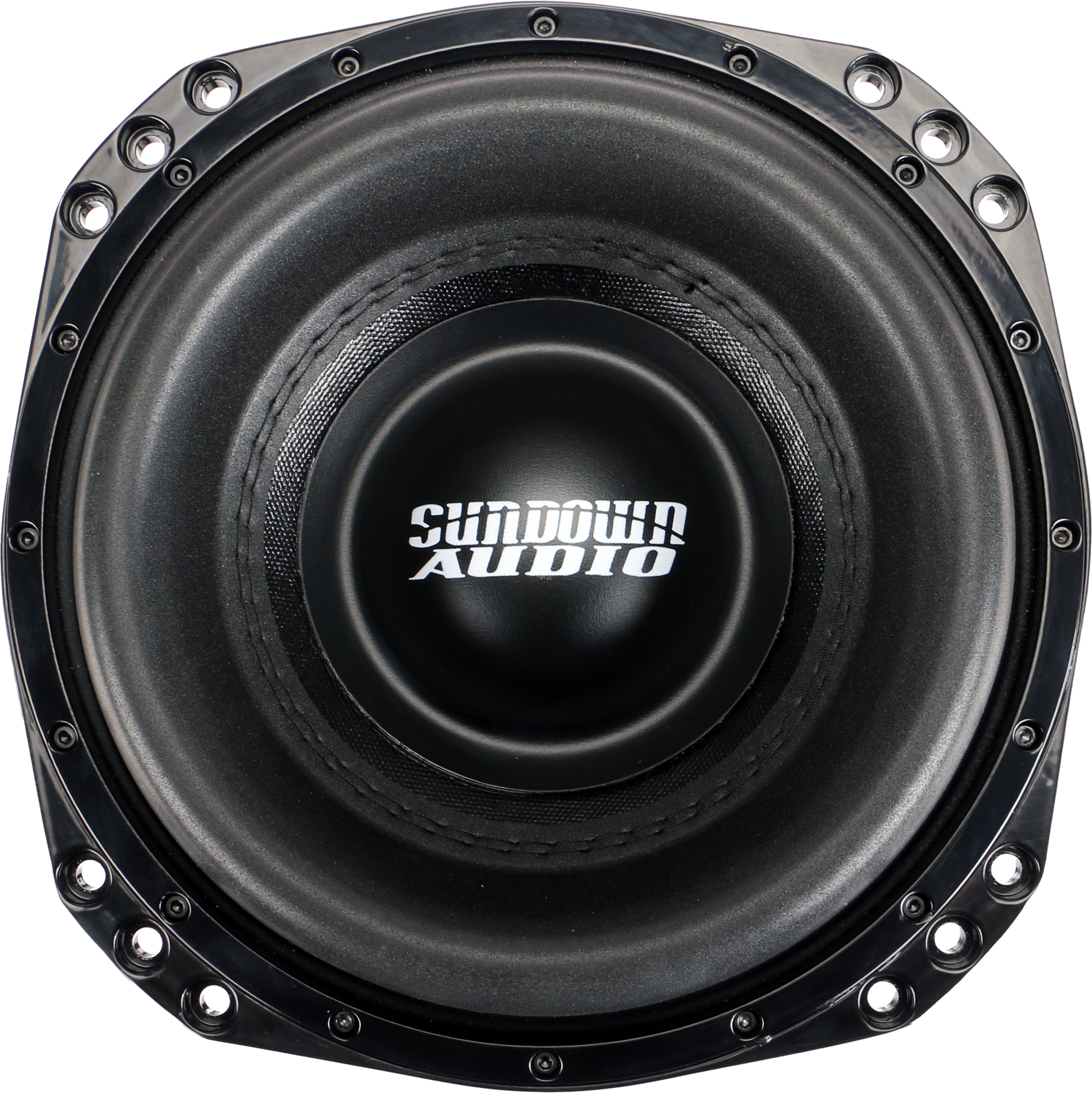

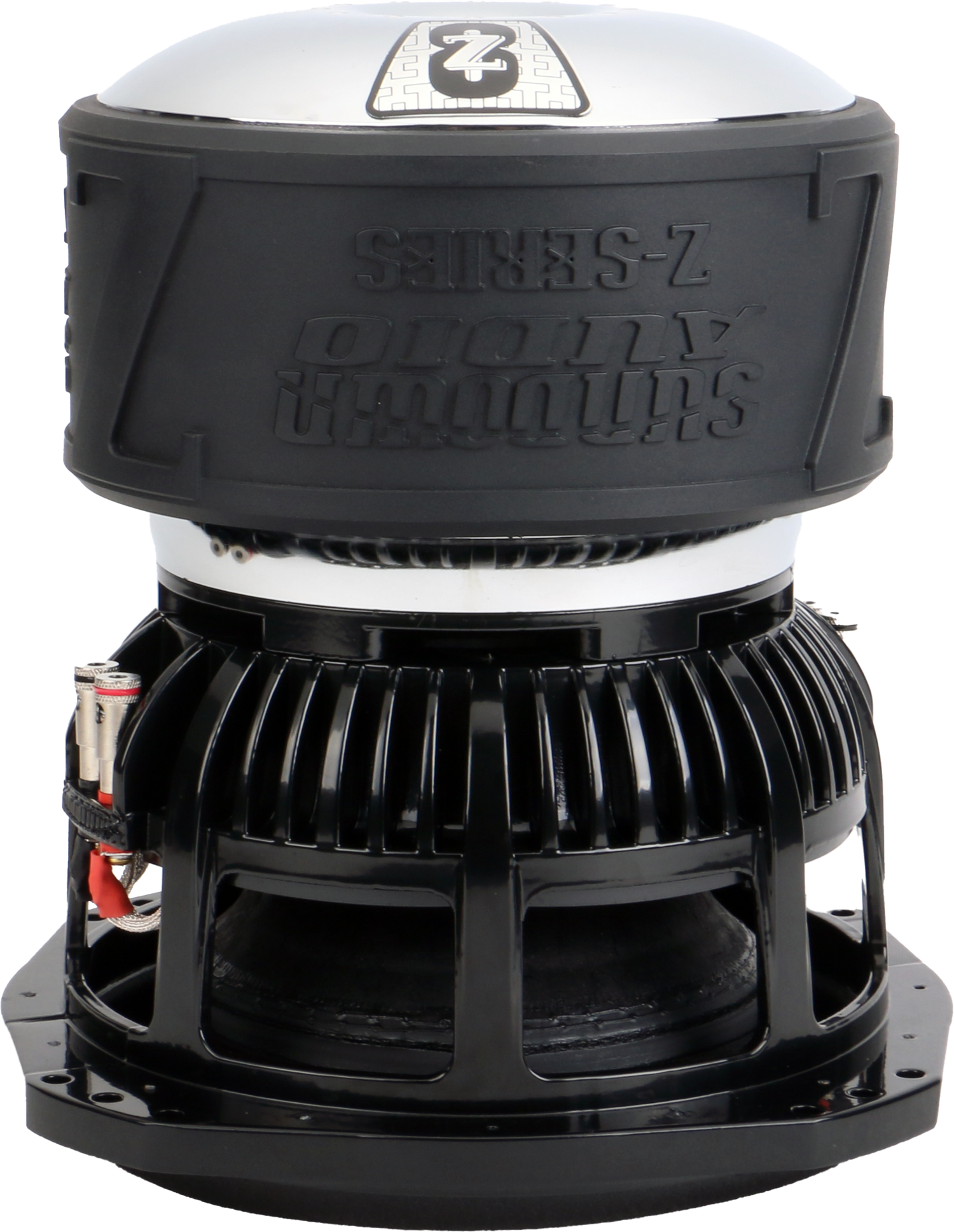

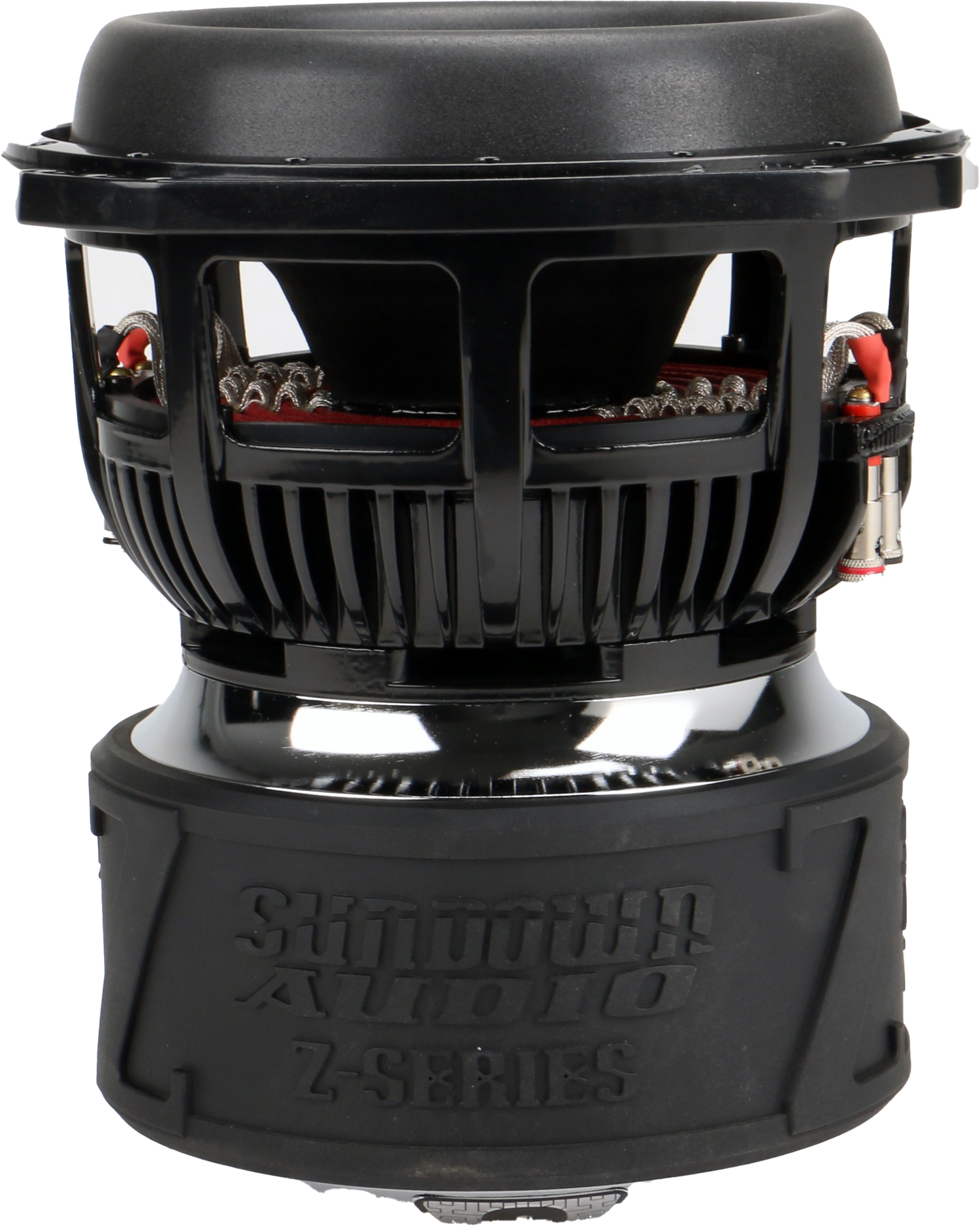

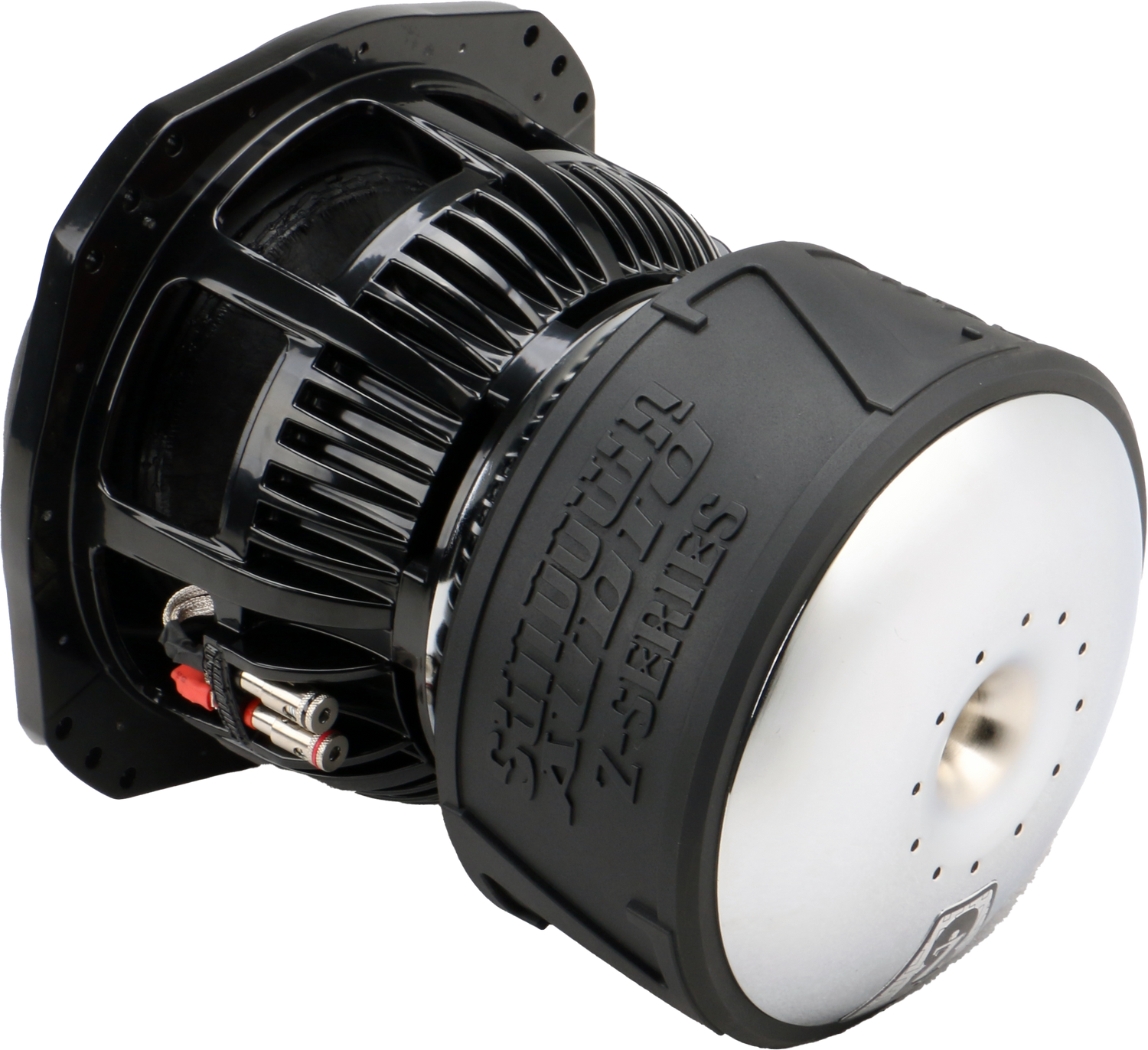

Sundown Audio Z-8 D1

Don’t let the size fool you the Z8 Series 8” subwoofer is built to perform well beyond expectations. With an incredible 2000 watts RMS and 4000 watts peak power handling, this compact beast is ready to drop low, hit hard, and take a beating  all while maintaining control and clarity. Designed for high-output systems with limited space, the Z8 offers the same elite-level engineering found in our larger Z Series drivers, packed into an 8-inch frame.This sub is built around a black aluminum 2.75″ 8-layer voice coil with a massive 30mm Xmax, giving it incredible excursion and power handling for its size. Every component is engineered for airflow and cooling: from the optimized high-velocity pole vent to the cast-aluminum vented frame spacer ring and heavily vented magnetic gap. Add in stitched XL tinsel leads, a Mega-Roll v.2 surround, custom spider packs, and a large aluminum Faraday ring, and you’ve got a sub that’s made for real-world abuse and long-term performance.


Specifications

T/S SPECS Z8 D1 Z8 D2
RE (Ohms) 2.08 3.515
FS (Hz) 43.592 44.198
VAS (L) 3.837 3.922
Qes 0.712 0.67
Qms 5.069 5.026
Qts 0.624 0.591
Le (mH) 1.677mH 2.992mH
BL (NA) 14.516 19.084
Mms (Grams) 263.02g 250.319g
Cms (uM/N) 50.68 uM/N 51.081 uM/N
Sens (dB @ 1w/1m) 78.24dB 78.77dB
Xmax 30mm 30mm

Enclosure Specifications
Sealed Enclosure Not Recommended
Ported Enclosure 1.0 cu.ft. net
Recommended Tuning 32Hz
Recommended Port Area 15 sq.in.
Displacement .12 cu. ft.
Depth 9.5″
Outside Diameter 10″
Cut-Out 8.2″

Reviews

There are no reviews yet.

Be the first to review “Sundown Audio Z-8 D1”

Your email address will not be published. Required fields are marked *

Questions and Answers

Q1: What size and voice coil configuration does the Z-8 D1 use?

A1: It is an 8-inch subwoofer with a single 1-ohm (D1) voice coil configuration.

Q2: Is this subwoofer suitable for compact or shallow-mount installations?

A2: Yes, the Z-8 D1 is designed specifically for limited-space, compact installations including under-seat and shallow-mount setups.

Q3: What type of enclosure is recommended for optimal performance?

A3: Sealed enclosures are recommended for tight, controlled bass, while small ported enclosures can provide additional low-end extension.

Q4: Can this subwoofer handle high-power amplifiers?

A4: Yes, it is built with a robust voice coil and reinforced cone to handle high power efficiently.

Q5: What kind of bass performance can be expected?

A5: The Z-8 D1 delivers tight, punchy, and accurate bass, ideal for high-output compact car audio systems.
