Description
DS18 XM6LD
The DS18 XM6LD is a 6.5-inch loudspeaker midrange driver designed to deliver clear, powerful, and efficient sound reproduction for car audio systems that demand strong vocals and detailed mid frequencies. Built with a single 4 Ω impedance and capable of handling up to 300 W RMS and 600 W peak power, the XM6LD offers high output with excellent clarity. Its wide frequency response, typically covering approximately 100 Hz to 10 kHz, ensures crisp vocals and dynamic midrange performance, while the high sensitivity rating allows it to play loud with minimal amplifier power. Constructed with a durable pressed paper cone, cloth surround, and a sturdy steel basket, this loudspeaker is made for long-lasting performance even in demanding environments. Ideal for doors or custom speaker pods, the XM6LD is perfect for users seeking strong midrange projection and balanced sound in their car audio setup.
Specifications
| Specification | Value |
|---|---|
| SKU | XM6LD |
| Total Harmonic Distortion @ 1kHz | 0.04% |
| Signal to Noise Ratio | >105 dB |
| Stereo Separation | >70 dB |
| Current Drain | 200 mA |
| Remote Turn-on Time | 0.5 sec |
| Recommended Fuse | 1 A |
Input Impedance & Voltage
| Parameter | Value |
|---|---|
| Input Impedance (Front / Rear / Subwoofer) | 22 kΩ |
| Input Voltage | 150 mV ~ 6 V |
| Crossover Cut-off Slope | 12 dB/Octave |
| Maximum Output Voltage | 11.5 V |
Subwoofer Specifications
| Parameter | Value |
|---|---|
| Low Pass Crossover Frequency | 40 ~ 90 Hz |
| Subsonic Filter | 10 ~ 30 Hz |
| Phase Shift | 0 ~ 180° |

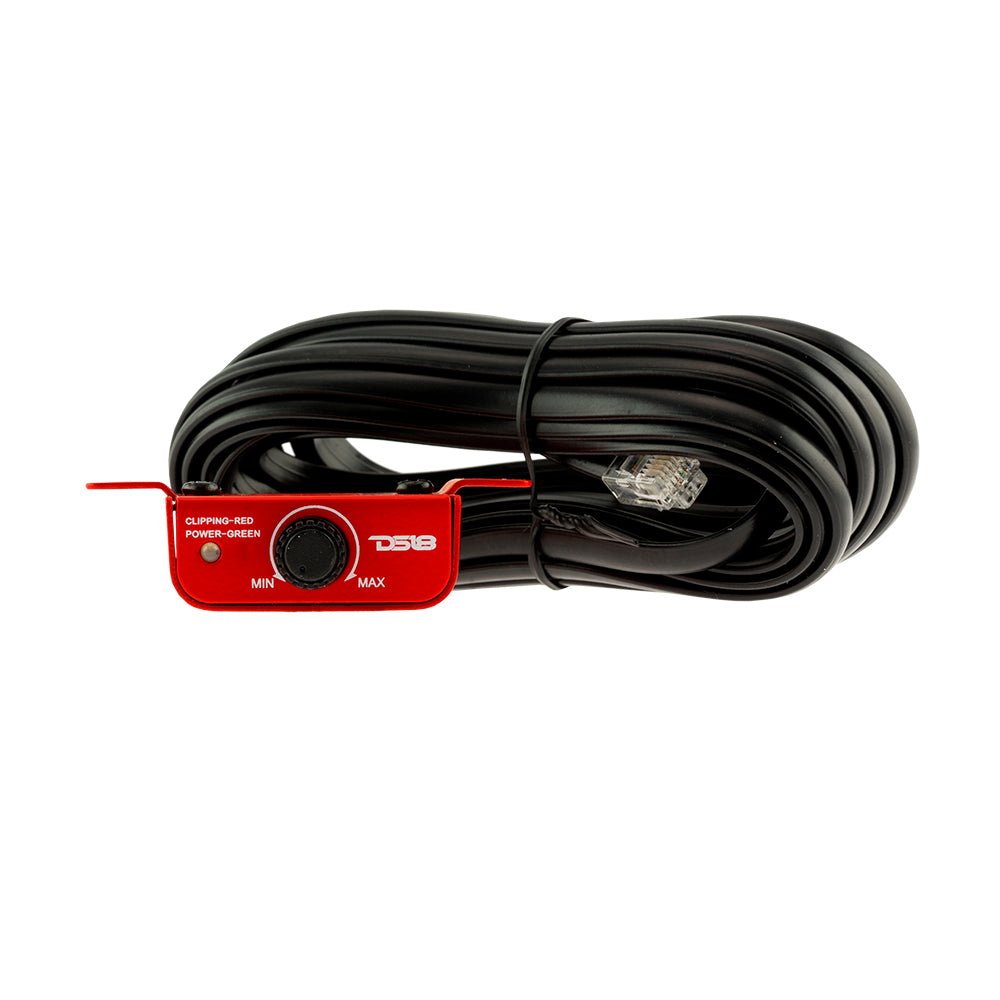

| Bass Level Remote Control | Wired |
Rear Channel (Mid Bass / Band Bass 3)
| Parameter | Frequency Range |
|---|---|
| Mid Bass Low Pass Crossover | 40 Hz ~ 1 kHz |
| High Pass Crossover | 40 Hz ~ 1 kHz |
| Low Pass Crossover | 1 kHz ~ 12 kHz |
Front Channel (High / Band Pass 1 / Band Pass 2)
| Parameter | Frequency Range |
|---|---|
| High Pass Crossover (High) | 1 kHz ~ 12 kHz |
| High Pass Crossover (Band Pass) | 40 Hz ~ 1 kHz |
| Low Pass Crossover | 1 kHz ~ 12 kHz |
Weight & Dimensions
| Parameter | Value |
|---|---|
| Gross Single Unit Weight | 3.5 lb |
| Box Dimensions (L × W × H) | 14.25 × 8.5 × 2.25 in |
| Units per Master Carton | 10 |
| Gross Master Carton Weight | 37.5 lb |
| Master Carton Dimensions (L × W × H) | 23 × 15 × 9.5 in |
Product Overview

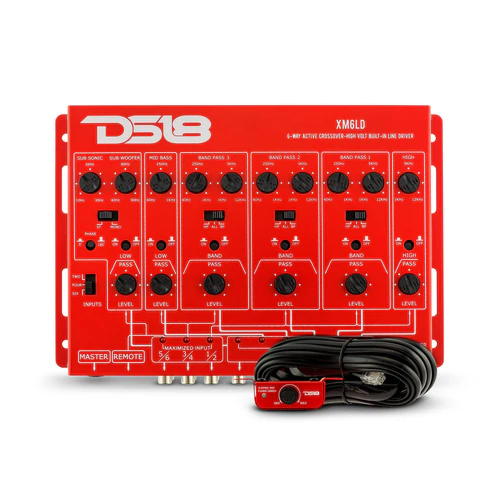

6-Way Active Crossover with Remote Gain Control
DS18’s XM6LD is crafted for flawless frequency distribution throughout your system, ensuring unparalleled clarity and peak efficiency for your acoustic needs. This 6-Way Active Crossover serves as the heart of your system, optimizing every aspect of your audio. With its impressive 6 separate bands and line driver options, the XM6LD allows you to elevate your input voltage, achieving a perfect match with your amplifier voltage.

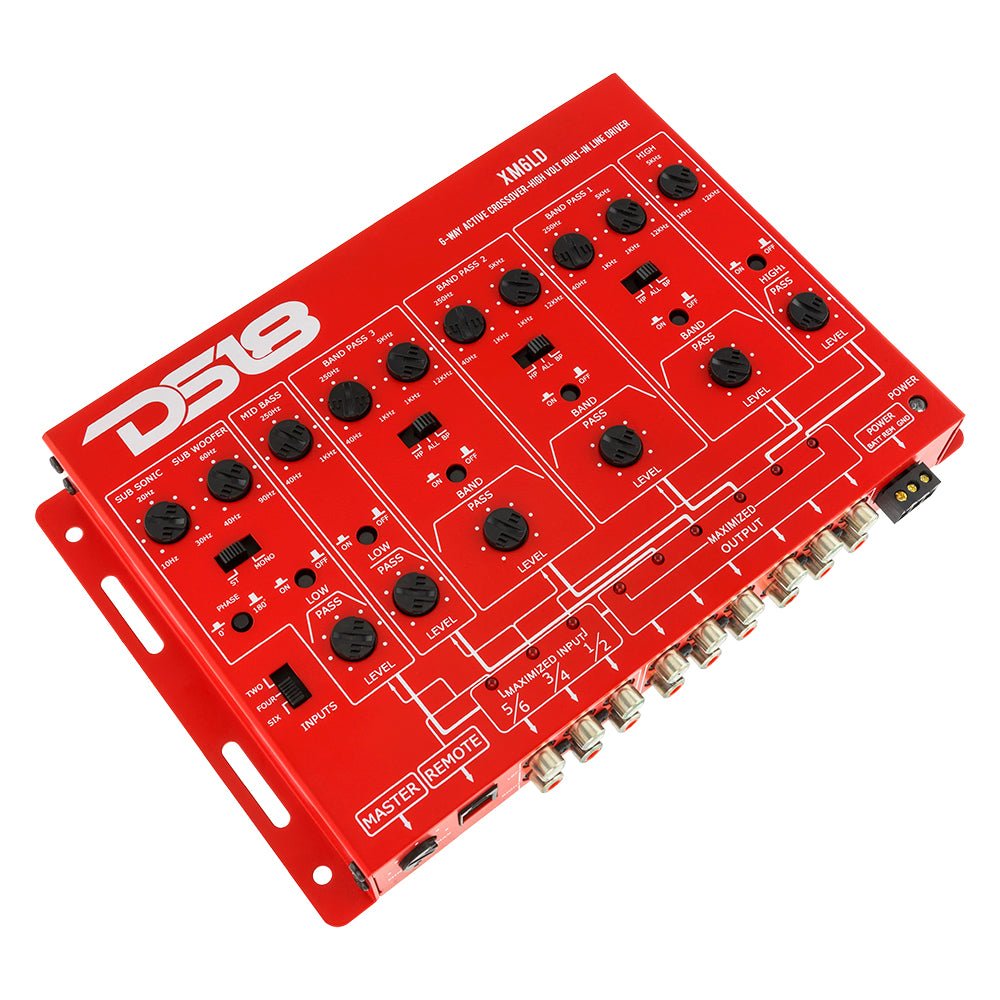

DS18 understands the importance of precise tuning in achieving audio excellence. That’s why the XM6LD comes equipped with easy-to-use tuning controls that provide unparalleled accuracy. High pass and band pass filters allow you to effortlessly target your desired midrange and high-range frequencies, ensuring your sound reproduction is exact and tailored to your preferences.
The XM6LD’s master gain knob, coupled with its six level adjustment knobs, empowers you to increase voltage via the line driver, ensuring your amplifiers receive the optimal signal voltage they crave for maximum volume. Drawing a mere 200mA of current and with a remote turn-on time of just 0.5 seconds, the XM6LD combines efficiency with speed, ensuring seamless integration into your audio setup. With an input impedance of 22K-Ohms and an input voltage range of 150mV to 6V, it accommodates a wide array of audio sources, enabling you to unleash the full potential of your music.
As an esteemed member of the DS18 family, the XM6LD is meticulously designed to meet the exacting standards of car audio enthusiasts. Its dimensions of 1.5″ in height, 6.5″ in length, and 8.5″ in width make it compact and easily installable, blending seamlessly into your system.
