Description
Rockford Fosgate X317MAX-RSS

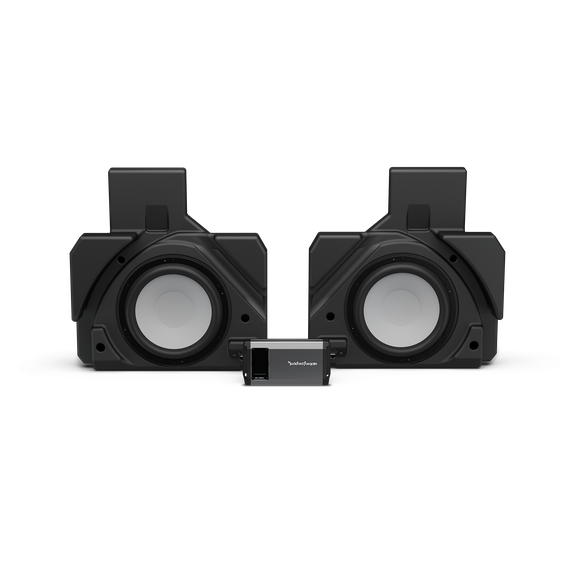

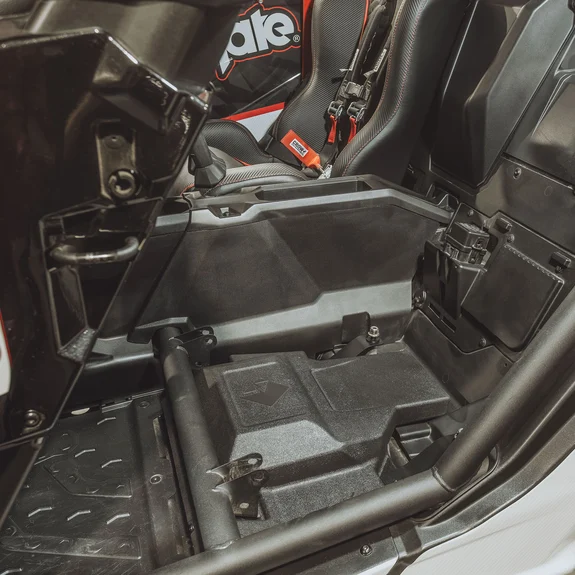

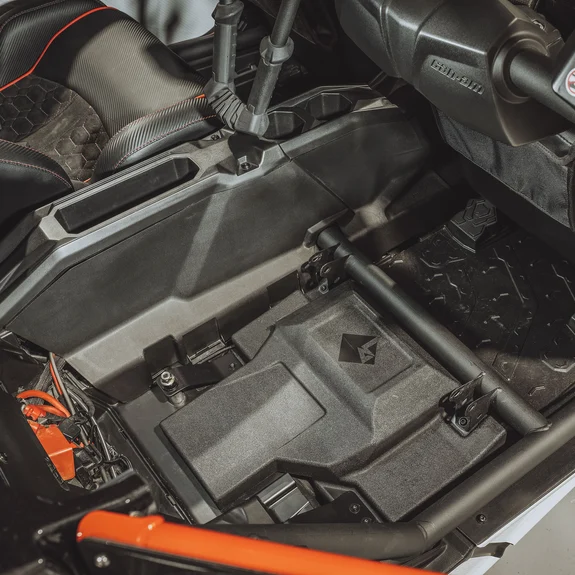

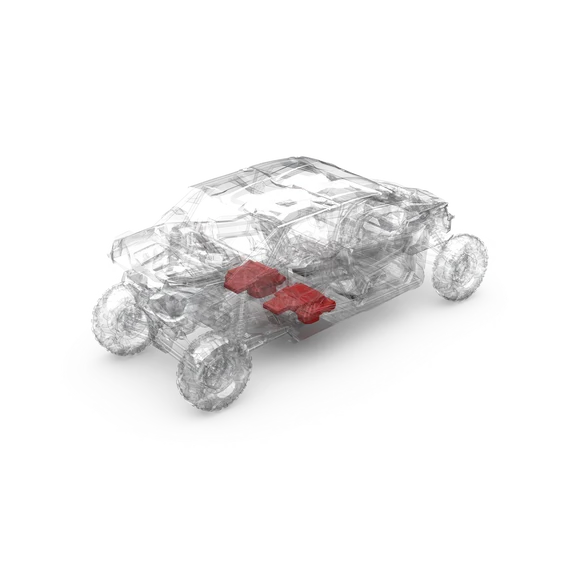

The X317MAX‑RSS is a dual rear‑subwoofer + amplifier upgrade kit, purpose‑built for select Can-Am Maverick X3 MAX (4‑seat) UTV models. It adds two 10″ subwoofers under the rear seats, along with a 1,000‑watt mono amplifier, wiring harness, and mounting hardware giving a powerful, plug‑and‑play bass upgrade to your existing audio system.
Specifications
| Specification | Details |
|---|---|
| Woofer Quantity | 2 |
| Woofer Size | 10″ |
| Woofer Series | M2D2-10IB |
| Nominal Impedance (each) | 2Ω (4Ω each enclosure wired in parallel to create a 2Ω amp load) |
| Frequency Response | 20 Hz – 750 Hz |
| Sensitivity | 90.3 dB |
| Power Handling | 500 Watts RMS / 1,000 Watts Peak |
| Crossover Type | Infrasonic: 30 Hz @ 12dB/Octave |
| Enclosure Type | Sealed |
| Enclosure Material | Roto-molded HDPE |
| Speaker Connector | 2-pin Deutsch™/Amphenol™ |

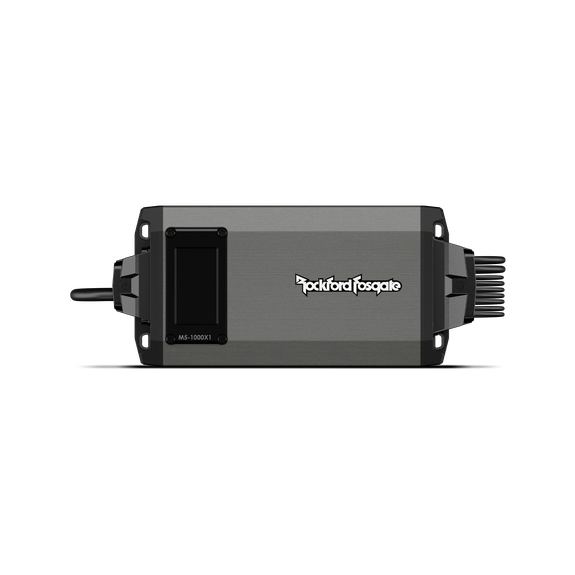

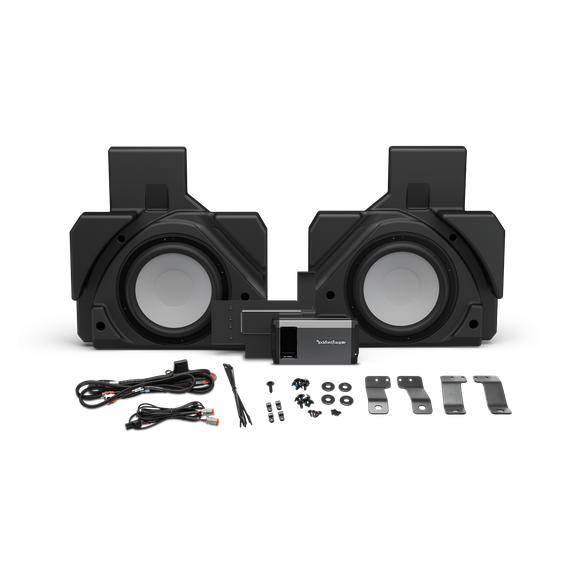

| In The Box | (1) M5-1000X1 amplifier |

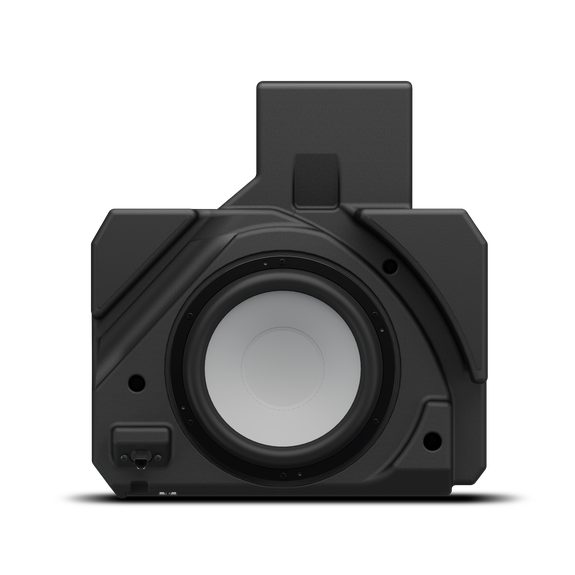

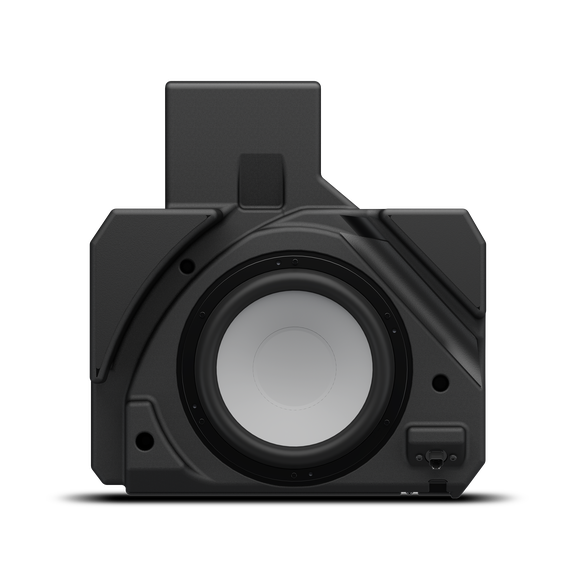

| (2) 10″ pre-loaded subwoofer enclosures | |
| (4) Enclosure mounting brackets | |
| (4) Spacer washers | |
| (12) Bracket and enclosure mounting screws | |
| (4) Amp mounting screws | |
| (1) Amp plate mounting push clip | |
| (1) Amp Bracket | |
| (6) Zip ties | |
| (1) Enclosure speaker harness | |
| (1) Amp power and input signal harness | |

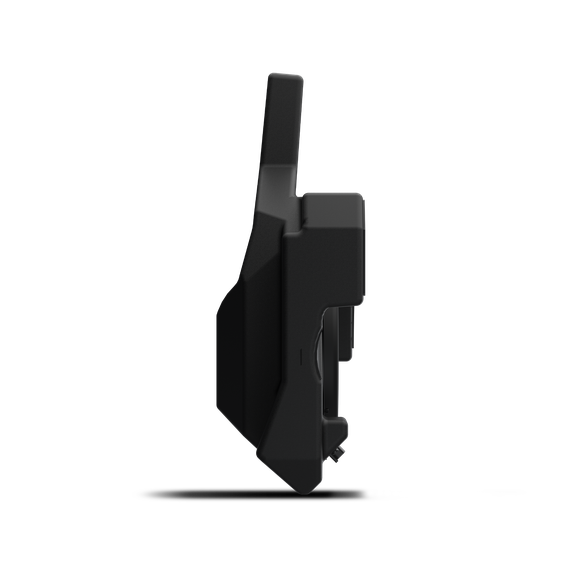

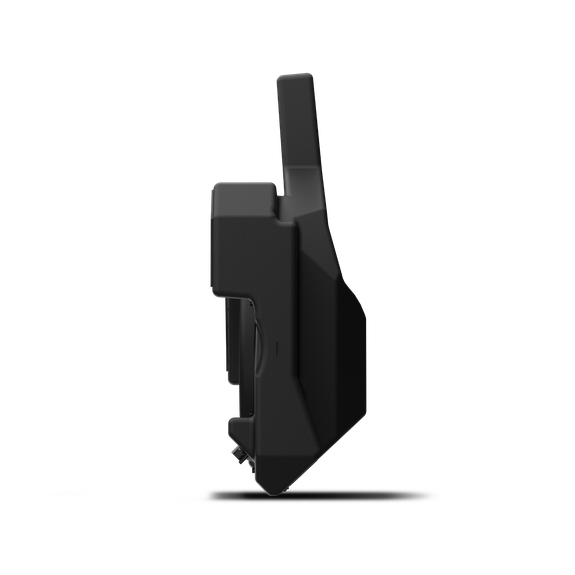

| Dimensions | Box (H x W x D) / Wedge (H x W x D1 x D2): 19.97” x 18.82” x 8.06” each enclosure (608 mm x 573 mm x 245 mm) |
| Shipping Weight | 50 Lbs (22.67 Kg) |
About The Product
Purpose built exclusively for the Can-Am® MAVERICK X3 MAX, this rear subwoofer kit provides next level bass performance, an Element Ready™ design, and simple installation.
Maximum Bass Performance
With 1,000 watts of output, the Element Ready™ amplifier and dual subwoofers deliver that next level of off-road bass performance
Element Ready™
Purpose built for the off-road environment, Rockford’s Element ReadyTM products are built to stand up to water, dirt, mud and UV rays, making sure your speakers stand the test of time
Plug-and-Play Design
No drilling, no cutting and designed to work right out of the box. Simple installation ensures less time in the garage and more time out riding.
RF3 (Rockford Factory Fit and Finish):
Designed and engineered to match and compliment the factory fit and finish of your vehicle. These components are purpose built to the exact specifications to ensure the best-in-class fitment and look.
