Pioneer TS‑WX1220AH

Name: Pioneer TS‑WX1220AH
SKU: TS-WX1220AH
Availability: InStock

SKU: TS-WX1220AH

$420.00

In stock

100 in stock

Categories: Powered Subwoofer Boxes, Powered Subwoofers, Subwoofers Tags: built‑in amp car subwoofer, dual 12″ active subwoofer, high‑output car bass system, TS‑WX1220AH

Description

30 cm x 2 bass reflex subwoofer with built-in amplifier (3000 W).

Features

Built-in 3000W Peak Power Amplifier for powerful and deep bass.
Compact and Space-Saving Design ideal for various vehicle interiors.
12-inch Subwoofer delivers clear and punchy low frequencies.
Adjustable Low-Pass Filter and Phase Control for customized sound tuning.
Durable Enclosure ensures long-lasting and reliable performance.

Description

Description

Pioneer TS‑WX1220AH

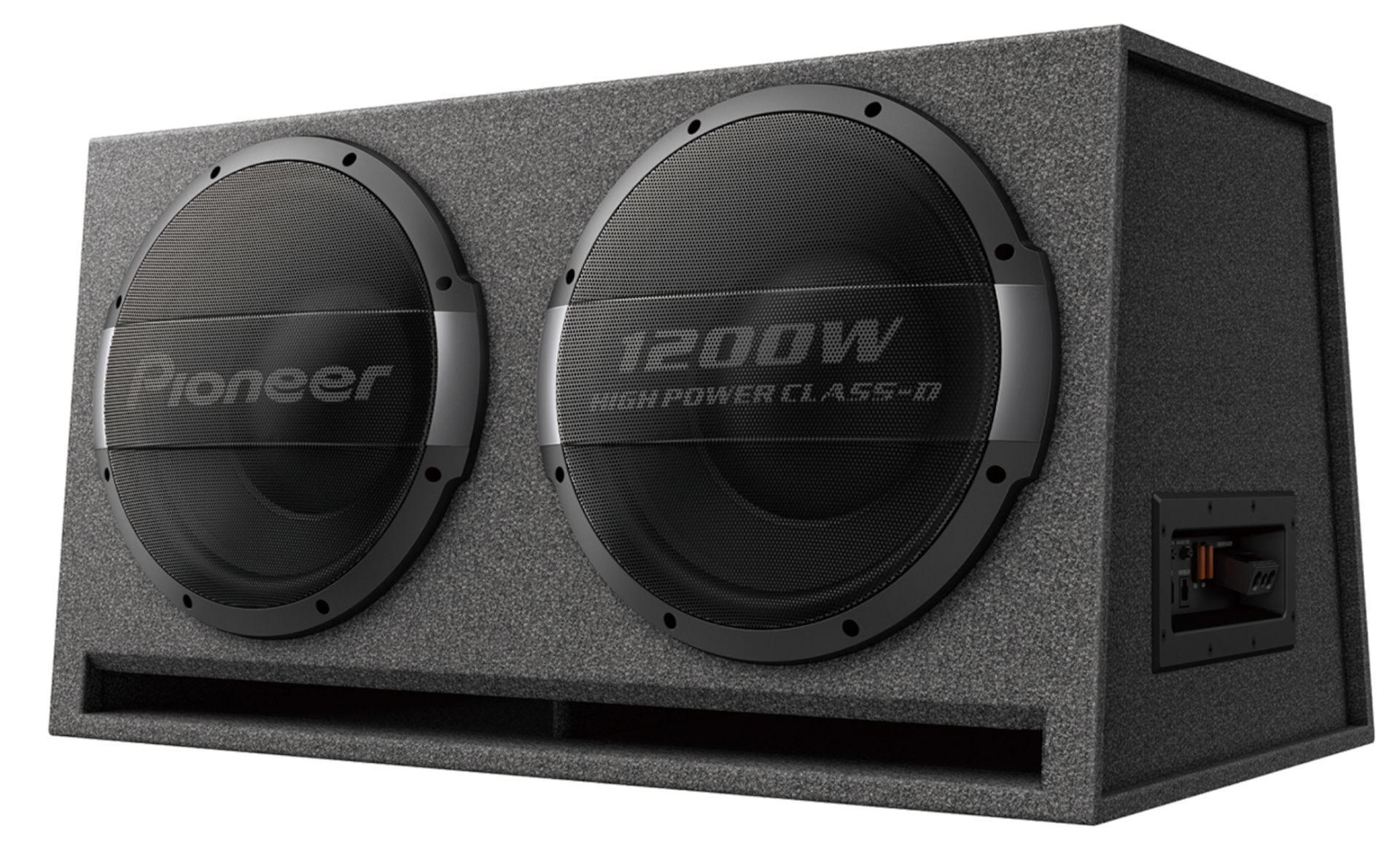

The Pioneer TS‑WX1220AH is a dual‑12″ active bass‑reflex (ported) subwoofer enclosure with a built‑in Class D amplifier, designed for high‑output car audio systems. It has a nominal input power of 1000 W and a maximum input power of 3000 W, covering a frequency range down to around 20 Hz and includes user controls such as variable bass‑boost and remote‑gain

Specifications

Feature	Specification
Subwoofer Type	Active
Nominal Input Power	1000 W
Class D Technology	Yes
Frequency Response	20 Hz – 2,900 Hz
Sensitivity	118 dB
Woofer Material	Pulp
Wired Remote Control	Yes
Dimensions (W × H × D)	745 mm × 459 mm × 400 mm (top depth 375 mm)
Speaker Grill	Included
Weight	22.8 kg

Reviews

There are no reviews yet.

Be the first to review “Pioneer TS‑WX1220AH”

Questions and Answers

Q1: What size is the TS‑WX1220AH?

A1: It uses dual 12″ (30 cm) subwoofers in a ported active enclosure.

Q2: What are the power specifications?

A2: Nominal input is 1000 W and maximum input is 3000 W.

Q3: Does it have a built‑in amplifier?

A3: Yes it has a built‑in Class D amplifier.

Q4: What kind of bass performance can I expect (frequency range)?

A4: It covers down to approximately 20 Hz (‑20 dB) and up into the low kHz range.

Q5: Is it suitable for a car audio upgrade in Pakistan (Karachi)?

A5: Yes but you’ll need to check the large enclosure size and space required (dimensions ~745 × 459 × 400 mm) for fitment, ensure your vehicle’s electrical/wiring system can handle the power draw, and that a proper mounting/enclosure location is available.
