Name: Pioneer TS‑T110
SKU: TS-T110
Availability: InStock

Description

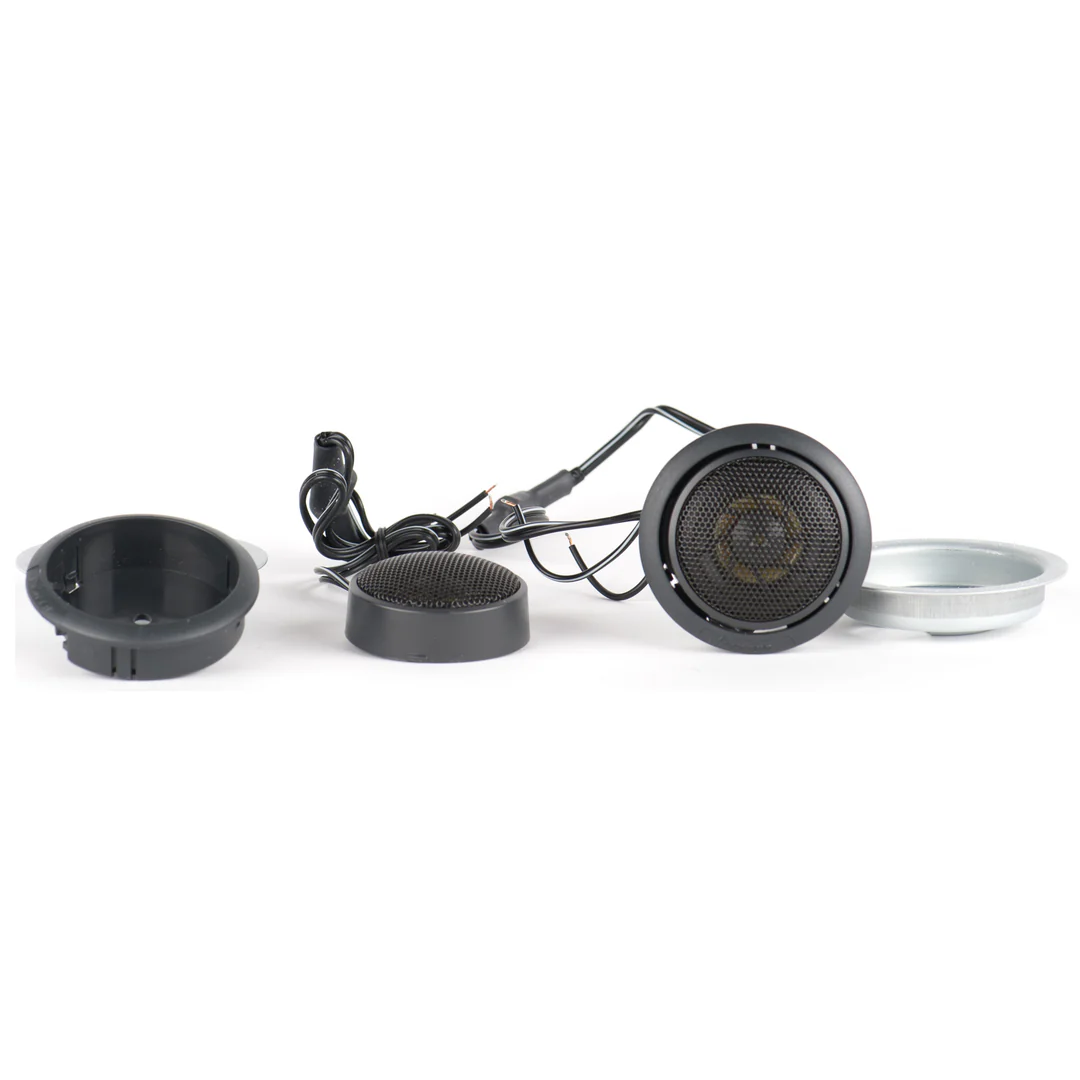

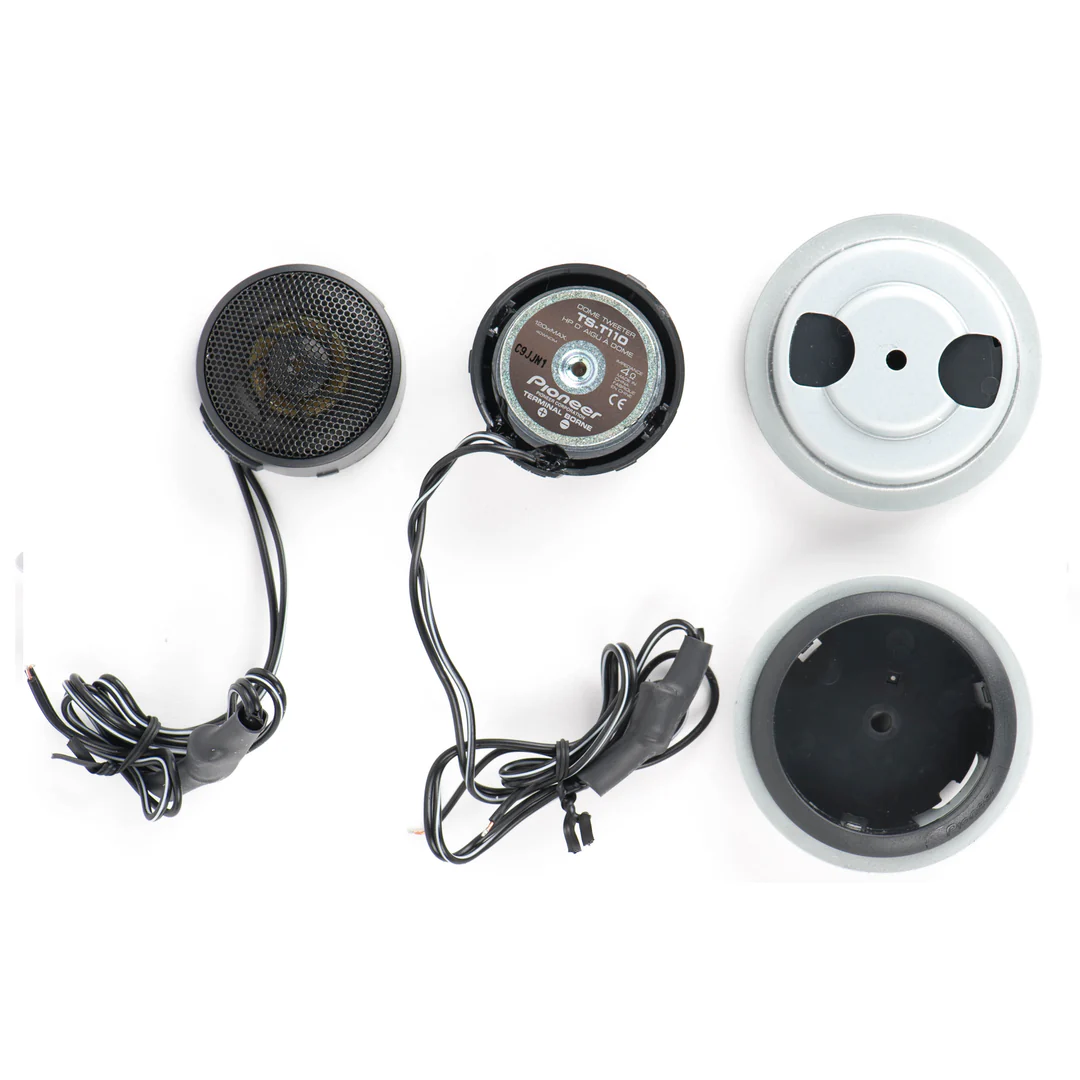

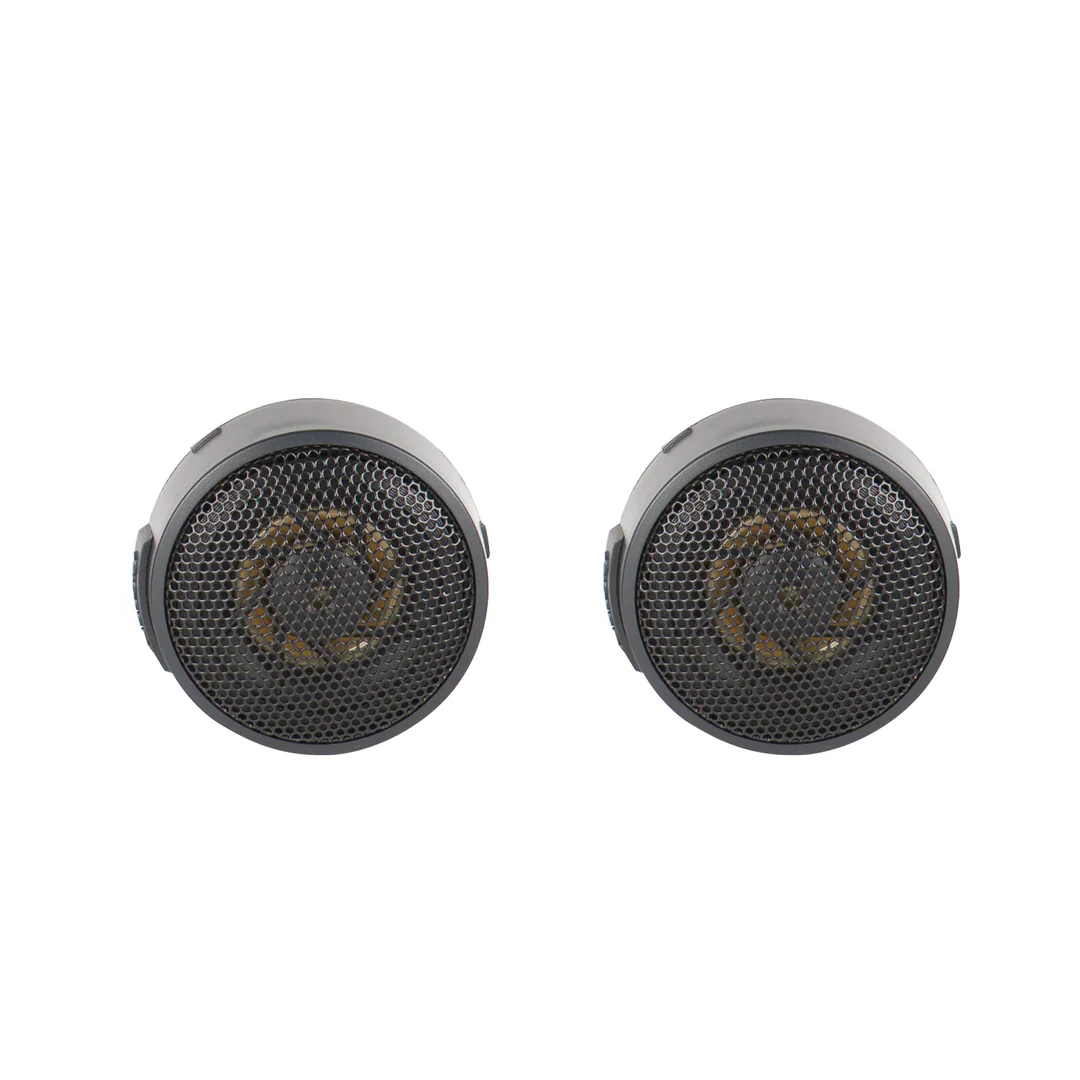

Pioneer TS‑T110

The Pioneer TS‑T110 is a 7/8‑inch (~22 mm) hard dome tweeter designed for car audio systems. It features a polyimide (PI) or PPTA diaphragm with a specially shaped wave‑guide for expansive sound dispersion. The tweeter is rated at 40 W RMS (nominal) and 120 W peak power handling. Its frequency response spans approximately 2,500 Hz to 30,000 Hz, and it has a sensitivity around 90 dB (1W/1m), making it an efficient upgrade option for improving the high‑frequency detail in a car sound system.

Specifications

Product Performance

Specification	Value
Continuous Power Handling (RMS)	40 W
Maximum Peak Power Handling	120 W
Nominal Impedance	4 Ω
Sensitivity (1W/1m)	90 dB
Frequency Response	2500 Hz – 30 kHz
Crossover Frequency	N/A
System Type	Hard Dome Tweeter

Features

Specification	Value
Cut Out Dimensions	—-
Mounting Depth	3/4″ (Tweeter)
Outer Diameter	2-1/4″
Protrusion	3/8″
Tweeter Dimensions	0.87″
Tweeter Mounting Hole Diameter	2″
Woofer Dimensions	0.88″

Materials

Specification	Value
Diaphragm Material	Polyimide (Tweeter)

About The Product

22mm Hard Dome Tweeter with 120 W Maximum Power

Lightweight polyimide (PI) tweeter diaphragm with uniquely shaped wave guide provides natural and clear vocals with wide dispersion.

Tweeter Materials

The tweeter has a PPTA dome diaphragm, and it’s fluid-cooled for high power handling. PPTA is a poly material that is among the lightest and most responsive speaker materials developed. PPTA has high inner loss characteristics, which results in effective resonance damping. This material provides performance similar to metal diaphragm materials, but without the harshness often associated with metal diaphragms. The result is detailed, dynamic sound reproduction.
