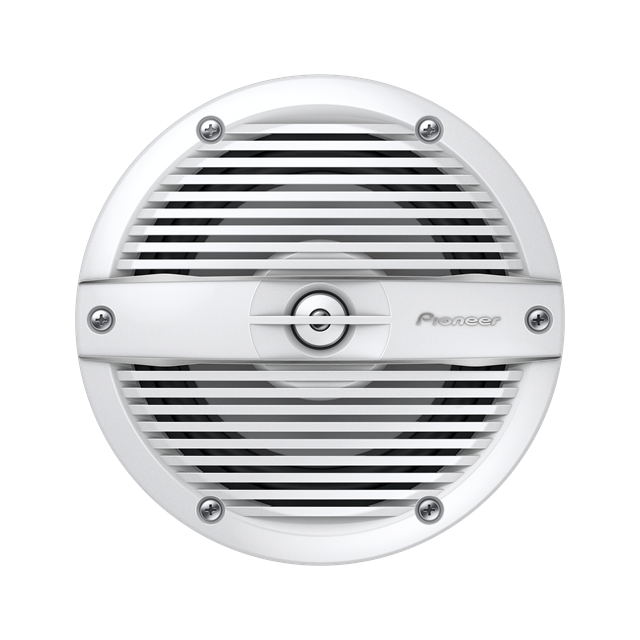

Pioneer TS‑ME650FC
The Pioneer TS‑ME650FC is a 6.5″ (16.5 cm) marine‑grade 2‑way coaxial speaker system from Pioneer’s ME‑Series, built for all‑weather performance. It features a mica‑reinforced IMPP™ monocoque woofer cone and a 20 mm polyimide hard‑dome tweeter, and is waterproof rated to IPX7 with UV‑exposure certification to ASTM D4329. It handles 75 W RMS and up to 250 W peak power, has an impedance of 4 Ω, a sensitivity of 88 dB, and a frequency response of about 34 Hz to 23 kHz.
Specifications
GENERAL
| Feature | Specification |
|---|---|
| Size | 6.5″ |
| Design | 6.5″ 2-Way Coaxial System |
| Tweeter Design | 13/16″ (20 mm) Dome |
| Tweeter Composition | Polyimide |
| Tweeter Magnet Composition | Neodymium |
| Woofer Composition | Injected Molded Polypropylene™ |
| Woofer Surround | Trex Plane |
| Woofer Magnet Composition | Ferrite |
| Warranty | 1 Year |
MARINE FEATURES
| Feature | Specification |
|---|---|
| Water Resistant | IPX7 |
| UV Resistant | ASTM D4329 |
| Grille Style | Classic White Grille |
INSTALLATION SPECIFICATION
| Feature | Specification |
|---|---|
| Max. Music Power (Nominal) | 250 W Peak (75 W RMS) |
| Frequency Response | 34 Hz – 23 kHz |
| Sensitivity (1W/1 m) | 88 dB |
| Impedance | 4 Ω |
| Crossover Frequency | 3.5 kHz |
| Mounting Depth | 2-3/8″ (60 mm) |
| Cut-Out Dimensions | 5″ Dia. (φ127 mm) |
About The Product
Pioneer ME-series speakers (both Sports and Classic designs) are protected from the effects of sun and water exposure, meeting both IPX7 and ASTM D4329 certification to achieve all-weather reliability.
Mica Reinforced IMPP monocoque cone with butyl rubber surround, constructed using an advanced in-mold bonding technique for superior water resistance while maintaining high quality, powerful sound.
The symmetrical motor design with high strength suspension is optimized to provide stability, linearity and clear, low distortion sound reproduction. Lightweight polyimide (PI) tweeter diaphragm and uniquely shaped wave guide provides natural and clear vocals with wide dispersion.
The TS-ME650FC comes with sleek classic style grilles in a white finish that cosmetically integrate seamlessly into marine interiors and cabin designs.
IPX7 Certified
Marine products are constantly exposed to the elements but with IPX7 certification you can be assured your Pioneer speakers are purpose built for these environments. Highly durable but also focused on providing a superb audio experience your Pioneer speakers are the perfect addition to your marine audio system!
ASTM D4329 Certified
Additionally, ASTM D4329 certification has been achieved ensuring the UV stability and durability of Pioneer Marine speakers are built for Australian conditions.
UD-ME650LED OPTIONAL LED LIGHT KIT
Looking for a more customized look for your marine audio system? Add the UD-ME650LED RGB LED Light Kit (sold separately) to give your system a custom look!
