Pioneer TS‑H150‑RA

Description

Pioneer TS‑H150‑RA

The Pioneer TS‑H150‑RA is a high‑quality 1 ⅛″ (≈28 mm) balanced‑dome tweeter pair designed as a direct‑fit upgrade for select 2018‑up Toyota RAV4 vehicles (non‑JBL sound system). It’s engineered to deliver enhanced high‑frequency clarity and imaging. The tweeters handle up to 50 W RMS nominal power and around 180 W (or 180 W+ depending on listing) peak power, with an impedance of 6 ohms, a sensitivity of around 90 dB (1 W/1 m), and a frequency response spanning approximately 1,300 Hz to 64,000 Hz (‑20 dB).

Specifications

Product Performance

Features

Materials

About The Product

Enhance your RAV4 audio system in every aspect and rediscover your music in your car. The TS-H150-RA speakers have been specifically designed for the dashboard of your RAV4 (2018+)*. They will perfectly match the car’s aesthetics and, more importantly, are specially designed and tuned for the Toyota RAV4’s acoustics. Thanks to unrivaled acoustic finesse, a wider and higher sound stage, and soft, highly detailed high frequencies, these speakers will change the way you listen to music in your Toyota RAV4. They are also designed for safe, secure, and easy installation in the factory speaker location on the dashboard without compromising the “e-Call” emergency call system. The result of adding these speakers is so impressive that you never thought it could be so easy to install in your Toyota RAV4!

Specially designed as a direct-fit option for 2018+ Toyota RAV4 without a JBL audio system. Adding these tweeters to a JBL audio system may require third-party connectors (not included) and a more complex installation process.

More than a Basic Add-on

Pioneer’s Vertex Drive System improves the mechanical coupling of the voice coil and the tweeter diaphragm, reducing distortion and coloration caused by low damping and increasing power handling. The TS-H150-RA tweeter’s aluminum alloy diaphragm allows the tweeter to remain pistonic and linear at ultrasonic frequencies. The unique diaphragm shape, developed using HSDOM computer analysis, accurately controls differential vibration produced by the diaphragm and improves high frequency dispersion. If you love music and you are the owner of a Toyota RAV4 (2018+), then the Pioneer TS-H150-RA are a must for you!

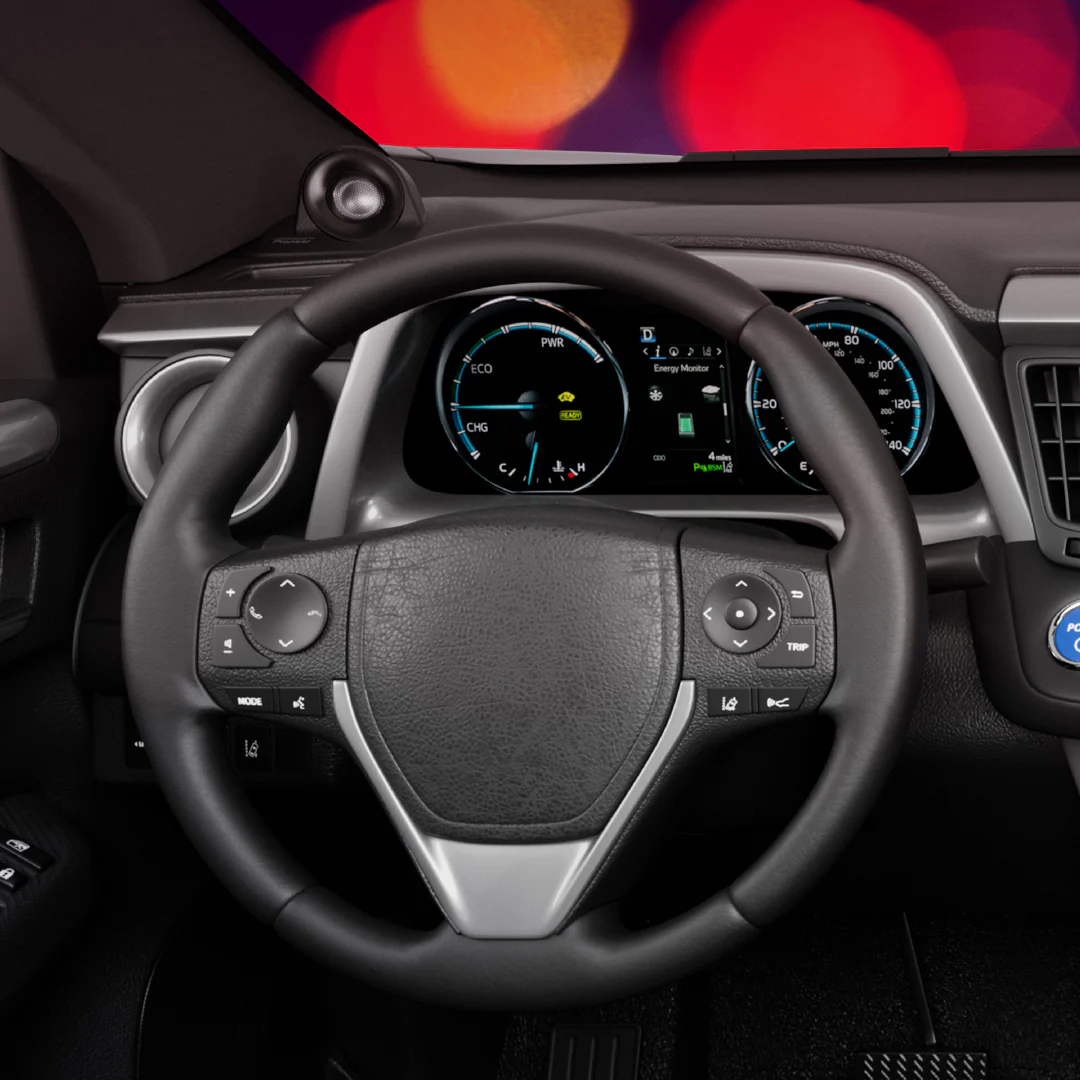

The Perfect Cosmetic RAV4 Match

These tweeters have not only been designed to perfectly match the aesthetics of the RAV4, but they also include an acoustic diffuser and integration angles that have been carefully studied, refined, and adjusted to optimize the acoustics of your vehicle, specifically for the Toyota RAV4 (2018+) model.

Open & Smooth

Pioneer’s OPEN & SMOOTH sound concept ensures a seamless and smooth transition between the midrange and tweeter drivers, delivering a uniform off-axis frequency response. This design is optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears.

Keep it Simple and Clean

Avoid messy installations and keep your speaker wiring as clean as possible. These speakers use an in-line crossover design and/or an integrated crossover already installed on the speaker basket. This saves you from dealing with a bulky external box typically found with passive crossovers; no more need to find extra space for it, and no more extra wires going in and out of your door to accommodate a woofer in the door with a matching tweeter on your dash. Also, these custom-fit tweeters for the RAV4 include all the specific wiring and female connectors needed for installation without having to cut or splice any wires in your car.
