Pioneer TS‑G690

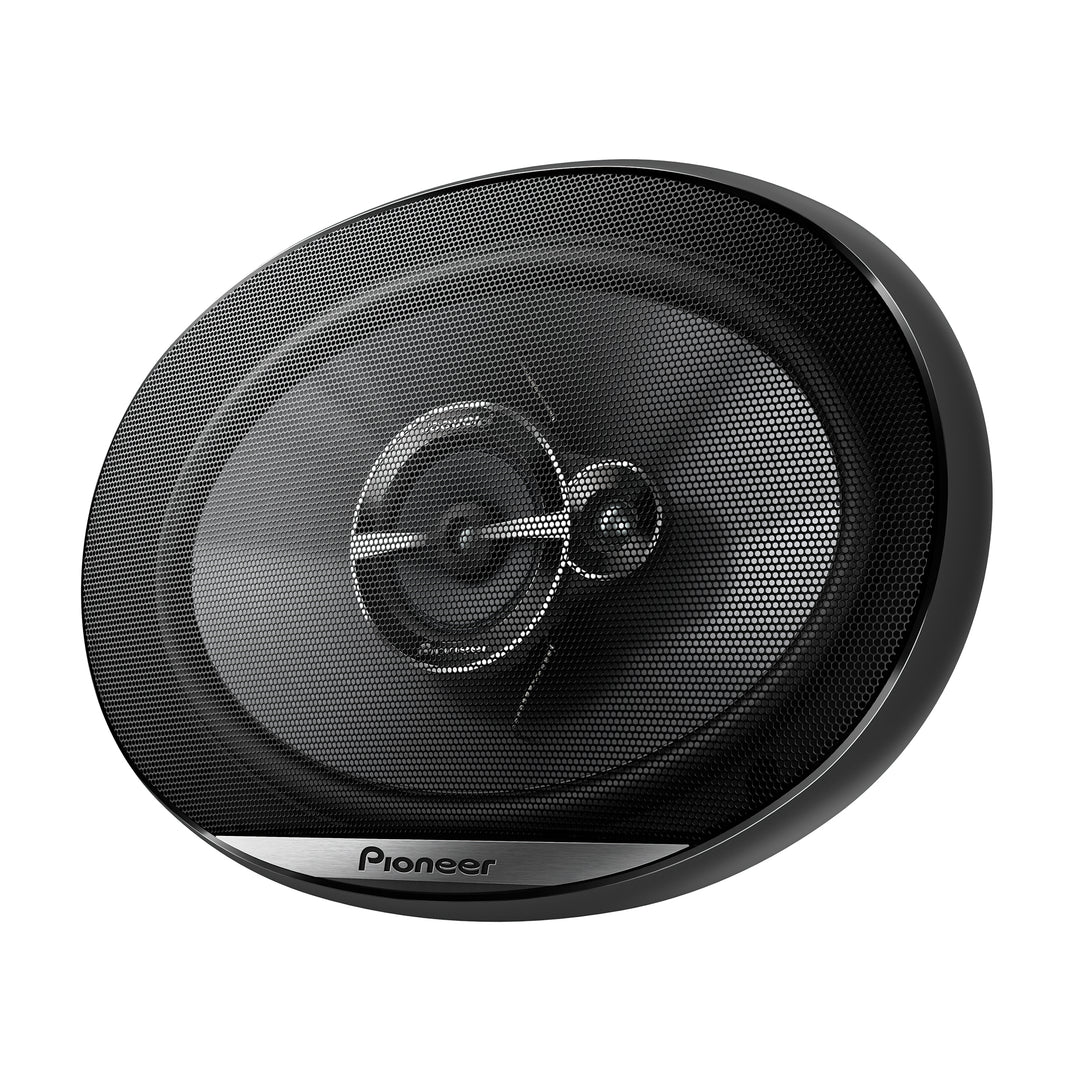

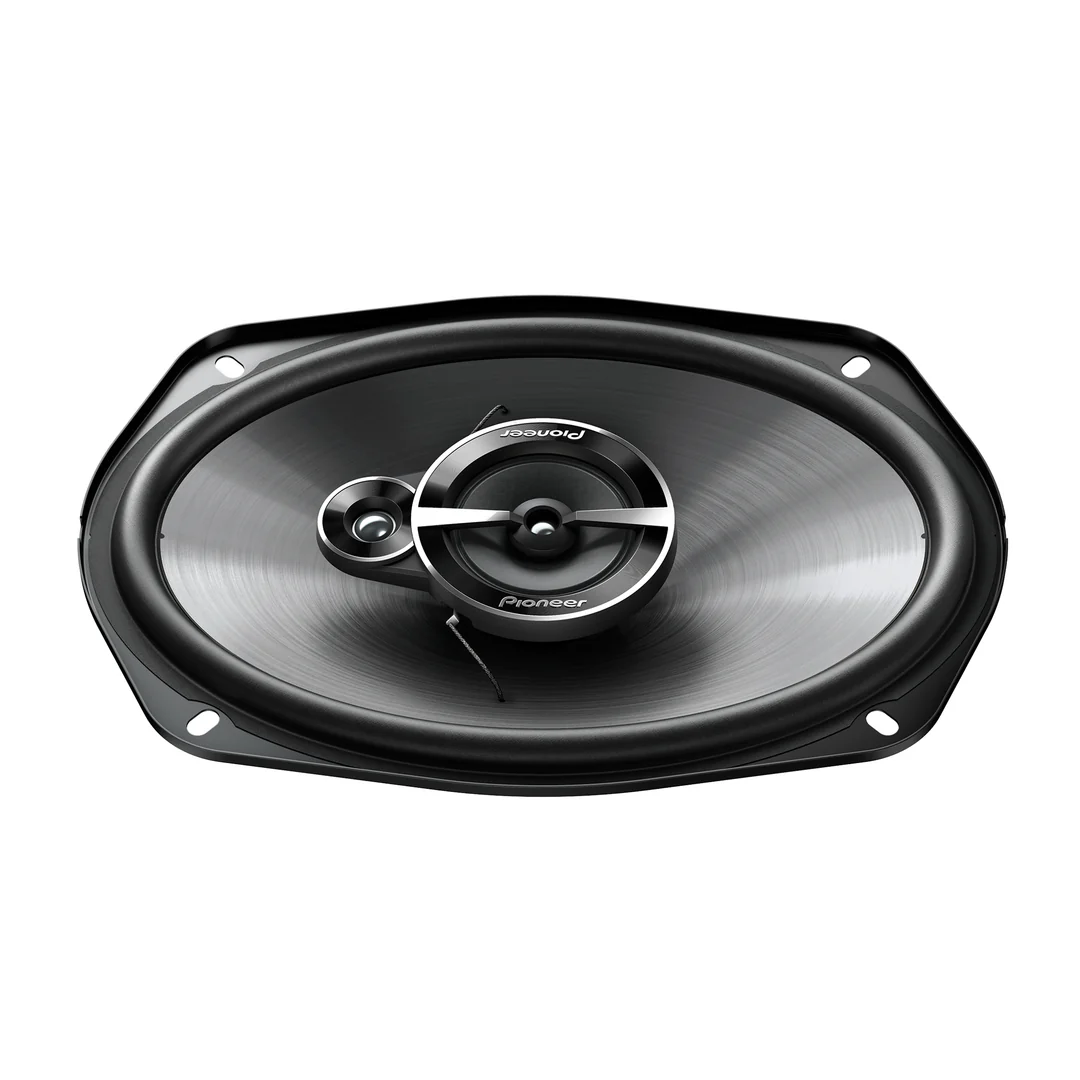

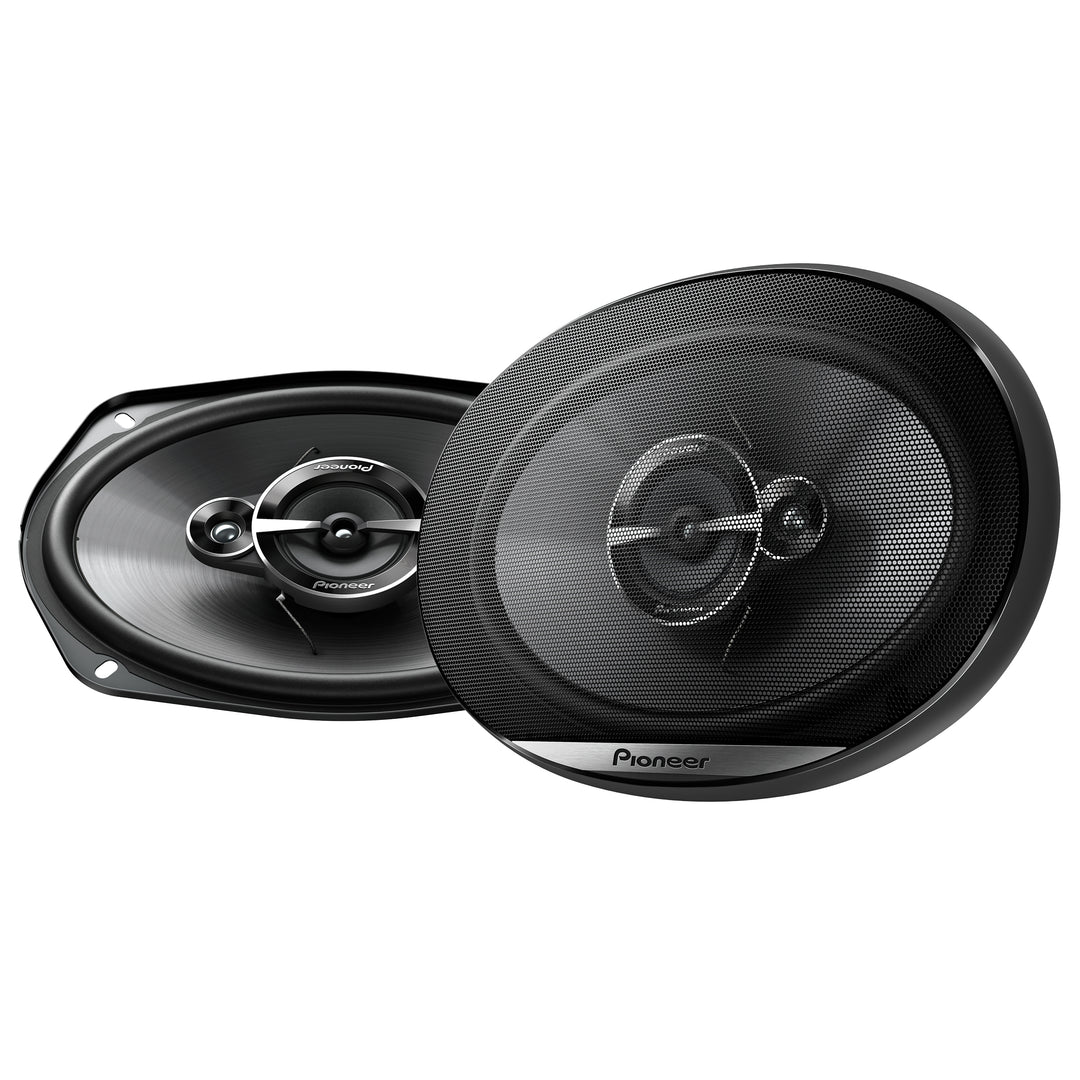

The Pioneer TS‑G690 is a 6″ × 9″ 3‑way coaxial speaker pair from the G‑Series, designed as a strong upgrade for factory car audio systems. It features a mica‑reinforced IMPP™ woofer cone for rigidity and clarity, a 2″ mixed‑pulp midrange, and a 3/8″ PET‑dome tweeter for crisp high frequencies. With a peak power handling of 400 W and an RMS (continuous) rating of 45 W, it delivers enhanced detail and soundstage over stock speakers. Its frequency response spans 32 Hz to 32 kHz, sensitivity is rated at 90 dB, and impedance is 4‑ohms, making it suitable for many vehicles without amplifier upgrade.
Specifications
PRODUCT PERFORMANCE
| Category | Specification |
|---|---|
| Continuous Power Handling (RMS) | 45 W |
| Frequency Response | 32 Hz – 32 kHz |
| Maximum Peak Power Handling | 400 W |
| Nominal Impedance | 4 Ω |
| Sensitivity (1W/1m) | 90 dB |
| System Type | Coaxial 3-way, Dome – Tweeter |
FEATURES
| Feature | Specification |
|---|---|

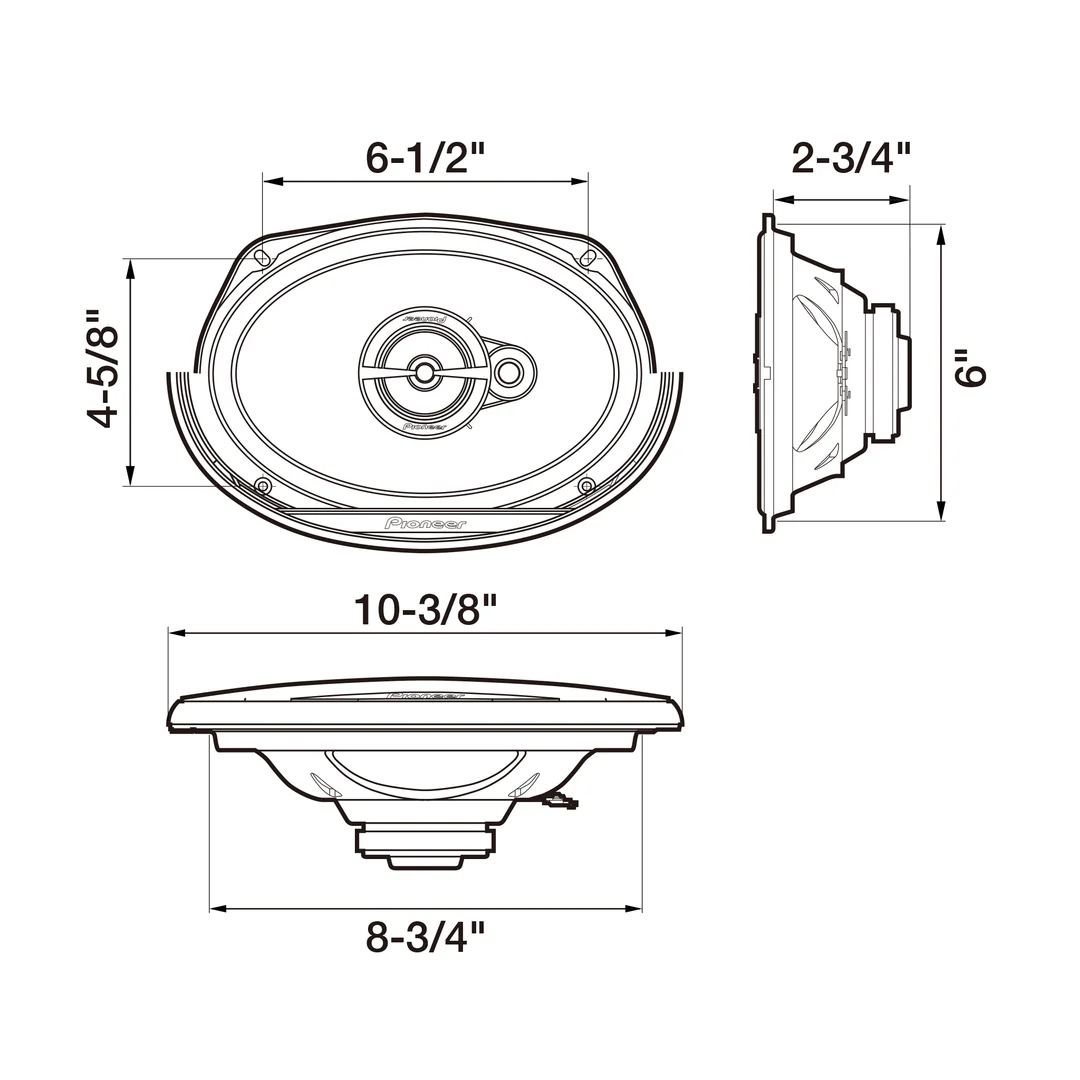

| Cut Out Dimensions | 6″ x 8-3/4″ |
| Midrange Dimensions | 2″ |
| Mounting Depth | 2-3/4″ – Midrange |
| Tweeter Dimensions | 0.43″ |
| Woofer Dimensions | 6″ x 9″ |
MATERIALS
| Material Component | Specification |
|---|---|
| Basket Material | Stamped Metal |
| Cone Material | IMPP™ with MICA |
| Damper | Cotton |
| Diaphragm Material | Cellulose Fiber – Midrange, PET – Tweeter |
| Magnet Material | Ferrite – Speaker, Ferrite – Midrange |
| Magnet Weight | 5.4 oz – Speaker, 0.7 oz – Midrange |
| Surround Material | Rubber Coated Cloth |
| Surround Type | Rolled |
| Voice Coil Bobbin | Kapton |
| Voice Coil Wire | Copper |
| Wire Terminals | Lug Type |
About The Product
The Pioneer TS-G690 6″ x 9″ is a 3-way coaxial speaker system with 400 W maximum power handling and 45 W RMS per speaker. It features a 30mm dome tweeter for crisp highs and a 2″ midrange dome for clear mids, combined with a polypropylene IMPP™ cone woofer and a rubber-coated cloth surround for powerful, precise sound. The G-series design ensures durability and high-quality audio performance across all frequency ranges.
G-Series Speakers
This G-series speaker combines high-quality materials with a durable design for a better listening experience. Its polypropylene woofer with rubber-coated cloth surround delivers impactful sound, while the balanced dome tweeter provides accurate high-frequency reproduction.
Midrange
The 11mm lightweight balanced dome with magnetic fluid ensures high-performance midrange reproduction with minimal distortion, while the 2″ dome tweeter delivers smooth, accurate highs.
Pioneer Exclusive P.F.S.S. Spider
The Progressive Flex Suspension System (P.F.S.S.) supports the voice coil by damping cone vibrations and improving linearity. Its soft section ensures smooth movement and clear sound at high power, while the firmer section controls excessive vibrations and prevents unwanted movements that cause distortion.
Installation
The TS-G690 is designed with shallow mounting depth and multi-fit compatibility, making installation easy in a wide range of vehicles. Its IMPP™ with MICA composite cone and conex damper deliver enhanced power handling, deeper bass, and accurate high-frequency response.
