Description
Pioneer TS‑G650

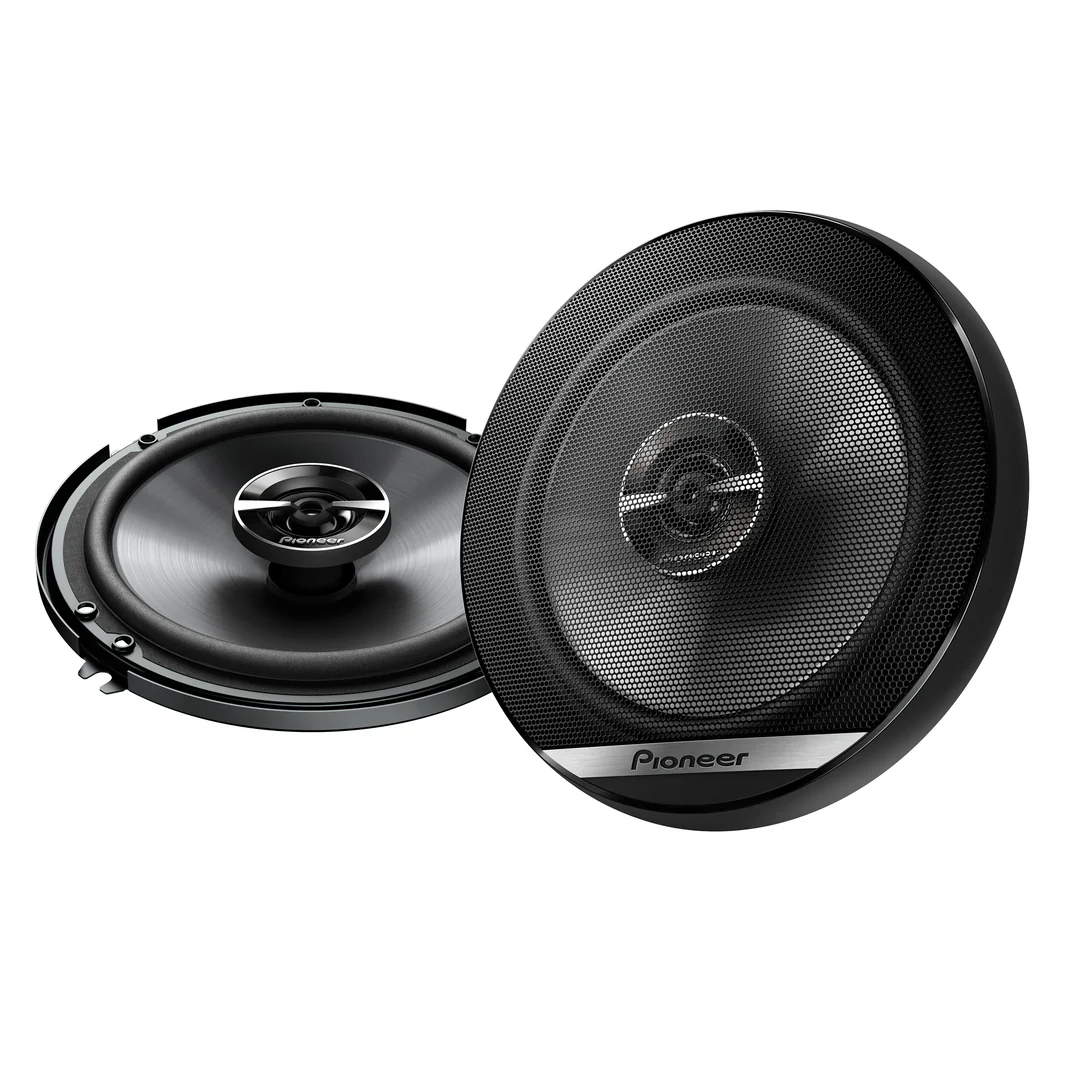

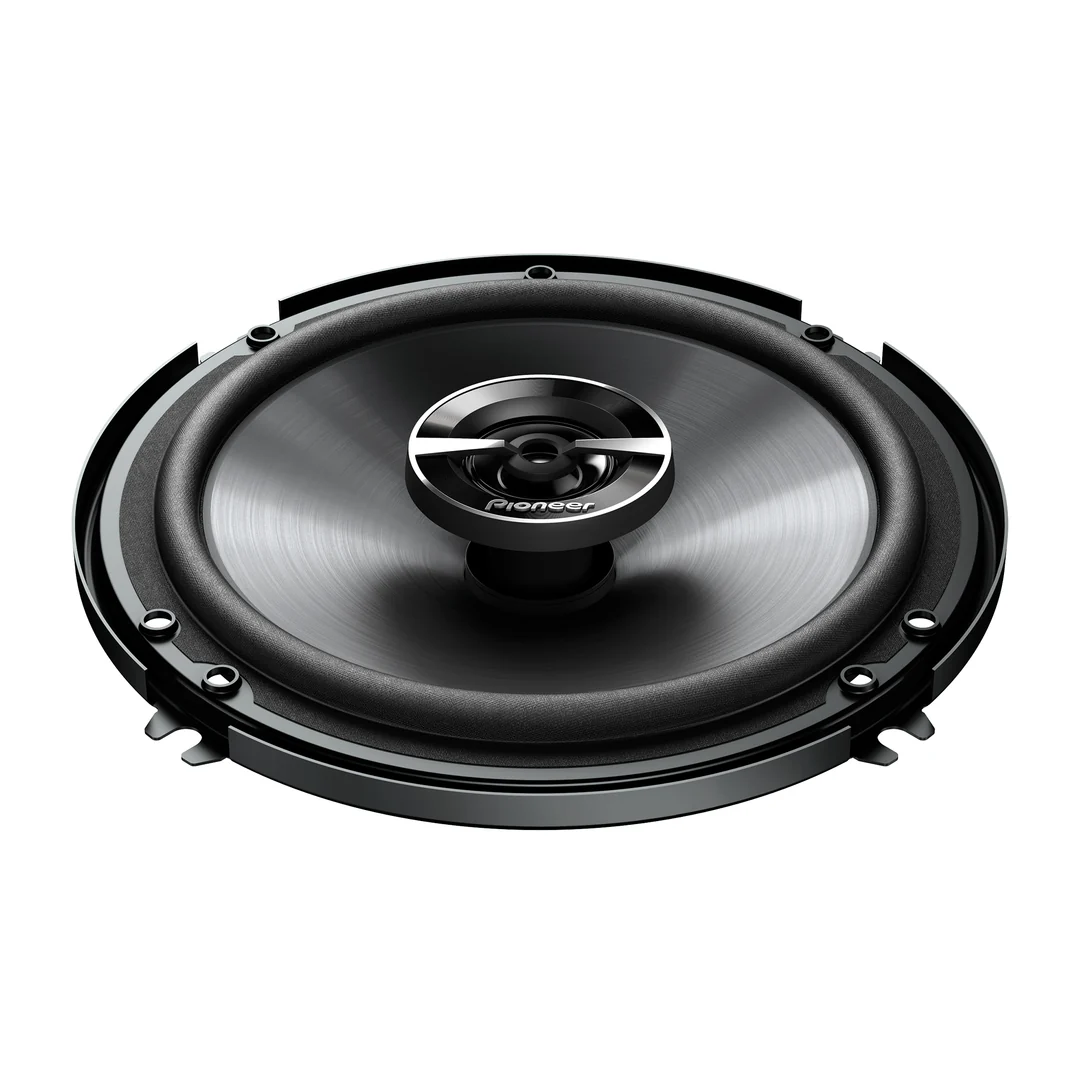

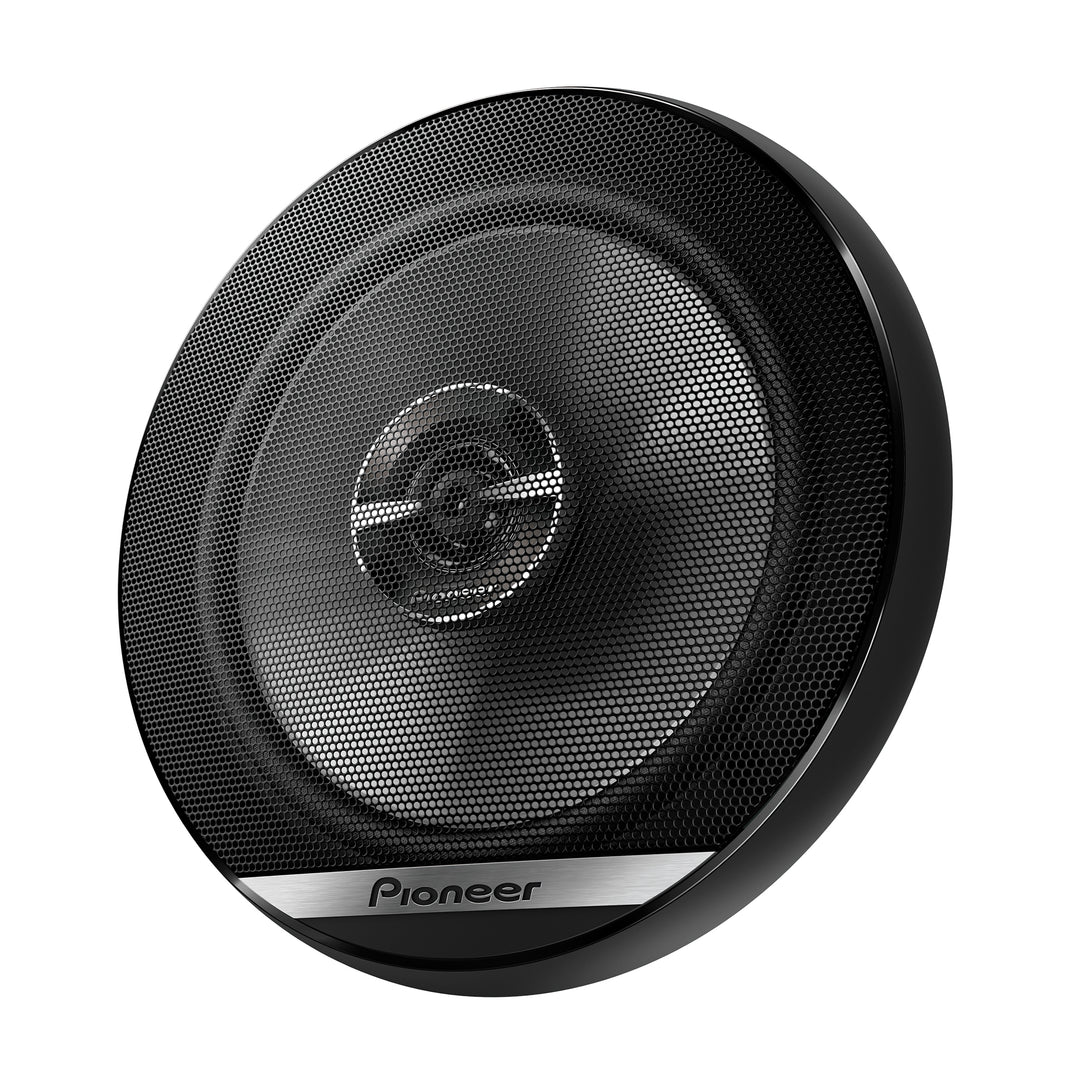

The TS‑G650 is a 6.5‑inch (6″×½) 2‑way coaxial speaker pair from Pioneer’s G‑Series, built for reliable upgrade from factory door speakers in many vehicles. It is rated at 40 W RMS continuous power, with up to 300 W peak, features a mica‑reinforced Injection‑Moulded Polypropylene (IMPP™) woofer cone and a 1‑3/16″ (30 mm) PET balanced‑dome tweeter, and offers a frequency response range of 31 Hz to 18 kHz.
Specifications
PRODUCT PERFORMANCE
| Category | Specification |
|---|---|
| Continuous Power Handling (RMS) | 40 W |
| Frequency Response | 31 Hz – 18 kHz |
| Maximum Peak Power Handling | 300 W |
| Nominal Impedance | 4 Ω |
| Sensitivity (1W/1m) | 89 dB |
| System Type | Coaxial 2-way, Balanced Dome – Tweeter |
FEATURES
| Feature | Specification |
|---|---|

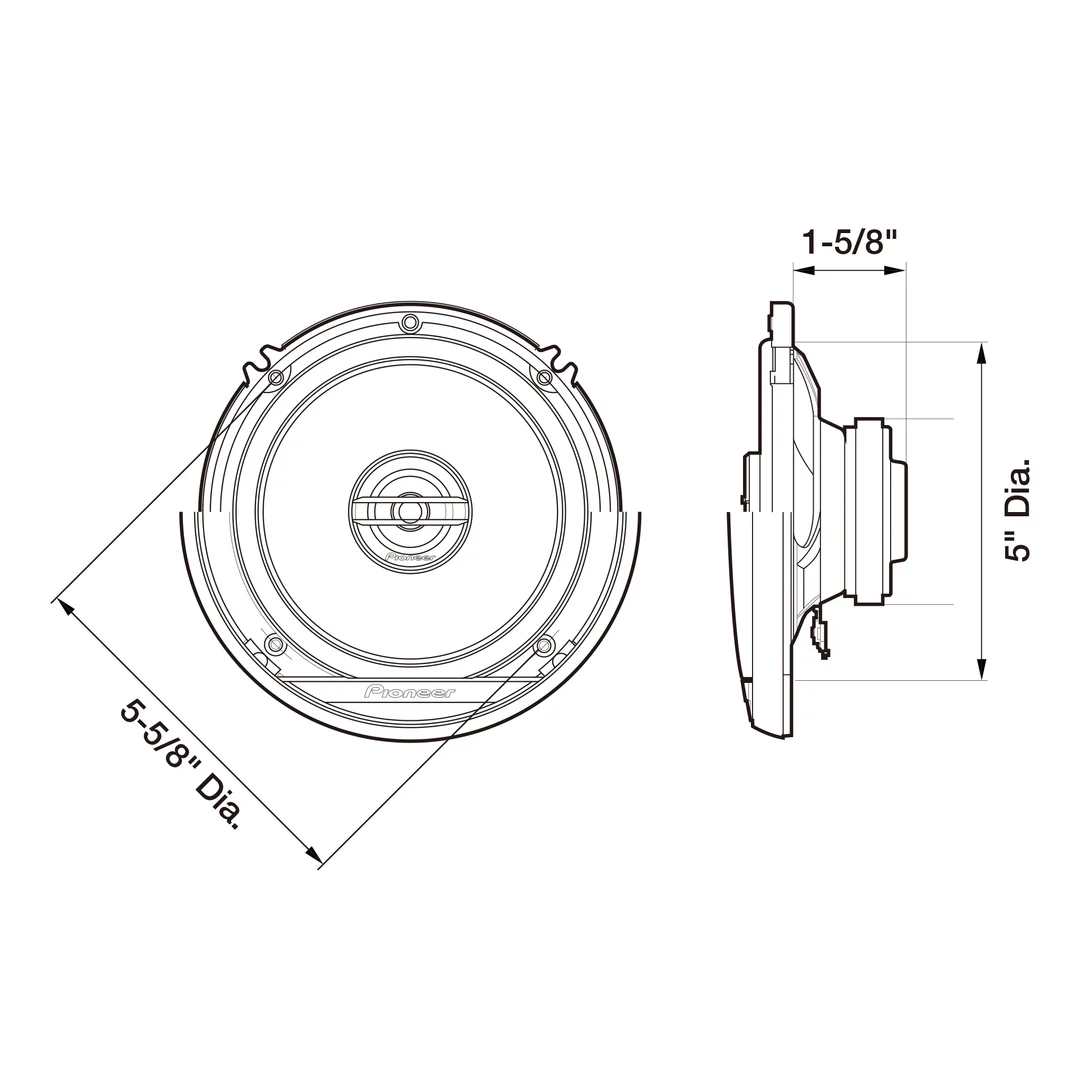

| Cut Out Dimensions | 5″ |
| Mounting Depth | 1-3/4″ – Tweeter |
| Tweeter Dimensions | 1.18″ |
| Woofer Dimensions | 6.5″ |
MATERIALS
| Material Component | Specification |
|---|---|
| Basket Material | Stamped Metal |
| Cone Material | Carbon and Mica reinforced Injected Molded Polypropylene – IMPP |
| Damper | Poly Cotton |
| Diaphragm Material (Tweeter) | Polyethylene Terephthalate (PET) |
| Magnet Material | Ferrite |
| Magnet Weight | 5.5 oz |
| Shorting Ring Material | Copper |
| Surround Material | Rubber Coated Cloth |
| Surround Type | Rolled |
| Voice Coil Bobbin | Kapton |
| Voice Coil Wire | Copper |
| Wire Terminals | Lug Type |
About The Product
The Pioneer TS-G650 6-1/2″ is a 2-way speaker system with 300 W maximum power handling and 40 W continuous power handling. It features a 30 mm tweeter to enrich high-range reproduction, while the speaker cone comprises polypropylene IMPP™ with a rubber-coated cloth surround, giving your music more impact and presence.
G-Series Speakers
This G-Series speaker is built with quality materials and a durable design for a better listening experience. The strong polypropylene woofer and rubber-coated cloth surround deliver powerful sound. Its large balanced dome tweeter ensures accurate high-range reproduction of all details in vocals and instrumentation.
Mid-Range Dome
The mid-range is a 30 mm PET Balanced Dome producing vibrant high frequencies. Its OFC shorting ring minimizes distortion even at higher volumes, ensuring clear and precise sound.
Pioneer Exclusive P.F.S.S. Spider
The Progressive Flex Suspension System (P.F.S.S.) supports the voice coil by damping cone vibrations and improving linearity of sound reproduction. The soft part ensures smooth movement and clear sound under high power, while the firmer part controls excessive vibrations, preventing unwanted movements that cause distortion. This provides detailed music reproduction while maintaining control during large bass excursions.
Installation and Sound to Suit Any Car
These speakers are excellent replacements for worn-out factory speakers. The two-way design features Pioneer’s lightweight Injected Molded Polypropylene™ (IMPP) with MICA composite cone woofer for improved sensitivity and reduced distortion. The conex damper enhances power handling and bass depth, while the balanced dome tweeter reproduces highs with excellent musicality. Designed with a shallow mounting depth and custom-fit baskets for select Ford and Mazda vehicles, installation is simple and versatile.
