Pioneer TS-A120D4
The Pioneer TS-A120D4 is a high-performance 12-inch dual 4-ohm component subwoofer designed for car audio enthusiasts who demand powerful, clear bass. With 500W RMS and 1500W peak power, this subwoofer delivers deep, dynamic low-end response. Its IMPP cone reinforced with glass fiber and mica, combined with a durable butyl rubber surround, ensures long-lasting performance with minimal distortion. Compatible with both sealed and ported enclosures, the TS-A120D4 offers flexible installation options, while dual voice coils provide versatile wiring configurations to match your amplifier setup perfectly. Ideal for upgrading any car audio system, it produces precise, high-impact bass that enhances every track.
Specifications
PRODUCT PERFORMANCE
| Feature | Specification |
|---|---|
| Continuous Power Handling (RMS) | 500 W |
| Maximum Peak Power Handling | 1500 W |
| Frequency Response | 20 Hz – 2.3 kHz |
| Nominal Impedance | Dual 4-Ohm |
| Sensitivity (1W/1m) | 77 dB |
| System Type | Component |
FEATURES
| Feature | Specification |
|---|---|
| CarSoundFit | Yes |
| Cut Out Dimensions | 11-1/8″ (28 cm) |
| Equivalent Compliance (VAS) | 87.1 Liters (3.1 cu.ft.) |
| Free Air Resonance (Fs) | 25 Hz |
| Linear Excursion (Xmax) | 10.1 mm (0.4″) |
| Mounting Depth | 5-3/4″ (14.61 cm) |
| Port Diameter | 3″ (8 cm) |
| Port Length | 6-1/2″ (17 cm) |
| Recommended Ported Box Volume | 42.5 Liters (1.5 cu.ft.) |
| Recommended Sealed Enclosure Volume | 35.4 Liters (1.25 cu.ft.) |
| Total Speaker “Q” (Qts) | 0.69 |
| Woofer Dimensions | 12″ |
MATERIALS
| Feature | Specification |
|---|---|
| Basket Material | Stamped Metal |
| Center Cap Material | ABS |
| Cone Material | IMPP Composite |
| Damper | Poly cotton |
| Installation Ring | ABS |
| Magnet Material | Ferrite |
| Magnet Weight | 60 oz |
| Surround Material | Rubber |
| Surround Type | Rolled |
| Voice Coil Bobbin | Kapton |
| Voice Coil Type | Dual 4-Ohm |
| Voice Coil Wire | Copper |
| Wire Terminals | Push Type |
About The Product

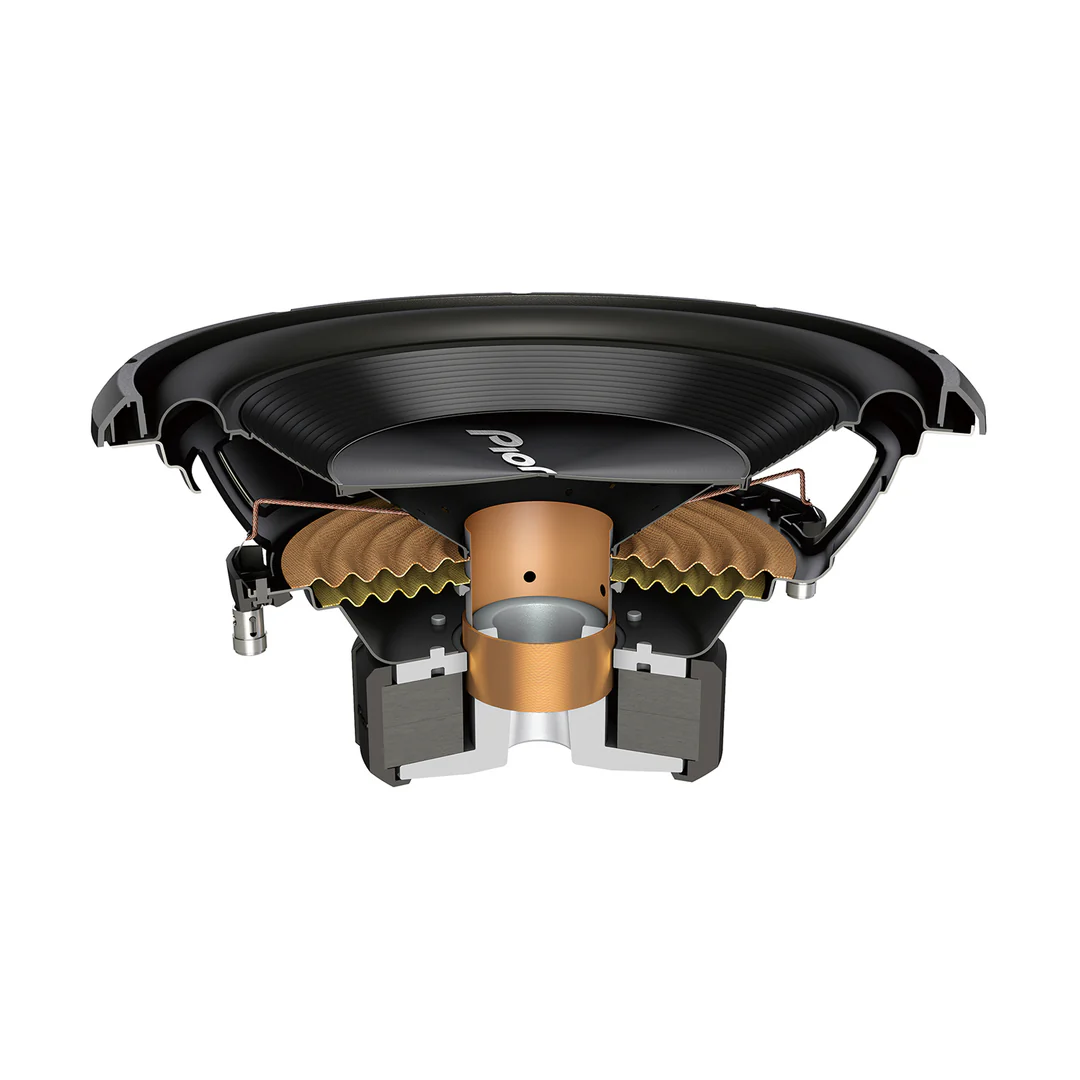

12” Dual 4 Ω Voice Coil Subwoofer – Glass fiber and mica interlaced Injection Molded Polypropylene (IMPP™) cone construction, Butyl rubber surround and polycotton / cotton dual spider for strength and linearity during high excursion, Oversized 60 oz double stacked magnet and vented pole yoke for increased power handling.
A Series
The highly efficient design of the Pioneer A Series speakers intentionally matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics, with dynamic, high-impact bass that lets you hear and feel the music. Pioneer’s OPEN & SMOOTH sound concept ensures a seamless transition between the midrange and tweeter drivers, delivering a uniform off-axis frequency response optimized for automotive applications, where one or more speakers are often aimed away from the listeners’ ears. The A Series lineup enhances audio details and improves acoustic performance.
Linear-Balanced Motion
Linear, balanced motion in both the forward and reverse directions of cone movement is critical in delivering accurate reproduction of recorded sound waves. Careful engineering of the entire motor structure and suspension system (voice coil, magnet, surround and spider) is required to maintain a high level of linearity, even during high output / high excursion transients.
CarSoundfit
Pioneer’s Car Sound Fit app is actually a car sound simulator for experiencing in-car sound with your own smartphone. Hear the difference between original car speakers and different Pioneer audio upgrades: convince yourself of the level of quality Pioneer can offer for your vehicle. For a virtual listening demonstration of these and many other Pioneer car speakers.
