Description

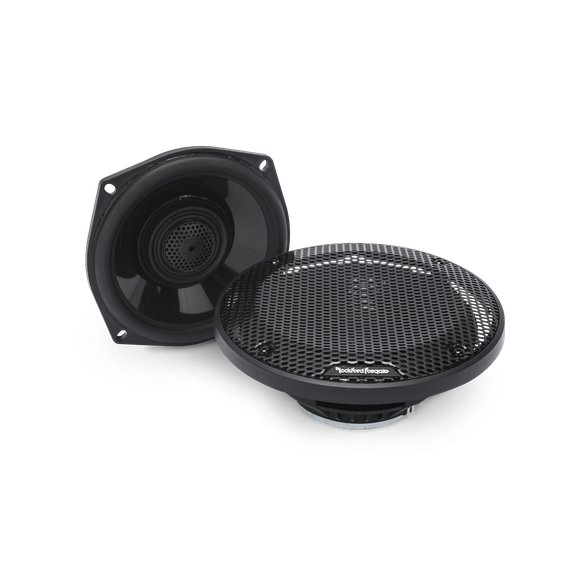

Rockford Fosgate TMS5
The TMS5 is a 5.25″ (full-range) coaxial speaker kit designed specifically for 1998–2013 Harley‑Davidson motorcycles intended to replace the stock speakers in the rear “Tour‑Pak” (saddlebag audio) locations. It provides a weather‑resistant, direct‑fit upgrade with good mid/high‑range clarity, perfect for riders who want better sound from their bike without complicated installation.
Specifications
| Specification | Details |
|---|---|
| CEA-2031 Compliant | Yes |
| Midrange Size (Nominal Diameter) | 5.25″ |
| Tweeter Mounting Depth | N/A |
| Grille/Trim Ring Included | Yes |
| Mounting Hardware | Yes |
| Voice Coil Diameter | 1.40″ (35.6 mm) |
| Power Handling (MAX) | 130 Watts MAX |
| Power Handling (RMS) | 65 Watts RMS |
| Sensitivity | 94 dB @ 2.83V/1M 91 dB @ 1W/1M |
| Crossover | Built-in tweeter crossover |
| Midrange Mounting Depth | 2.05″ (52.0 mm) |
| Included In The Box | (2) Speakers (2) Speaker Grilles (1) Hardware Pack |
About The Product
The TMS5 is a full range coaxial speaker designed to fit the Tour-Pak speaker locations of the 1998 – 2013 model year Harley-Davison® Motorcycles. It features a Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround. It also features an ultra-efficient 25mm dome tweeter with integrated phase plug and is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker mounts using the factory hardware and comes with new grille assemblies.

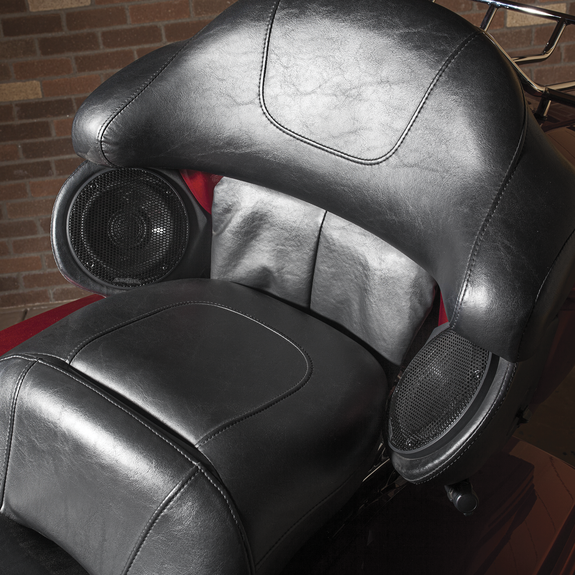

The TMS5 full range coaxial speaker is designed for direct fitment applications in 1998-2013 Harley-Davidson® motorcycles in the Tour-Pak locations. This speaker directly replaces the existing factory speakers using the factory mounting hardware and speaker connectors.
It features a compact Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround This ensures that you get maximum frequency response and output in both the mid and low frequency range. It also features an ultra-efficient 25mm dome tweeter with integrated phase plug for crisp clear highs even at highway cruising speeds.
It is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker requires no modification of the factory location and comes with new grille assemblies.
Harley-Davidson® is a registered trademark of Harley-Davidson Motor Company
