Description

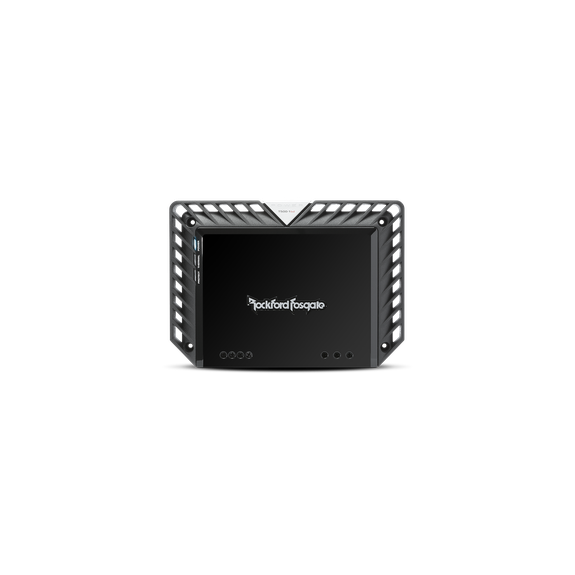

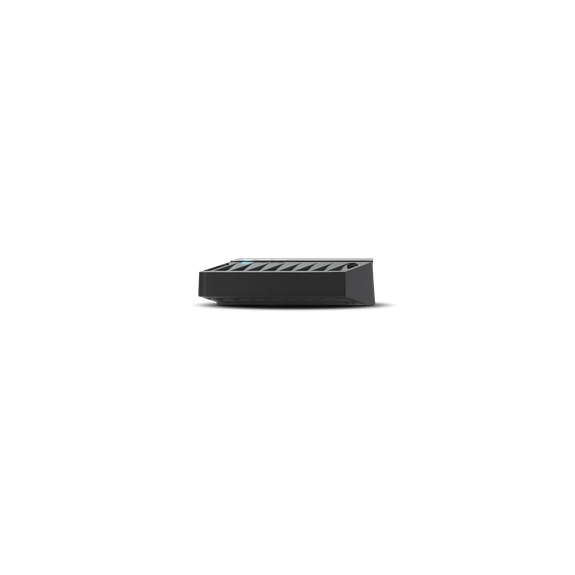

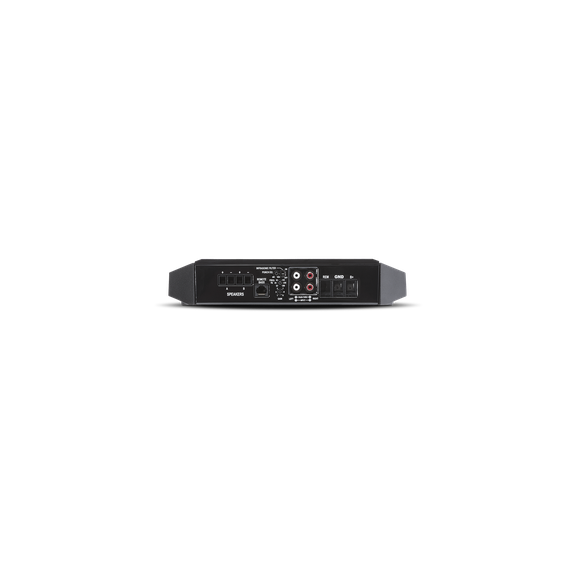

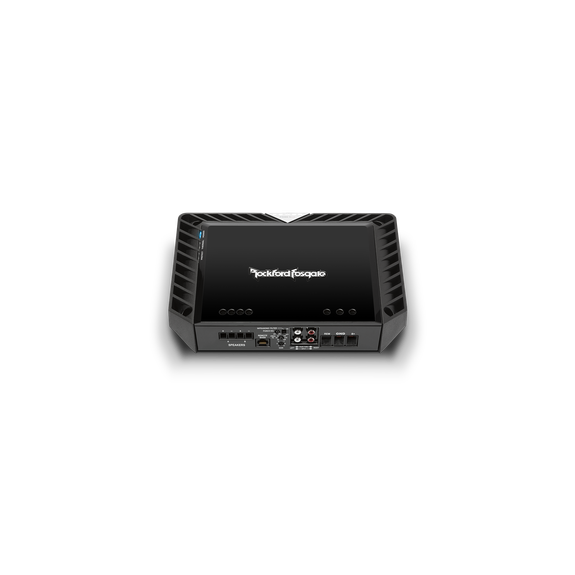

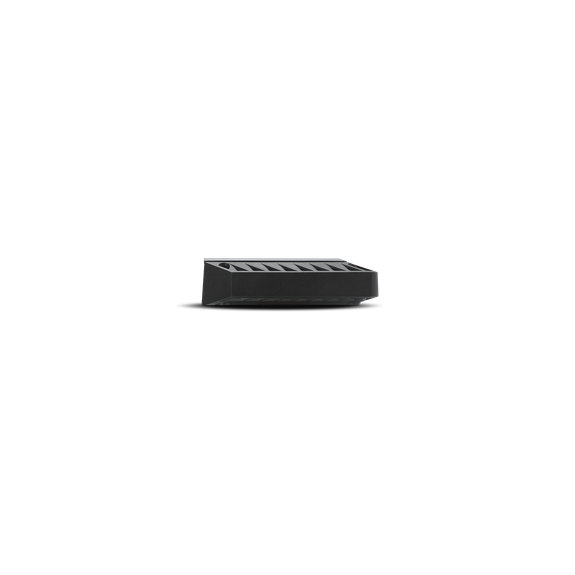

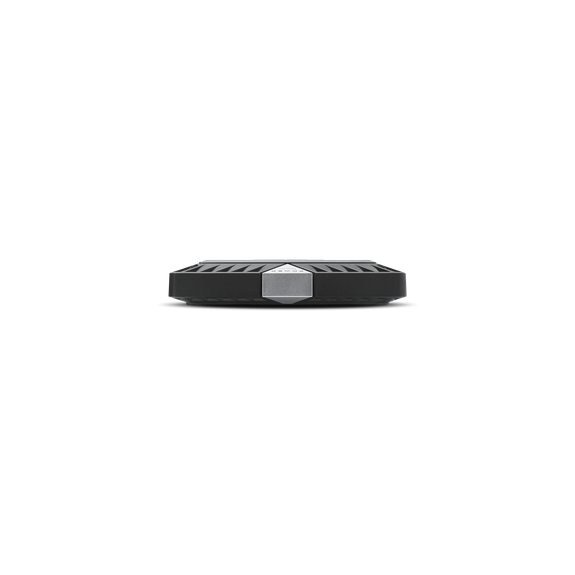

Rockford Fosgate T500-1bdCP
The T500‑1BDCP is a compact yet powerful mono subwoofer amplifier designed to deliver clean, deep bass. With a Class‑BD topology and Constant Power design, it ensures efficient power delivery and minimal distortion across various impedance loads. The amplifier features a Dynamic Thermal Management cooling system, which utilizes forced air to dissipate heat evenly, ensuring cooler internal components and higher efficiency.
Features
| Feature | Specification |
|---|---|
| Design | Constant Power – consistent output across different impedance loads |
| Amplifier Topology | Class-BD – combines Class D efficiency with Class A/B fidelity |
| Thermal Management | Dynamic Thermal Management with forced air cooling |
| Sound Tuning / Connectivity | Variable high-pass filters, bass/treble boost, optional remote bass/treble boost |
| Chassis / Installation | Compact design – easy to install in various vehicle setups |
Specifications
| Specification | Details |
|---|---|
| Model | T500‑1BDCP |
| Channels | Mono (1) |
| RMS Power Output | 300W × 1 @ 4Ω; 500W × 1 @ 2Ω; 500W × 1 @ 1Ω |
| Dynamic Power Output | 328W × 1 @ 4Ω; 537W × 1 @ 2Ω; 707W × 1 @ 1Ω |
| Frequency Response | 20Hz – 250Hz ±0.5dB |
| Amplifier Class | Class‑BD |
| Cooling System | Dynamic Thermal Management |
| Input Sensitivity | 150mV – 4V |
| Tone Controls | Bass: 0dB to +18dB @ 45Hz |
| Crossover Controls | Low‑Pass: 35Hz – 250Hz @ 24dB/octave Butterworth; Infrasonic: -3dB @ 28Hz 12dB/octave |
| Remote Control | Optional remote bass/treble boost |
| Power Wire Gauge | 4 AWG |
| Speaker Wire Gauge | 8 AWG to 18 AWG |
| Cooling Type | Convection |
| Operating Voltage | 9V – 16V DC |
| Dimensions (H x W x D) | 2.14″ x 8.14″ x 11.41″ |
| Weight | 13.39 lbs (6.07 kg) |
