Description
Sundown Audio SAEv4-900.5

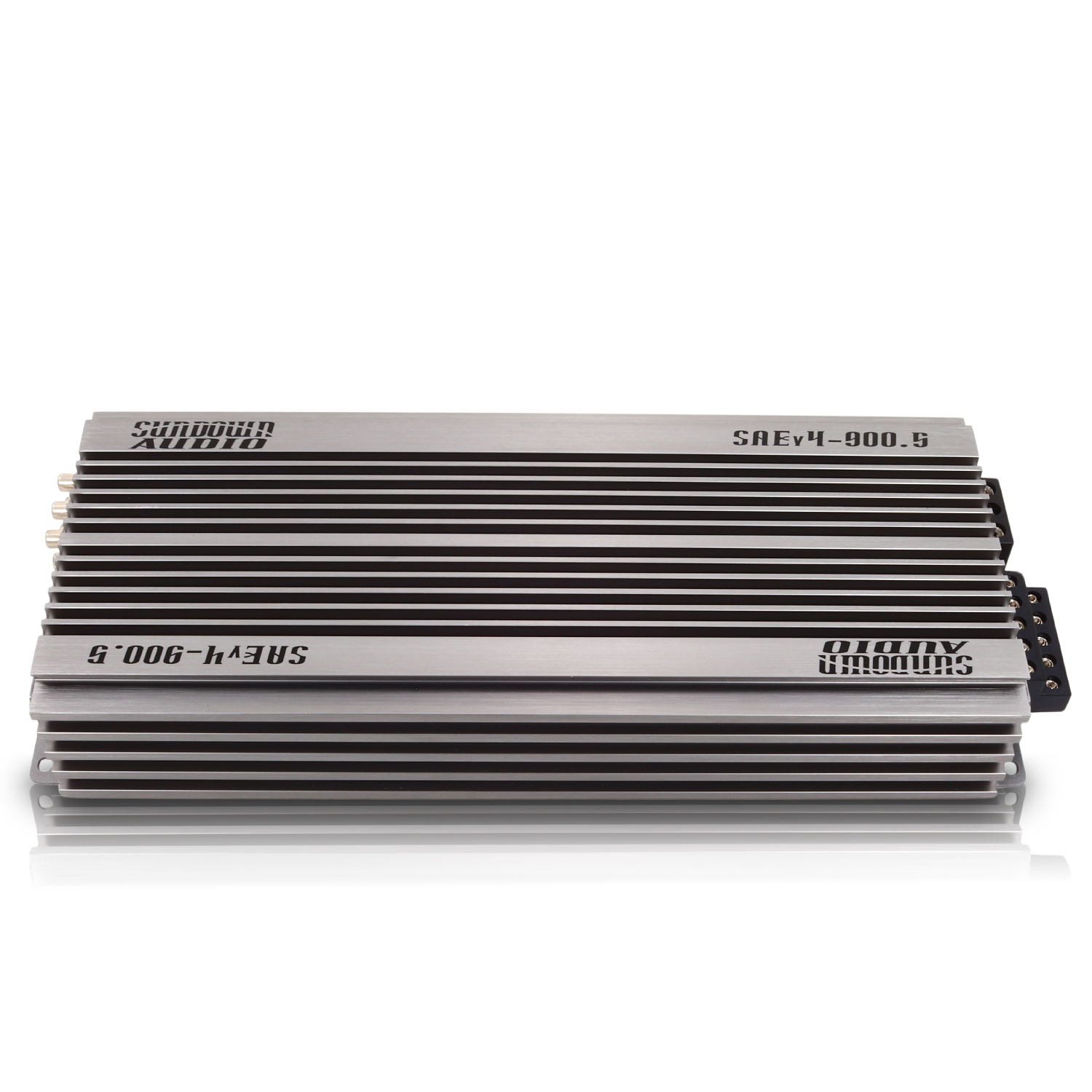

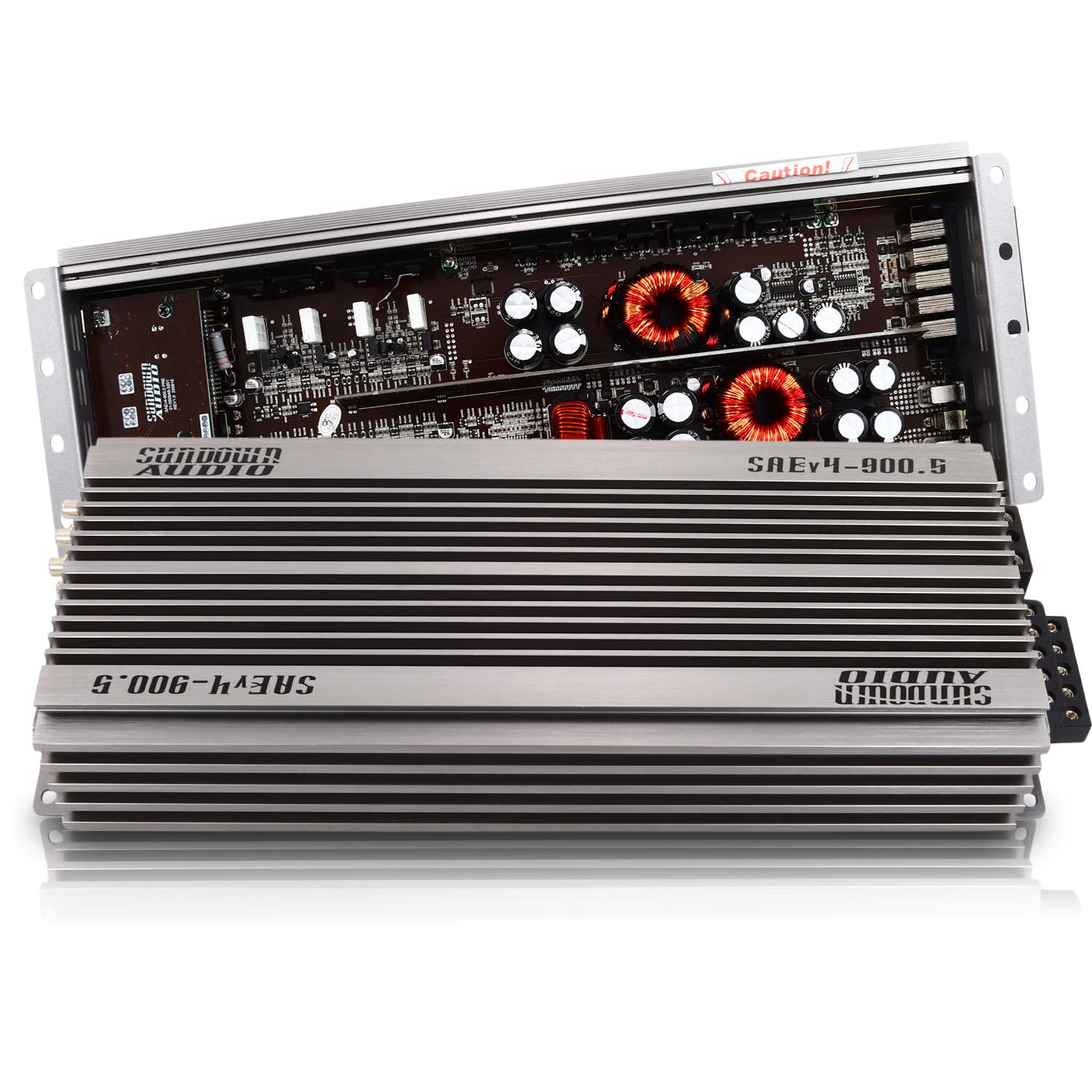

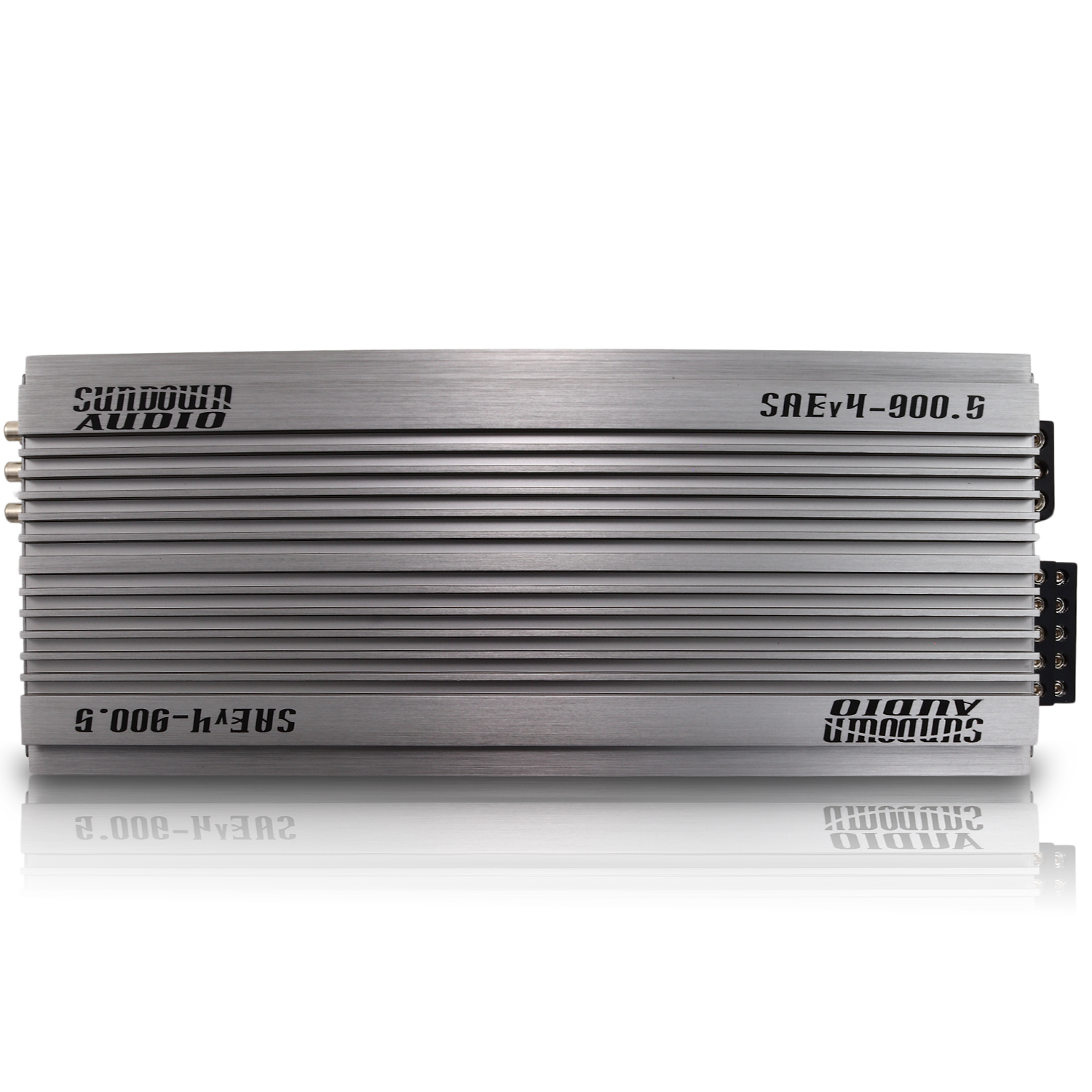

SAEv4‑900.5 is a 5‑channel car audio amplifier from the “SAEv4” series by Sundown Audio. It combines a 4‑channel Class A/B section (for driving speakers) with a mono Class D subwoofer channel allowing you to power a full car audio system (speakers + subwoofer) using a single amplifier. The amp is built with a robust heatsink/chassis (with 33 % more aluminum for cooling) and includes variable filters (high‑pass/low‑pass/subsonic), protection circuitry (thermal, voltage, speaker‑short, DC‑offset), and power/protect indicator LEDs.
Specifications
| Specifications | |
|---|---|
|
Product Sku
|
SAEv4-900.5 |
|
Amplifier Type
|
|
|
1 Ohm RMS Power
|
|
|
2 Ohm RMS Power
|
|
|
Operation Voltage
|
|
|
Signal / Noise Ratio
|
|
|
Variable 12dB Subsonic Filter
|
|
|
Variable 12dB High Pass Filters
|
|
|
Variable 12dB Low Pass Filters
|
|
| Dimensions | |
|
Length
|
|
|
Width
|
|
|
Height
|
|
Feature
- 120 x 4 (Ch. 1-4) + 325 x 1 @ 2 ohms RMS (Ch. 5)
- 80 x 4 (Ch. 1-4) + 225 x 1 @ 2 ohms RMS (Ch. 5)
- 500 x 1 @ 1 ohms RMS (Ch. 5)
- Hi-fidelity Class A/B+D design

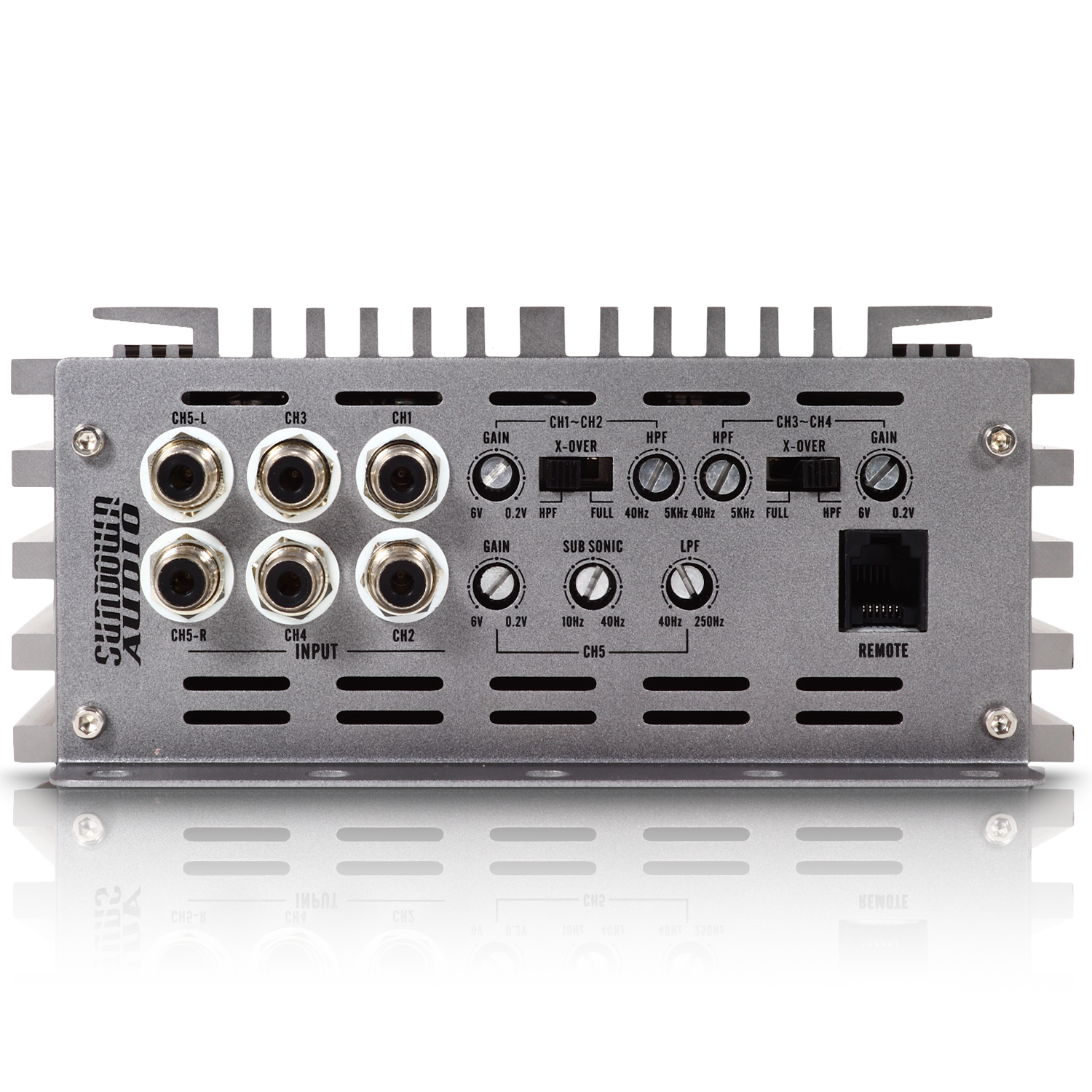

- Variable 12dB low & high pass filters: 40Hz-5kHz (Ch. 1-4)
- Variable 12dB low pass filter: 40Hz-250Hz (Ch. 5)
- Variable 12dB subsonic filter: 10Hz-40Hz (Ch.5)

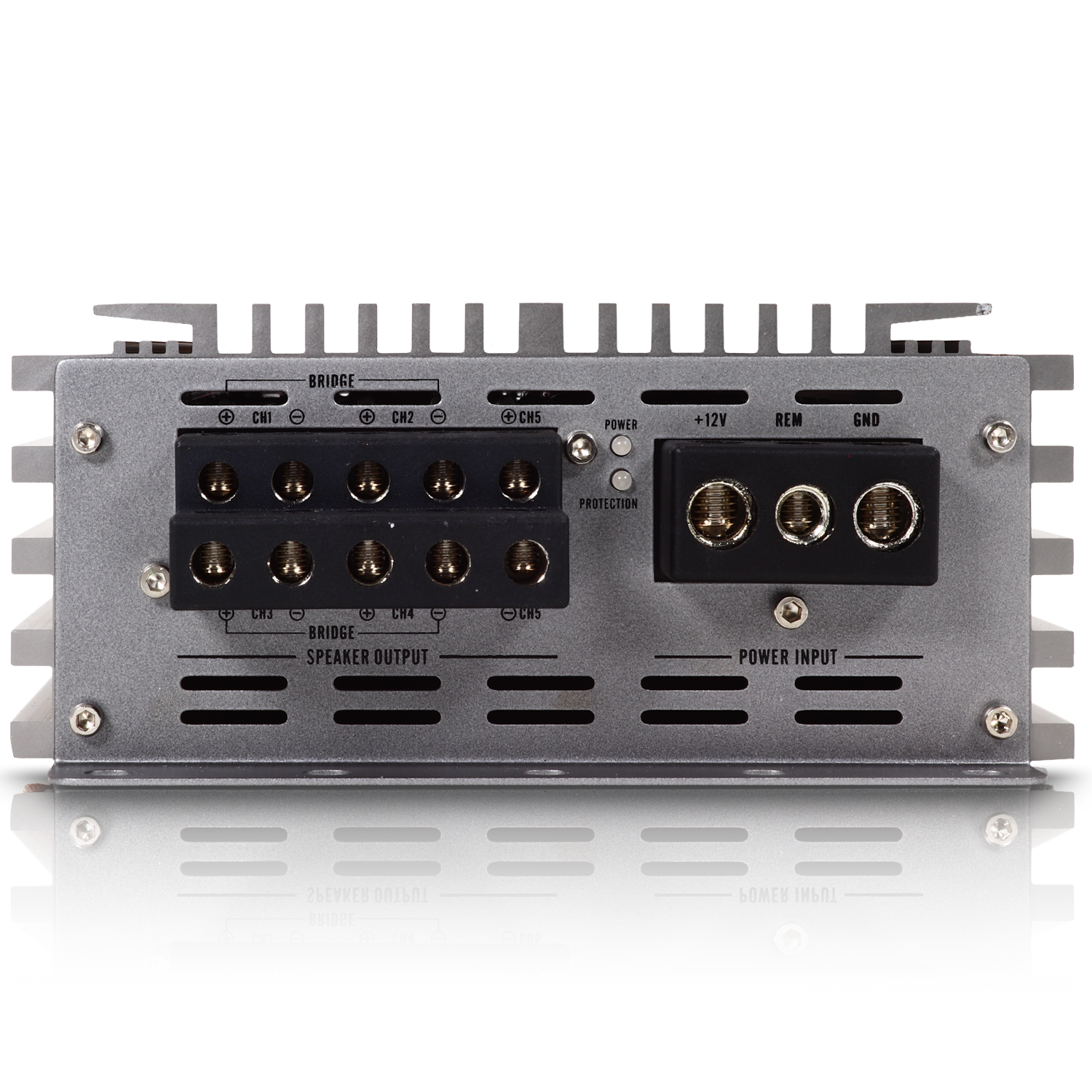

- Power and protection indicators included
- Thermal, voltage, speaker short, and dc-offset protection circuitry
- Optional wired remote control with clipping indicator
About The Product
Power your entire system with a single Sundown amp! The SAEv4 is engineered with high-fidelity Class A/B+D multi-channel architecture, providing an ideal balance between performance and affordability. Leveraging the latest half-bridge technology, these amplifiers deliver clean, powerful signals in a compact design.

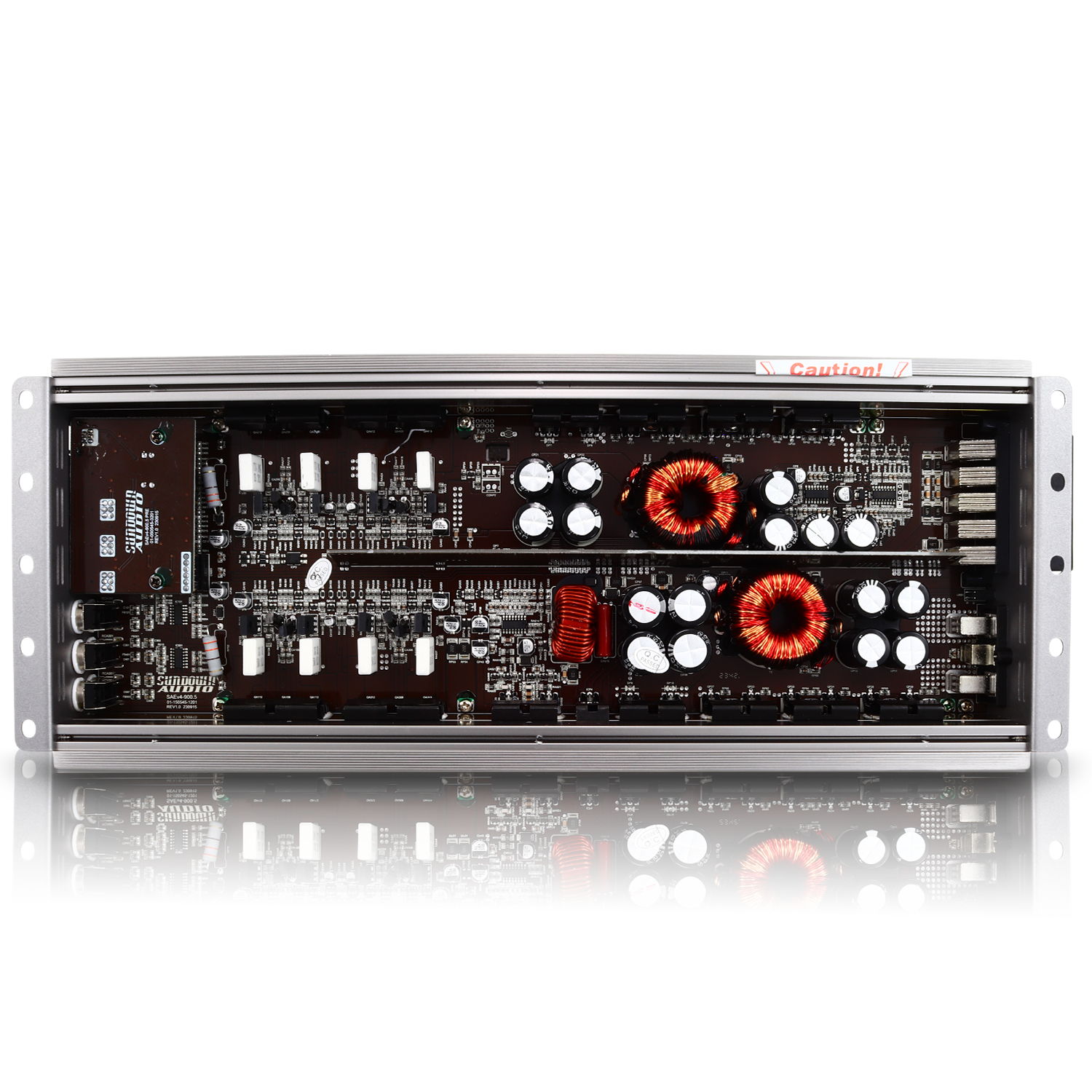

Featuring an all-new chassis and heatsink design with 33% more aluminum, this SAEv4 keeps your system cool, even when the music is cranked. The amp is packed with a variable subsonic, high pass and low pass filters, plus a 4-way protection circuit (thermal, voltage, speaker short, and DC offset).
With an input sensitivity of 6V max and 980 watts of RMS power at your fingertips, the SAEv4-900.5 is designed to drive your entire car audio system with precision and clarity!
