Name: Sundown Audio SAEv4-1000.1D
SKU: SAEv4-1000.1D
Availability: InStock

Description

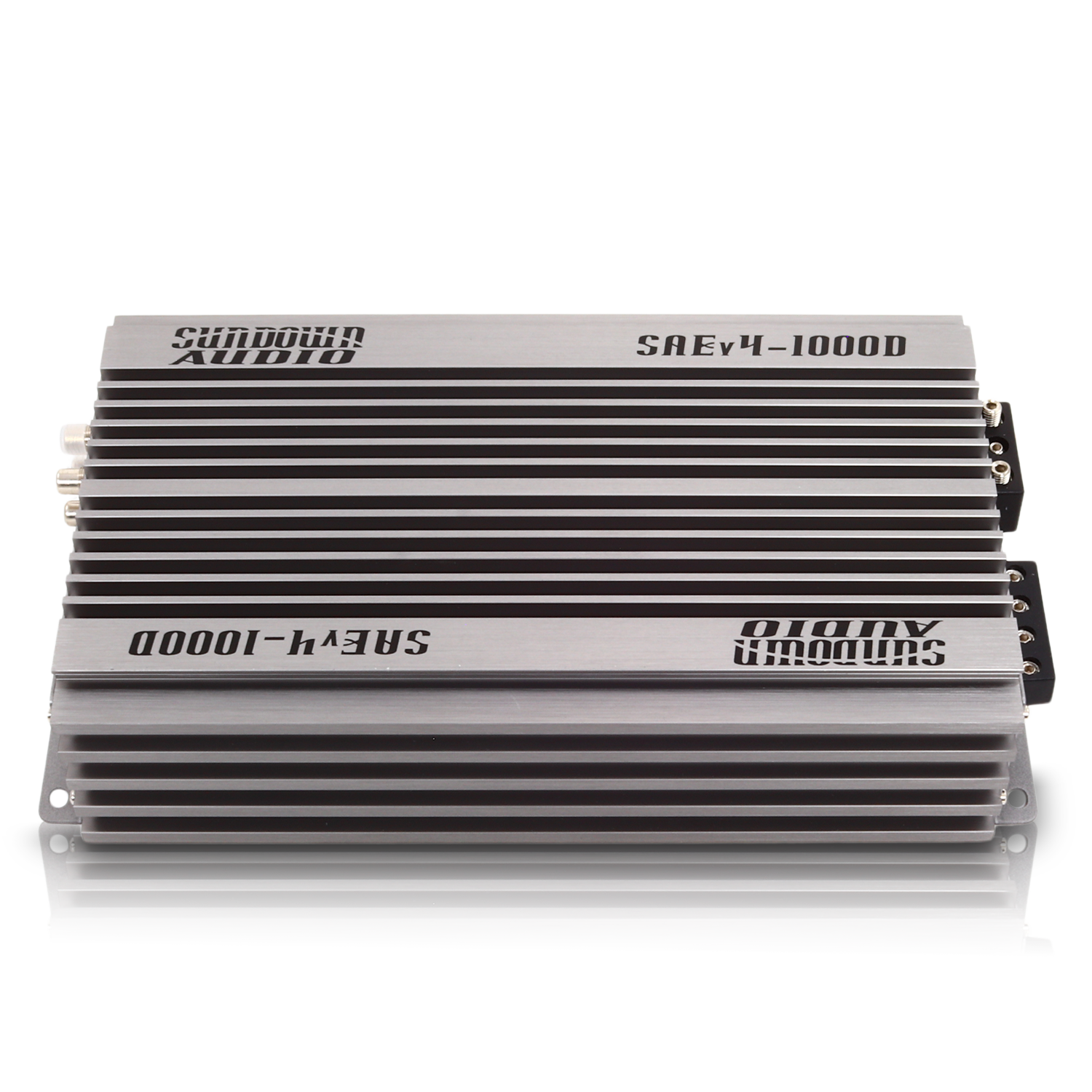

Sundown Audio SAEv4-1000.1D

SAEv4‑1000.1D is a mono‑block Class‑D amplifier made for subwoofer systems. It’s built to deliver strong, reliable bass while remaining compact featuring a heavy‑duty aluminum heatsink for thermal control, built‑in protection circuits, variable low‑pass & subsonic filters, phase shift control, and a wired remote bass/level control with clipping indicator. It’s optimized to drive low‑impedance loads (as low as 1 Ω), making it suitable for demanding bass/subwoofer setups.

Specifications

Specifications
Product Sku	SAEv4-1000.1D
Amplifier Type	Class D
1 Ohm RMS Power	1,000 x 1 @ 1 ohms RMS
2 Ohm RMS Power	600 x 1 @ 2 ohms RMS
4 Ohm RMS Power	375 x 1 @ 4 ohms RMS
Operation Voltage	DC 10.5V – 15.5V Power Input
Recommended Fuse	100Amps
Signal / Noise Ratio	92DB
Variable 12dB Subsonic Filter	10Hz – 40Hz
Variable 12dB Low Pass Filters	40Hz – 180Hz
Dimensions
Length	12.48″
Width	6.3″
Height	2.75

Feature

1,000 x 1 @ 1 ohms RMS
600 x 1 @ 2 ohms RMS
375 x 1 @ 4 ohms RMS
Class D amplifier

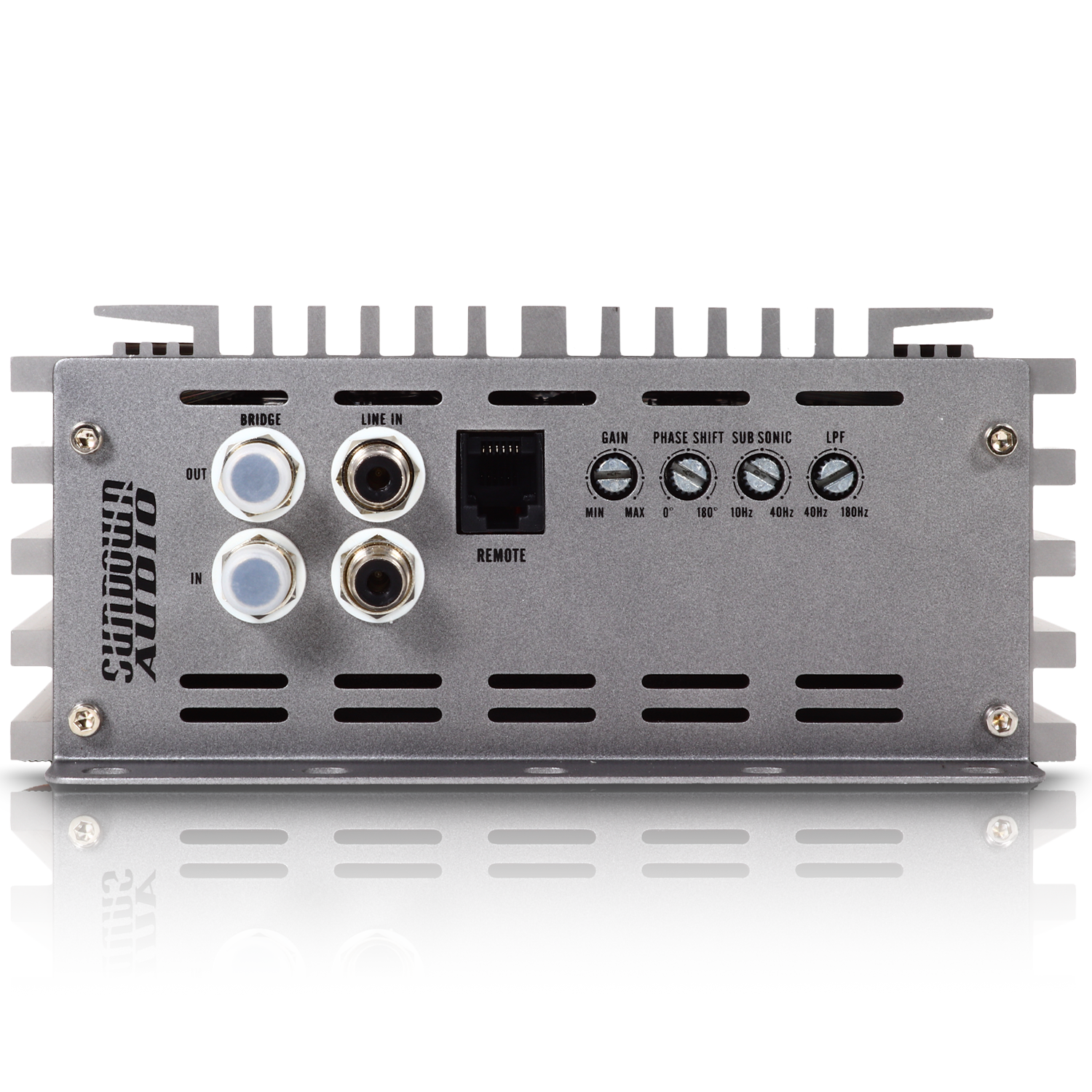

12dB variable low pass filter: 40Hz – 180Hz
12dB subsonic filter: 10Hz – 40Hz
Phase shift control 0-180 degrees

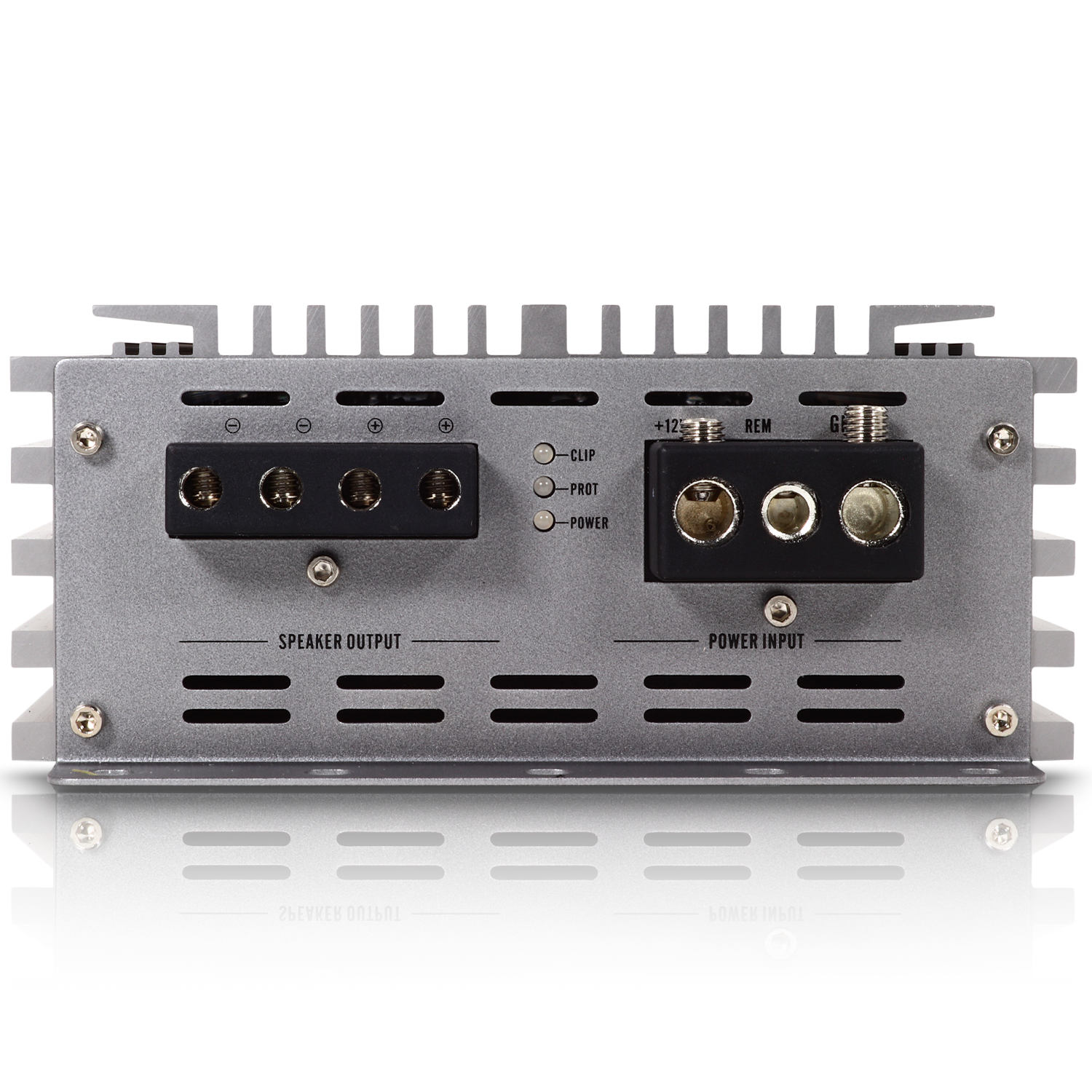

Power, clipping & protection indicators included
Heavy aluminum heat sink for improved thermal control
Thermal, voltage, speaker short, and dc-offset protection circuitry
Wired remote control with clipping indicator

About The Product

The Sundown Audio SAEv4-1000D is a simple, powerful upgrade for any car audio enthusiast seeking superior sound quality and reliability. This high-performance half-bridge class D amplifier ensures powerful, detailed output. The variable phase, lowpass and subsonic filters provide the control you need – for the sound you love.

Featuring robust protection circuitry against thermal, voltage, speaker short, and DC-offset issues, along with power and protection indicators, this amplifier guarantees long-lasting durability, while the heavy aluminum heat sink enhances thermal control, preventing overheating during extended use. The included wired remote with clipping indicator provides real-time monitoring and output control!
