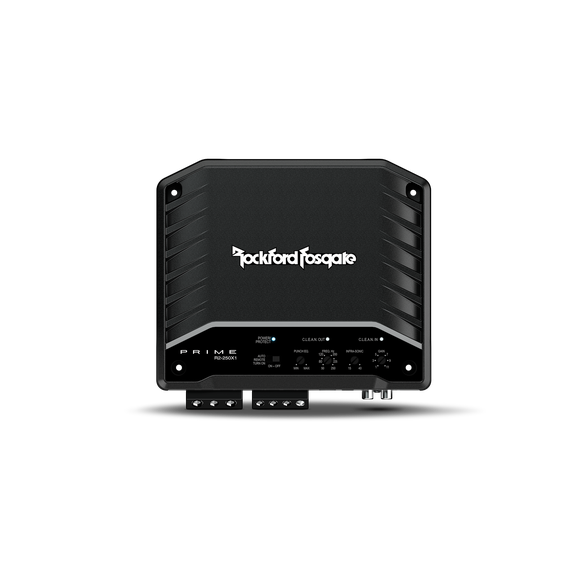

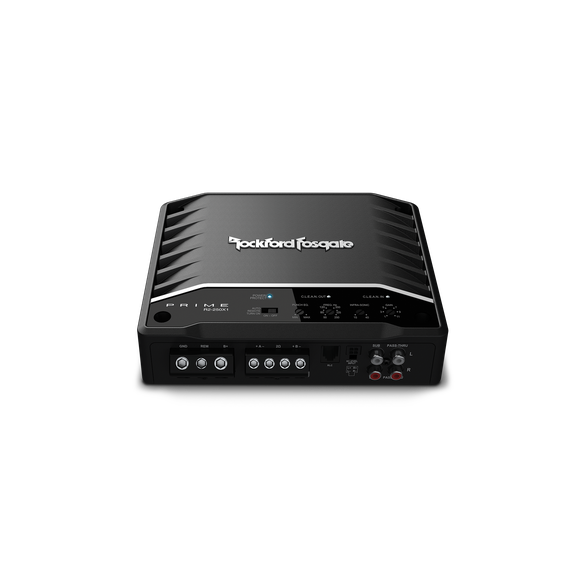

Rockford Fosgate R2-250X1
The Rockford Fosgate R2-250X1 is a compact mono subwoofer amplifier from the Prime Series. Built with Class-D technology, it delivers efficient power and strong, clean bass for entry-level to mid-range systems. With features like Punch EQ, variable low-pass and infrasonic filters, and C.L.E.A.N. gain setup, it ensures distortion-free sound and reliable performance. Ideal for powering a single subwoofer in smaller car audio setups.
Features
| Feature | Details |
|---|---|
| RMS Power Output | 150 W × 1 @ 4 Ω |
| 250 W × 1 @ 2 Ω | |
| Amplifier Type | Class-D mono – efficient and powerful |
| Crossover / Filters | Variable low-pass filter (50–250 Hz) |
| Infrasonic filter (15–40 Hz) | |
| EQ | Onboard Punch EQ (up to +18 dB @ 45 Hz) |

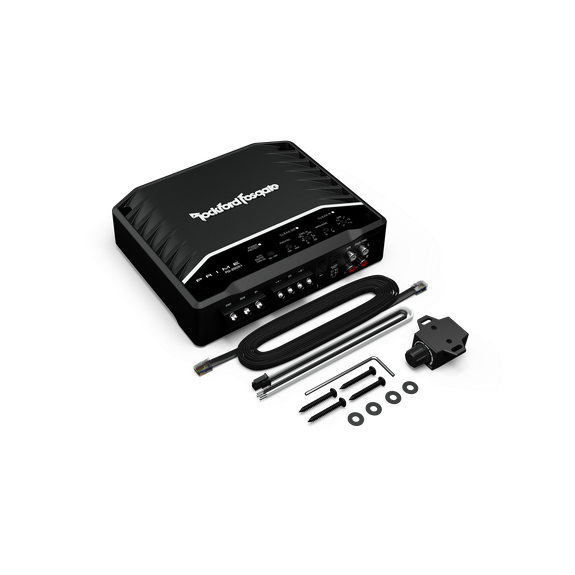

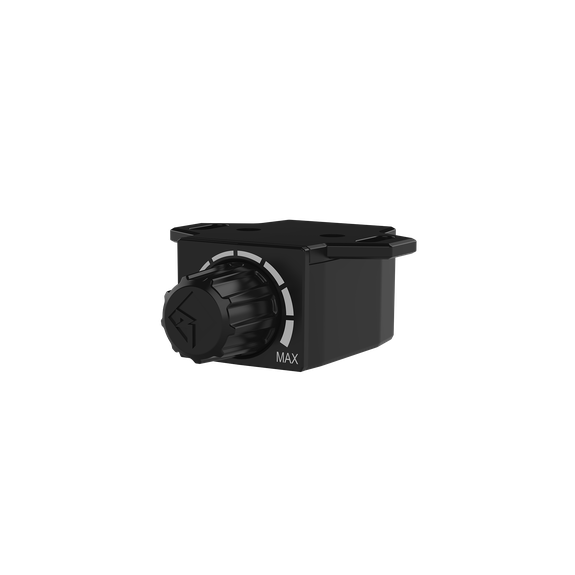

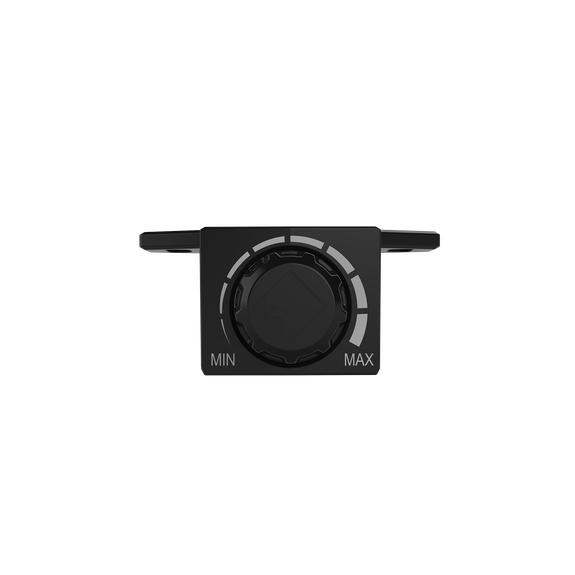

| Remote Control | Includes Remote Level Control (RLC) |
Specifications
| Specification | Details |
|---|---|
| Model | R2-250X1 |
| Channels | Mono (1) |
| RMS Power Output | 150W ×1 @ 4 Ω; 250W ×1 @ 2 Ω |
| Frequency Response | 20 Hz – 250 Hz |
| Input Sensitivity | Low-Level: 150 mV – 4 V; High-Level: 450 mV – 12 V |
| Built-in Crossovers | Low-Pass: 50-250 Hz (12 dB/octave) |
| Infrasonic Filter | 15-40 Hz (Butterworth) |
| Tone Control | Punch EQ: 0-18 dB @ 45 Hz |
| Remote | Wired Remote Level Control included |
| Fuse Rating | 50 A recommended |
| Power/Ground Wire Gauge | 8 AWG recommended |
| Dimensions (approx.) | 8.5″ W × 2″ H × 7″ D |
