Description

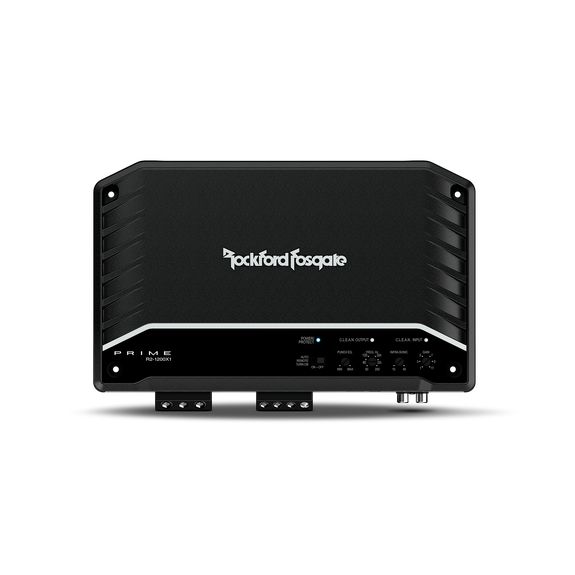

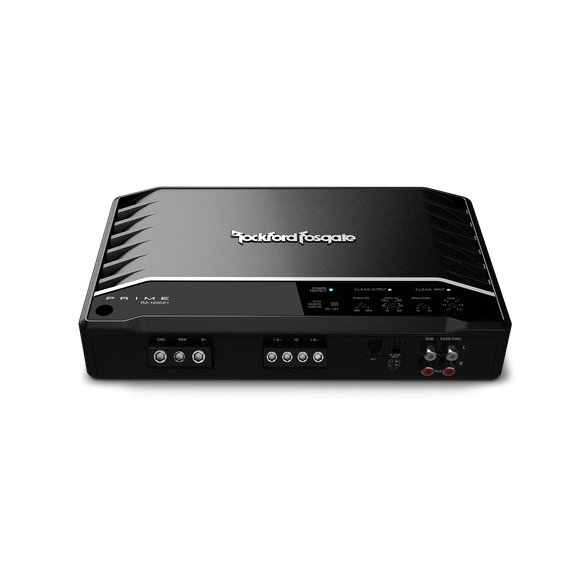

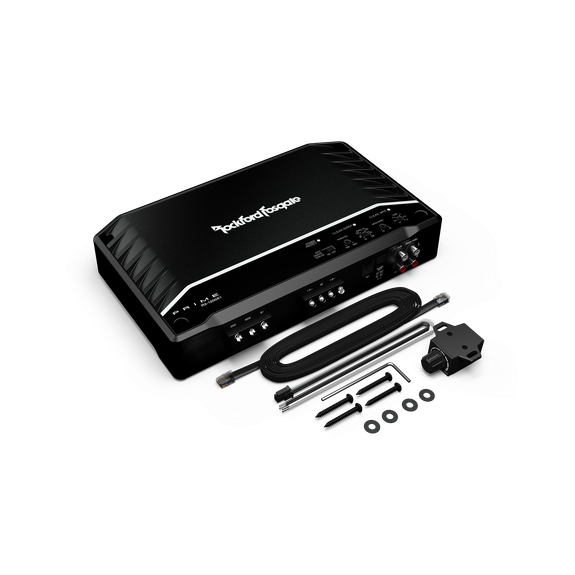

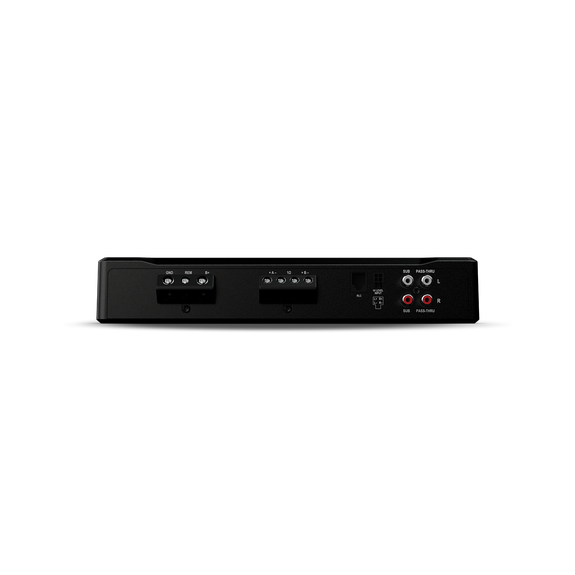

Rockford Fosgate R2-1200X1
The Rockford Fosgate R2-1200X1 is a high-power mono amplifier from the Prime Series, designed to deliver strong, clean bass for serious car audio enthusiasts. Using Class-D technology, it provides high efficiency, stable power output, and protection under demanding conditions. It features variable crossovers, Punch EQ for deep bass, C.L.E.A.N. gain setup with clip indicators, and both high-level and low-level inputs. Perfect for powering large subwoofers with reliable performance.
Features
| Feature | Details |
|---|---|
| RMS Power Output | 400 W × 1 @ 4 Ω |
| 800 W × 1 @ 2 Ω | |
| 1200 W × 1 @ 1 Ω | |
| Amplifier Type | Class-D mono amplifier for efficient power delivery |
| Crossover / Filters | Variable low-pass filter (50–250 Hz) |
| Infrasonic filter (15–40 Hz) | |
| EQ | Punch EQ boost: 0–18 dB @ 45 Hz for deeper bass |

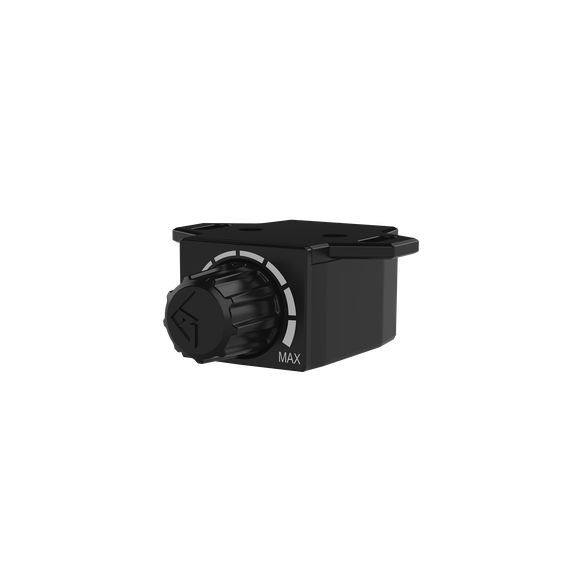

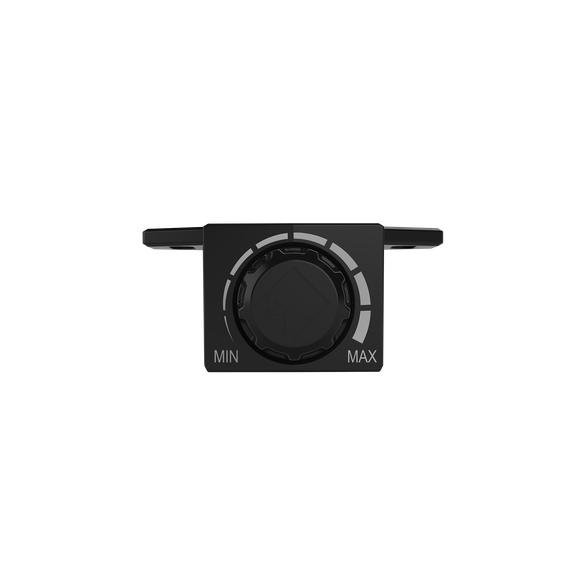

| Remote Control | Wired Remote Level Control (RLC) included |
Specifications
| Specification | Details |
|---|---|
| Model | R2-1200X1 |
| Channels | Mono (1) |
| RMS Power Output | 400W ×1 @ 4 Ω; 800W ×1 @ 2 Ω; 1200W ×1 @ 1 Ω |
| Frequency Response | 20 Hz – 250 Hz |
| Input Sensitivity | Low-Level: 150 mV – 4 V; High-Level: 450 mV – 12 V |
| Built-in Crossovers | Low-Pass: 50–250 Hz (12 dB/octave) |
| Infrasonic Filter | 15–40 Hz (Butterworth) |
| Tone Control | Punch EQ: 0–18 dB @ 45 Hz |
| Remote | Wired Remote Level Control included |
| Fuse Rating | 120 A (external fuse recommended) |
| Power/Ground Wire Gauge | 4 AWG recommended |
| Dimensions (approx.) | 12″ W × 2″ H × 8″ D |
