Name: Alpine PSS‑TSLA‑223
SKU: PSS-TSLA-223
Availability: InStock

Description

Alpine PSS‑TSLA‑223

The Alpine PSS‑TSLA‑223 is a complete, plug‑and‑play sound system upgrade designed specifically for the 2022 and newer Tesla Model 3 equipped with the factory Base Audio system.
It includes high‑resolution certified speakers built with hybrid blue carbon‑fiber cones, a 10″ sealed subwoofer rated at 200 W RMS, and a 12‑channel Digital Sound Processor (DSP) with built‑in amplifier pre‑tuned for the Model 3 cabin. Designed for seamless integration, the kit replaces factory speakers with minimal to no cutting or modification required.

Specifications

Features

Feature	Description
System Type	Tesla Model 3 Sound System with Hi-Res Audio Certified Speakers
Components	Adds 10 Hi-Res Speakers, 10” Sealed Subwoofer, 12-Channel DSP/Amplifier
Installation	Direct-fit for 2022 Tesla Model 3 with factory base audio system, replaces factory speakers with no cutting or modification
Speaker Material	Lightweight & rigid hybrid blue carbon fiber speaker cone
Technology	Alpine Proprietary High Amplitude Multi-Roll (HAMR) Surround
Tuning	Pre-tuned and optimized for Tesla cabin acoustics
Amplifier Efficiency	Ultra-efficient; uses ~1 mile of range per hour at full volume
EV Optimization	Optimized for low-voltage battery range (12V–16V)

Tech Specs

Component	Specification
Subwoofer	10” sealed, 200W RMS
Amplifier/DSP	12-channel: 50W RMS x 6, 25W RMS x 4, 100W RMS x 2, or 200W RMS x 1 bridged
Front Door Speakers	6.5” midrange component, 50W RMS / 200W peak
Center Dash Speakers	4” midrange, 40W RMS / 160W peak
Rear Door Speakers	4” midrange, 40W RMS / 160W peak

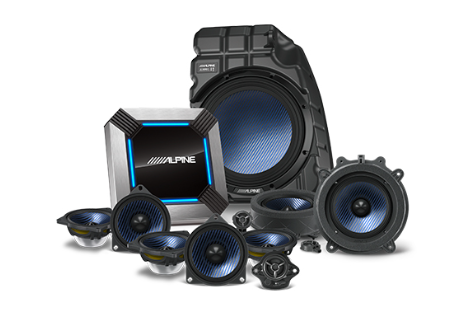

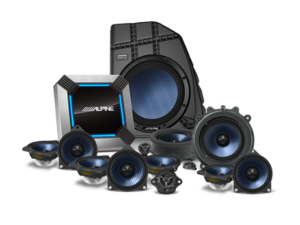

WHAT’S INCLUDED:

(2) 6.5” Midrange Component Front Door Speakers with 1” Tweeters

(2) 4” Midrange Rear Door Speakers

(3) 4” Midrange Center Dash Speakers with 1” Center Dash Tweeter

(1) 10” Sealed Subwoofer

(1) 12-Channel Digital Sound Processor with Built-in 12-Channel Amplifier

(1) Vehicle-Specific Harness for 2022 Tesla Model 3

About The Product

Designed to Fit Model 3

Designed specifically to fit 2022 Tesla Model 3 with Factory Base Audio, the PSS-TSLA-223 is a complete plug-and-play sound system that boasts the perfect combination of power and efficiency. Designed with the Tesla driver in mind, this system elevates the performance of your sound system while maintaining the integrity of your interior.

Seamless Integration

Custom-designed for a stealth installation, this 11-speaker, complete sound system upgrade easily replaces the factory speakers with no cutting or modification required. A 10” sealed subwoofer is added in the rear trunk and provides a powerful boost of bass performance to the system.
